ACU-RITE 2007 Manuale utente

Instruction Manual

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor..... 2

Features & Benets: Display.... 3

Setup .................................... 6

Sensor Setup ......................... 6

Display Setup ........................ 7

Setup Preferences .................. 8

Intelli-Time Clock.................... 8

Backlight Settings................... 9

Placement Guidelines ............10

Using the Weather Station.....11

Troubleshooting ....................12

Care & Maintenance.............13

Replace Intelli-Time® Battery

....14

Calibration ...........................14

Specications........................15

FCC Information ...................15

Customer Support .................16

Warranty..............................16

Weather Station

model 02007

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit

2. Outdoor sensor

3. Power adapter

4. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being

sent to the display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

5. Battery Compartment Cover

Features & Benets

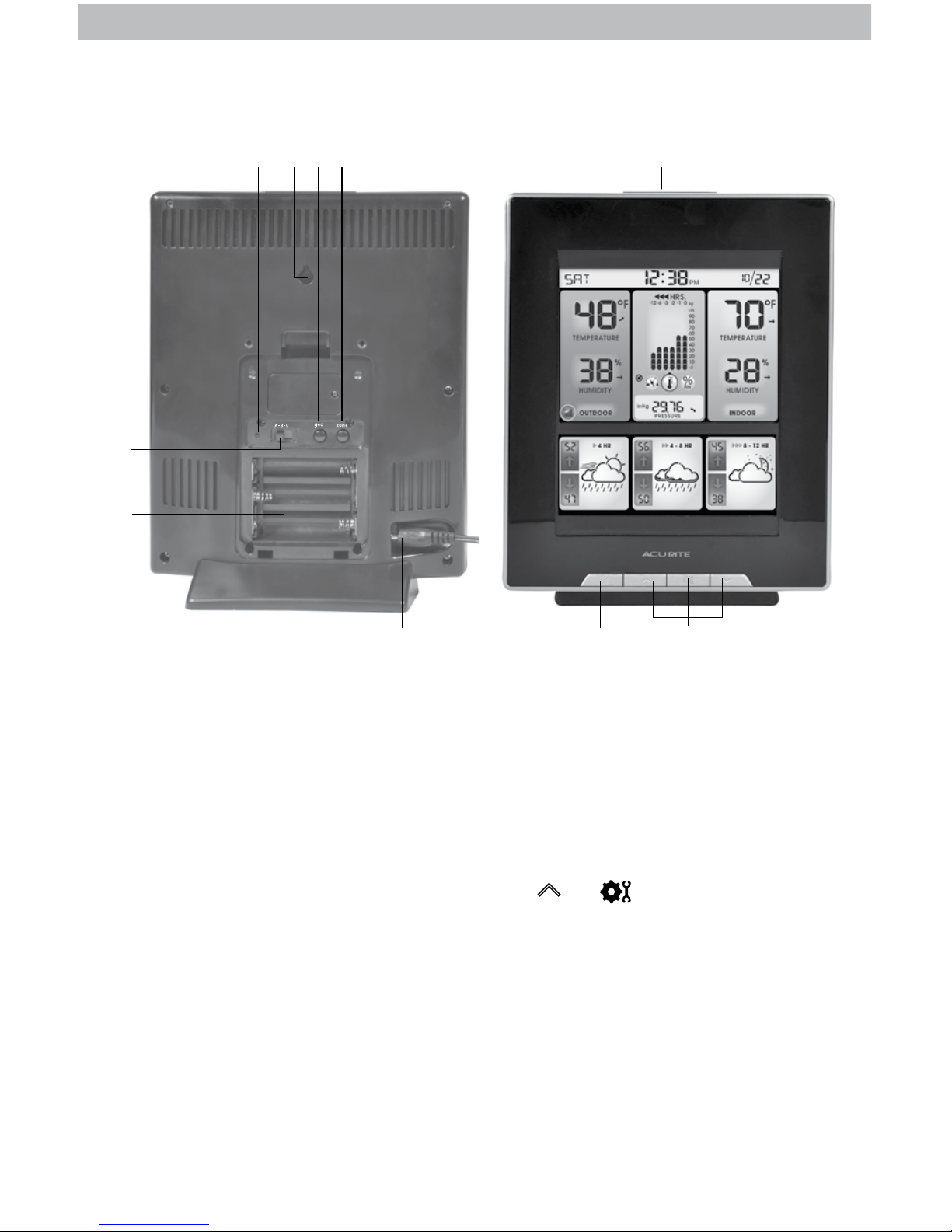

BACK OF DISPLAY UNIT

6. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure

units synchronize.

7. Battery Compartment

8. RESET Button

Full reset to factory defaults.

9. Integrated Hang Hole

for easy mounting.

10. GEO Button

Set geographic region preference.

11. ZONE Button

Set time zone preference.

12. Plug-in for Power Adapter

13. Battery Compartment Cover

(not shown)

FRONT OF DISPLAY UNIT

14. HISTORY CHART Mode

Press to toggle between pressure,

outdoor temperature or outdoor

humidity on History Chart. Press and

hold for 4 seconds to enter auto-cycle

mode (5 second rotation).

15. ”T”, ” ” & ”

” Buttons

for setup preferences.

16. Backlight Button

(top of display unit)

10 118 9 16

151412

Features & Benets

12 14 1513 16

282931 30 27 26 25

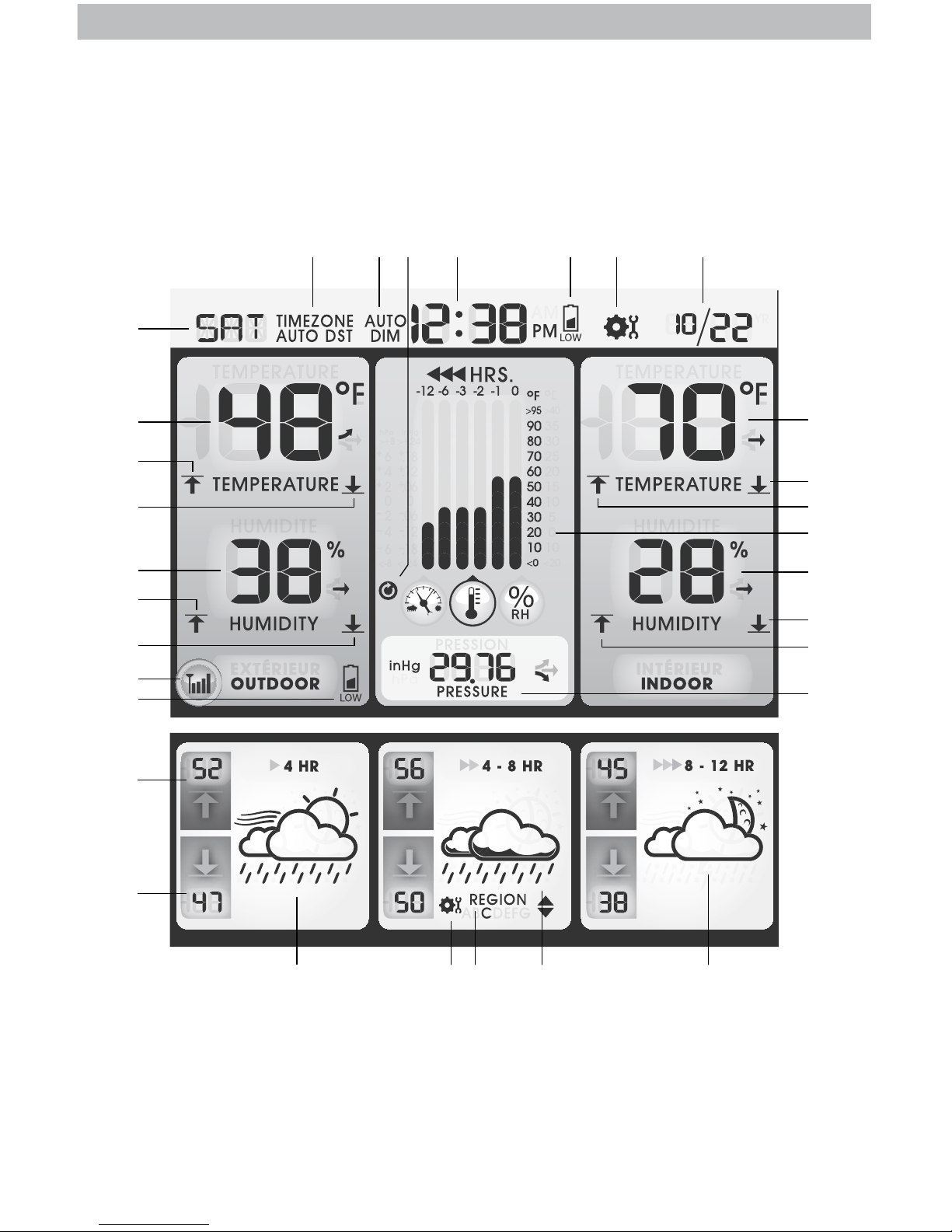

DISPLAY UNIT

1. Day of the Week

2. Current Outdoor Temperatur

Arrow icon indicates direction

temperature is trending.

3. Outdoor High Temperature Record

Indicates highest outdoor temperature

recorded since midnight.

4. Outdoor Low Temperature Record

Indicates lowest outdoor temperature

recorded since midnight.

5. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

6. Outdoor High Humidity Record

Indicates highest outdoor humidity

recorded since midnight.

7. Outdoor Low Humidity Record

Indicates lowest outdoor humidity

recorded since midnight.

8. Outdoor Sensor Signal Strength

9. Low Sensor Battery Indicator

10. Forecasted High Temperature

11. Forecasted Low Temperature

12. Up to 4 Hour Weather Forecast

Precision Forecasting combines

regional trends with data from your

outdoor sensor to generate your

personal forecast.

13. GEO SET Icon

Flashes to indicate Geo Zone setup

mode.

14. Geographic Region Selection

for setup preferences.

15. 4 to 8 Hour Weather Forecast

16. 8 to 12 Hour Weather Forecast

17. Barometric Pressure

Arrow icon indicates direction

pressure is trending.

18. Indoor High Humidity Record

Indicates highest indoor humidity

recorded since midnight.

19. Indoor Low Humidity Record

Indicates lowest indoor humidity

recorded since midnight.

20. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

21. Multi-Variable History Chart

Displays the past 12 hours of data

for pressure, outdoor temperature or

outdoor humidity.

22. Indoor High Temperature Record

Indicates highest indoor temperature

recorded since midnight.

23. Indoor Low Temperature Record

Indicates lowest indoor temperature

recorded since midnight.

24. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

25. Date

26. SET Icon

Flashes to indicate setup mode.

27. Display Unit Low Battery Indicator

28. Intelli-Time®Clock

29. Auto-Cycle Mode Indicator

30. AUTO DIM Indicator

31. Time Zone & Daylight Saving Time

for setup preferences, shown only

during setup.

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries in

the outdoor sensor for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The sensor requires lithium

batteries in low temperature

conditions. Cold temperatures

can cause alkaline batteries

to function improperly. Use

lithium batteries in the sensor for

temperatures below -4ºF / -20ºC.

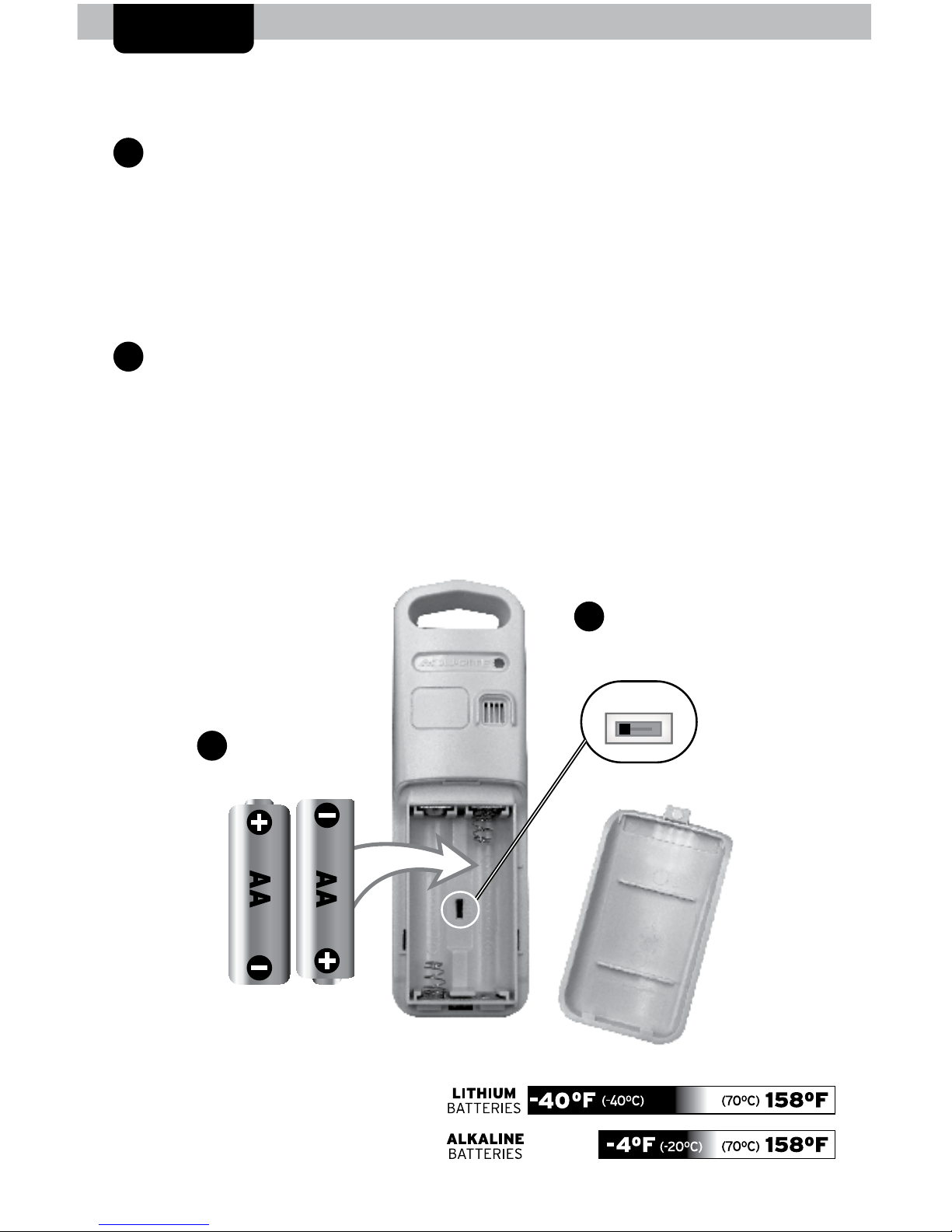

1. Slide off the battery

compartment cover. Take note

of the A-B-C switch setting

inside the battery compartment

for display unit setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Sensor Setup

1A-B-C Switch

set to match

display unit

2Install Batteries

2 AA batteries

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Display Unit Setup

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

A B C

2Install Backup

Batteries (optional)

3 AA alkaline

batteries

IMPORTANT: Batteries are a backup power source to preserve records in the event of a

power outage. Power adapter recommended as the primary power source to enjoy the full

functionality of the product.

3Plug in Power

Adapter

1A-B-C Switch

set to match

sensor

Setup: Geographic Region

Select your geographic region according to

the map (pictured right) by pressing the

“GEO” button, located on the back of the unit

in the battery compartment. The letters for each

corresponding GEO region are shown on the

display screen. Geographic region must be set

in order for Precision Forecasting to function

properly. *The “ ” icon and geographic

region letter are only visible in GEO set mode.

You will automatically exit GEO set mode if no

buttons are pressed for 10 seconds. Enter GEO set

mode at any time by pressing the “GEO ” button

located inside the battery compartment.

Intelli-Time®Clock

Intelli-Time clock and calendar are pre-programmed to the correct time and

date, and update automatically for Daylight Saving Time. All you need to do is

select your time zone using the “ZONE” button.

Setup: Time, Date, Units & Language

Press the “ ” button, located on the front of the display unit, to enter SET

MODE. Once in set mode, the preference you are currently setting will blink on

the display.

To adjust the currently selected (ashing) item, press and release the “T” or

“

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

AUTO DST (Daylight Saving Time ON or OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

UNITS: TEMPERATURE (ºF or ºC)

UNITS: PRESSURE (inHg or hPa)

LANGUAGE (English or French)

*If you live in an area that observes DST, DST should be set to ON even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 30 seconds.

Enter SET MODE at any time by pressing the “ ” button.

ABCD

EFG

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “BACKLIGHT” button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press “BACKLIGHT” button once to dim to 60% brightness;

press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode.

AUTO DIM will appear to the left of the time.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

Display Unit Placement

Place display unit in a dry area free of dirt and dust. Display

stands upright for tabletop use or is wall-mountable. For wall

mounting, hang using the keyhole located on back of the unit.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions. Sensor

is water resistant and is designed for general outdoor use, however,

to extend its life place the sensor in an area protected from direct

weather elements.

Hang the sensor using the integrated hang holes or hanger, or by

using string (not included) to hang it from a suitable location, like a

well covered tree branch. The best location is 4 to 8 feet above the

ground with permanent shade and plenty of fresh air to circulate

around the sensor.

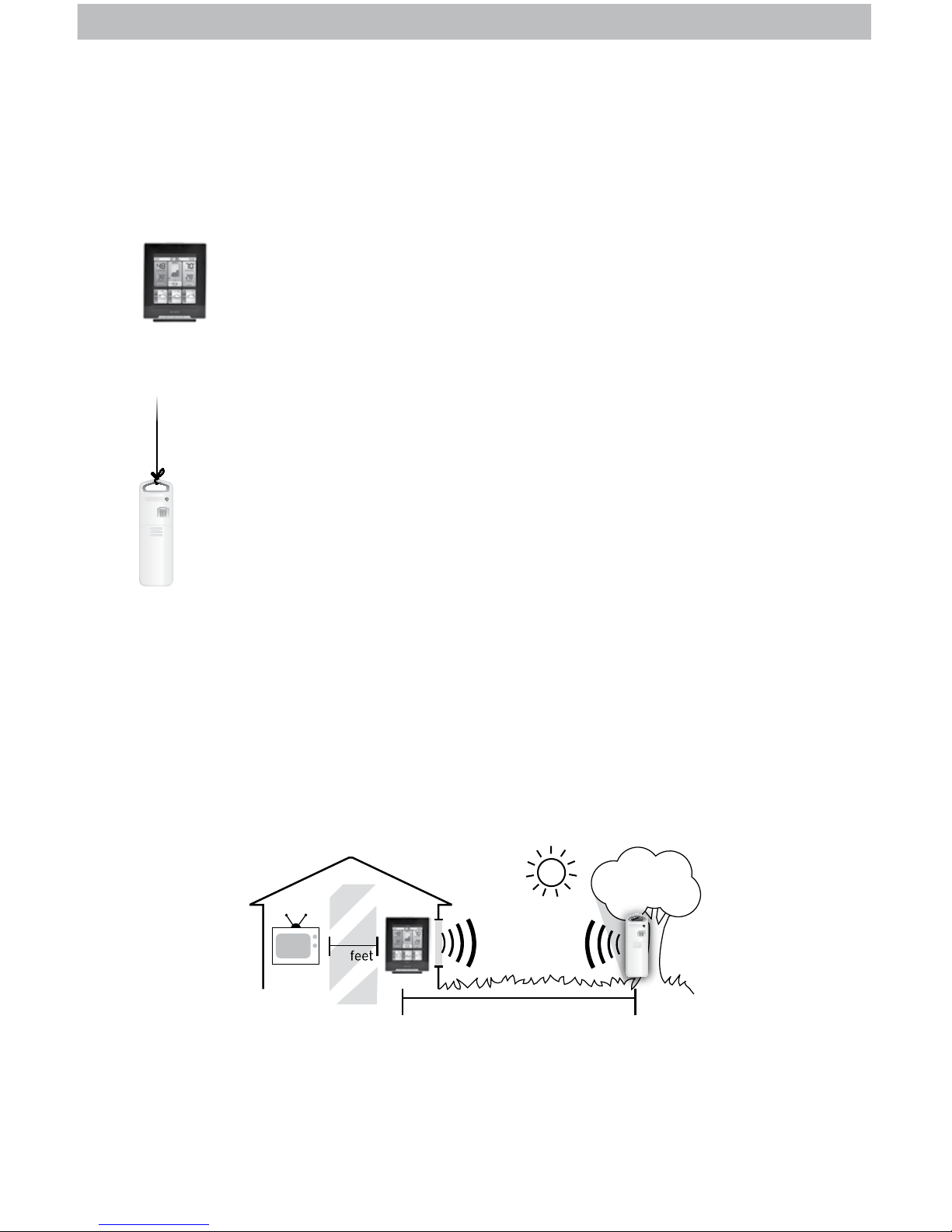

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

TV 3

(100 meters)

(330 feet maximum)

(.91 m)

LEAST

APART

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. NOTE: It will take up to 4 hours to

generate a weather forecast after initial setup.

Indice

Altri manuali ACU-RITE Stazione meteorologica

ACU-RITE

ACU-RITE 00786 Manuale utente

ACU-RITE

ACU-RITE 75321A1 Manuale utente

ACU-RITE

ACU-RITE 825 Manuale utente

ACU-RITE

ACU-RITE 06018RM Manuale utente

ACU-RITE

ACU-RITE 607 Manuale utente

ACU-RITE

ACU-RITE 1055RX Manuale utente

ACU-RITE

ACU-RITE 01512 Manuale utente

ACU-RITE

ACU-RITE 1025 Manuale utente

ACU-RITE

ACU-RITE Forecaster 00823 Manuale utente

ACU-RITE

ACU-RITE 06058 Manuale utente

ACU-RITE

ACU-RITE 1528 Manuale utente

ACU-RITE

ACU-RITE 00832 Manuale utente

ACU-RITE

ACU-RITE 75077 Manuale utente

ACU-RITE

ACU-RITE 02007/06035RM Manuale utente

ACU-RITE

ACU-RITE 1015 Manuale utente

ACU-RITE

ACU-RITE 589 Manuale utente

ACU-RITE

ACU-RITE 06020 Manuale utente

ACU-RITE

ACU-RITE 01604 Manuale utente

ACU-RITE

ACU-RITE 00639W Manuale utente

ACU-RITE

ACU-RITE 02032C Manuale utente

ACU-RITE

ACU-RITE 01118 Manuale utente

ACU-RITE

ACU-RITE 01193M Manuale utente

ACU-RITE

ACU-RITE 06101M Manuale utente

ACU-RITE

ACU-RITE 00251W Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
