Weather Center

model 00623 / 00632 / 00638

Instruction Manual

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. 3-in-1sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Instruction Manual

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and

2- This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, There is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.

Such modications could void the user authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

3-in-1 SENSOR

1. Temperature & Humidity Sensors

(internal)

2. Release Lever for Battery Access

3. Mounting Point

4. Wind Speed Anemometer

5. Mounting Hardware

Includes anchors and screws.

6. Mounting Bracket

7. A-B-C Switch (not shown)

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

Features & Benets

Display Unit

3130

2 3 4 5

18 17192021

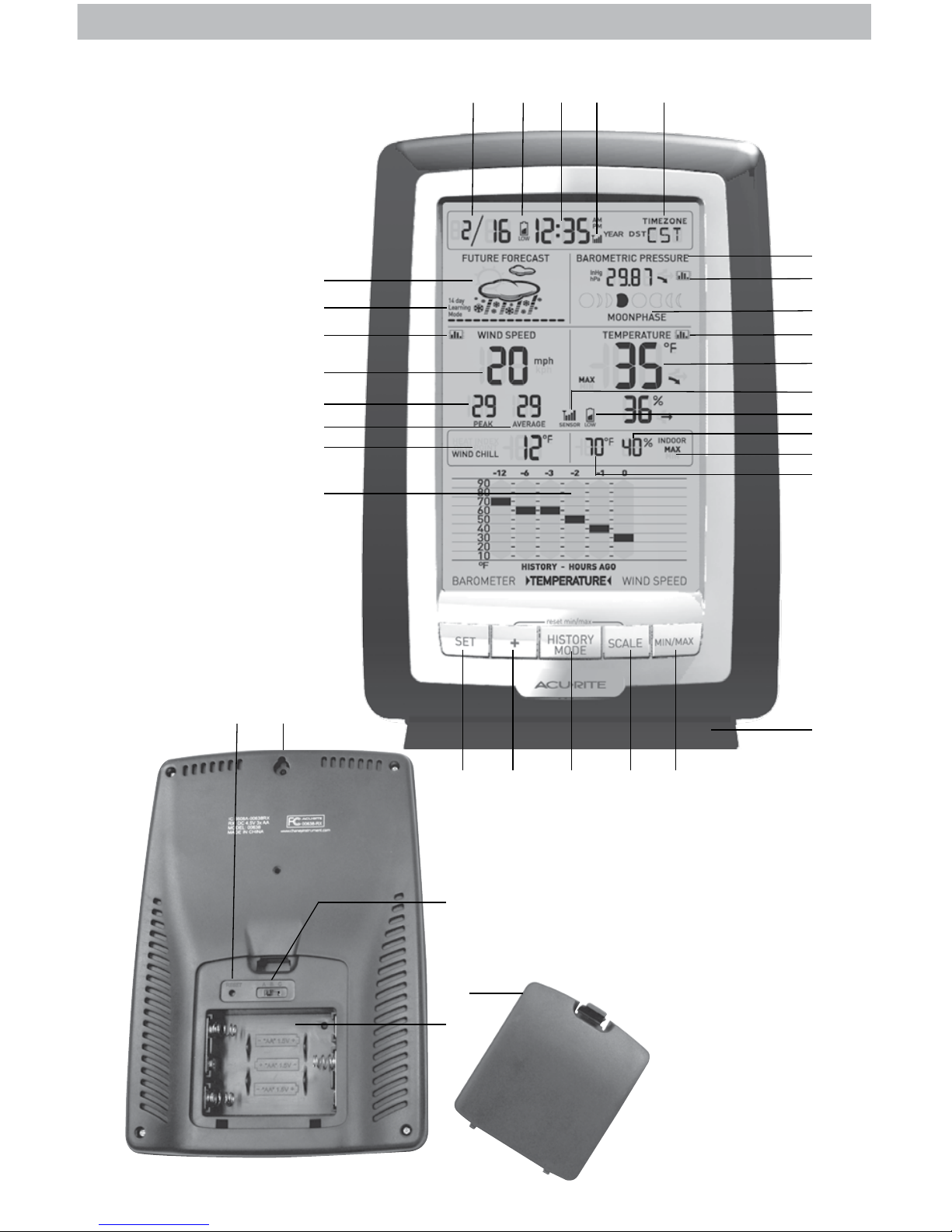

DISPLAY UNIT

1. Date

2. Low Battery Indicator

3. Atomic Clock

Maintains time with split-second

accuracy and automatically updates

for daylight saving time.

4. Atomic Clock Signal Strength

5. Selected Time Zone

6. Barometric Pressure

Arrow icon indicates the direction

the pressure is trending.

7. History Chart Icon

Indicates data is currently displayed on

the History Chart (22).

8. Moon Phase

9. History Chart Icon

Indicates data is currently displayed on

the History Chart (22).

10. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

11. Sensor Signal Strength

12. Low Sensor Battery Indicator

13. Current Indoor Humidity

14. High/Low Records Indicator

Indicates whether minimum or maximum

records are being shown.

15. Current Indoor Temperature

16. Removable Tabletop Stand

17. MIN/MAX Button

Press to view high or low records for

temperature and humidity.

18. SCALE Button

Changes data units to either

U.S. units or imperial units.

19. HISTORY MODE Button

Press to toggle between pressure,

temperature and wind speed data

on the History Chart (22).

20. + Button

For setup preferences.

21. SET Button

For setup preferences.

22. Multi-Variable History Chart

Displays the past 12 hours of data for

pressure, temperature or wind speed.

23. Seasonal

Displays heat index, dew point or

wind chill, depending on the current

outdoor temperature.

24. Average Wind Speed

Based on all wind speed readings

from the past 2 minutes.

25. Peak Wind Speed

Highest speed from past 60 minutes.

26. Current Wind Speed

27. History Chart Icon

Indicates data is currently displayed on

the History Chart (22).

28. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

29. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from the outdoor sensor to generate your

personal forecast.

BACK OF DISPLAY UNIT

30. Reset Button

Full reset to factory defaults.

31. Integrated Hang Hole

For easy wall mounting

32. A-B-C Switch

ID code that must match sensor’s A-B-C

switch to ensure units synchronize.

33. Battery Compartment Cover

34. Battery Compartment

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for

the best product performance.

Heavy duty or rechargeable

batteries are not recommended.

The 3-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures

can cause alkaline batteries to

function improperly. Use lithium

batteries in the 3-in-1 sensor for

temperatures below -4ºF / -20ºC.

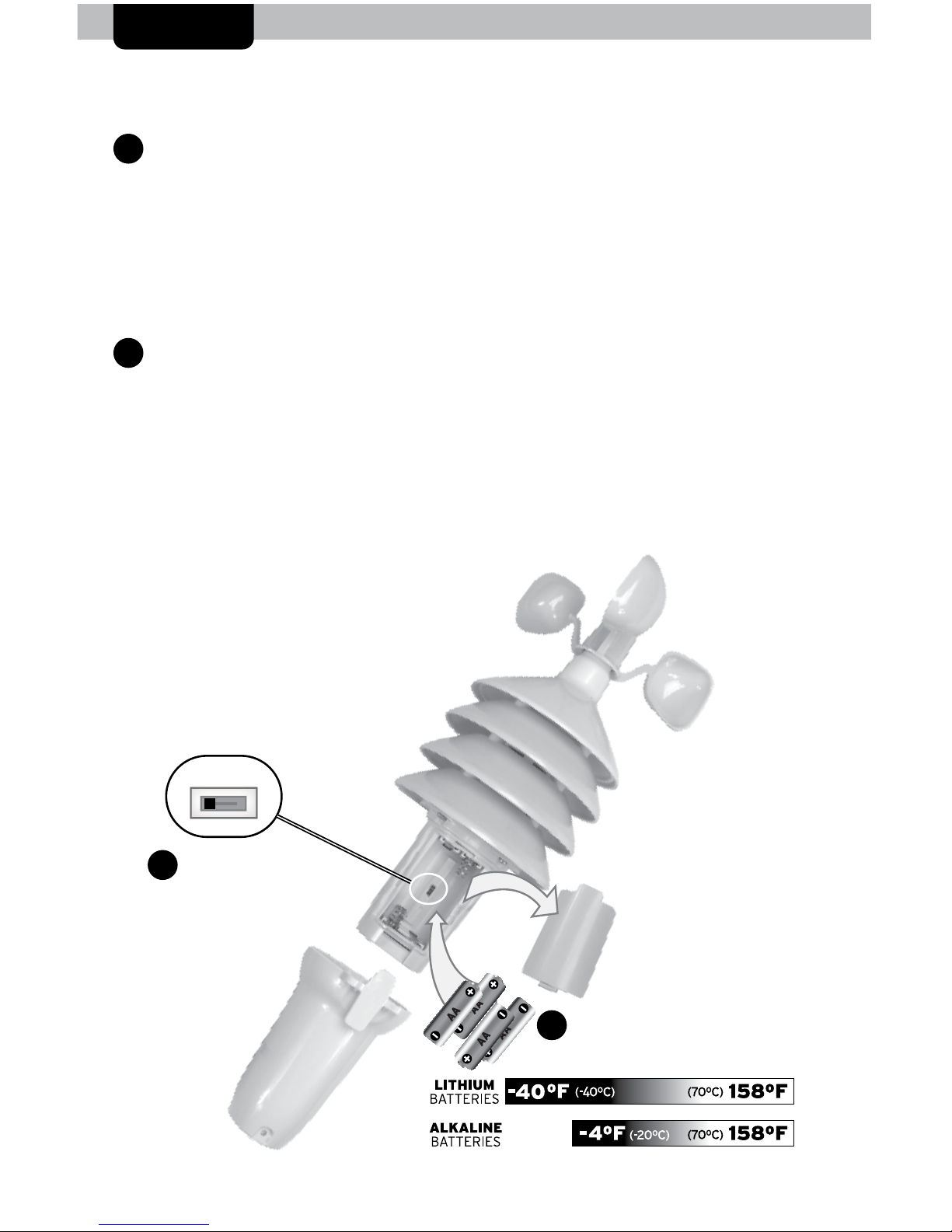

1. Press the release lever and

pull off the lower housing of

the sensor.

2. Remove the battery

compartment cover.

3. Insert 4 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

4. Replace the battery cover and

lower housing of the sensor.

3-in-1 Sensor Setup

1A-B-C Switch

set to match

display unit

2Install Batteries

4 AA batteries

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Display Unit Setup

AcuRite recommends high quality alkaline batteries for the best product

performance. Heavy duty or rechargeable batteries are not recommended.

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Batteries

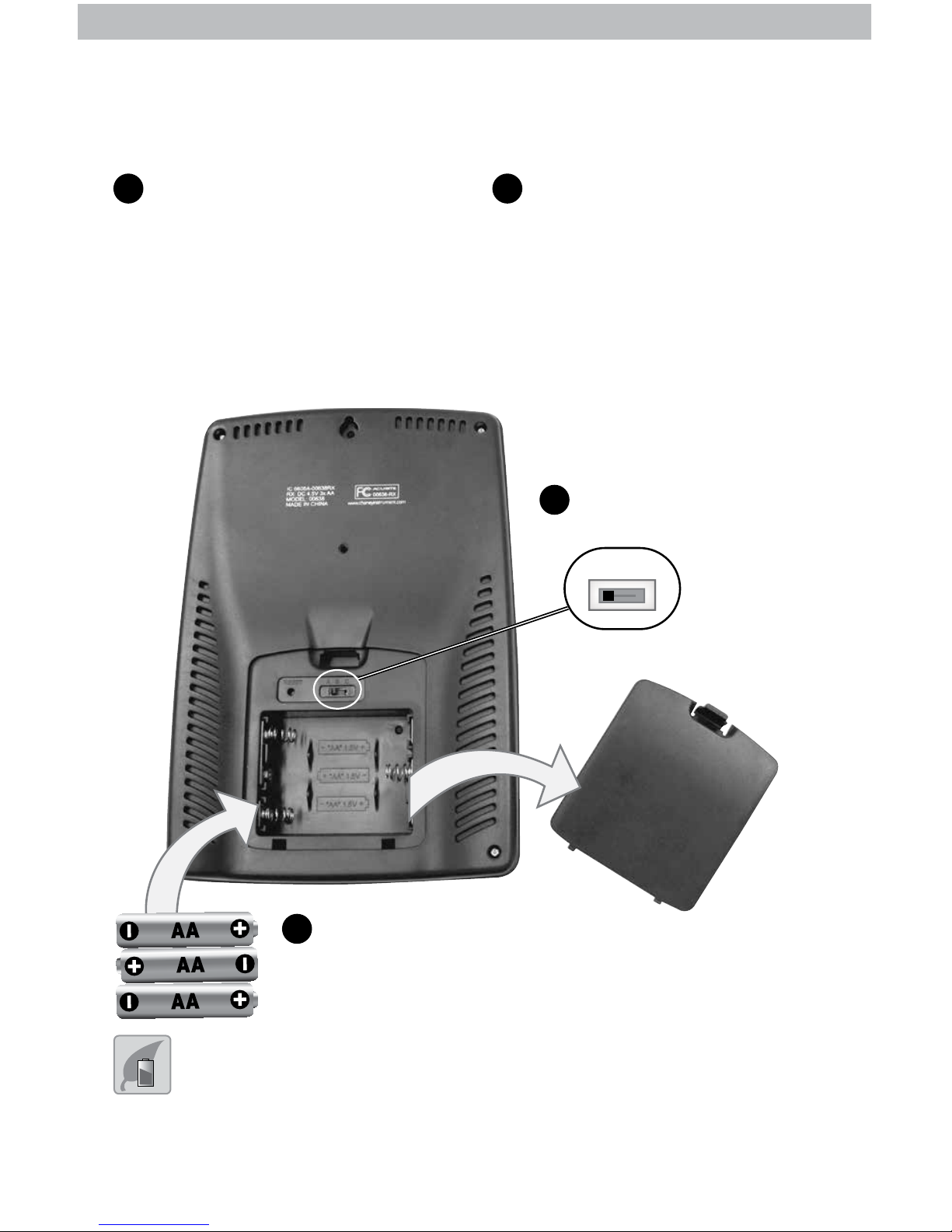

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity (+/-)

diagram in the battery

compartment.

3. Replace the battery cover.

2A-B-C Switch

set to match

sensor

A B C

Install Batteries

3 AA batteries

Atomic Clock

AcuRite atomic clocks use a radio-controlled signal to synchronize to the

correct time broadcast by the National Institute of Standards and Technology

(NIST) Radio Station WWVB, located near Fort Collins, Colorado. WWVB

broadcasts the current time and date with split-second accuracy.

The atomic clock and calendar will maintain the correct time and date, and

automatically update for daylight saving time to provide the most accurate

timekeeping standard possible.

Please note: Signal reception is normally better at night and when the weather

is clear. The atomic signal generally takes a few hours to synchronize, so it is

important to manually set the time and date after powering on the display.

Set the Time & Date

Press and hold the “SET” button, located on the front of the display unit, for

3 seconds to enter SET MODE. Once in set mode, the preference you are

currently setting will blink on the display.

To adjust the currently selected (ashing) item, press and release the “+”

button (press and HOLD to fast adjust).

To save your adjustments, press and release the “SET” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE ( EST AST HAT AKT PST MST CST )

DST (Daylight Saving Time ON or OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR YEAR

CALENDAR MONTH

CALENDAR DATE

*If you live in an area that observes DST, DST should be set to ON, even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 30 seconds.

Enter setup mode at any time by pressing and holding the “SET” button.

Select Measurement Units

To select between U.S. standard units or imperial units, press the “SCALE”

button.

Measurement U.S. Standard Units Imperial Units

Temperature Degrees Fahrenheit (ºF) Degrees Celsius (ºC)

Barometric Pressure inHg (inches of mercury) hPa (Hectopascal)

Wind Speed Miles per hour (mph) Kilometers per hour (kph)

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and the sensor are critical to the accuracy

and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. To

ensure accurate temperature measurement, place out of direct

sunlight and away from heat sources or vents. Display unit stands

upright for tabletop use or is wall-mountable.

3-in-1 Sensor Placement

The 3-in-1 sensor is designed to remain outdoors all year long.

Choose an open location with no obstructions above or around

the sensor for the most accurate measurements.

Important Placement Guidelines

Display unit and sensor must be within 330 feet (100 m) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other

objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place both units at least 3 feet (.9 m) away from electronic devices (TV,

computer, microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents,

asphalt and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water

sources may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This

may force water inside the sensor.

LOCATE AWAY FROM WIND OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.

Consider a location that is a wide open area, with few

structures around to ensure accurate wind measurement.

Visit us online to view installation photos and

video, or learn more about AcuRite technology:

www.AcuRite.com/3in1 View Video

3-in-1 Sensor Installation Guidelines

INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the

ground (higher is better for wind measurement) in an open area. Secure to

fence post, 4”x4” wood, 3/4” pole, etc. (not included)

LEVEL INSTALLATION Use a bubble level (not included) to ensure level

installation for accurate wind measurement.

Top or Side Mount

1. Insert the mounting base into

the hole on the bottom of the

sensor.

2. Use one of the screws included

in the hardware bag to fasten

the lower sensor housing to the

mounting base.

3. Make sure the sensor is level

using a bubble level.

4. Fasten mounting base to a post

or railing using 2 screws.

Pole Mount

1. Insert pole (we recommend 3/4”

schedule 40 PVC / 25.8 mm O.D.,

not included) or similar item all the

way into the hole on the bottom of the

sensor. Note: Mounting base is not

used.

2. Use one of the screws included in the

hardware bag to fasten the lower

sensor housing securely to the pole.

3. Make sure the sensor is level using a

bubble level.

The 3-in-1 sensor is now ready to use.

Basic Setup is Complete

The 3-in-1 sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. If both or one of the units appear to

be functioning improperly, please refer to the troubleshooting section.

Top Mount Side Mount

Pole Mount

Do not install during

electrical storms.

Do not place pole

or sensor near

electrical lines or

electrical equipment.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ACU-RITE Stazione meteorologica

ACU-RITE

ACU-RITE 1500 Manuale utente

ACU-RITE

ACU-RITE 13044 Manuale utente

ACU-RITE

ACU-RITE 01602BPDI Manuale utente

ACU-RITE

ACU-RITE 02007/06035RM Manuale utente

ACU-RITE

ACU-RITE 01010 Manuale utente

ACU-RITE

ACU-RITE 1050 Manuale utente

ACU-RITE

ACU-RITE 02081 Manuale utente

ACU-RITE

ACU-RITE 615RX Manuale utente

ACU-RITE

ACU-RITE 00595 Manuale utente

ACU-RITE

ACU-RITE 1086 Manuale utente

ACU-RITE

ACU-RITE 1035 Manuale utente

ACU-RITE

ACU-RITE 1502RX Manuale utente

ACU-RITE

ACU-RITE 01141 Manuale utente

ACU-RITE

ACU-RITE Iris Manuale utente

ACU-RITE

ACU-RITE Atlas Manuale utente

ACU-RITE

ACU-RITE 01193M Manuale utente

ACU-RITE

ACU-RITE 06035RM Manuale utente

ACU-RITE

ACU-RITE 00899 Manuale utente

ACU-RITE

ACU-RITE 1525 Manuale utente

ACU-RITE

ACU-RITE 605 Manuale utente

ACU-RITE

ACU-RITE 02036WB Manuale utente

ACU-RITE

ACU-RITE 2030 Manuale utente

ACU-RITE

ACU-RITE 00251W Manuale utente

ACU-RITE

ACU-RITE 02045W Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
