Adam Equipment AQ Series Manuale utente

DAM EQUIPMEN

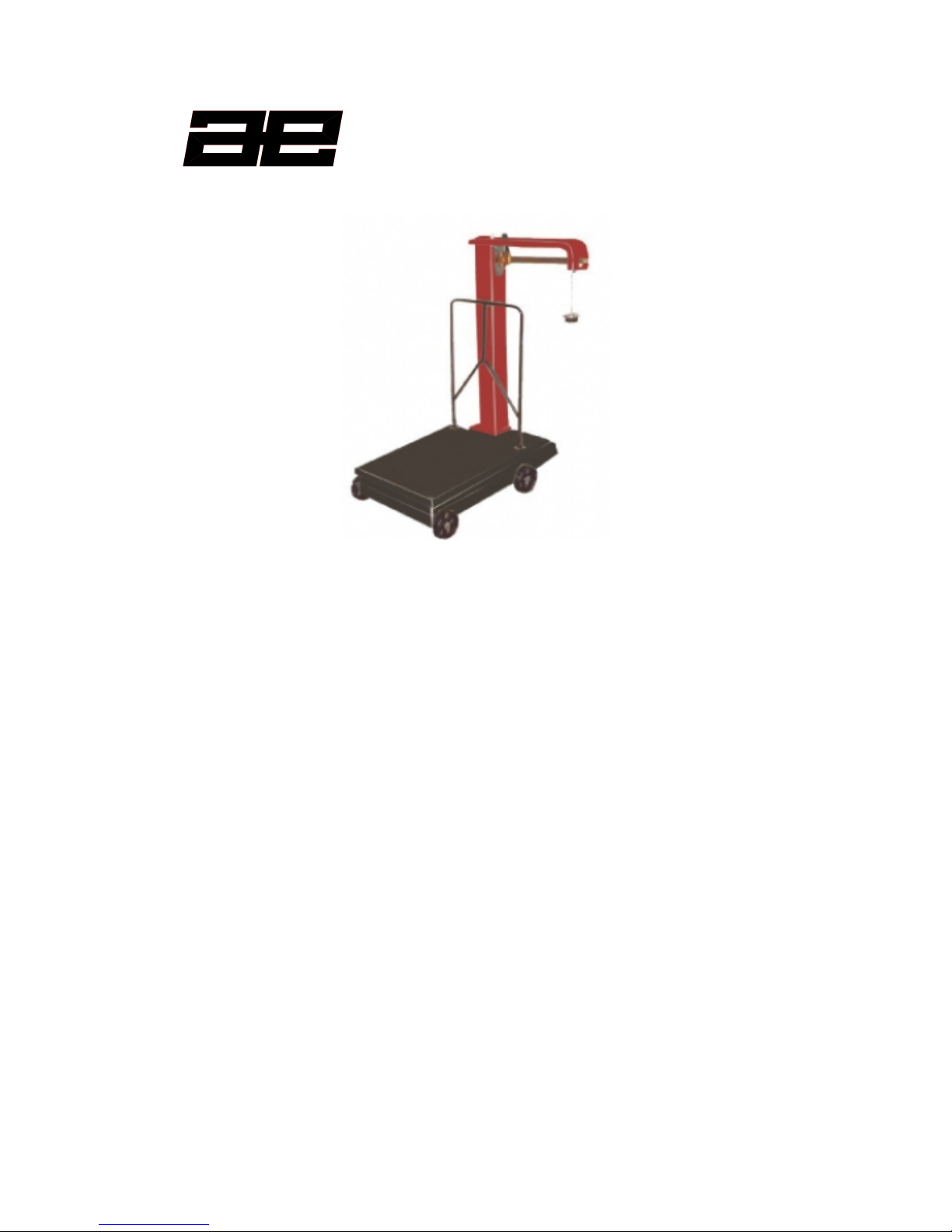

AQ MECHANICAL

PLATFORM SCALE

MODELS: AQ 100K, AQ 300K, AQ 500K

USER MANUAL

©ADAM EQUIPMENT SA (Pty) LTD.

Rev. D, Jul 2014

OPERATION INSTRUCTIONS

Read the following precautions and instructions before you begin assembly or using.

Preparation

 Please check carefully the spare parts according to the breakdown of parts list

before assembly, list found in the box.

 Please put the scale on the level ground to get the correct weight, and keep the

scale pan horizontally.

 Please move the Sliding Poise to the zero position of the weigh beam, and then

turn the adjusting screw bolt of the adjusting Poise until the weigh beam can

swing normally.

Operation

 Do not place the object on the scale pan suddenly to avoid any damage. The

object should be put in the middle of the scale pan to get correct weight.

 Please add relevant Slotted Weight to the Hanger when the object is over the

weighing range of the weighbeam.

 Do not weigh any objects over the range of the scale.

Maintenance

 Keep the scale in dry and clean place.

 In case of any problem, please contact the manufacturer for help.

Table 1: Basic Parameters of scale

Model Scale Interval Platform Size Dimension Dead Weight

100 KG 50g 400 x 300 650 x 320 x 600 26 kg

300 KG 100/200g 600 x 450 960 x 550 x 1150 75 kg

500 KG 100/200g 600 x 450 960 x 550 x 1150 78 kg

Table 2: Range of Permissible Error

Model

Test

Weight

100 KG 300 KG 500 KG Permissible Error (d)

0 ~

500d 0-25kg 0- 100kg 0-100kg +/- 1d

>500d –

2000d 25-100kg 100kg- 300kg 100kg-400kg +/- 2d

>2000d n.a. n.a. 400kg-500kg +/- 3d

d = Scale Interval

Table 3: Number of Slotted Weights supplied

Specification

Amount

Model

5kg 10kg 20kg 25kg 50kg 100kg 200kg

100 kg 1 2 1 1

300 kg 1 1 2

500 kg 1 1 2 1

ADAM EQUIPMENT is an ISO 9001:2008 certified global company with more

than 40 years’ experience in the production and sale of electronic weighing

equipment.

Adam products are predominantly designed for the Laboratory, Educational,

Medical, retail and Industrial Segments. The product range can be described

as follows:

 Analytical and Precision Balances

 Compact and Portable Balances

 High Capacity Balances

 Moisture analysers / balances

 Mechanical Scales

 Counting Scales

 Digital Weighing/Check-weighing Scales

 High performance Platform Scales

 Crane scales

 Medical Scales

 Retail Scales for Price computing

For a complete listing of all Adam products visit our website at

www.adamequipment.com

Adam Equipment Co. Ltd.

Maidstone Road, Kingston

Milton Keynes MK10 0BD

Phone:+44 (0)1908 274545

Fax: +44 (0)1908 641339

e-mail:

[email protected]

Adam Equipment Inc.

1, Fox Hollow Rd.

06478

USA

Phone: +1 203 790 4774

Fax: +1 203 792 3406

e-mail: [email protected]

AE Adam GmbH

Instenkamp 4,

24242 Felde,

Deutschland.

T: +49- (0) 4340-40300-0

F: +49- (0) 4340-40300-20

E: [email protected]

Adam Equipment S.A. (Pty) Ltd.

7 Megawatt Road,

Spartan EXT 22

Kempton Park,

Johannesburg,

Republic of South Africa

Phone +27 (0)11 974 9745

Fax: +27 (0)11 392 2587

e-mail:

[email protected]

Adam Equipment (S.E. ASIA) PTY

Ltd

2/71 Tacoma Circuit

CANNING VALE 6155

Perth

Western Australia

Phone: +61 (0) 8 6461 6236

Fax +61 (0) 8 9456 4462

E-mail:

[email protected]

Adam Equipment (Wuhan) Co. Ltd.

A Building East Jianhua

Private Industrial Park

Zhuanyang Avenue

Wuhan Economic & Technological

Development Zone

430056 Wuhan P.R.China

Phone: + 86 (27) 59420391

Fax + 86 (27) 59420388

E-mail:

[email protected]

may be reprinted or translated in any form or by any means without the prior permission of

Adam Equipment.

Adam Equipment reserves the right to make changes to the technology, features,

specifications and design of the equipment without notice.

All information contained within this publication is to the best of our knowledge timely,

complete and accurate when issued. However, we are not responsible for

misinterpretations which may result from the reading of this material.

The latest version of this publication can be found on our Website.

www.adamequipment.com
