ASENTO
INSTALLATION MANUAL
EV-ACA17R
GMC ACADIA 2017 & UP
PASSENGER SIDE
19
20
21
2
17
18
16
1

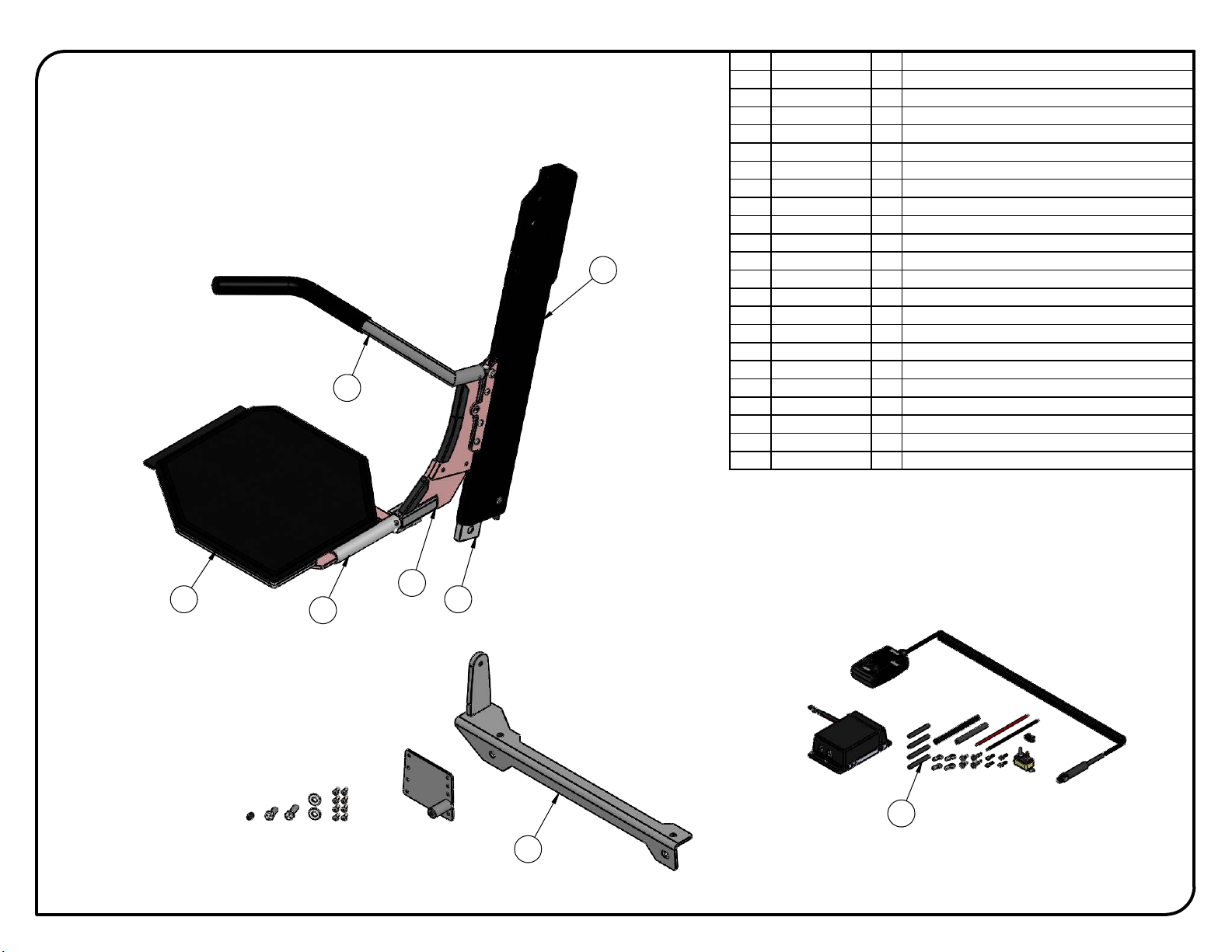

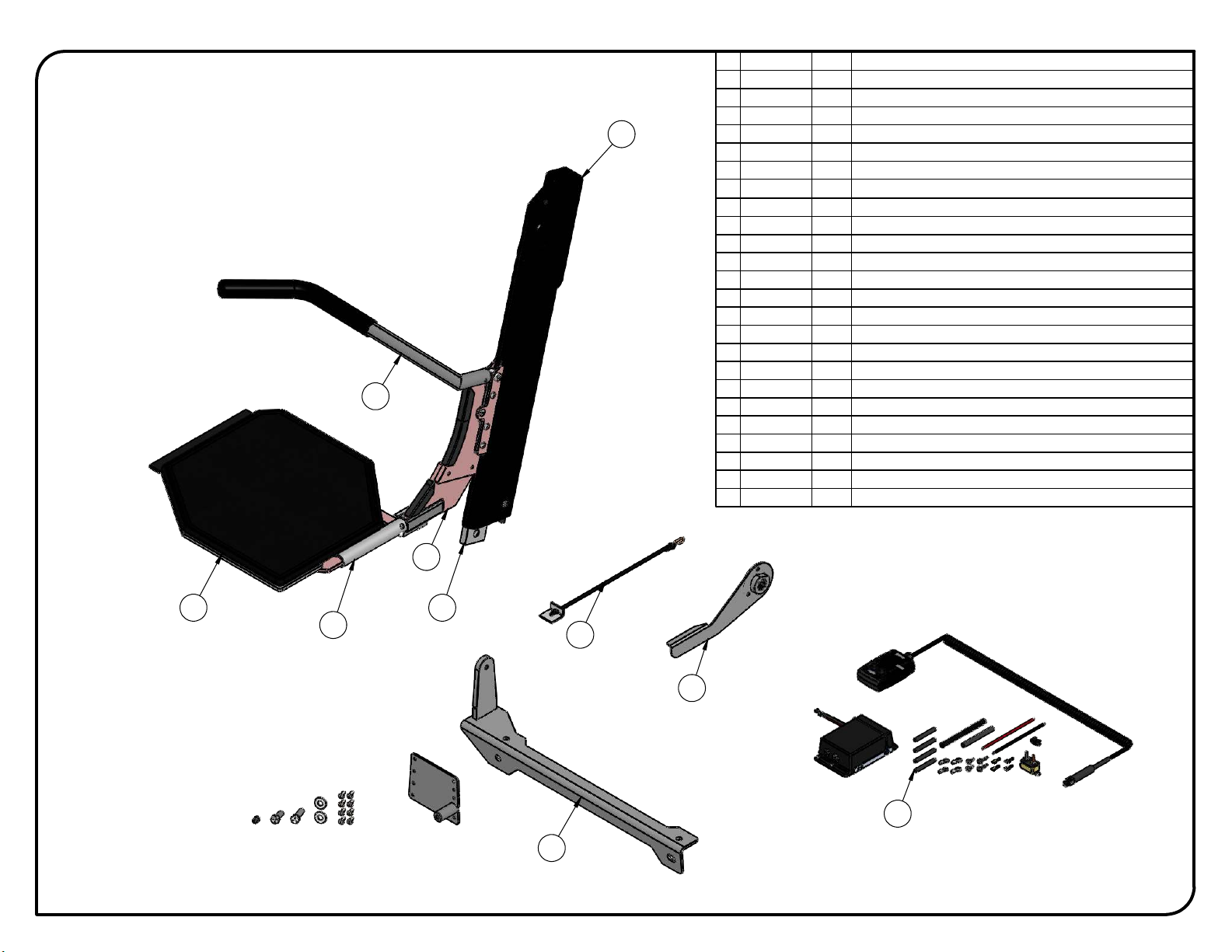

POWER SEAT

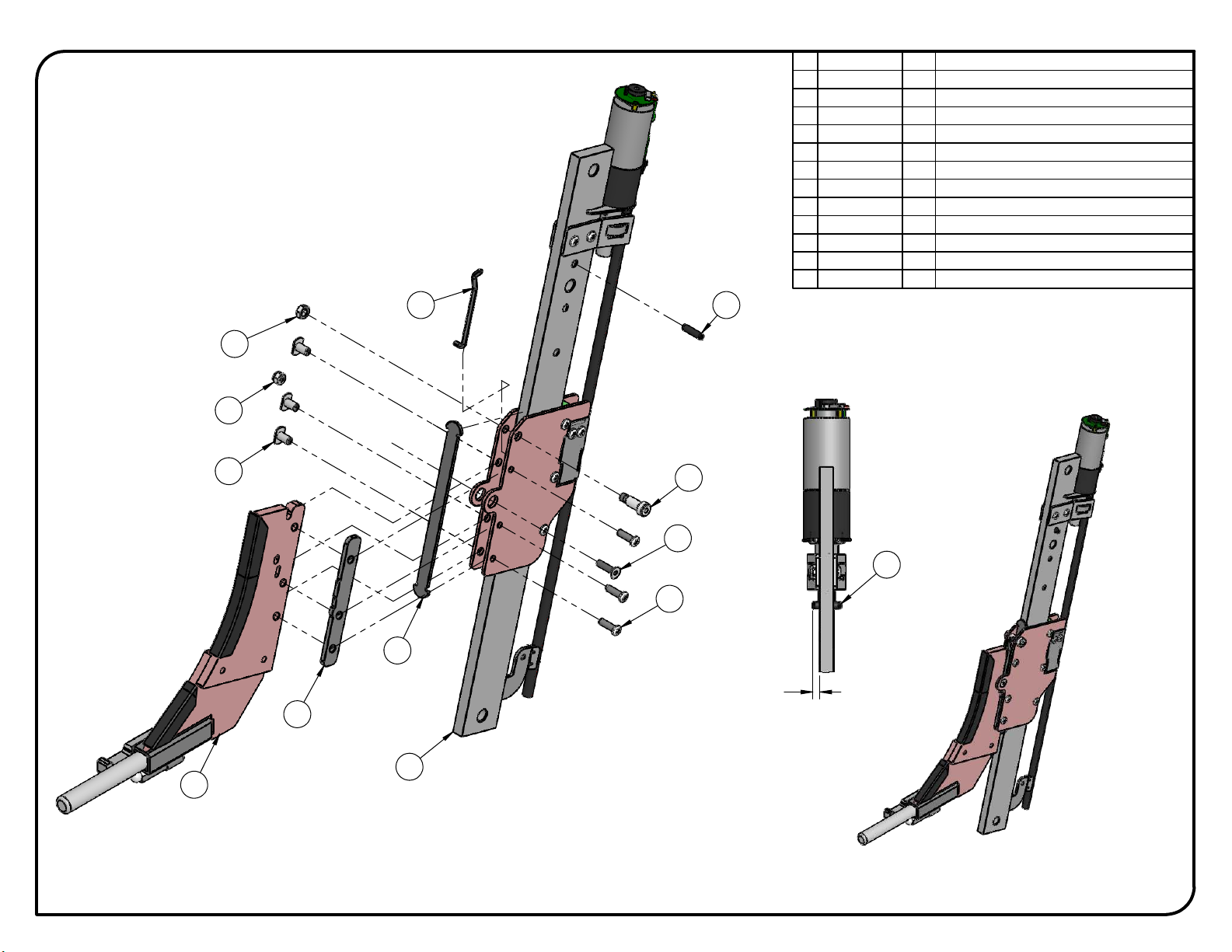

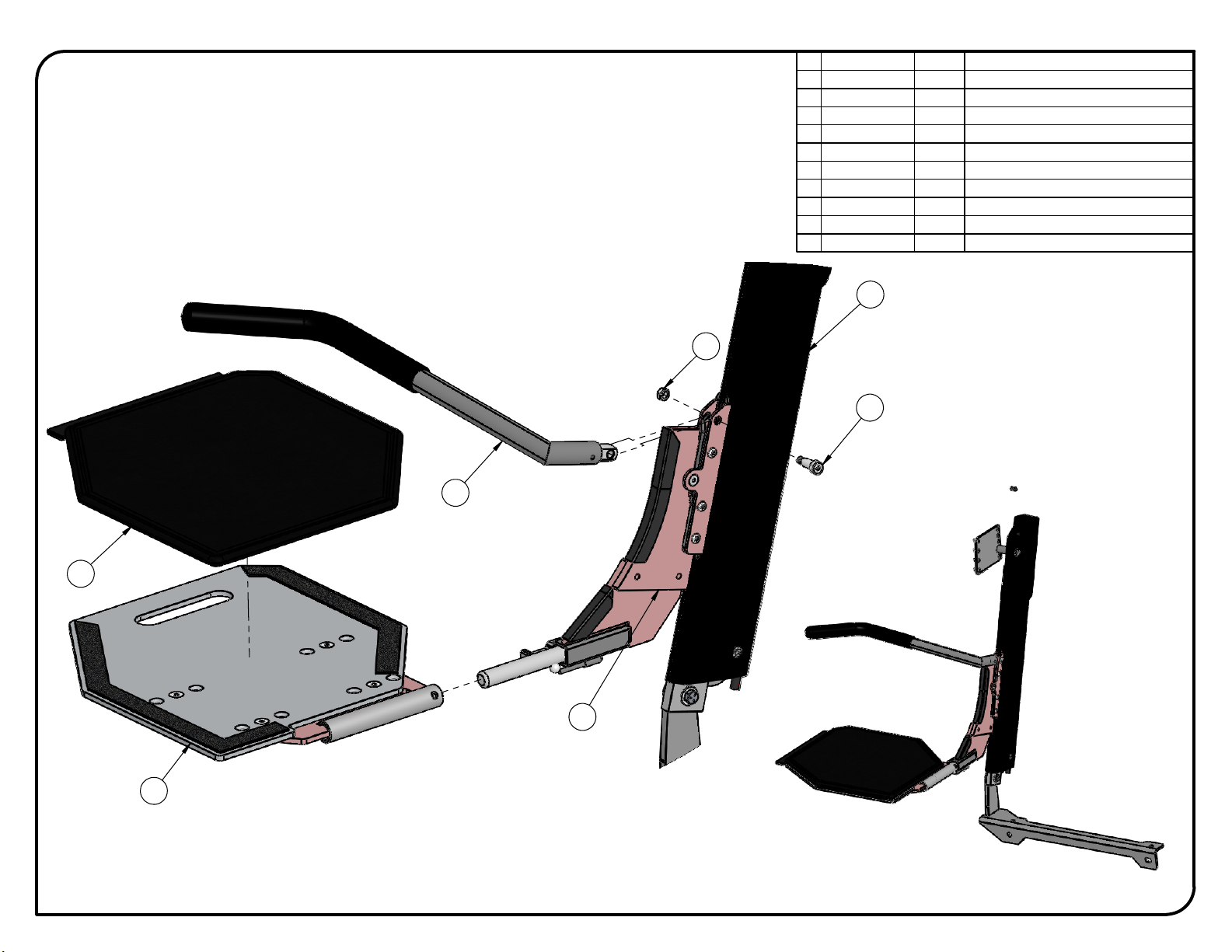

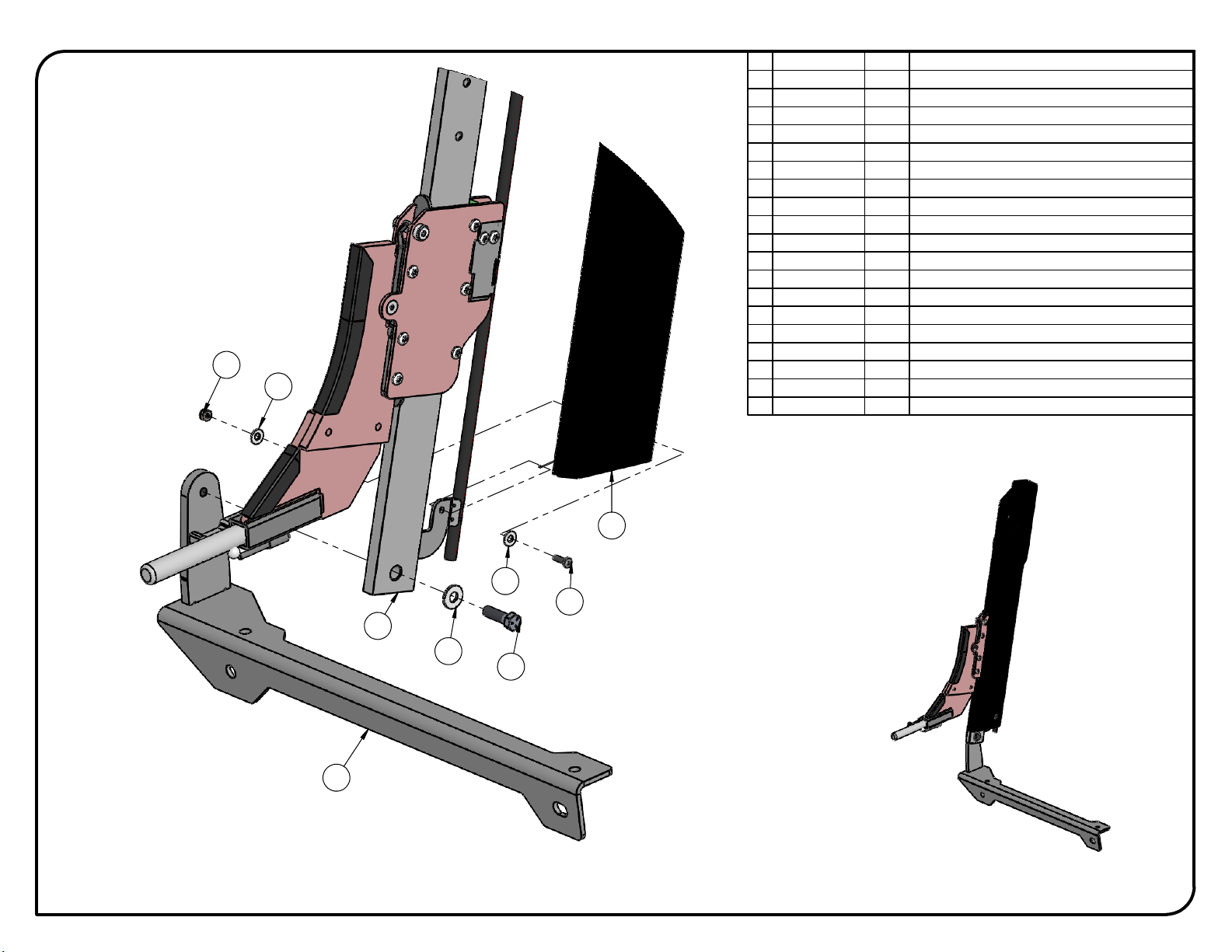

ITEM
PART NUMBER
QTY
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
L-EV113-01
1
Slider Spacer
4
L-EV141-01
1
Front Slider
5
U-EV-UNI-01
1
Machined Socket Shoulder Screw
6
MC 90594A027P
3
Tab base weld nut with barrel zinc plated 1/4 x 9/16
7
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
8
PRD 337-194P
3
Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9
PRD 333-105
1
Nylon Insert Locknut 1/4-20
10
PRD 338-169P
1
Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
11
PRD 341-103P
2
Flat Washer Zinc Plated I.D. 3/16 USS
12
PRD 400-289
1
Nylon Insert Locknut Stainless 10-24
13
PRD 400-583
1
Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
14
PRD 192-153
1
Spring Tension Pin 1/4 x 1
15
SN 190-025
1
Binder Slot Head Post & Screw Black ,250 x ½"Lg
16
EV300-01R
1
Safety Arm -Right-
17
EV400-01R
1
Transfert Platform -Right-
18
XLS430B-01R
1
Transfer Plate Cushion -Right- Black
19
EV600B-01
1
Pillar Trim -Black-
20
EV700-AL
1
Electrical Kit
21
EV-ACA17R-00
1
Installation Kit -Right-
22
EV122-01
1
Spring Rod
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP
20
21
24
2
18
19
17
1
MANUAL SEAT
23
22
ITEM
PART NUMBER
QTY
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
L-EV113-01
1
Slider Spacer
4
EV122-01
1
Spring Rod
5
L-EV141-01
1
Front Slider
6
U-EV-UNI-01
1
Machined Socket Shoulder Screw
7
MC
90594A027P
3
Tab base weld nut with barrel zinc plated 1/4 x 9/16
8
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
9
PRD 337-194P
3
Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
10
PRD 333-105
1
Nylon Insert Locknut 1/4-20
11
PRD 338-169P
1
Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
12
PRD 341-103P
2
Flat Washer Zinc Plated I.D. 3/16 USS
13
PRD 400-289
1
Nylon Insert Locknut Stainless 10-24
14
PRD 400-583
1
Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
15
PRD 192-153
1
Spring Tension Pin 1/4 x 1
16
SN 190-025
1
Binder Slot Head Post & Screw Black ,250 x ½"Lg
17
EV300-01R
1
Safety Arm -Right-
18
EV400-01R
1
Transfert Platform -Right-
19
XLS430B-01R
1
Transfer Plate Cushion -Right- Black
20
EV600B-01
1
Pillar Trim -Black-
21
EV700-AL
1
Electrical Kit
22
EV-TER18R-03
1
Seat Back Reclining Arm -Right-
23
EV-UNI-100
1
Safety Belt Rubber Band
24
EV-ACA17R-00
1
Installation Kit -Right-
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP
7
1
11
5
2
3
9
4
12
10
8
6
,250
11
3 of 6
ITEM
PART NUMBER
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
L-EV113-01
1
Slider Spacer
4
L-EV141-01
1
Front Slider
5
U-EV-UNI-01
1
Machined Socket Shoulder Screw
6
MC 90594A027P
3
Tab base weld nut with barrel zinc plated 1/4 x 9/16
7
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
8
PRD 337-194P
3
Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9
PRD 333-105
1
Nylon Insert Locknut 1/4-20
10
PRD 338-169P
1
Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
11
PRD 192-153
1
Spring Tension Pin 1/4 x 1
12
EV122-01
1
Spring Rod
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP
13
16
18
1
17
11
12
15
11
4 of 6
2 of 6
ITEM
PART NUMBER
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
L-EV113-01
1
Slider Spacer
4
L-EV141-01
1
Front Slider
5
U-EV-UNI-01
1
Machined Socket Shoulder Screw
6
MC 90594A027P
3
Tab base weld nut with barrel zinc plated 1/4 x 9/16
7
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
8
PRD 337-194P
3
Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9
PRD 333-105
1
Nylon Insert Locknut 1/4-20
10
PRD 338-169P
1
Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
11
PRD 341-103P
2
Flat Washer Zinc Plated I.D. 3/16 USS
12
PRD 400-289
1
Nylon Insert Locknut Stainless 10-24
13
PRD 400-583
1
Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
14
PRD 192-153
1
Spring Tension Pin 1/4 x 1
15
EV600B-01
1
Pillar Trim -Black-
16
PRD 302-177P
1
Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/4 G5
17
PRD 341-107P
1
Flat Washer Zinc Plated I.D. 5/16 USS
18
EV-ACA17R-01
1
Floor Adapter - Right -
19
EV122-01
1
Spring Rod
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP
24
23
21
15
26
20

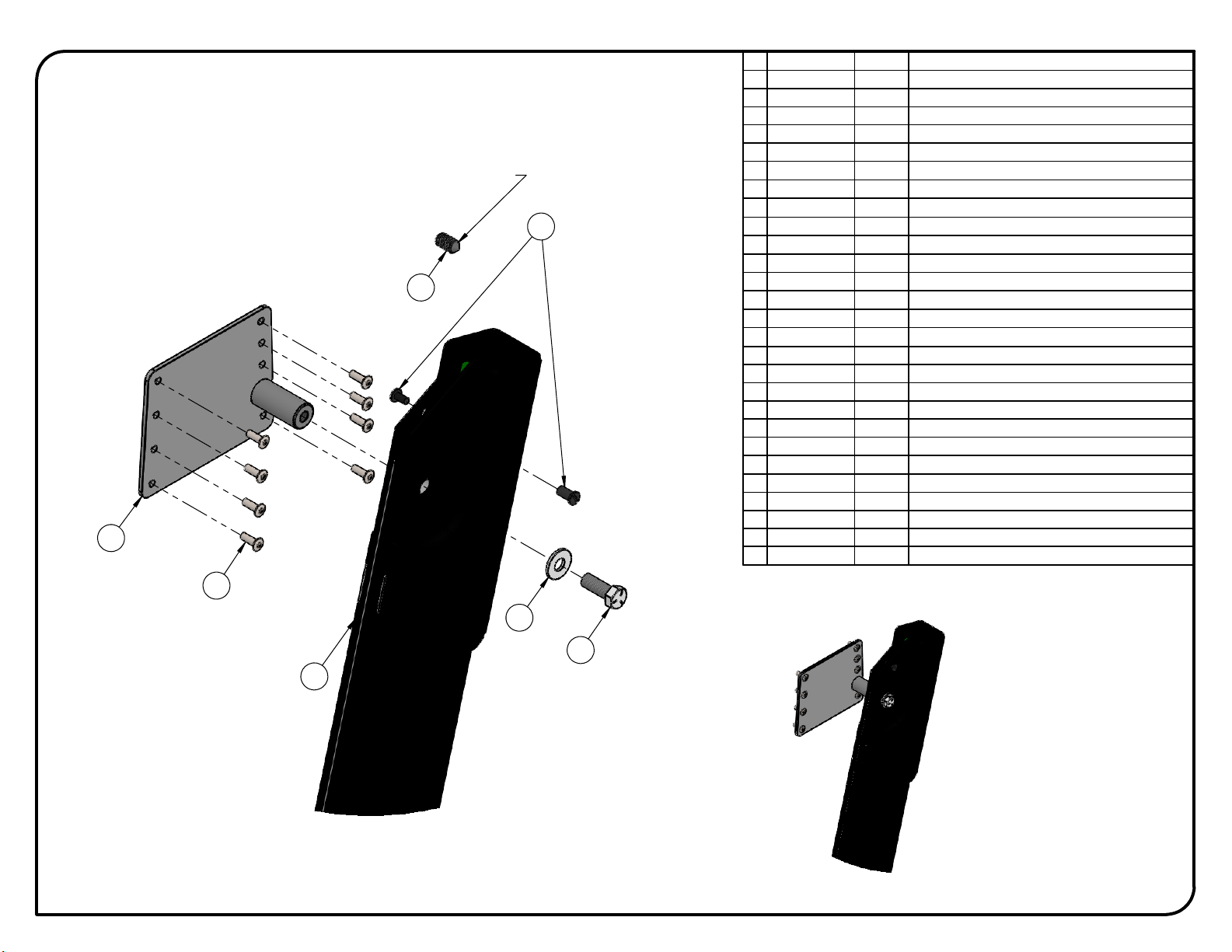

SET SCREW TO DRILL PLASTIC TRIM
19
5 of 6
ITEM
PART NUMBER
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
L-EV113-01
1
Slider Spacer
4
L-EV141-01
1
Front Slider
5
U-EV-UNI-01
1
Machined Socket Shoulder Screw
6
MC 90594A027P
3
Tab base weld nut with barrel zinc plated 1/4 x 9/16
7
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
8
PRD 337-194P
3
Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 7/8"
9
PRD 333-105
1
Nylon Insert Locknut 1/4-20
10
PRD 338-169P
1
Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1
11
PRD 341-103P
2
Flat Washer Zinc Plated I.D. 3/16 USS
12
PRD 400-289
1
Nylon Insert Locknut Stainless 10-24
13
PRD 400-583
1
Pan Head Machine Screw Phillips Stainless 10-24 x 5/8
14
PRD 192-153
1
Spring Tension Pin 1/4 x 1
15
SN 190-025
1
Binder Slot Head Post & Screw Black ,250 x ½"Lg
16
EV300-01R
1
Safety Arm -Right-
17
EV400-01R
1
Transfert Platform -Right-
18
XLS430B-01R
1
Transfer Plate Cushion -Right- Black
19
EV600B-01
1
Pillar Trim -Black-
20
PRD 149-563
1
Socket set screw cone point 3/8-16 x 3/4
21
PRD 302-175P
1
Hex Cap Bolt Zinc Plated 3/8-16 x 1 G5
22
PRD 302-177P
1
Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/4 G5
23
PRD 341-107P
2
Flat Washer Zinc Plated I.D. 5/16 USS
24
PRD BTT66
8
Button Head Stainless 3/16 x 9/16
25
EV-ACA17R-01
1
Floor Adapter - Right -
26
EV-ACA17R-02
1
Pilar Adapter -Right-
27
EV122-01
1
Spring Rod
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP
2
6
7
5
3
4
8
6 OF 6
ITEM
PART NUMBER
DESCRIPTION
1
EV000-01
1
Support Assembly
2
EV100-07R
1
Slider -Right-
3
U-EV-UNI-01
1
Machined Socket Shoulder Screw
4
PRD 333-107M
1
Nylon Insert Locknut 5/16-18 Thin
5
EV300-01R
1
Safety Arm -Right-
6
EV400-01R
1
Transfert Platform -Right-
7
XLS430B-01R
1
Transfer Plate Cushion -Right- Black
8
EV600B-01
1
Pillar Trim -Black-
9
EV-ACA17R-01
1
Floor Adapter - Right -
10
EV122-01
1
Spring Rod
EV-ACA17R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
ASENTO GMC ACADIA 2017 & UP -Right-
DESCRIPTION
ASENTO GMC ACADIA 2017 & UP

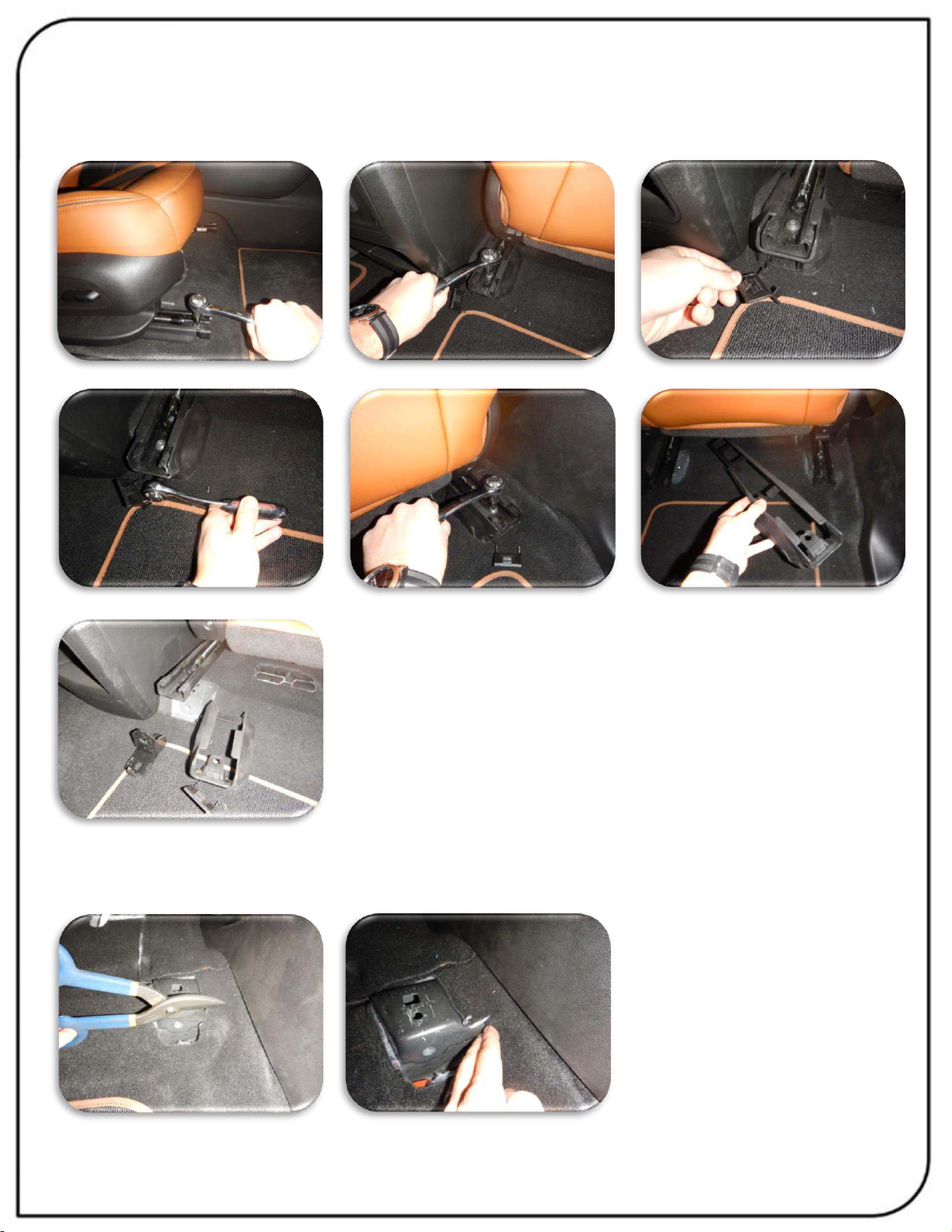

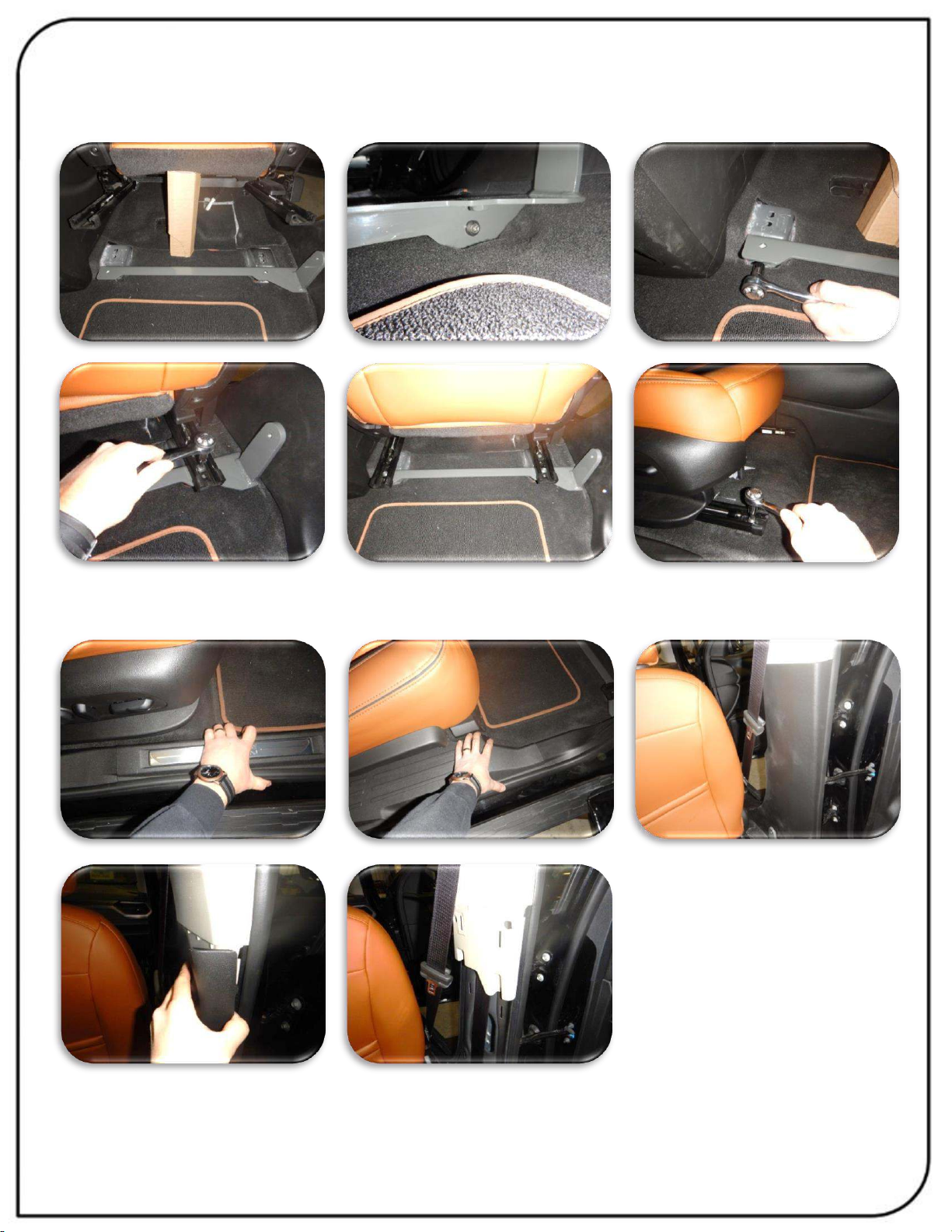

1. Slack the front seat bolts. Remove the top and bottom rear seat bolts on both sides. Remove the
lower brackets and plastic trims from the seat rail. Keep the OEM bolts for reinstallation of the
ASENTO floor adapter.
2. Cut a notch in the carpet at the right hand seat mount to facilitate the installation of the floor
bracket.
3. Install the ASENTO floor adapter #EV-ACA17R-01 using the OEM bolts.

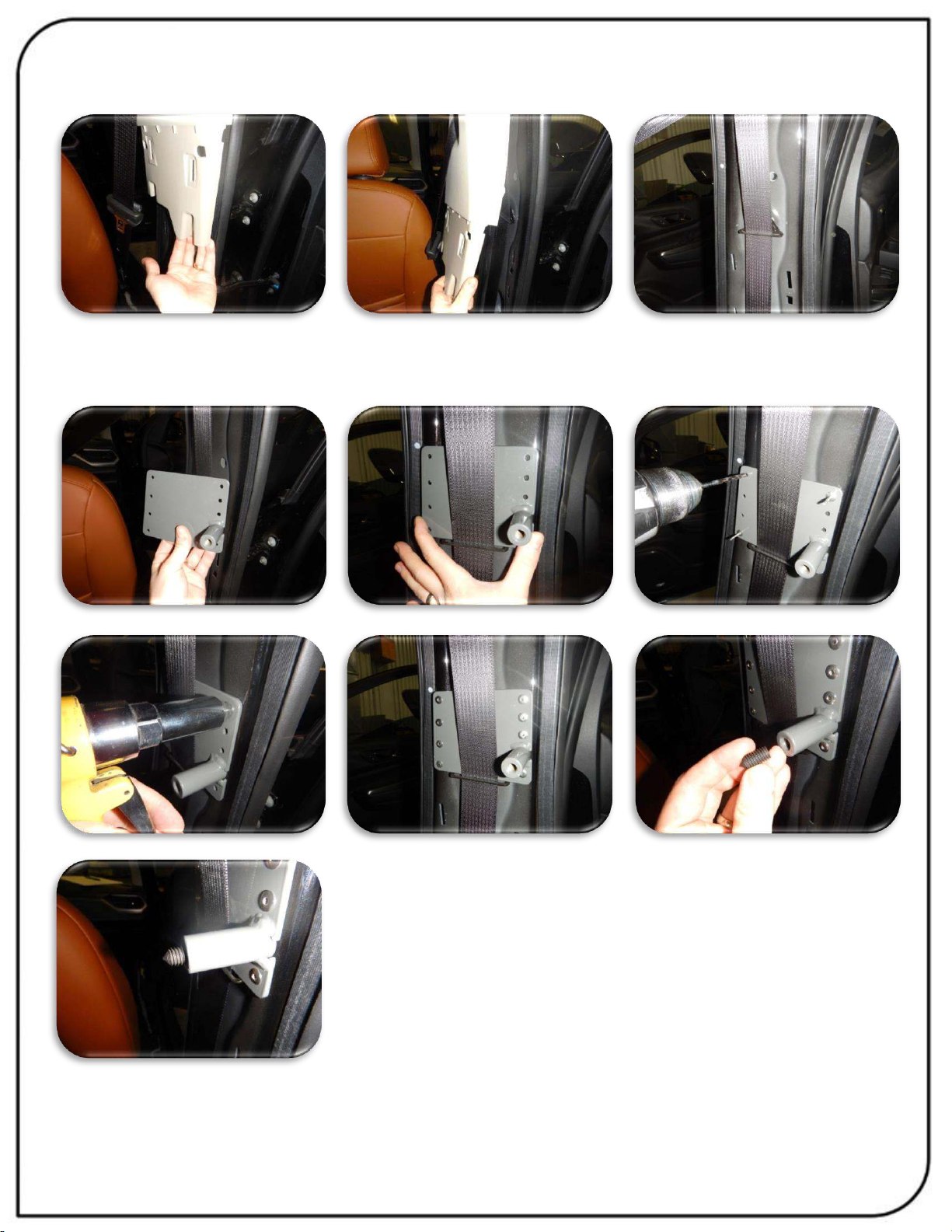

4. Remove the lower b pillar trim.
5. Remove the upper b pillar trim.
6. Install the b pillar adapter #EV-ACA17R-02 to the b pillar using the eight provided pop rivets. (NOTE:
drill slowly high strength steel)Then install the pointed allen screw into the b pillar adapter.
