Adaptec SlimSCSI APA-1460A Manuale utente

SER



UIDE

LIM

SCSI 1460 A

DAPTER

Adaptec logo are trademarks of Adaptec,

Inc. which may be registered in some

jurisdictions.

Printed in Singapore

STOCK NO.: 511605-00, Rev. A KL 9/97

▼ ▼ ▼ ▼ SlimSCSI 1460 Adapter

User’s Guide

iii

▼ ▼ ▼ ▼ Contents

Introduction 1

Where Do I Start? 1

Contents of Kit 1

System Requirements 2

Installing the SlimSCSI 1460 2

Completing the Installation 6

Updating the Windows 95 Miniport Driver 6

Completing the SlimSCSI Installation in Windows 3.1 7

Completing the SlimSCSI Installation in Windows NT 8

If Windows NT Is Not Installed on Your PC 8

If Windows NT Is Installed on Your PC 9

Completing the SlimSCSI Installation in OS/2 11

Using the SlimSCSI 1460 13

Hot Plugging 13

Disk Partitioning 14

Understanding SCSI 15

SCSI IDs 15

Terminating the SCSI Bus 16

Obtaining SCSI Cables 16

Connector Types 17

Troubleshooting 18

General Hardware Troubleshooting 18

Windows 3.1 Troubleshooting 19

Windows 95 Troubleshooting 19

Windows NT Troubleshooting 22

OS/2 Troubleshooting 23

SlimSCSI 1460 Adapter User’s Guide

Troubleshooting with CardWizard Pro 23

Contacting Adaptec 25

Electronic Support 25

Technical and Product Support 25

Sales and Ordering Information 26

❒

Introduction

Congratulations on your purchase of Adaptec’s SlimSCSI®1460.

The SlimSCSI 1460 allows you to connect up to three SCSI devices to

your portable PC, including Zip drives, CD-ROM drives, hard disk

drives, scanners, and other devices.

Where Do I Start?

Follow the instructions for installing the SlimSCSI 1460 and

connecting your SCSI devices to it.

Install the software driver for the operating system you are

using - Windows®95 (page 6), Windows®3.1 (page 7),

Windows NT™(page 8), or OS/2 (page 11).

(Optional) Install Adaptec EZ-SCSI software by following the

instructions in the Adaptec EZ-SCSI Quick Reference. (EZ-SCSI is

not required to operate the SlimSCSI 1460.)

Contents of Kit

■SlimSCSI 1460 PC Card-to-SCSI Adapter

■Windows 95, Windows NT, and OS/2 driver diskettes

■SlimSCSI 1460 User’s Guide

■50-pin high-density cable and 50-pin low-density cable

■Adaptec®EZ-SCSI®software for Windows 3.1, Windows 95,

and Windows NT

■CardWizard Pro software for DOS and Windows 3.1

SlimSCSI 1460 Adapter User’s Guide

■Mail-in card for free DB25 cable

■Registration card

System Requirements

■Portable PC with a PC Card Type II, Type III, or Toshiba

Type IV slot

■MS-DOS version 5.x or 6.x, Microsoft Windows 95,

Windows NT version 3.51 or 4.0, Windows 3.x, Windows for

Workgroups version 3.1 or 3.11, DR DOS, OS/2 version 2.x, or

OS/2 Warp

Installing the SlimSCSI 1460

Follow these steps to install the SlimSCSI 1460 and connect your

SCSI devices to it:

Remove the SlimSCSI 1460 from its packaging.

Determine which of the two 50-pin cables you will use to con-

nect the SlimSCSI 1460 to your first (or only) SCSI device. To

do this, see which cable connector (high-density or low-

density) fits the SCSI connector on the back of the device.

Note:

If your SCSI device has a DB25 (25-pin) connec-

tor, you can order a free DB25 cable from Adaptec by

sending in the card included in this User’s Guide.

Installing the SlimSCSI 1460

Connect the SlimSCSI cable to the SlimSCSI 1460, as shown

below:

Plug the other end of the cable into the first (or only) SCSI

device, as shown below. Make sure the SCSI device is not

powered.

PC Card Slots

SlimSCSI 1460

SlimSCSI Connector

SCSI Connector SCSI Device

Terminator

SlimSCSI 1460 Adapter User’s Guide

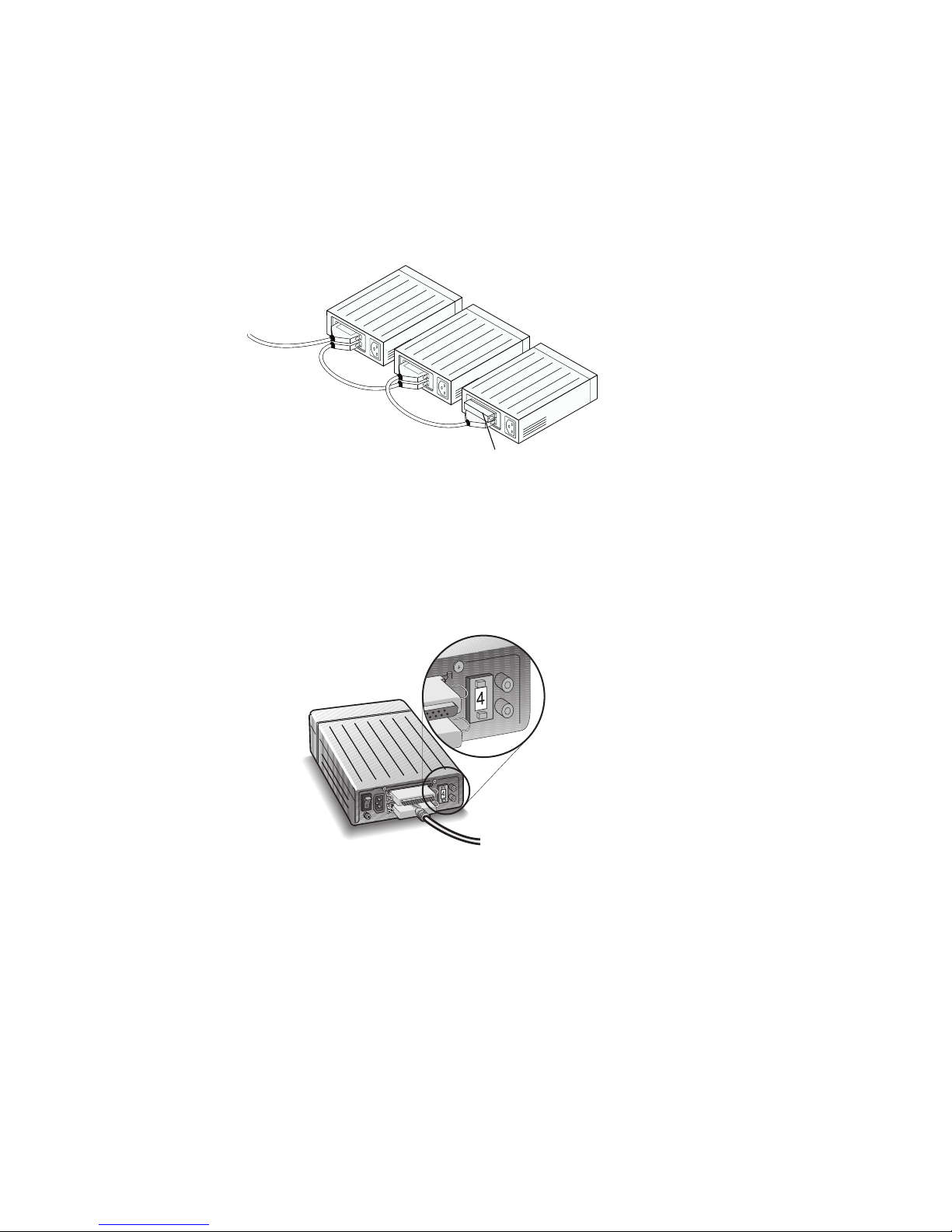

(Optional) Connect up to two additional SCSI devices by daisy-

chaining them to the first device, as shown below:

Be sure that each SCSI device has a unique SCSI ID ranging

from 0 to 6. If any two devices have the same ID, change the

SCSI ID of one device. This is usually done by changing a

switch on the back of the device. (For more information, see

SCSI IDs on page 15.)

The diagram below shows a typical SCSI device with a select-

able SCSI ID switch:

Terminate the last (or only) SCSI device connected to the

SlimSCSI 1460. Read the device documentation if you are not

sure how to terminate the device, or refer to Terminating the

SCSI Bus on page 16.

SCSI Devices

Terminator
