AlphaVision PC Type B Single-Sided Signs
Mechanical Installation Guide
1Disconnect all power from the sign at the power
source to prevent electrical injury or damage.
Sign specifications
• Design of the support structure should only be done by a qualified
individual. It is the installer’s responsibility to ensure that the support
structure and hardware are capable of safely supporting the sign and
are in compliance with all applicable building codes.
• Adaptive is not responsible for installations or the structural integrity of
support structures done by others.
• Mounting hardware is not supplied with the sign. Mounting hardware
that is used to hang or suspend a sign must be capable of safely
supporting the weight of the sign (approximately 650 lbs.).
• To avoid damage to the sign, do not place the sign on a flat surface.
• Only use the sign’s lifting hooks to hang the sign. Mounting to any other parts of the sign will void the
warranty.
• All lifting hooks must be used to lift and hang the sign.
• These signs are for indoor use only and should not be continuously exposed to direct sunlight, such as in a
window.
• These signs should only be used in an environment where the temperature is between 32° and 113° F (0°
and 45° C).
• These signs should only be used in an environment where non-condensing humidity does not exceed 95%.
Contact with high voltage
may cause death or serious
injury.
Always disconnect power to
unit prior to servicing.
Hazardous voltage.
WARNING
SM1000A
B
D
C
A
Front view Side view
Approximate sign weight: 650 lbs.
Disconnect box
70.0
113.1
125.8
Speaker
43.7
23.2
Dimension (in inches)
are approximate as shown.
Lifting hook dimensions:
Item Dimension (in)
A3.8
B3.19
C0.38
D0.63 17.4
11.4
Minimum specifications for chain and
shackles used to lift and hang a sign:
Material and finish: selection depends
on the specific application. (Plain finish
may be used for non-corrosive
environments. However, stainless is
required for corrosive environments.)
Working load limit: 2200 lbs.
February 11, 2004 AlphaVision PC Type B Single-Sided Signs Mechanical Installation Guide (9712-7014A)
2

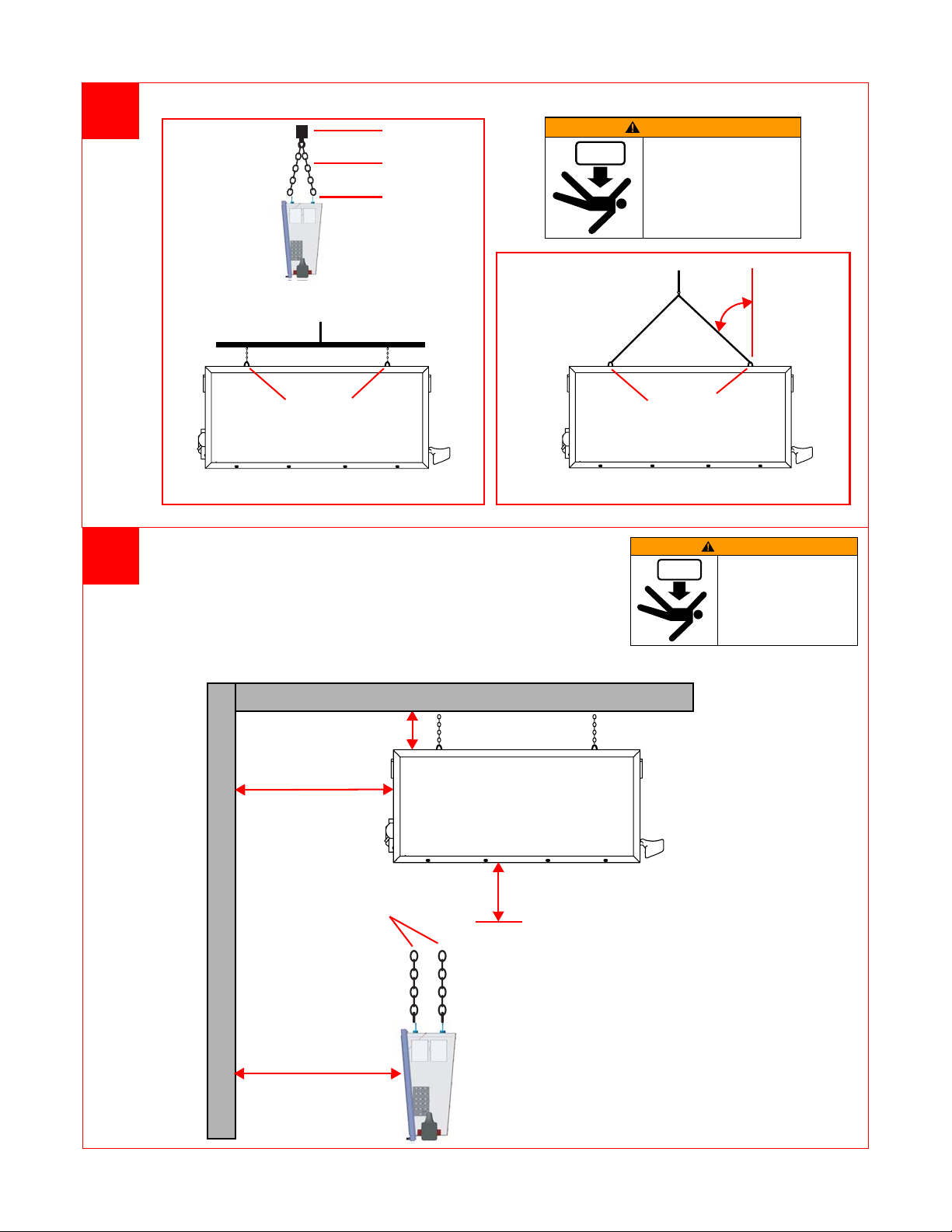

3Hang the sign from chains using all the lifting hooks.
• Hang the sign from four separate mounting points. Do not hang
two chains from the same point.
• Allow minimum clearances as shown below.
Possible crush hazard.
Always use eyebolts to lift
sign. Otherwise the sign
may fall, causing serious
injury or death.
WARNING
SM1017
12” between fans or vents and any surface nearby. Vents are
located at the bottom of the sign. To avoid damage to the sign, do
not place the sign on a flat surface.
6” between the top of the sign
and any surface nearby.
48” between face of the sign
and any surface nearby.
36” between the sides of
the sign and any surface
nearby.
Attach each chain to a
separate mounting point.
2Lift the sign using the lifting hooks.
Lifting bar
Lifting hooks
40°
maximum
angle
Possible crush hazard.
Always use eyebolts to lift
sign. Otherwise the sign
may fall, causing serious
injury or death.
WARNING
SM1017
Recommended way to lift sign (using a lifting bar)
Lifting hooks
Lifting bar
Alternate way to lift sign (without a lifting bar)
Chains
Lifting hooks
