ADDER AdderLink X-USBPRO Manuale utente

AdderLink X-USBPRO

Analog video and USB extenders

contents

welcome contents

installation

operation

rter

inormation

Contents

Welcome

Introduction.................................................................................2

Supplied items .............................................................................3

Optional items .............................................................................4

Installation

Connections .................................................................................5

Mounting .....................................................................................5

Connections at the local module ...........................................6

Local module power connection.......................................8

Connections at the remote module.......................................9

Dual user conﬁguration .......................................................12

Video display (DDC) information.........................................13

Video compensation.............................................................14

What is skew and why is compensation needed?..........14

Operation

General use ................................................................................16

Dual user arbitration.................................................................16

Peripheral operation .................................................................16

Further information

Getting assistance......................................................................17

Troubleshooting ........................................................................17

Warranty ....................................................................................18

Safety information ....................................................................18

Radio Frequency Energy............................................................19

welcome contents

installation

operation

rter

inormation

USB

device

USB

device

ADDER®

AUDIO

VIDEO (1)

VIDEO (2)

USB

Up to 300 metres

separation

CATx link cable (1)

CATx link cable (2)

ADDER®

Welcome

Introduction

Thank you for choosing the AdderLink X-USBPRO

or X-USBPRO-MS2 extenders which provide a

very effective way to put distance between your

computer and its peripherals.

The compact casings and ease of use of the

modules belie the ingenuity of their operation.

Using our proprietary transmission techniques we

are able to reliably transfer more signals than ever

before along a single length of Category 5, 5e, 6, 7

or 7a twisted pair cabling. What this means for you

is that your video, audio, USB keyboard, USB mouse

and two other USB channels are all readily and

reliably available at up to 300 metres away.

Using the Adder X-USBPRO extenders does not

mean that you need to compromise on functionality

in any way. Our highly efﬁcient transmission

methods mean that CD quality sound and high

video resolutions of up to 1920 x 1200 are fully

supported. Any lag effects caused by long cable

runs are easily eliminated using the intuitive video

compensation system located within the remote

module. Three equalisation bands allow you to

ensure that every colour arrives at precisely the

right time, ensuring a sharp image every time. The

X-USBPRO-MS2 model uses an additional CATx

connection to provide dual analog video links.

The USB connections are seamless allowing four full

speed USB 2.0 devices to be used simultaneously

with full support for disconnect/re-connect at any

time without causing errors.

The Adder X-USBPRO extenders have been

designed to be quick to install and totally

transparent in operation: ‘Fit and forget’ is the

motto. So whether you are extending your

workplace or creating a cost-effective distributed

audio visual system, the X-USBPRO extenders

provide the power and ﬂexibility to create the right

solution.

CAT 5 250m

CAT 5e 250m

CAT 6 300m

CAT 7 300m

CAT 7a Patch 200m

Maximum cable lengths

*The MS2 variant

provides a second

analog video channel.

welcome contents

installation

operation

rter

inormation

Supplied items

X-USBPRO local

module

Power adapter and

country- speciﬁc

power lead (for

remote module)

X-USBPRO

remote module

USB (A to B

type) lead

Audio lead

(3.5mm jacks)

Video lead

(15 way, male to male)

CD-ROM

Video lead

(15 way, male to male)

Self adhesive

feet

AdderLink X-USBPRO extender modules

X-USBPRO-MS2

local module

X-USBPRO-MS2

remote module

AdderLink X-USBPRO-MS2 dual video extender modules The MS2 variant package includes all of the above ancillary items plus:

Power adapter and

country- speciﬁc

power lead (for

MS2 local module)

welcome contents

installation

operation

rter

inormation

Optional items

Power adapter and country- speciﬁc

power lead for local module (if USB

powering not possible)

Part number: PSU-IEC-5VDC-2.5A

Rack mount plate for X-USBPRO module

(useable for the local or remote modules)

Part number: X-RMK-FASCIA

Rack mount chassis

Part number: X-RMK-CHASSIS

Rack mount plate for X-USBPRO-MS2 module

(useable for the local or remote modules)

Part number: X-RMK-FASCIA-DUAL

welcome contents

installation

operation

rter

inormation

Installation

Connections

Installation of the X-USBPRO modules is straightforward with minimal

conﬁguration requirements in most cases.

• Connections at the local module

• Connections at the remote module

Important

The X-USBPRO can be used with other USB hubs in the system, but please note

that due to power constraints, the local unit should not be connected to the

downstream port of a bus-powered USB hub. Additionally, X-USBPRO-MS2 local

units must always be powered using their supplied power adapter. Please see

page 8 for details.

Mounting

The X-USBPRO modules offer two main mounting methods:

•Suppliedfourself-adhesiverubberfeet

•Optionalrackmountbrackets-seebelow

welcome contents

installation

operation

rter

inormation

From

USB port

From primary video

output port

Connections at the local module

1 Where possible ensure that power is disconnected from the computer

system to be connected.

3 Use the supplied USB cable to

link the USB socket of the local

module to a vacant USB socket

on the computer.

2 Use the supplied video lead to

link the video input socket of

the local module to the video

output port of the computer.

[MS2 variant only] Optionally

attach a second video input to

the upper video in socket on

the MS2 local module.

From primary video

output port

From secondary video

output port

Note: Do not use USB cables longer than 3 metres to

connect the local module to the computer.

4 Optionally connect an audio link

from the computer’s speaker port

to the audio input port on the local

module.

From audio port

To local

speakers

5 Optionally connect local speakers to the audio output port on the local

module.

Important

The X-USBPRO can be used with other USB hubs in the system, but please

note that due to power constraints, the local unit should not be connected

to the downstream port of a bus-powered USB hub. Additionally,

X-USBPRO-MS2 local units must always be powered using their supplied

power adapter. Please see page 8 for details.

welcome contents

installation

operation

rter

inormation

5 Connect a category 5, 5e, 6, 7 or 7a link cable (up to 300 metres in length)

to the ‘TO REMOTE’ socket on the local module.

To local

video display

Link to remote

module

[MS2 variant only] Connect a second

category 5, 5e, 6, 7 or 7a link cable (up

to 300 metres in length) to the upper

socket on the MS2 local module.

Primary CATx

link cable

Secondary CATx

link cable

6 Optionally connect a local video display to the video out feed-through

connector on the local module.

[MS2 variant only] Optionally connect a

second local video display to the upper

socket on the MS2 local module.

To primary

video display

To secondary

video display

welcome contents

installation

operation

rter

inormation

Local module power connection

The standard X-USBPRO and the X-USBPRO-MS local modules differ in the way

that they are powered:

• TheX-USBPROlocalmoduleisdesignedtoderiveitspowerfromthehost

computer via the USB connection. If this is not possible, then use an optional

Adder power adapter (part number: PSU-IEC-5VDC-2.5A), available from

your Adder stockist

• The X-USBPRO-MS2 local module always requires the use of a power adapter

and hence two power adapters are supplied with all X-DVIPRO-MS2 units.

For all X-USBPRO-MS2 and optionally for X-USBPRO units:

1 Connect the output lead of the

optional power adapter to the

socket labelled ‘POWER‘ on the

local module.

2 Insert the IEC connector of the separate power lead into the corresponding

socket of the power adapter.

3 When all other connections have been made at the transmitter and receiver

modules, connect the other end of the power cable to a nearby earthed

power outlet.

X-USBPRO: Use an optional

power adapter only if

power from the host (via

USB) is not possible.

Note: After all connections

are made, power up the

monitor and the REMOTE

module ﬁrst (followed by

the LOCAL module, if using

the X-USBPRO-MS2 variant)

and then switch on the

computer.

X-USBPRO-MS2: Use the

supplied power adapter for

all installations.

welcome contents

installation

operation

rter

inormation

Connections at the remote module

1 Place the remote module adjacent to the user location.

To video

display

2 Attach the leads of up to four

USB devices (two of which are

usually a keyboard and mouse)

to the sockets located adjacent

to the video output connector.

3 Attach the lead from the

video display to the video

out socket on the remote

module.

To USB

devices

[MS2 variant only] Optionally

attach the lead from a second

video display to the upper

video out socket on the MS2

remote module.

To primary

video display

To secondary

video display

[MS2 variant only] When connecting four USB

devices to the unit, ensure that their total power

requirements do not exceed 1700mA (1.7A).

The USB standard states a maximum allowable

current draw of 500mA (0.5A) per device,

although most devices remain well

below this limit - USB keyboards

and mice typically require 100mA.

Each X-USBPRO contains a self-

resetting fuse that will prevent

damage by shutting down the

unit if the total power draw

becomes excessive.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ADDER Estensione

ADDER

ADDER AdderLink LPV154T Manuale utente

ADDER

ADDER AdderLink LPV Manuale utente

ADDER

ADDER AdderLink X-DVIPRO Manuale utente

ADDER

ADDER AdderLink Infinity Manager Manuale utente

ADDER

ADDER AdderLink Digital iPEPS Manuale utente

ADDER

ADDER AdderLink Infinity 100T Manuale utente

ADDER

ADDER AdderLink X-DVI Manuale utente

ADDER

ADDER AdderLink X100 Manuale utente

ADDER

ADDER ADDERLink XD612 Manuale utente

ADDER

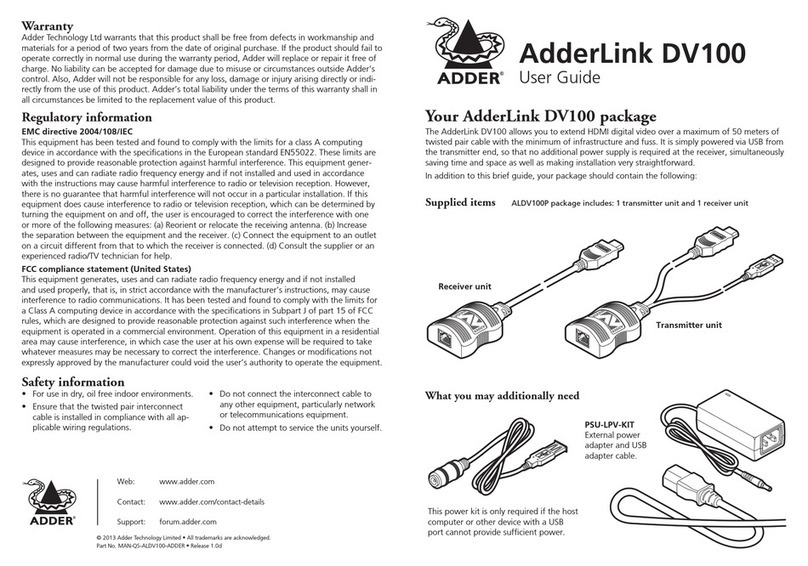

ADDER Link DV100 Manuale utente

ADDER

ADDER ALIF 2112T Manuale utente

ADDER

ADDER Link X200 Manuale utente

ADDER

ADDER AdderLink X2 Dual Access Manuale utente

ADDER

ADDER ADDERLINK X-DVI PRO Manuale utente

ADDER

ADDER AdderLink Infinity ALIF2000 Manuale utente

ADDER

ADDER AdderLink X2 Dual Access Manuale utente

ADDER

ADDER Adder X00 Extender Manuale utente

ADDER

ADDER AdderLink X2 Dual Access Manuale utente

ADDER

ADDER AdderLink X-Series Manuale utente

ADDER

ADDER AdderLink Infinity Manager Manuale utente

ADDER

ADDER AdderLink AV series Manuale utente

ADDER

ADDER ADDERLink INFINITY 1100 Manuale utente

ADDER

ADDER AdderLink Infinity Manager Manuale utente

ADDER

ADDER AdderLink Infinity 1002 Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
