ADEMCO VISTA Manuale utente

Swmlmy

qymiml

N6491V21AM

VISTA

4120XM

4140XMP

~DEMCO

Previous Menu

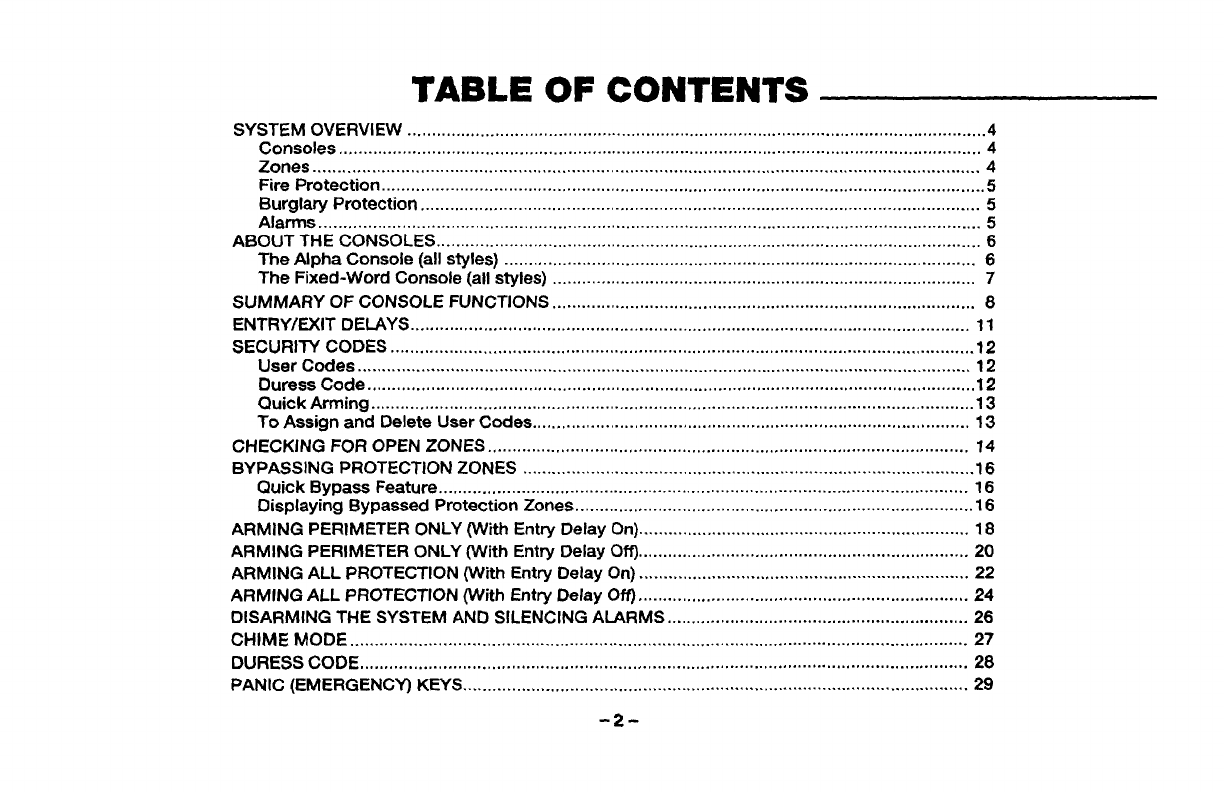

SYSTEM OVERVIEW .......................................................................................................................4

Consoles .................................................................................................................................... 4

Zones. ............................................................ ........................................................................... 4

Fire Protection ............................................................................................................................5

Burgla~ Protection ................................................................................................................... 5

Alams ........................................................................................................................................ 5

ABOUT THE CONSOLES ................................................................................................................ 6

The Alpha Console (all styles) ................................................................................................. 6

The Fixed-Word Console (ail styles) ....................................................................................... 7

SUMMARY OF CONSOLE Functions ...................................................................................... 8

ENTRY/EXIT DEUYS ................................................................................................................... 11

sEcuRlw coDEs .......................................!................................................................................l2

User Codes .............................................................................................................................. 12

Duress Code .............................................................................................................................l2

Quick Arming ............................................................................................................................l3

To Assign and Delete User Codes .......................................................................................... 13

CHECKING FOR OPEN ZONES ...................!.....................................!...............................#......... 14

BYPASSING PROTECTION ZONES .............................................................................................l6

Quick Bypass Feature ............................................................................................................. 16

Displaying Bypassed Protection Zones ..................................................................................l6

ARMING PERIMETER ONLY (YWthEntry Delay On).................................................................... 18

ARMING PERIMETER ONLY (With Entry Delay 0~ .................................................................... 20

ARMING ALL PROTECTION (VWh Entry Delay On) .................................................................... 22

ARMING ALL PROTECTION (With Entty Delay Off)............................o...................................... 24

DISARMING THE SYSTEM AND SILENCING AURMS .............................................................. 26

CHIME MODE .

..... ......................................................................................................................... 27

DURESS CODE ............................................................................................................................. 28

PANIC (EMERGENCY) KEYS........................................................................................................ 29

-2-

USING THE KEYSWITCH ..............................................................................................................W

VIEWING CENTRAL STATION MESSAGES ...................................

.............................................. 32

SELF-HELP F~~RE ...................................................................................................................33

REVIEWING ALL ZONE DESCRIPTIONS ..................................................................................... 33

TESTING THE SYSTEM ................................................................................................................ 34

TROUBLE CONDITIONS (Alpha Console) ....................................................................................36

TROUBLE CONDITIONS (Fixed-Word Console) ..........................................................................38

FIRE ALARM SYSTEM ([f installed) ..............................................................................................4O

In Case Of Fire Alarm .............................................................................................................4O

Silencing Fire Alarms ............................................................................................................ 41

NATIONAL FIRE PROTECTION ASSN. Recommendations ...................................................42

EMERGENCY ~ACUATION ........................................................................................................ 43

SUMMARY OF AUDIBLE SOUNDS AND DISPLAYS (Alpha Console) ........................................44

SUMMARY OF AUDIBLE SOUNDS AND DISPIJIYS (Fixed-Word Console) ..............................45

PROTECTION ZONES .................................................................................................................. 46

QUICK REFERENCE OPERATING GUIDE ................................................................................... 48

MAINTAINING YOUR SYSTEM .....................................................................................................49

Replacing Batteries in Wireless Sensom ............................................................................... 49

Silencing Low Battety Warning Tones at the Console ...........................................................5O

Routine Care .............................................................................................................................50

FCC STATEMENTS, PART 15 and PART W........................................................................ 51,52

OWNER’S INSURANCE PREMIUM CREDIT REQUEST FORM ...................................................53

CANADIAN DEPARTMENT OF COMMUNICATIONS (DOC) STATEMENT .................................55

THE LIMITATIONS OF THIS ALARM SYSTEM ............................................................................ 56

WARRANTY .................................................................................................................................. 58

IN THE EVENT OF TROUBLE WITH YOUR REGULAR TELEPHONE SERVICE ..........................59

-3-

SYSTEM OVERVIEW

General Congratulations on your ownership of an Ademco Security System. You’ve

made awise decision in choosing it, for it represents the latest in security

protection technology today, including microcomputer technology to monitor the

system’s status at all times. Ademco is the world’s largest manufacturer of

security systems and millionsof premises are protected by Ademco systems.

Basically, this system offers you three forms of protection -burglary, fire and

emergency, Your system consists of at least one console which provides full

control of system operation, plus various devices such as door and window

sensors and motion detectors. It may also include aselected number of smoke

or combustion detectors designed to provide early warning in case of fire.

Consoles Your consoles allow you to control all system functions, and feature a

telephone style (digital) keypad, aLiquid Crystal Display (LCD) that shows the

nature and location of all occurrences, and abuilt-in sounder which sounds

during alarms and troubles. Your System can use either the Fixed-Word

Display console or the Alpha Display console (see ABOUT THE CONSOLES).

Unless stated otherwise, all commands and procedures apply equally to both

types of Consoles.

Protection zones Your system’s sensing devices have been assigned to various “protection

zones”. For example, the sensing device on your designated Entry/Exit door

may have been assigned to zone 01, sensing devices on awindow in the

master bedroom to zone 02, and so on. These zone numbers will appear on

the console display when an alarm or trouble condition occurs.

-4–

SYSTEM OVERV9EW

Fire Protection The fire protection portion of your security system (if used) is always on, and

sounds an alarm if afire condition is detected. Refer to the F/RE ALARM

SYSTEM section for important information concerning fire protection, smoke

detectors and planning emergency exit routes.

Burglary The burglary protection portion of your system must be turned on or “armed”

Protection before it can sense burglary alarm conditions and sound an alarm. Your system

can be armed in one of four modes: STAY, AWAY, INSTANT and MAXIMUM.

Refer to the ARM//VG sections for instructions in using these modes of

operation. The principal differences between these four arming modes will be

seen in the chart below.

SUMMARY OF ARMING MODES

Arming Features For Each Arming Mode

Mode ExitDelay Entry Delay Perimeter Armed Interior Armed

AWAY Yes Yes Yes Yes

STAY Yes Yes Yes No

INSTANT Yes No Yes No

MAXIMUM Yes No Yes Yes

Alarms When an alarm occurs, both the console and external sounders sound, and the

console displays the protection zone(s) causing the alarm. If your system is

connected to acentral monitoring station, an alarm message is also sent. To

stop the alarm sounding, simply disarm the system.

-5-

ABOUT THE CONSOLES

Console Types There are two basic types of consoles – a FIXED-M/0f3D console and an

ALPHA console. Either (or both) of these console types may have been used in

your particular system. Both types feature a multifunction, backlit 12-key digital

keypad, and aLiquid Crystal Display (LCD). Abuilt-in sounder emits alarm

sounds during alarm conditions, and produces warning tones during entry and

exit delay periods, This sounder also provides acknowledgment tones when

keys are pressed, and confirmation tones for successful command entries.

Console Styles Fixed-Word and Alpha consoles are available in two styles, Aand B, either of

which may have been used in your system. Although different in appearance,

both styles are functionally similar. The keypads on Style “B” consoles are

located behind aflip-down door which can be removed, if desired. Message

displays on all Alpha consoles are identical; words displayed on all Fixed-Word

consoles are the same, except that their location in the display window will

differ slightly with each style. All available consoles are shown on the right.

The Style “B”Alpha console, with an appropriate message display, is depicted

in the instructions throughout this manual; in each case, however, it is always

accompanied by the equivalent message display on aFixed-word console.

Unless noted otherwise,all procedures in this manual apply equally to all

conso/e types and styles.

The Alpha Alpha consoles feature a2-line, 32-character fully programmable alphanumeric

Console Liquid Crystal Display (LCD) which can display the nature and location of all

(All Styles) occurrences in friendly English. Abbreviated User’s instructions can also be

displayed on an Alpha console’s display screen (see SELF-HELP FEATURE

on page 33). This feature is useful if this Manual is not accessible when you

need to perform aprocedure with which you are not familiar.

-6-

The Fixed-Word FIXED-WORD display consoles are functionally similar to ALPHA Consoles,

Console except that their LCD displays use pre-designated fixed words to identify the

(All Styles) nature and location of all occurrences. This type of console does not include

the self-help feature that is available in the ALPHA console.

STYLE “A “CONSOLES

5137AD ALPHA CONSOLE

4127 4137AD

-7-

STYLE “B” CONSOLES

(SHOWN WITH KEYPAD DOOR REMOVED)

..-—

fir%fi

~S*

●*

6139 ALPHA CONSOLE

6127 6137

FIXED-WORD CONSOLES

SUMMARY OF CONSOLE FUNCTIONS

DISPLAY WINDOW: The ALPHA Console features

a2-line, 32-character Liquid Crystal Display (LCD)

that displays protection point identification, system

status, and messages.

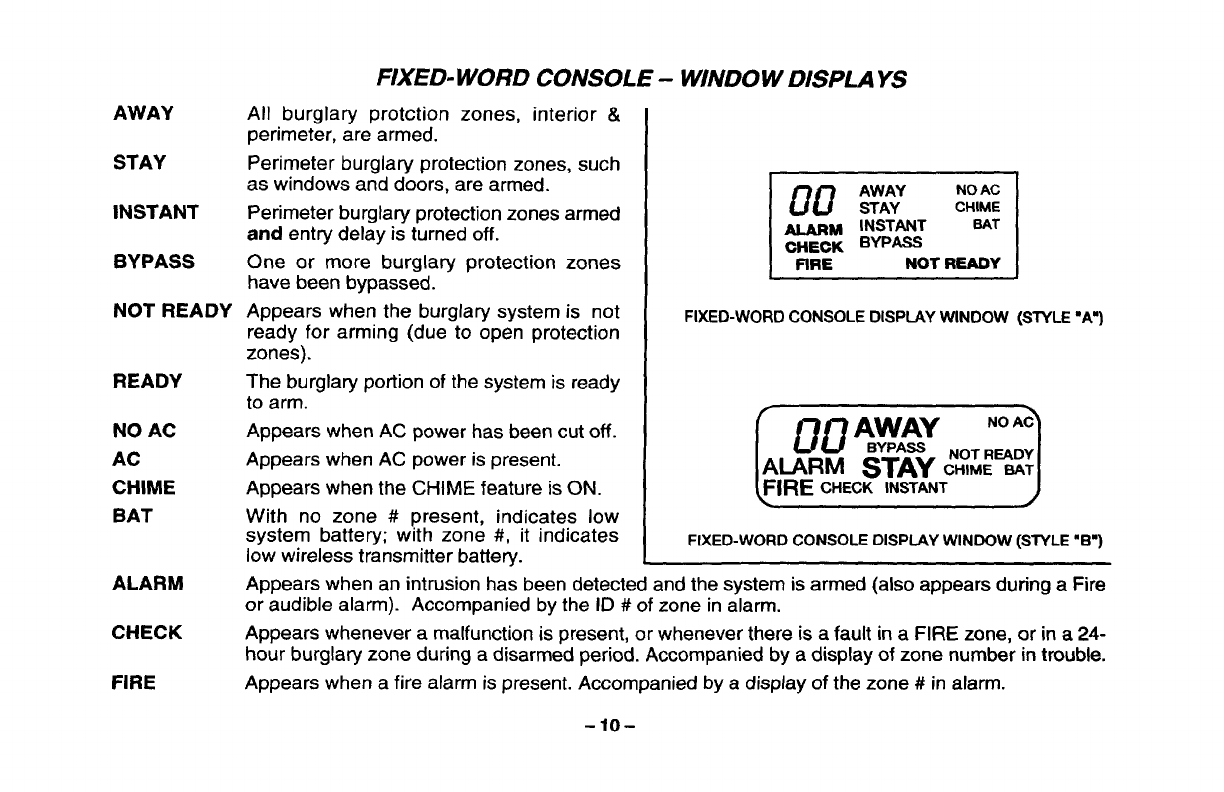

The FIXED-WORD Console provides the same

basic information, but uses fixed word displays. See

page 10 for Fixed-Word display messages and their

meanings.

OFF KEY: Used to disarm the burglary portion of

the system, silence alarms and audible trouble

tones, and clear visual displays after aproblem has

been corrected.

AWAY KEY: Used to arm the entire burglary

system, perimeter and interior.

STAY KEY: Used to arm the perimeter portion of

the burglary system only. Interior protection is not

armed, which allows movement within your

premises without causing an alarm. Entry delay

feature is in effect.

MAX (MAXIMUM) KEY: Used to arm in manner

similar to AWAY mode, but without the entry delay

feature, for maximum protection. An alarm will

occur immediately upon opening any protection

point, including adesignated Entry/Exit door (or

doors).

TEST KEY: Tests the system and alarm sounder if

disarmed. Refer to TESTING THE SYSTEM section.

10.

11.

12.

13.

14.

BYPASS KEY: Removes individual protection

zones from being monitored by the system.

INSTANT KEY: Arms in manner similar to STAY

mode, but without the entIy delay feature.

CODE KEY: Used to assign additional user codes

that can be given to other users of the system.

CHIME KEY: Used to turn CHIME mode on and

off. When on, the opening of protected windows

and doors will produce 3tones at the Console(s).

[*] READY KEY: Used to display all open

protection zones. This key is also used to display all

protection zone descriptions that have been

programmed for Alpha consoles in your system, by

holding the key down for at least 5seconds.

[#] KEY: “Quick Arm” key permits ARMING of the

system without the use of asecurity code (if

programmed to do so).

KEYS O-9: Used to enter your security code(s).

READY INDICATOR: (GREEN) Lit when system is

ready for arming (no protection zones open). When

the system is disarmed, this indicator will go on and

off as protectionzones are opened and closed.

Note: Onsomeconsoles,aPOWER indicator is provided

in place of aREADY light which, when on, indicates that

AC power is present, and when off, indicates that AC has

been cut off and that the system is operating on the back-

up battey.

-8-

15.

16,

17.

ARMED INDICATOR: (RED) Lit when

the system has been armed (STAY,

AWAY, INSTANT or MAXIMUM).

INTERNAL SOUNDER: The built-in

console sounder provides alarm sounds

during alarms, and also emits tones

during certain system functions. (see

SUMMARY OF AUDIBLE SOUNDS AND

DISPLAYS).

EMERGENCY KEYS:

Individual keys A, B, and C(key Dnot

used).

On some consoles,these keys are not

available,andthefollowing key pairs are

used for emergency functions:

[*] &[#]

[*] &[1]

[#]& [3]

These keys may be programmed for

panic functions by your installer (see

PANIC section on page 29).

IMPORTANTI:

When entering codes and commands,

sequential key depressions must be made

within 3seconds of one another. If 3

seconds elapses without a key depression,

tllaen &is aborted and must be repeated

fmmita inning.

@--

(1I>

//I\

rYpiCSlStyle “B” Alpha Console shown above. Fixed-

Word Consolesare fimctional/ythe same except for

screen displays and emergency key configuration.

/03

=10

‘12

-9-

AWAY

STAY

INSTANT

BYPASS

NOT READY

READY

NO AC

CHIME

BAT

ALARM

CHECK

FIRE

FIXED- WORD CONSOLE -

All burglary protction zones, interior &

perimeter, are armed.

Perimeter burglaty protection zones, such

as windows and doors, are armed.

Perimeter burglary protection zones armed

and entry delay is turned off.

One or more burglary protection zones

have been bypassed.

Appears when the burglary system is not

ready for arming (due to open protection

zones).

The burglary portion of the system is ready

to arm.

Appears when AC power has been cut off.

Appears when AC power is present.

Appears when the CHIME feature is ON.

With no zone #present, indicates low

system battery; with zone #, it indicates

low wireless transmitter battery.

!‘FIRE NOT READY I

FIXED-WORDCONSOLEDISPLAYWINDOW (SIYLE “A”)

FIXED-WORD CONSOLE DISPIAY WINDOW (STYLE “B=)

Appears when an intrusion has been detected and the system is armed (also appears during aFire

or audible alarm). Accompanied by the ID #of zone in alarm.

Appears whenever amalfunction is present, or whenever there is afault in aFIRE zone, or in a24-

hour burglary zone during adisarmed period. Accompanied by adisplay of zone number in trouble.

Appears when afire alarm is present. Accompanied by adisplay of the zone #in alarm.

-1o-

Altri manuali per VISTA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ADEMCO Sistema di sicurezza

ADEMCO

ADEMCO 4110DL Manuale utente

ADEMCO

ADEMCO VISTA-120 Istruzioni per il montaggio

ADEMCO

ADEMCO LYNX Manuale utente

ADEMCO

ADEMCO Vista AT 4140 Manuale utente

ADEMCO

ADEMCO 745x3 Manuale utente

ADEMCO

ADEMCO Security System VISTA-10SE Manuale utente

ADEMCO

ADEMCO VISTA 5140XM Manuale utente

ADEMCO

ADEMCO LYNXR Manuale utente

ADEMCO

ADEMCO 4110 Manuale utente

ADEMCO

ADEMCO UVS Manuale utente

ADEMCO

ADEMCO VISTA-128B Manuale utente

ADEMCO

ADEMCO Vista-20 Manuale utente

ADEMCO

ADEMCO VIA-30PSE Manuale utente

ADEMCO

ADEMCO VISTA Series Guida rapida

ADEMCO

ADEMCO Alpha Vista 5130XT Manuale utente

ADEMCO

ADEMCO VISTA-250BP Istruzioni per il montaggio

ADEMCO

ADEMCO Vista-128FB Manuale utente

ADEMCO

ADEMCO Security System VISTA-15 Istruzioni per il montaggio

ADEMCO

ADEMCO VISTA-50P Guida all'installazione

ADEMCO

ADEMCO 4150 Manuale utente

ADEMCO

ADEMCO 4110DL Manuale utente

ADEMCO

ADEMCO Vista-10P Istruzioni per il montaggio

ADEMCO

ADEMCO 4110DLa Manuale utente

ADEMCO

ADEMCO VISTA-50PEN Istruzioni per il montaggio

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
