Adeunis RF ARF37 Manuale utente
A
RF37
Wireless Audio
Conference System
User Guide
About this Document
This guide describes the ARF37 devices, their options and accessories.
It explains how to set the features to enable a conference communication
between several devices.
No part of this document may be reproduced or transmitted (in electronic or
paper version, photocopy) without Adeunis RF consent.
This document is subject to change without notice.
All trademarks mentioned in this guide are the property of their respective
owner.
Adeunis RF
283, rue Louis Néel
38920 Crolles
France
Phone +33 (0)4 76 92 07 77
Fax +33 (0)4 76 08 97 46
Ref. 07-10-V3-psn
A
RF37
User Guide
Ref. 07-10-V3-psn p 1
Table of Contents
Table of Contents..............................................................................1
Declaration of Conformity.................................................................2
Introducing the A
RF37
.........................................................................3
Product Description .........................................................................3
Accessories .....................................................................................4
Getting Started .................................................................................6
Keyboard Description.......................................................................6
Function Usage ...............................................................................7
Using the Screen and Keyboard........................................................7
Setting a Conference.........................................................................9
Assigning a Number to a Device.......................................................9
Changing the intensity of the noise filter.........................................10
Moving to a substitution channel ....................................................10
Enabling Devices to Enter a Conference..........................................11
Using the Devices............................................................................13
Using the Listener Mode ................................................................13
Validating or Unvalidating Other Devices Listening ..........................13
Setting the Volume........................................................................14
Locking or Unlocking the Keypad....................................................14
Reloading the Battery ....................................................................15
Troubleshooting..............................................................................16
A
RF37
User Guide
Ref. 07-10-V3-psn p 2
Declaration of Conformity
Manufacturer’s name : ADEUNIS R.F.
Manufacturer’s address : Parc Technologique PRE ROUX IV
283 rue Louis NEEL
38920 CROLLES - FRANCE
declares that the product if used and installed according to the user guide available on
our web site www.adeunis-rf.com
Product Name : ARF37
Product Number(s) : ARF7483A / ARF7484A / ARF7483B / ARF7484B
Product options :
complies with the RTTE Directive 99/5/EC :
EMC : conformity is proven by compliance to the harmonized standard
EN 301-489
Safety : conformity to the standard EN 60950-1/2001
Radio : conformity is proven by compliance to harmonized standard EN
300-220 covering essential radio requirements of the RTTE
directive.
Exposure to radio frequency signals : regarding the 1999/519/EC recommendation,
when using the device, keep the product at least 3,2 cm from your body.
Notes : - Conformity has been evaluated according to the procedure
described in Annex III of the RTTE directive.
- Receiver class (if applicable): 3.
Crolles, November 6th, 2007
VINCENT Hervé / Quality manager
Download of the user guide
Thank you for having chosen the ADEUNIS RF products.
User guides can be uploaded directly on our web site www.adeunis-rf.com :
Index Products
Paragraph Long range audio transmissions
Print version available upon request
9Tel : +33 4 76 92 07 77
9Email : arf@adeunis-rf.com
A
RF37
User Guide
Ref. 07-10-V3-psn p 3
Introducing the A
RF37
The A
RF37
allows you to establish a conference communication, using up to 6
wireless devices in a team.
Having set the conference parameters, you can use the devices, speak and
hear the other users.
Product Description
The A
RF37
devices are delivered with the following options :
Audio conference devices with a 3.7 V 1000 mA/h battery
Dimensions : 120 mm x 60 mm x 25 mm
Weight : 150 g
Battery reload : 2 hours
Battery autonomy : 8 hours
Ref. with a standard jack connector ARF7483A
Ref. with a waterproof locking connector ARF7484A
Audio conference devices with a 3.7 V 2000 mA/h battery
Dimensions : 120mm x 60mm x 30mm
Weight : 170 g
Battery reload : 3 hours
Battery autonomy : 16 hours
Ref. with a standard jack connector ARF7483B
Ref. with a waterproof locking connector ARF7484B
A
RF37
User Guide
Ref. 07-10-V3-psn p 4

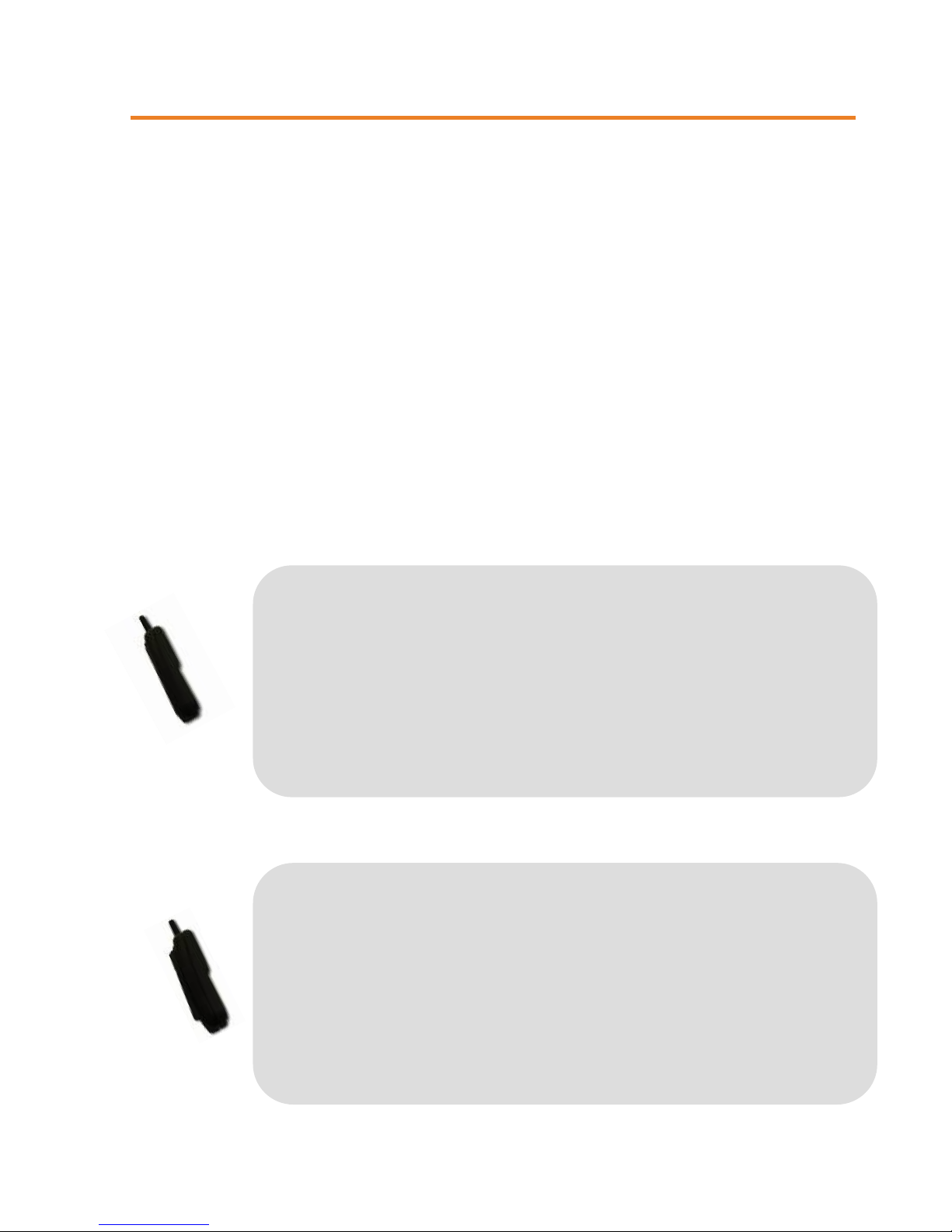

Accessories
To complete the communication system, the following accessories are
available :
Standard headset kit with a Jack connector
Ref. 7
38
2-
A
–
M
Ø5
Standard headset kit with waterproof locking connector
Ref. 7
38
2-
A
–
M
Ø
4
Customized headset kit with waterproof locking connector
Ref. 7382-
A
–
M
Ø
8
Belt Ref. CEINT
U
RE 11
0
Harness Ref. 7382-A - MØ9
Armband Ref. 206105
A
RF37
User Guide
Ref. 07-10-V3-psn p 5
3.7 V 1000 mA/h battery Ref. EASYPACK 1000
3.7 V 2000 mA/h battery Ref. EASYPACK 2000
5-slot battery rack for reloading the batteries Ref.
A
RF7418A
Clip Ref. CL1-N
Case Ref. NOVA 4 AW
Push-to-talk button (only available for locking connector)
Ref. 7382-
A
-M1Ø
A
RF37
User Guide
Ref. 07-10-V3-psn p 6
Getting Started
Keyboard Description
The keyboard allows you to select the functions and their options. This is a
capacitive keyboard. It will be more efficient when pressing the button on the
sign.
The available keys are as follows :
Keys Description
Power On/Off
Key active during parameters setting
Menu
Access to the device settings menu
Option selection
In the device settings menu, the buttons allow
you to adjust the parameters.
When you are not in the device settings menu, the
buttons give you direct access to volume settings.
Validation
Allows you to validate the selected option or to
exit the device settings menu.
OK
NOTE
Each time you press a button, the device displays a *and produces a
"beep".
A
RF37
User Guide
Ref. 07-10-V3-psn p 7
Function Usage
To use a function, make sure you press the corresponding key for 2 seconds.
To turn the device on, press the ON/OFF button for 2 seconds.
To turn the device off, press the ON/OFF button for 2 seconds.
Using the Screen and Keyboard
Each device is composed of a screen which displays information and a
keyboard for entering the different settings.
Screen Description
When powered on, the screen provides you with information on :
ythe device online status,
ythe battery level,
ythe device settings.
A
RF37
User Guide
Ref. 07-10-V3-psn p 8

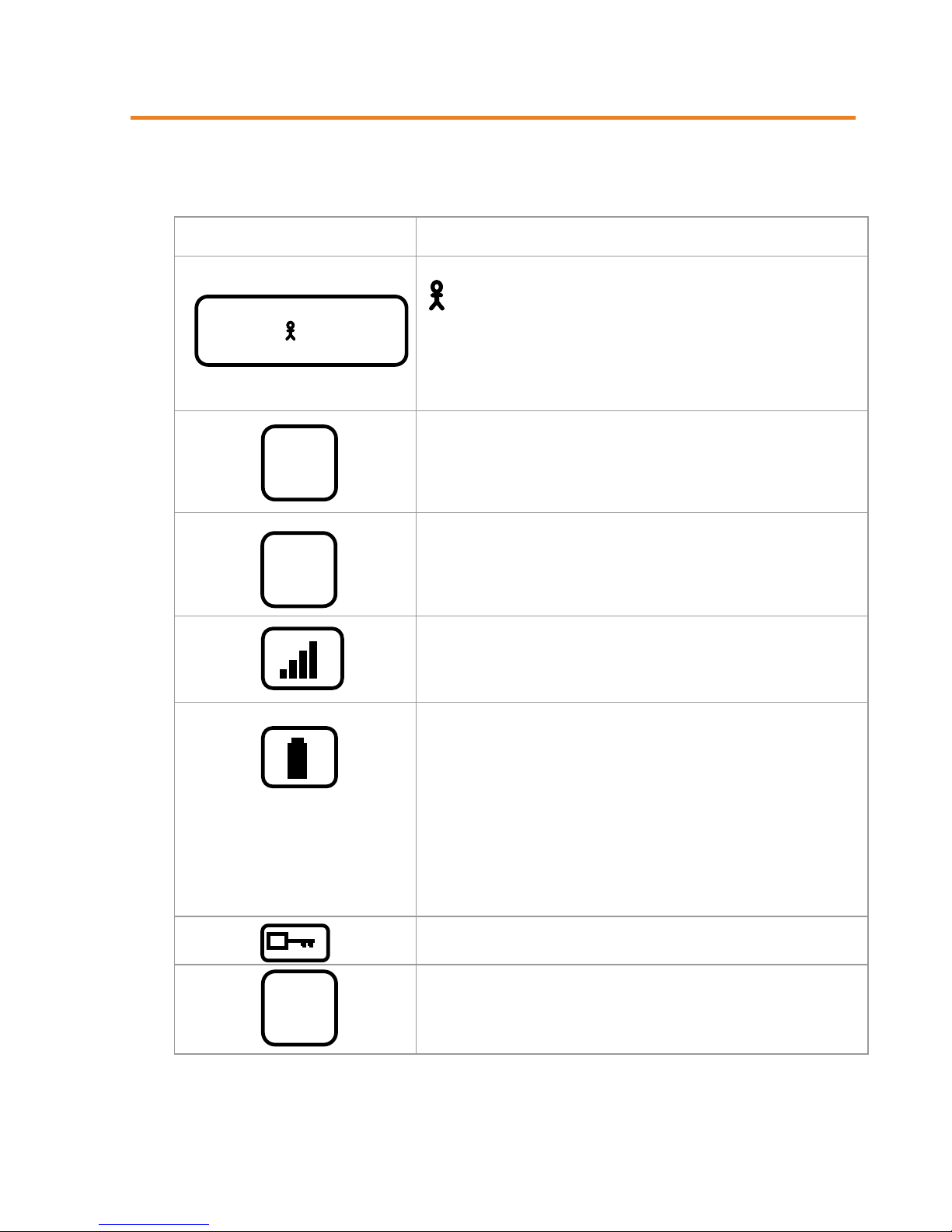

The screen indicators are as follows :
Y1. 2 . . . . 5 . 6
C1
01
F+
Indicators Description
System status
indicates the device in the system. The other
numbers indicate the devices online in the
conference.
A dash over the number indicates that the
listening of this device is validated.
Radio Channel (Chan. setting)
Indicates the radio channel.
Product identifier (Role setting)
Indicates the device number in the conference or
“system listener”.
Volume settings
Indicates the volume level, with 9 levels.
Battery indicator
Provides information on the battery level, with 5
levels:
•Full capacity.
•75% capacity.
•Less than 50% capacity, reload is
recommended.
•Less than 25% capacity, reload is required.
•Minimum capacity, the device cannot work.
Keypad Locked / Unlocked
Except the On/Off function
Indicates whether you are using an enhanced
filter (F+) or a regular one (F)
