ADF Web HD67155-A1 Manuale utente

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 1 di 37

User Manual

Revision 1.100

English

CAN / SNMP Agent - Converter

(Order Code: HD67155-A1, HD67155-B2)

for Website information:

www.adfweb.com? roduct=HD67155

for rice information:

www.adfweb.com? rice=HD67155-A1

www.adfweb.com? rice=HD67155-B2

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -40°C/85°C (-40°F/185°F)

For others SNM Agent products, see also the following links:

Converter SNMP to

www.adfweb.com? roduct=HD67039 (DMX)

www.adfweb.com? roduct=HD67092 (M-Bus Wireless)

www.adfweb.com? roduct=HD67156 (CANo en)

www.adfweb.com? roduct=HD67159 (EtherNet/IP)

www.adfweb.com? roduct=HD67160 (DeviceNet Master)

www.adfweb.com? roduct=HD67161 (DeviceNet Slave)

www.adfweb.com? roduct=HD67162 (J1939)

www.adfweb.com? roduct=HD67163 (M-Bus Master)

www.adfweb.com? roduct=HD67164 (Modbus Master)

www.adfweb.com? roduct=HD67165 (Modbus Slave)

www.adfweb.com? roduct=HD67166 (Modbus TCP Master)

www.adfweb.com? roduct=HD67167 (Modbus TCP Slave)

www.adfweb.com? roduct=HD67168 (PROFIBUS Master)

www.adfweb.com? roduct=HD67169 (PROFIBUS Slave)

www.adfweb.com? roduct=HD67613 (PROFINET)

www.adfweb.com? roduct=HD67693 (BACnet Slave)

www.adfweb.com? roduct=HD67726 (BACnet Master)

www.adfweb.com? roduct=HD67820 (KNX)

www.adfweb.com? roduct=HD67850 (DALI)

Do you have an your customer protocol?

www.adfweb.com? roduct=HD67003

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 2 di 37

INDEX:

age

INDEX 2

U DATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAM LE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

OWER SU LY 8

FUNCTION MODES 9

LEDS 10

SNM 11

CAN 12

USE OF COM OSITOR SW67155 13

NEW ROJECT / O EN ROJECT 14

SOFTWARE O TIONS 15

SET COMMUNICATION 17

RECEIVE FRAMES 18

INFO RECEIVE 19

SEND FRAMES 20

INFO SEND 21

SET SNM ACCESS 22

U DATE DEVICE 24

SNM COMMUNICATION 26

SENDING ASYNCHRONOUS CAN MESSAGES

FROM ETHERNET

MECHANICAL DIMENSIONS 33

ORDERING INFORMATIONS 35

ACCESSORIES 35

DISCLAIMER 36

OTHER REGULATIONS AND STANDARDS 36

WARRANTIES AND TECHNICAL SU ORT 37

RETURN OLICY 37

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Cha ter

Descri tion

1.000 05/01/2015

Ff All First Release

1.100 01/02/2017

Ff All New software version

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 3 di 37

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 4 di 37

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 5 di 37

CONNECTION SCHEME:

Figure 1a: Connection scheme for HD67155-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 6 di 37

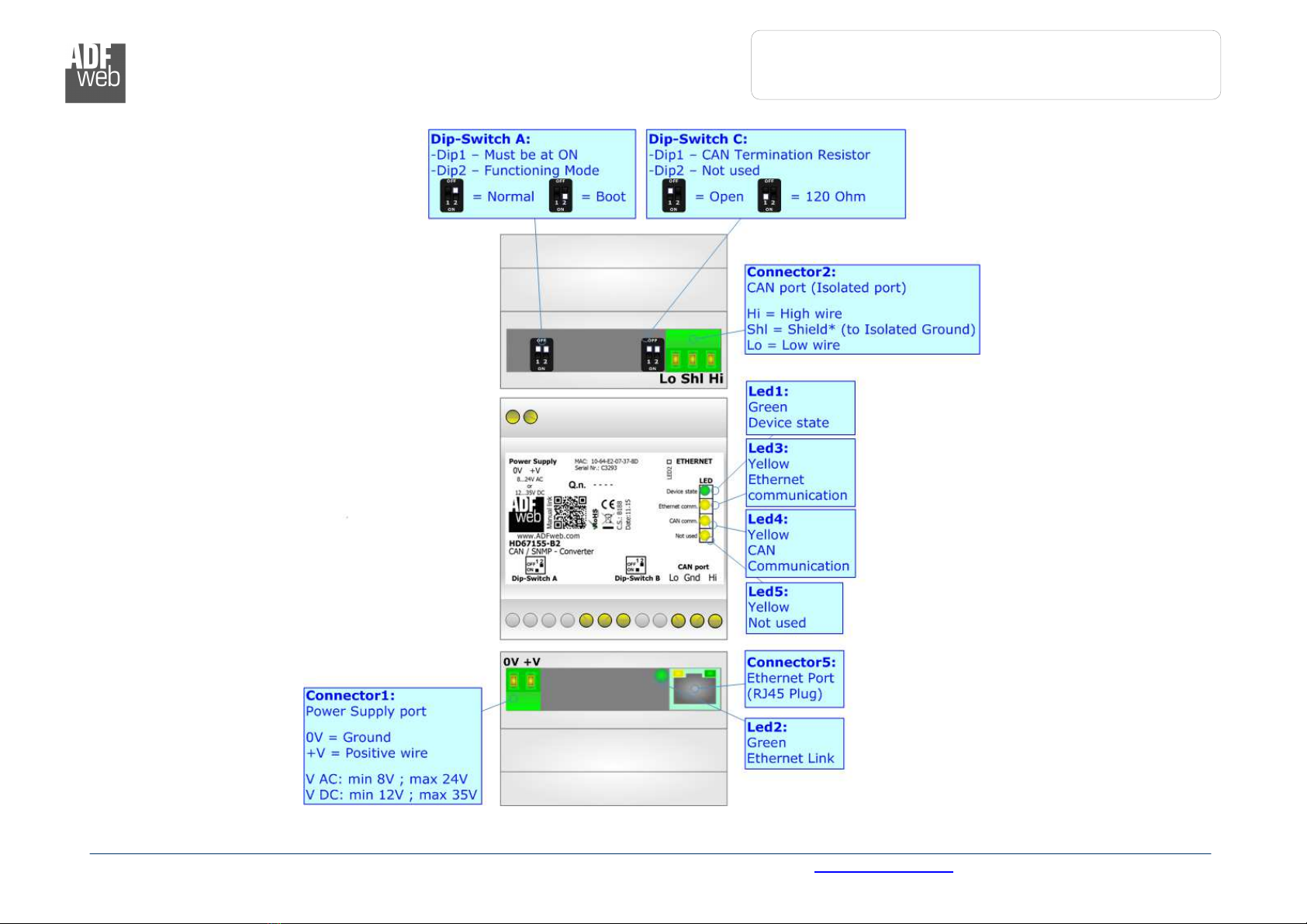

Figure 1b: Connection scheme for HD67155-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 7 di 37

CHARACTERISTICS:

The HD67155-A1 and HD67155-B2 is a CAN / SNM Agent - Converter.

It has the following characteristics:

Up to 1024 bytes in reading and 1024 bytes in writing;

Triple isolation between CAN - ower Supply, CAN - Ethernet, ower Supply - Ethernet.

Two-directional information between CAN bus and SNM bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67155 software on your C in order to perform the following:

Define the parameter of SNM line;

Define the parameter of CAN line;

Define the CAN frames that the converter can accept;

Define the CAN frames that the converter sends trough the CAN line;

Define the map of CAN byte that must be written in the SNM array;

Define the map of which SNM bytes must be written in CAN frames;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 8 di 37

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consum tion [W/VA]

HD67155-A1 3.5

HD67155-B2 3.5

HD67155

Caution: Not reverse the olarity ower

HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 9 di 37

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.

For the operations to follow for the updating, see ‘U DATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

CAN / SNMP Agent

Document code: MN67155_ENG Revision 1.100 agina 10 di 37

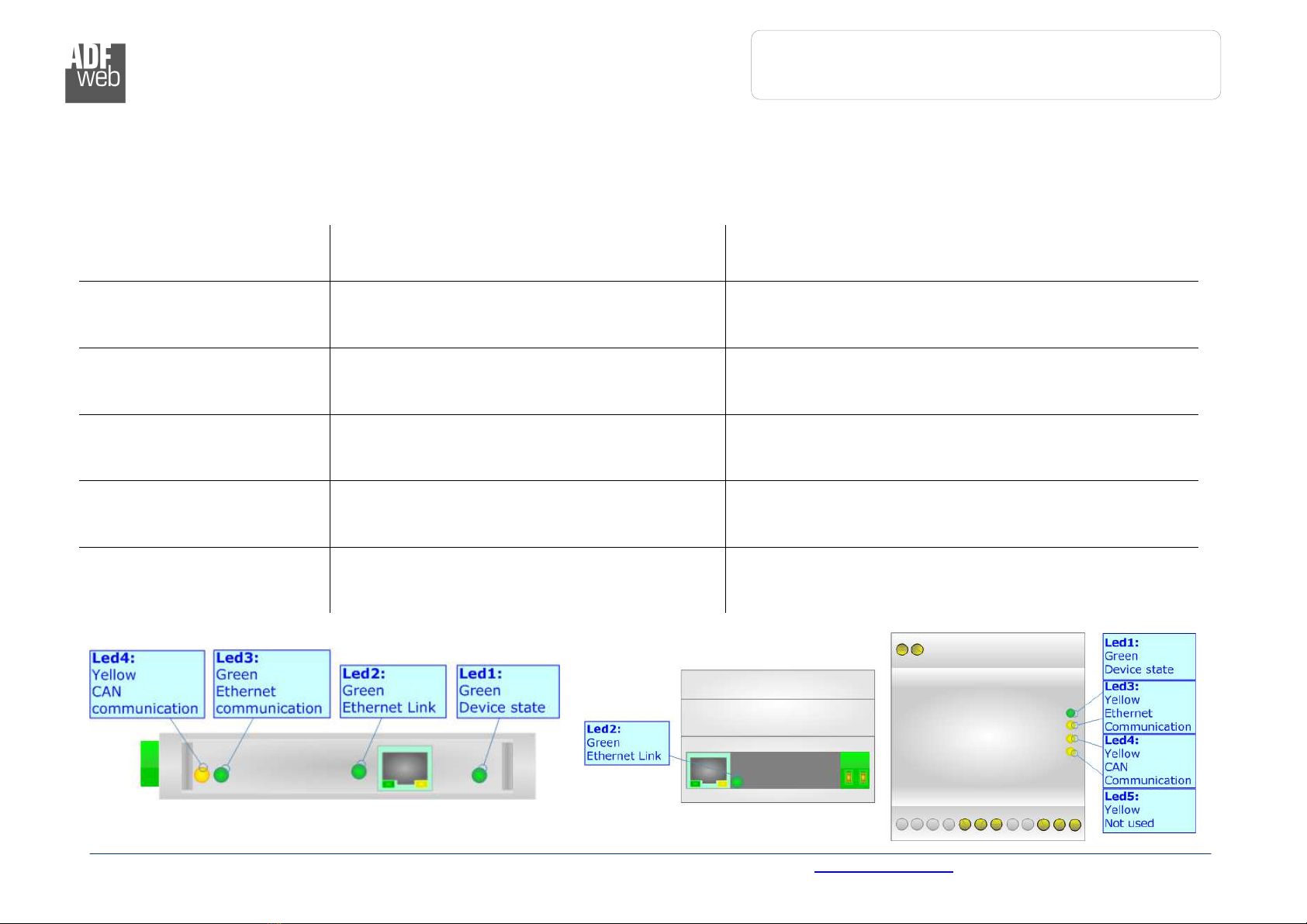

LEDS:

The devices has got four (five for HD67515-B2) LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: Ethernet Link ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

3: Ethernet Communication Blinks when SNM frames are received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: CAN Communication Blinks when CAN frames are received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Not used ( resent only on

HD67155-B2) OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress
