ADF Web HD67B11-IP-B2 Manuale utente

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 1 of 33

User Manual

Revision 1.00

English

OPC UA Client / BACnet Slave - Converter

(Order Code: HD67B11-IP-B , HD67B11-MSTP-B )

for Website information:

http://www.adfweb.com/?Product=HD67B11

for Price information:

http://www.adfweb.com/?Price=HD67B11-IP-B

http://www.adfweb.com/?Price=HD67B11-MSTP-B

Benefits and Main Features:

Triple electrical isolation

Power Supply 18…35V DC and 8… 4 V AC

Temperature range: -40°C/+85°C (-40°F/+185°F)

For others OPC UA Client devices, see also the following links:

OPC UA Client from/to …

www.adfweb.com?Product=HD67B08 (Serial)

www.adfweb.com?Product=HD67B09 (Modbus Slave)

www.adfweb.com?Product=HD67B10 (Modbus TCP Slave)

www.adfweb.com?Product=HD67B1 (CAN)

www.adfweb.com?Product=HD67B13 (CANo en)

www.adfweb.com?Product=HD67B14 (DeviceNet Slave)

www.adfweb.com?Product=HD67B15 (DMX)

www.adfweb.com?Product=HD67B16 (EtherNet/IP Slave)

www.adfweb.com?Product=HD67B17 (J1939)

www.adfweb.com?Product=HD67B18 (KNX)

www.adfweb.com?Product=HD67B19 (MQTT)

www.adfweb.com?Product=HD67B 0 (NMEA0183)

www.adfweb.com?Product=HD67B 1 (NMEA2000)

www.adfweb.com?Product=HD67B (PROFINET)

www.adfweb.com?Product=HD67B 3 (SNMP Agent)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page of 33

INDEX:

Page

INDEX

UPDATED DOCUMENTATION

REVISION LIST

WARNING

TRADEMARKS

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

POWER SUPPLY 8

FUNCTION MODES 9

LEDS 10

RS485 (FOR BACNET MS/TP) 11

ETHERNET 1

USE OF COMPOSITOR SW67B11 13

NEW PROJECT / OPEN PROJECT 14

SOFTWARE OPTIONS 15

SET COMMUNICATION 17

OPC UA ACCESS 0

SET BACNET ACCESS 6

UPDATE DEVICE 8

MECHANICAL DIMENSIONS 30

ORDERING INFORMATIONS 31

ACCESSORIES 31

DISCLAIMER 3

OTHER REGULATIONS AND STANDARDS 3

WARRANTIES AND TECHNICAL SUPPORT 33

RETURN POLICY 33

Pagina 2 di 33

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

Revision

Date Author

Cha ter

Descri tion

1.000 13/03/ 019 Nv All First release version

1.001 11/10/ 019 Ff All Revision

1.00 17/04/ 0 0 Ff All Revision

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 3 of 33

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 4 of 33

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 5 of 33

CONNECTION SCHEME:

Figure

: Connection

scheme

r HD67

B11

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 6 of 33

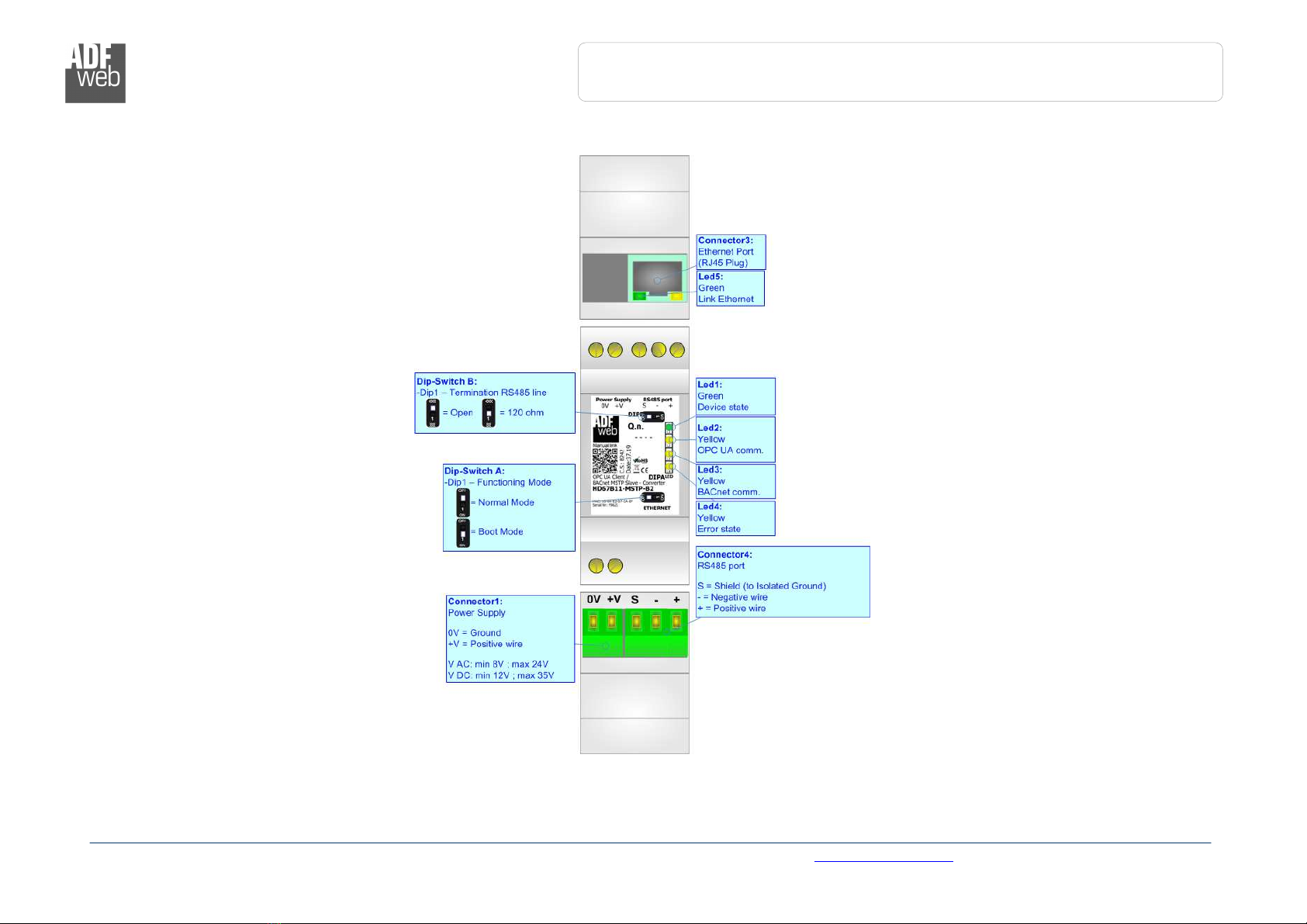

Figure

: Connection

scheme

for HD67

B11

MST

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 7 of 33

CHARACTERISTICS:

The HD67B11-xxx-B is a OPC UA Client / BACnet Slave converter.

It allows the following characteristics:

Up to 1500 bytes in reading and 1500 bytes in writing;

Two-directional information between BACnet and OPC UA;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8… 4V AC or 1 …35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67B11 software on your PC in order to perform the following:

Define the parameter of OPC UA;

Define the parameter of BACnet line;

Define the list of OPC UA servers connected to the converter;

Define the list of BACnet objects accessible on BACnet side;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 8 of 33

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD67B11-xxx-B2 8V 24V 12V 35V

Consumption at 4V DC:

Device W/VA

HD67B11-xxx-B 4

Caution: Not reverse the olarity ower

HD67B11-xxx-B

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 9 of 33

FUNCTION MODES:

The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:

The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.

The second, with Dip1 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).

According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Client /

BACnet Slave

Document code: MN67B11_ENG Revision 1.00 Page 10 of 33

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

: OPC UA comm. (yellow) Flashing: OPC UA response

OFF: No OPC UA response

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: BACnet comm. (yellow) Flashing: BACnet request

OFF: No BACnet request

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Error state (yellow) ON: At least one OPC UA Server is disconnected

OFF: all OPC UA Servers are connected

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Link Ethernet (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected
