ADS Technologies USBAV-170 Manuale utente

USB

USB Instant Video

User Guide, Rev. 2.0

Product Part# USBAV-170

Product UPC: 7-57887-17000-4

website: www.adstech.com

email: [email protected]

First Edition: Revision 2.0 May, 2002

Microsoft, MS-DOS, Windows, Windows 95 and Windows 98 are

registered trademarks of Microsoft Corporation. IBM is a registered

trademark of the International Business Machines, Inc.

ADS is a registered trademark of ADS Technologies Inc.

ADS Technologies (ADS)makes no warranty of any kind with

regard to this material, including but not limited to, the implied war-

ranties of merchantability and fitness for a particular purpose. The

information furnished within this written document is for information

purposes only and is subject to change without notice. ADS

Technologies assumes no responsibility or liability for any errors or

inaccuracies that may appear herein. ADS makes no commitment

to update or to keep current information contained within this docu-

ment.

A letter from the President of ADS . . . . . . . . . 5

Package Contents . . . . . . . . . . . . . . . . . . . . . 6

System Requirements . . . . . . . . . . . . . . . . . . 6

Hardware Installation (Windows) . . . . . . . . . . . . . 7

Software Installation (Windows) . . . . . . . . . . . . . 9

Hardware Installation (Mac) . . . . . . . . . . . . . . . . . 13

Software Installation (Mac) . . . . . . . . . . . . . . . . .14

Help Resources . . . . . . . . . . . . . . . . . . . . . 15

Service and Warranty . . . . . . . . . . . . . . . . . . 16

Table of Contents

A Letter from the President of ADS Technologies

“Connect, Create, and Store”

At ADS Technologies, Inc. we bring the best and latest multimedia technolo-

gy to your PC. Our products allow you to "Connect, Create and Store".

CONNECT with our line of USB 1.1, USB 2.0 and 1394 Host and Hub

devices. Today, external bus technologies such as USB and FireWire/1394

let you connect hundreds of devices to your PC or MAC. We have the con-

nectivity solutions that allow you to get the most out of USB and 1394 tech-

nologies.

CREATE audio and video productions with our line of video capture and edit-

ing solutions. We have video editing and MPEG2/DVD Capture and

Authoring solutions to fit everyone’s needs, ranging from the novice level to

the professional level.

STORE that multimedia masterpiece with one of our 1394 storage or USB

2.0 Storage solutions. Today’s multimedia files are getting larger and larger.

You need solutions that help you easily and cost effectively store your work;

we’ve got those solutions.

More than ever, my goal has been to bring new technologies to the con-

sumer market at affordable prices and with significant value to you, our cus-

tomer.

ADS products are easy to use. Most of our products are Plug-and-Play, easy

to install and offer software to help get the best value out of the hardware

product. And if you do need help, we will do our best to support you. We

want every customer to be a happy ADS customer.

The combination of technology innovation, affordability, quality, value and

support has made our products award-winners in the press and at conven-

tions. More over they are winners with our customers.

I wish to thank you for choosing ADS Technologies and I hope you enjoy

your new multimedia experience.

Sincerely,

Michael McCoy

President

INTRODUCTION

Package Contents:

1. USB Instant Video device w/ 6 ft. USB cable attached

2. Audio/Video connection cable

3. USB Instant Video CD

4. User’s Guide

System Requirements:

• A computer system equipped with a PENTIUM II 300MMHZ / AMD

K7 Chip or above / Apple G3, G4 Based MAC

• USB host on mother board or USB Port adapter card in the com-

puter

• Operating system: Windows 98, Win98SE, WinME, Windows 2000,

Windows XP / Mac OS 9.0 or above (OS XNOTIncluded)

• 64 MB of RAM

• 200 MB of free hard disk space for software installation

• CD-ROM drive for installation of the bundled software

• CD-R/RW drive and software required for creating Video CD’s

• Sound card

• A modem and Internet connection is required for the application

of videoconference, live web cam and Internet video publishing

software

Applications:

• Still and video image capture

• Video Editing

• Video conferencing

• Live Web Cam

• Video mail

• Capture Analog video to VIDEO CD (VCD) Format to play on most

DVD Players.

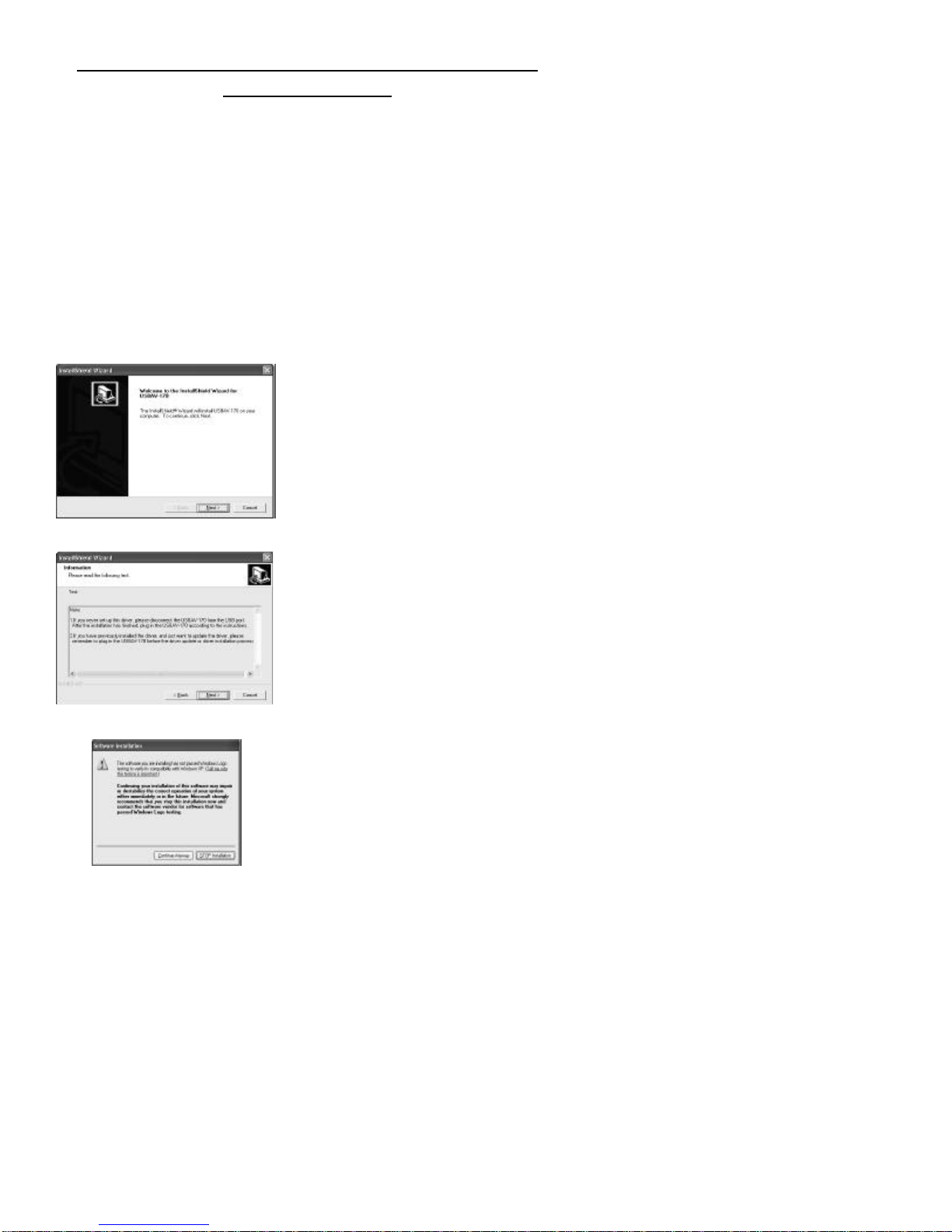

HARDWARE INSTALLATION INSTRUCTIONS

FOR WINDOW’S

Windows 98, 98SE, ME, 2000, XP

Do not connect the device to the USB port at this time. INSTALL

Device Drivers FIRST !

1. Insert the USB INSTANT VIDEO CD.

2. Our AUTORUN CD will display the USB INSTANT VIDEO SETUP

SCREEN.

3. Click on the yellow button with the label, INSTALL DRIVERS.

4. The screenshot below will be shown:

1. Click NEXT.

Note: This is a screen shot from

WINDOWS XP. Windows 98, ME and

2000 operating systems will show a

different but similar picture.

2. Click NEXT. Please DOUBLE

check that you have NOT plugged

in your USB INSTANT VIDEO.

3. Windows XP user’s will see this

screen. Please click to continue.

The Driver we use for the INSTANT

VIDEO was just updated and at the

time of creation of this manual, has

not yet finished WHQL testing with

Microsoft. This will NOT affect the

drivers functionality in ANY way.

4. USB INSTANT VIDEO DRIVERS

will now start to install in your PC.

Make sure to select INSTALL DRI-

VER AUTOMATICALLY on all the

screens that will prompt you from

here on. Continue Clicking the

NEXT button until you see the

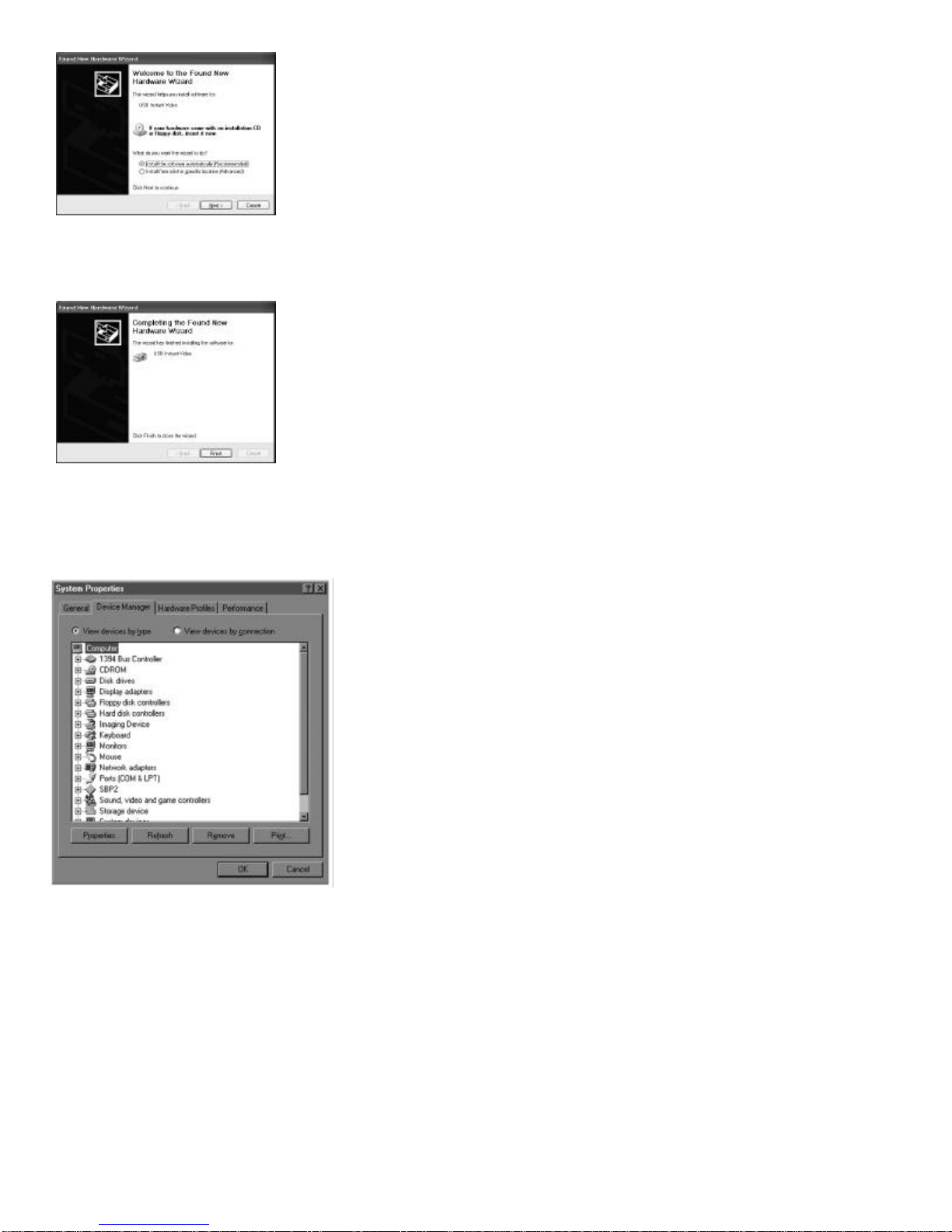

screen below. Windows XP Dialog

box Shown, WIN98/ME/2K will be

diffrent but similar.

NOTE: Since USB INSTANT VIDEO has an AUDIO COMPONENT,

our Installer will install a USB AUDIO DEVICE.

5. After Installation, you will see a

similar screen to the left.

6. THE DRIVERS FOR USB

INSTANT VIDEO HAS NOW BEEN

INSTALLED IN YOUR SYSTEM.

PLEASE RESTART YOUR COMPUT-

ER AT THIS TIME!

7. Once Your Computer has restarted. Plug the USB INSTANT

VIDEO into an available USB PORT.

NOTE: IT IS ADVISABLETHAT THE USB INSTANT VIDEO NOT BE

PLUGGED INTO AUSB HUB TO AVOID USB BANDWIDTH ISSUES.

7. The USB INSTANTVIDEO

will be recognized and

installed as soon as you

plug it in. This will take sev-

eral minutes. After several

minutes, check your device

manager window to verify if

the USB Instant Video Is cor-

rectly installed. Open

DEVICE MANAGER and

check under the category

IMAGING, the USB Instant

Video will be listed there. To

open DEVICE MANAGER,

right click on MY COMPUT-

ER and click on properties.

SOFTWARE INSTALLATION INSTRUCTIONS

FOR WINDOW’S:

1. Insert the USB INSTANT VIDEO CD into your CD ROMDRIVE.

Click on the YELLOW BUTTON with the LABEL VIDEOSTUDIO 6.

2. INSTALL VIDEOSTUDIO 6. Follow Instructions on the screen on

Installing Video Studio 6.

3. RESTART YOUR COMPUTER after installing the SOFTWARE.

USING VIDEOSTUDIO 6

Whats new in ULEAD VideoStudio 6?

Creating movies has been simplified with Ulead VideoStudio 6. It is

designed with an even more amazing tool for your movie making

needs. With its new look, enhanced and added features, creating

movies would surely be more exciting and easy.

• New user-interface

• Overlay Step and Overlay Track

• Enable to maximize Preview Window

• Import Ulead COOL3D Animations

• Create QuickTime video files for streaming

• More title motion styles

• Instant Preview

• Automatically capture scenes into multiple files

• Multiple CD-ROM support

WARNING: EVEN THOUGH VIDEOSTUDIO 6 WAS DESIGNED FOR

THE ENTRY LEVEL USER, PLEASE SPEND THE TIME TO LEARN

THE PROGRAM, FOR HELP ANYWHERE IN VIDEOSTUDIO 6,

PRESS THE F1 KEY FOR HELP.

PLUG IN ALL YOUR CABLES

The USB INSTANT VIDEO Hardware is now installed. Plug the

included AUDIO/VIDEO Cable to your VCR, DVD Player or CAM-

CORDER. Plug the other end into the USB INSTANT VIDEO. The

MONITOR connector on the USB INSTANT VIDEO allows you to

LOOP the VIDEO back to your TV.

VIDEOSTUDIO 6 AND USB INSTANT VIDEO:

USB INSTANT VIDEO can capture analog video and audio into sev-

eral formats. The most popular kinds are AVI and MPEG1 (VCD).

AVI file capture is popular for turning video into email attachments

or for streaming video on the web. VideoStudio 6 can easily con-

vert AVI files into various streaming formats.

MPEG1 or VCD (Video CD) is used for making VIDEO CD (VCD)

disk’s that can play in most DVD PLAYERS.

To create a VCD project and burn it to disk, a CD BURNER would

be required.

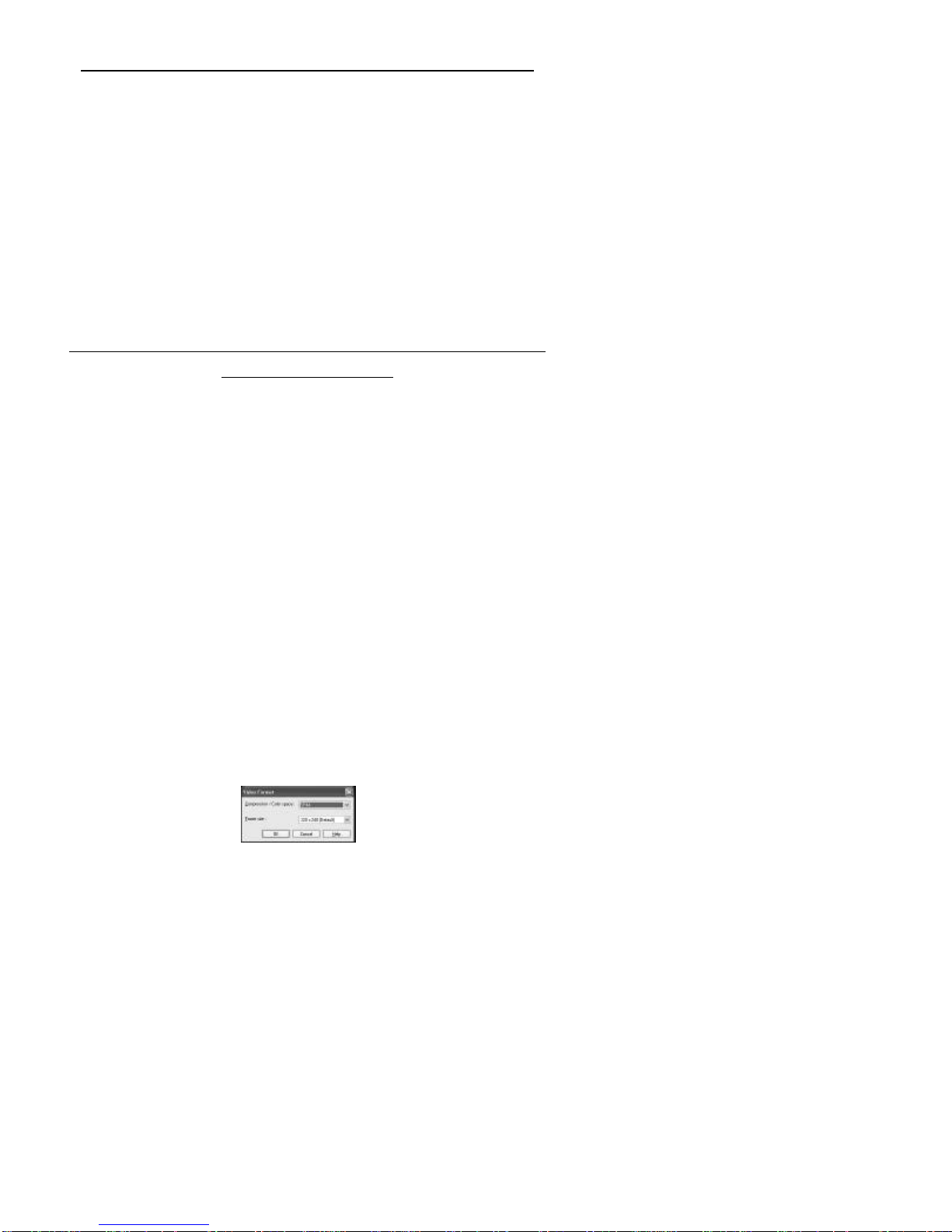

CONFIGURING VIDEOSTUDIO 6 TO CAPTURE

IN VCD FORMAT

1. Run VideoStudio 6. Click START on the Step Panel.

2. Click NEW PROJECT. This opens the New Project dialog box.

3. Specify a path to store captured files to be used in the project.

4. Select NTSC VCD or PAL VCD. NTSC is the TVSTANDARD that

is used in the USA, CANADA, MEXICO and JAPAN. PAL is the TV

STANDARD in use in EUROPE, SOUTH AMERICA, AUSTRALIA and

MOST OFWORLD.

5. Click OK.

6. Go to the CAPTURE Step. Be sure you are in CAPTURE mode.

7. Specify the length of video you want to capture by entering the

timecode in the Capture duration entry box. (If you don’t specify a

length before capturing, you can stop the capture manually by

pressing escape.)

8. Click OPTIONS in the CAPTURE SETTINGS Tab.

9. In the CAPTURE OPTIONS dialog box, select Capture to Library

if you want to add the video clip into the library. By doing this, you

make the video clip available for other projects.

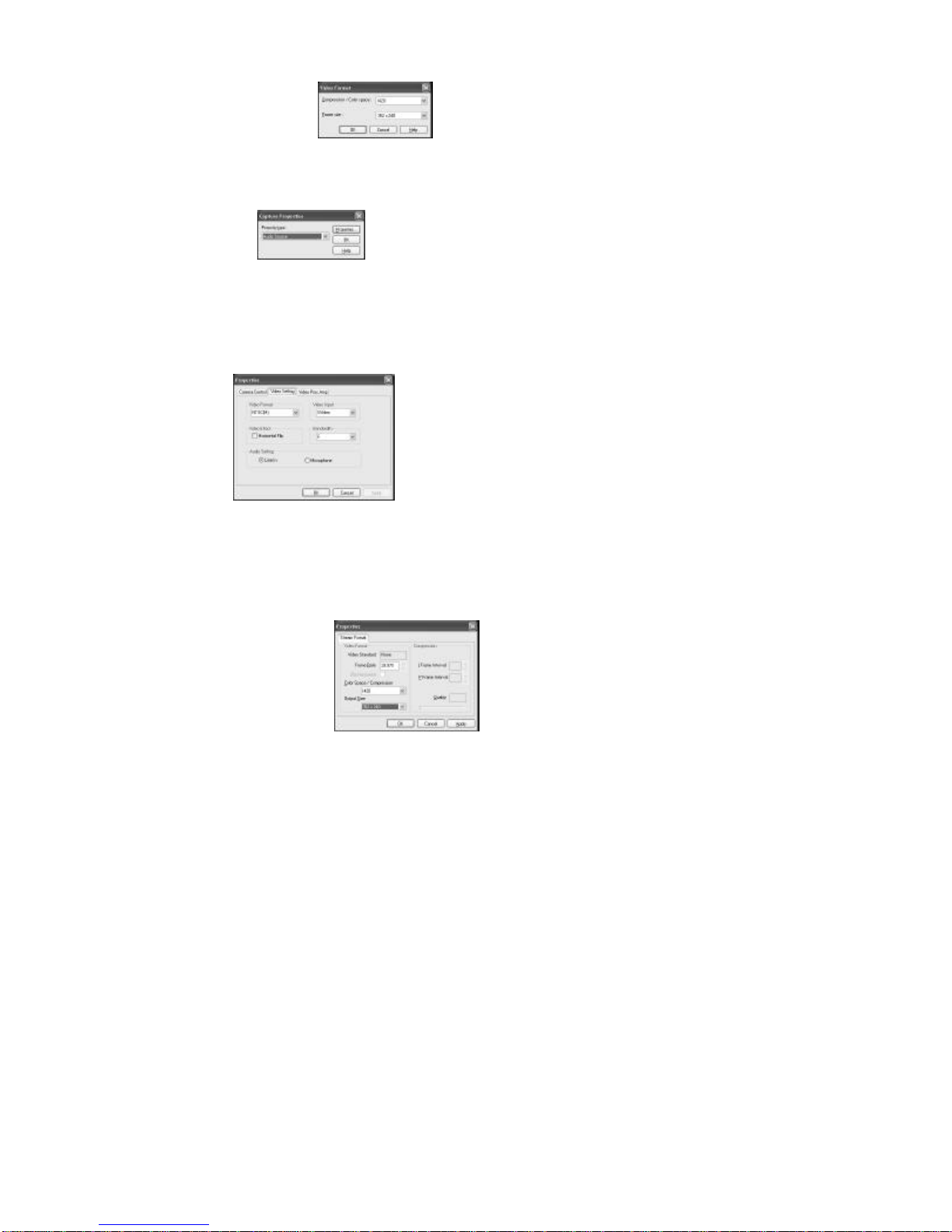

10. Click OPTIONS again in the CAPTURE SETTINGS Tab of the

and select VIDEO FORMAT, you will see this window:

11. Change the settings for the VIDEO FORMAT to window below:

12. Click OPTIONS again in the CAPTURE SETTINGS Tab and

Select CAPTURE PROPERTIES. You will see a box similar to the

one below:

13. Select VIDEO CAPTURE FILTER, click PROPERTIES and you

will see the screen below. This is where you can change video set-

tings and select your video input source. Since you can connect

an SVHS source and a COMPOSITE (Yellow RCA Jack) video

source you would need to select your input. Click OK when fin-

ished.

14. Click OPTIONS again in the CAPTURE SETTINGS Tab and

Select CAPTURE PROPERTIES. Select VIDEO CAPTURE PIN, click

PROPERTIES. You will see the window below. This is where you

need to double check that you have the following settings:

15. Lastly, you need to tell Video Studio to capture from the right

AUDIO SOURCE. Click OPTIONS again in the CAPTURE SETTINGS

Tab and Select CAPTURE PROPERTIES. Select AUDIO SOURCE,

click PROPERTIES. Select USB INSTANTVIDEO as your CAPTURE

SOURCE and click OK.

MAKE SURE YOU PICK:

Compression: I420

Frame Size: 352x240

MAKE SURE YOU PICK:

Compression: I420

Frame Size: 352x240

Indice

Altri manuali ADS Technologies Apparecchiature di registrazione

ADS Technologies

ADS Technologies USBAV-190 U S B INSTANT VIDEOCD Manuale utente

ADS Technologies

ADS Technologies USBAV-711-EF Istruzioni per il montaggio

ADS Technologies

ADS Technologies INSTANT MUSIC FOR MAC - Manuale utente

ADS Technologies

ADS Technologies USBAV-708 INSTANT VIDEOMPX Manuale utente

ADS Technologies

ADS Technologies RDX-152 Guida rapida

ADS Technologies

ADS Technologies USBAV-709 Manuale utente

ADS Technologies

ADS Technologies INSTANTFM MUSIC Manuale utente

ADS Technologies

ADS Technologies Instant Video PCI Manuale di riferimento

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
