ADT Pulsesm Interactive Solutions Touch Screen Installation Guide

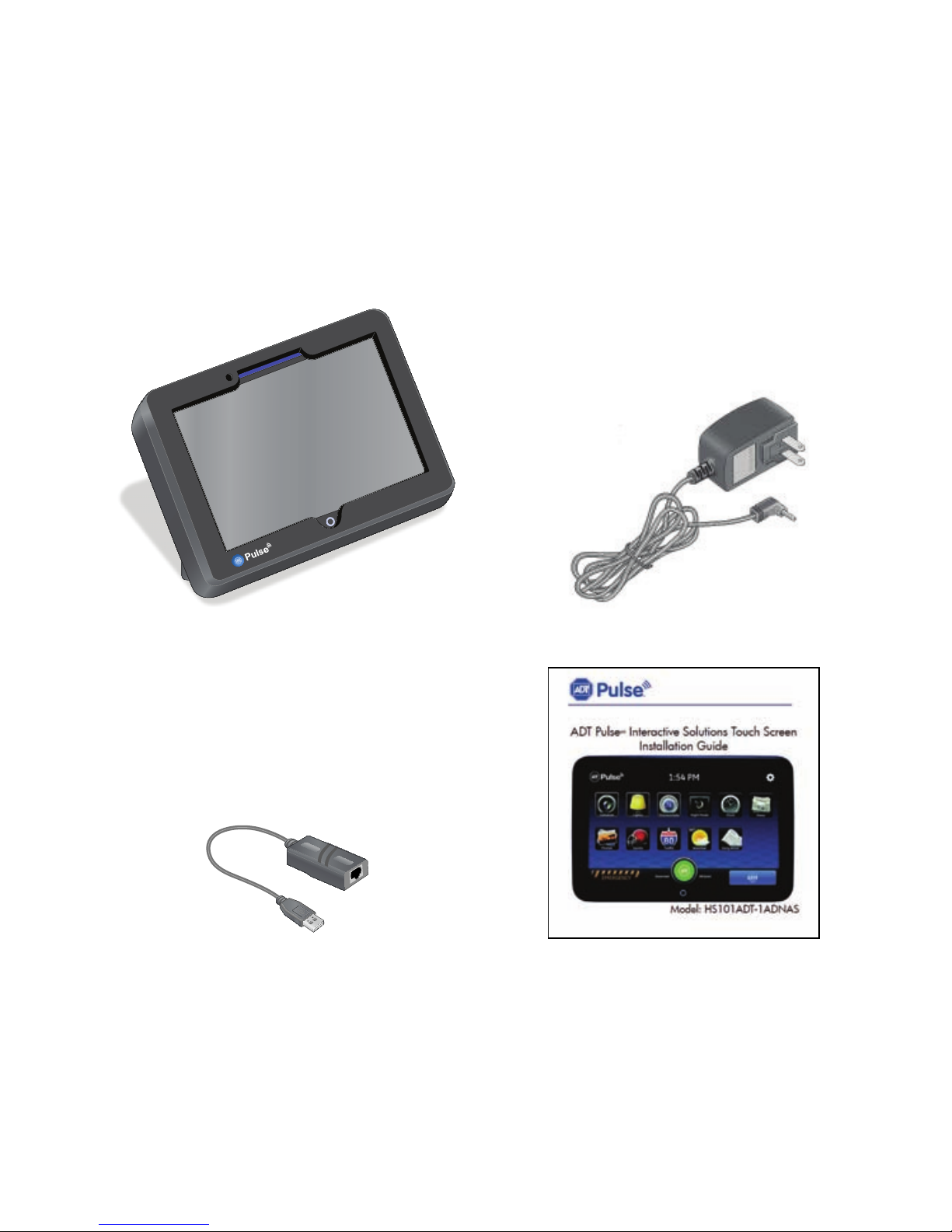

Package Contents – Touch Screen Model HS101ADT-
1ADNAS
Touch Screen 12V Power Adapter
USB Adapter Installation Guide
4
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide

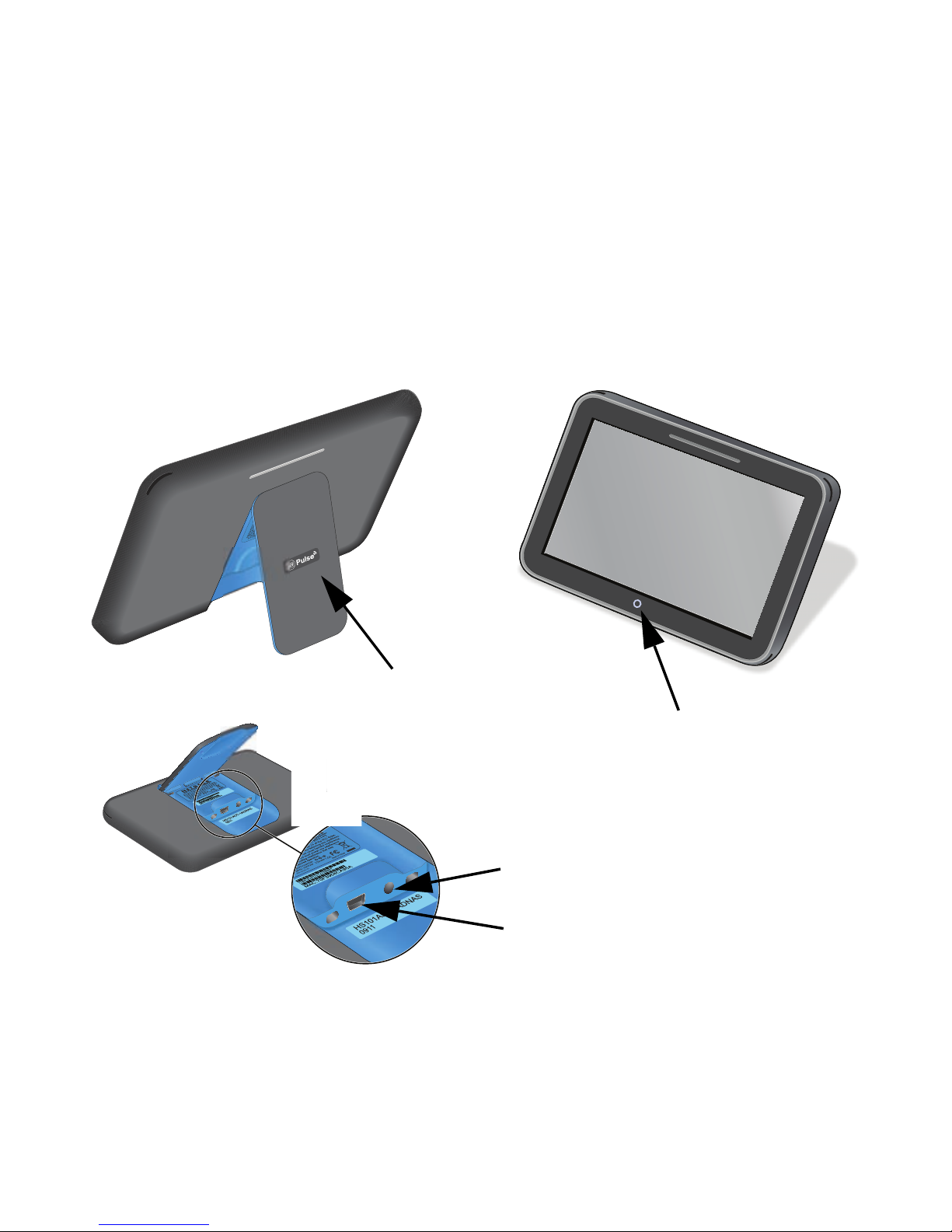

Hardware Features
The Touch Screen includes a Stand, Home button, and controls
shown here and described below.
3. 12V power port
4. USB port
2. Home button
1. Stand
5
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide
Hardware Features (continued)
1. Stand. Open the stand to put the Touch Screen in an upright
position.
2. Home button. The white circle on the front of the Touch Screen
is the Home button. Tap the Home button at any time to perform
the following actions.
•Tap once to return to the previous screen.
•Press and hold the Home button for approximately ten
seconds or more to display a menu.
-Touch Restart to reboot the Touch Screen.
-Touch Power Off to turn off the Touch Screen.
Note: If a selection is not made, the Touch Screen will
automatically restart.
3. 12V power port. Input for the 12V power adapter.
4. USB port. Input for the USB adapter.
6
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide
Configuring the Touch Screen for Installation to the
ADT Pulse System
1. Plug the USB adapter into the USB port located on the back of
the Touch Screen.
2. With an Ethernet cable, connect the USB adapter to the gateway
LAN port.
7
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide
3. Plug the 12V power adapter into the 12V power port.
8
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide
Enrolling the Touch Screen to Your ADT Pulse System
1. Open your web browser. In the address bar, type:
https://portal.adtpulse.com
2. Type your Username and Password, and then click the Sign In
button.
Contact ADTCustomer SupportADT Pulse Terms of UsePrivacy PolicyADT Security Services, Inc.
Sign In
Username: [email protected]
Password:
Please Sign In
Forgot your username or password?
Your use of this site signifies that you accept the ADT Pulse Website Terms of Use Agreement. (c)2010 ADT
Security Services, Inc. and (c)2010 ADT Security Services Canada, Inc. ADT and the ADT logo are registered
trademarks of ADT Services AG and are used under license. Unauthorized us of this site is prohibited and may
be subject to civil and criminal prosecution.
Si
g
n I
n
sername o
r
9
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide
3. Click the System tab, then click the Manage Devices button.
Schedules
Welcome,
Sign Out
AutomationsAlertsHistorySummary System
System
Devices Site Settings
Wednesday, Nov 30
Users My Profile My Profile History
Name
System
Security Panel
Zone
AboutContact UsCustomer SupportTerms of UsePrivacy PolicyADT Security Services, Inc.
Device Type Recent Alarm
Gateway
powered by Control
Manage Devices
Al
arm
arm
rm
m
ag
e Devic
es
?Help
Front Door
Motion Detector
Back Door
Sensors
Remotes
4 Button Remote
10
ADT Pulsesm Interactive Solutions Touch Screen Installation Guide

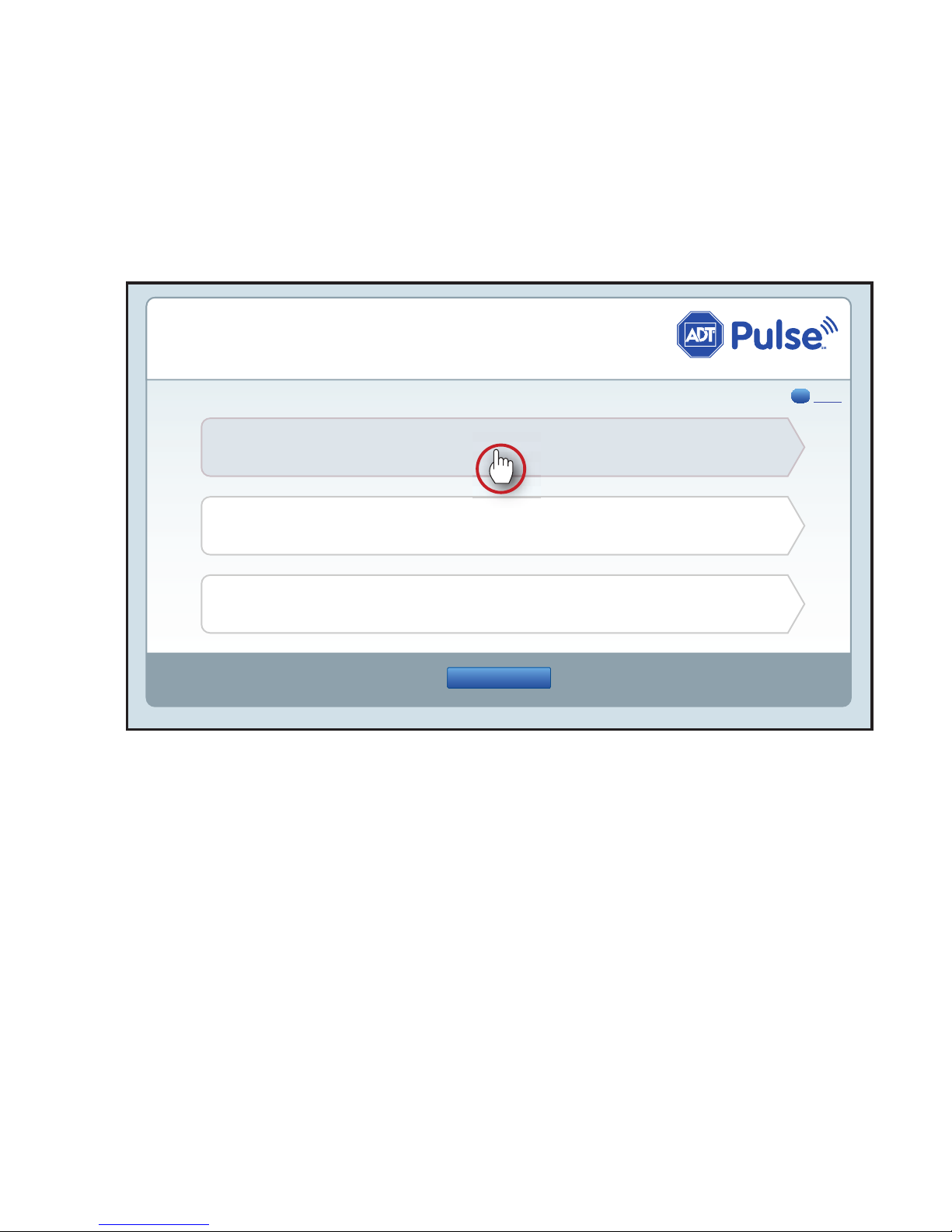

4. In the Manage Devices Assistant window, click Touch Screens.
Cancel
Manage Devices Assistant
?Help
Touch Screens
Click here to add touch screens.
Cameras
Click here to add wired and wireless cameras.
Lights, Thermostats & more
Click here to add Z-Wave™ devices.
