ADURO Hybrid Foglio di istruzioni

Problem solving. Door switch defect / no contact

Question: How do I fix the problem when the Aduro Hybrid app reports "The door is open" and the pellet

function will not turn on?

Reason: When you receive the alarm message "The door is open" and the oven either turns itself off or it

will not turn on, because the door of the combustion chamber is open, it may be due to 2 things:

1) The door sensor/switch is defect. You can check this by holding down your finger for a few seconds.

If the alarm message on the app disappears, the door switch is not defect and works fine.

2) There is a lack of contact between the door hook and the door switch. If there is no touch between

the hook that is located at the bottom of the door to chamber and the switch that is hidden in the

right side of the oven (see pictures below).

The old solution a hook in the corner below location of the old door switch hidden on the right side.

Solution: Adjust the door so that the hook enters and presses the plug of the switch when the door of the

combustion chamber is closed. Alternatively, install a new door hook, a new bracket and a new door switch

with long arm that is attached on the bracket. The new hook takes over the function role of the old door

hook and a new bracket with the new door switch, which will replace the old door contact.

First step:

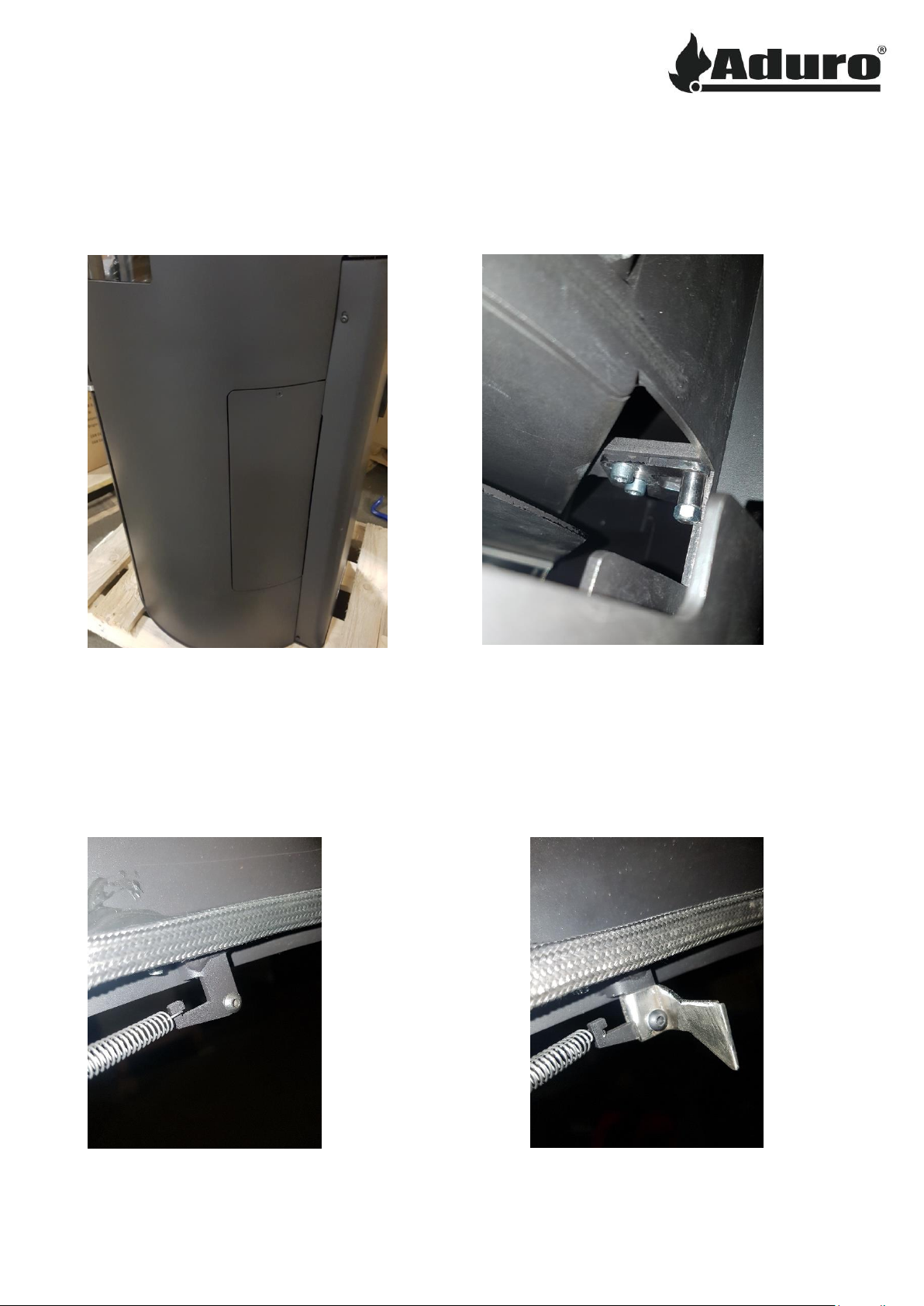

First remove the old door switch that is located on the stoves right side. You can screw the plate that is

located on the right side off (see picture below) to get to the switch and then unscrew the two screws

shown in the picture below.

Second step:

When the old door switch is removed, the new solution must be installed. Use the existing screw that is

located at the bottom of the door and mount the new hook. The picture below shows how the new hook

looks and should sit.

Use the screw that is located lower part of door Install a new hook on the screw that is already on the door

Third step:

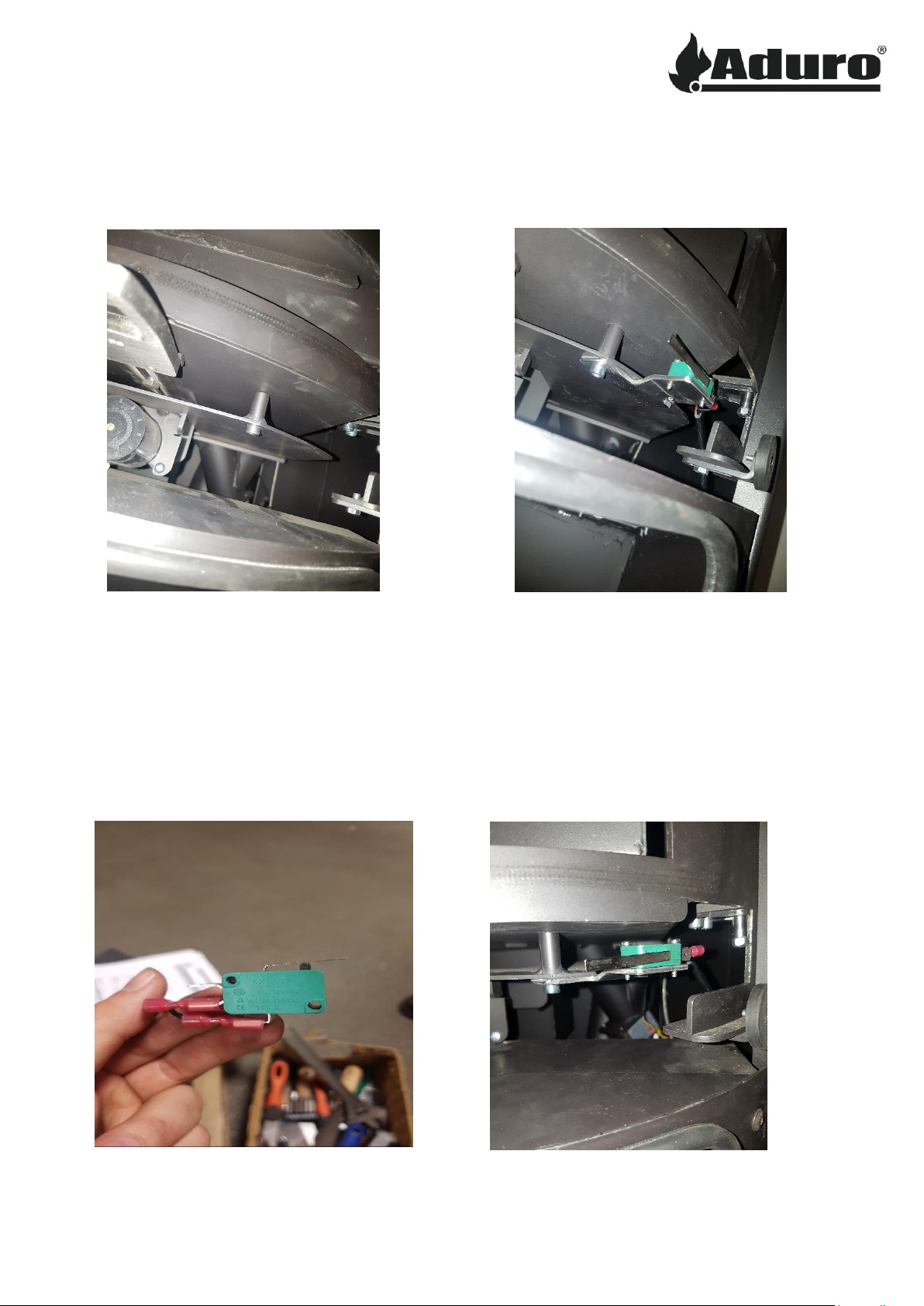

Use the screw that holds the dark heating shield in place. Remove the screw and install new fitting/bearing

with the new doorswitch. This helps ensure that there is always a touch between hook and the new switch.

Here is the heat shield that is held in place by the screw The new bracket is mounted on the screw with new switch

Fourth step:

Plug in the two red wires to the new switch. We illustrate below how they should be plugged in. Once

installed correctly, this will act as the new door sensor and determine whether the door of the combustion

chamber is open or closed. If done correctly alarm message on App should dissapear. If it dosent work try

plug the cables in in different place.
