Auria®Sound Processor

Product Guide

For Educators, Therapists, and Families

Auria Sound Processor

The Auria Sound Processor was designed with children in mind. Advanced signal processing

and Autosound™ (a wide sound window) provide optimal listening in a noisy classroom

while allowing a child to experience language naturally. The Auria Processor is lightweight,

stylish, water tolerant, and impact resistant.

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Built-in

Microphone

Volume Control

Program Switch

Processor Module

PowerCel™

Rechargeable Battery

T-Mic® Microphone

Earhook

Headpiece Cable

Connector

Accent

Color Cover Headpiece and Cable

with Color Cover

Quick-Start Guide and System Checks:

Step 1: Slide the fully charged PowerCel into position on the Processor Module. This will

turn on the Auria Sound Processor. Check to ensure that the PowerCel is in a fully

aligned position with the Processor Module.

Step 2: Position the Accent Color Cover over the Auria Processor and snap into place.

Step 3: Make sure that the Headpiece Cable is plugged into the Processor Module. Check

that the cable is not twisted or frayed.

Step 4: Align and gently snap into place the selected Earhook. Check to verify that the

Earhook is properly positioned. To remove the Earhook, simply apply slight pres-

sure and turn to the right or left until the Earhook releases from the post. If the

Fireﬂy Earhook is in place, check to ensure that the PowerCel is fully charged by

verifying that the LED sequence displays four (4) quick blinks as the PowerCel is

slid into place.

Step 5: Verify that the Program Selector and Volume Control are in the desired position.

Step 6: Ensure that the Processor is in a comfortable position behind the ear.

Step 7: Ensure that the Headpiece is positioned over the internal implant (you will feel the

magnetic attraction).

Step 8: Perform a behavioral listening check, using the Ling Six sounds or another

listening activity.

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

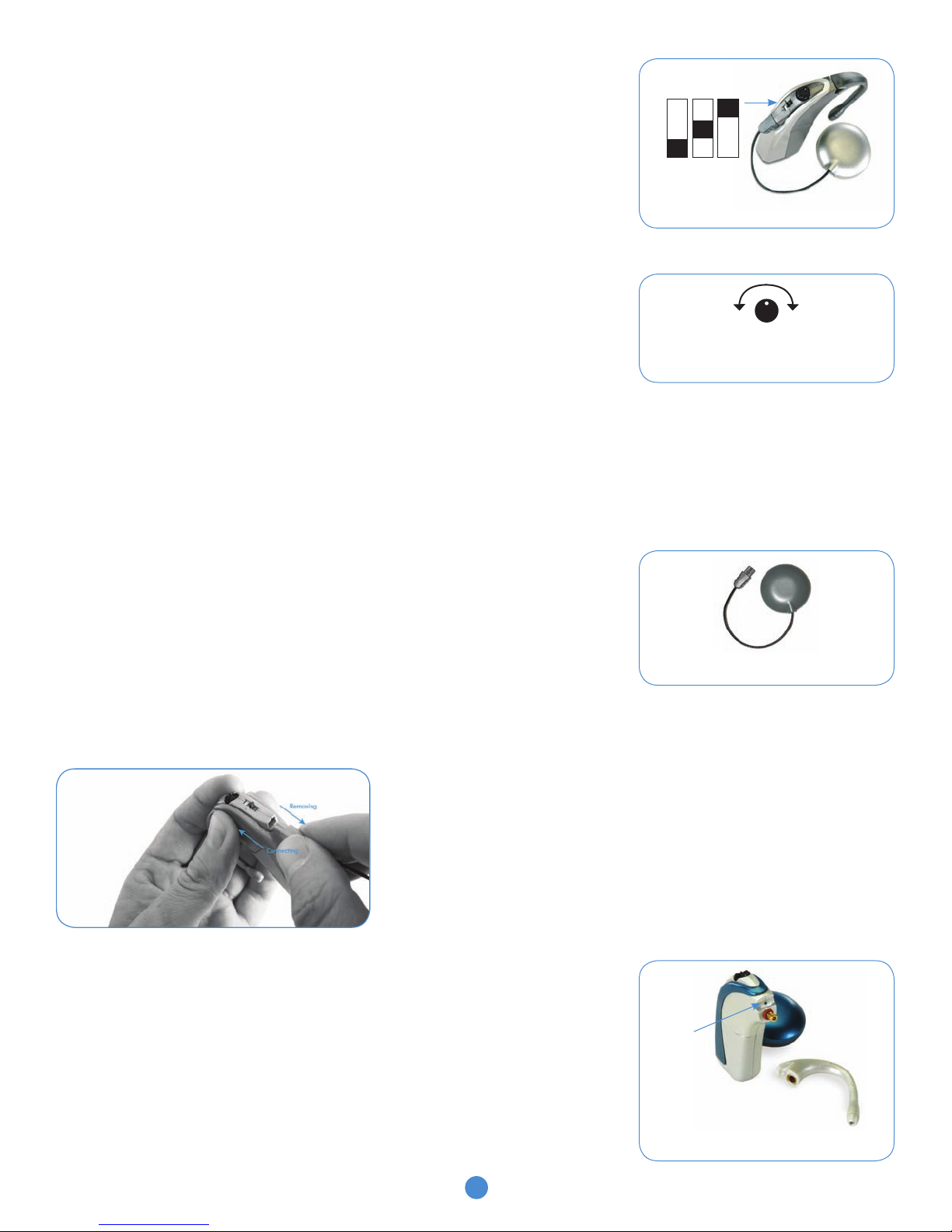

Auria Features

Program Switch

The Auria Processor can store up to three (3) programs (P1, P2, P3). The Program

Switch has three positions to represent each program. P1 is at the bottom, P2 is in

the middle, and P3 is at the top.

Volume Control

Volume Control allows the loudness level to be adjusted. Turning the control in a

clockwise direction increases the loudness; turning the control counterclockwise

decreases the loudness. The volume position is indicated by the white dot on the

dial. The Volume Control is typically set at the 12 o’clock position.

The audiologist has the ability to restrict or limit the Volume Control dial. Although

the dial will continue to work, a restricted range will limit the actual decrease and

increase to sound as the dial is moved. Programming the Volume Control in this

manner prevents accidental changes in loudness (either too soft or too loud), which

could compromise the child’s hearing

Headpiece with Integrated Cable

The Headpiece contains the transmitter for sending sound information to the

implant. There is no Microphone in the Headpiece. The Cable provides a relay for

the transfer of signals between the Headpiece and the Auria Processor. The

Headpiece and Cable are one unit and should not be separated. To connect the

Headpiece to the Auria Processor, simply align the raised area on the end of

the Cable with the groove on the Headpiece Cable connection port located below

the Program Switch on the body of the Processor, then slide in place until secure.

To remove the Headpiece from the Auria Processor, hold the Cable’s connector

and gently pull it away.

Connecting and Removing the Headpiece

The Microphone

The Sound Processor Microphone is located directly behind the base of the Earhook

positioned at the top of the Auria Processor. Children may also use an integrated

Earhook and Microphone called a T-Mic®. (For more information on the T-Mic, see

the Earhook section of this guide.)

P1 P2 P3

Auria Program Switch

Headpiece and Cable

Sound Processor Microphone

Volume Control

Decrease

Volume

Increase

Volume

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Power Options

The PowerCel Battery is used to power the Auria Processor. There are two types of

PowerCel Batteries that can be used with the Auria Sound Processor: the PowerCel™

Slim or PowerCel™ Plus. The PowerCel Plus is larger than the PowerCel Slim and

provides increased operating time before a battery change is needed. PowerCels

can be fully recharged in 4–5 hours and do not need to be fully depleted before

recharging.

The Auria PowerPak can be used instead of a PowerCel. It utilizes one AA battery

(alkaline or rechargeable) and easily screws open or closed to replace the battery.

A latch securely attaches the PowerPak to the Auria Processor, and the PowerPak

can be clipped to clothing or worn in a pocket or pouch. The cable is available in the

following lengths: 11, 22, and 32 inches. The PowerPak provides operating times

averaging 25 hours, with alkaline batteries.

How to Replace the PowerCel or PowerPak

1. Locate the tracks on the underside of the Processor and the top of the

PowerCel/PowerPak.

2. Position the PowerCel/PowerPak so that the contact is toward the back of the

Processor.

3. Guide the PowerCel/PowerPak onto the tracks on the Processor.

4. Slide the PowerCel/PowerPak onto the Processor until it stops and is aligned

with the Processor. Do not force the PowerCel/PowerPak onto the Processor.

Replace the Accent Color Cap, if necessary. Lift the latch to secure the

PowerPak to Auria.

Connecting the PowerCel

NOTE: The Auria Sound Processor

is turned on and off by connecting

or removing the PowerCel or

PowerPak. When not in use, the

parent or child should remove the

PowerCel/PowerPak, otherwise the

Auria Sound Processor remains on,

and the PowerCel/PowerPak and

continues to drain.

PowerCel Slim and PowerCel Plus

Auria with PowerPak

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Earhook Options

Standard Earhook

The standard Earhook is the basic hook that holds the Processor on the child’s ear.

With this Earhook in place, the built-in Microphone, located at the top of the Processor,

is active. The Earhook comes in Standard and Small sizes.

T-Mic® Microphone

The T-Mic Microphone is an integrated Earhook and Microphone combination.

The Microphone is omnidirectional (accesses sound from all directions) and is

designed to ﬁt in the open-bowl portion of the ear, near the entrance to the ear canal.

The T-Mic is appropriate for everyday use and, due to the natural positioning of the

Microphone, may provide improved beneﬁt in difﬁcult listening situations such as

noisy environments or while on the telephone. The T-Mic requires a program setting

with Audio Mixing to work properly. Check with the child’s family or cochlear implant

center for processor settings.

NOTE: Avoid bending the T-Mic in sharp angles (90Ω or greater), as this can shorten

the lifespan of the T-Mic.

Direct Connect™ Earhook and Cable

The Direct Connect Earhook allows the user to connect to a variety of battery-

powered audio devices—such as an iPod, MP3 player, or CD player—as well as

other assistive-listening devices. To connect, a Direct Connect Cable and an Audio

Interface Cable are required along with the Earhook. The Direct Connect Cable

is available in the following lengths: 11, 24, and 36 inches. To use the Direct

Connect Earhook:

1. Place the Direct Connect Earhook onto the Sound Processor post.

2. Snap the Direct Connect Cable onto the Earhook.

3. Using the Audio Interface Cable, connect the Direct Connect Cable (Audio

Interface Jack) to the listening device audio output port.

NOTE: The auxiliary jack on both Cables is 3.5 mm in size and is designed for stereo

input. A silver Adapter is provided with the Direct Connect System. This is required to

connect a device with a mono output, such as an AM radio, to the Direct Connect

Cable or Interface.

CAUTION: Only battery-powered devices should be connected into the Direct

Connect, unless a patch cable with special electronic components is used.

NOTE: We recommend that an earmold, or Snuggie™, be utilized in addition to the

Earhook to securely fasten the Sound Processor to the child’s ear. Earmolds are custom

made for the child and are available for all of the Earhooks we provide, including the

T-Mic. For more information regarding earmolds, contact the child’s audiologist.

NOTE: All of the Earhook options listed are compatible with the Harmony Sound

Processor.

Direct Connect Cable/Adapter

Audio Interface Cable

Snuggie™

Standard and Small Earhook

T-Mic Microphone

(Standard and Small)

Direct Connect Earhook

(Standard and Small)

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

iConnect™ Adapter

The iConnect Adapter allows a wireless connection to a miniature personal FM

receiver. The iConnect does not come standard in the child’s Auria Processor Kit

but can be purchased separately through Advanced Bionics.

FireFly

The FireFly Earhook has a built-in LED (light emitting diode), which provides visual

feedback regarding the Processor functions and program settings. When connected

to the Auria Sound Processor, the amber light will indicate the following:

 The FireFly will blink the number of times that corresponds to

the program in use (i.e., if program two is in use, the FireFly will blink two times).

  The FireFly will light up steadily if the HiRes® Auria Processor is

successfully communicating with the implant.

  The FireFly will blink on and off rhythmically if the HiRes

Auria Processor is not communicating with the implant.

  The FireFly will not blink at all if the Auria PowerCel or Auria

PowerPak power supply is depleted and/or disconnected.

Attaching/Removing an Earhook

To Attach: Align the Earhook ﬂush with the Auria Processor and push to snap in

place. Gently pull back to conﬁrm that the Earhook is secure.

To Remove: Turn the Earhook slightly more than ¼ turn in either direction until it

releases.

Removing an Earhook

FireFly Earhook

iConnect Adapter

(Standard and Small)

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

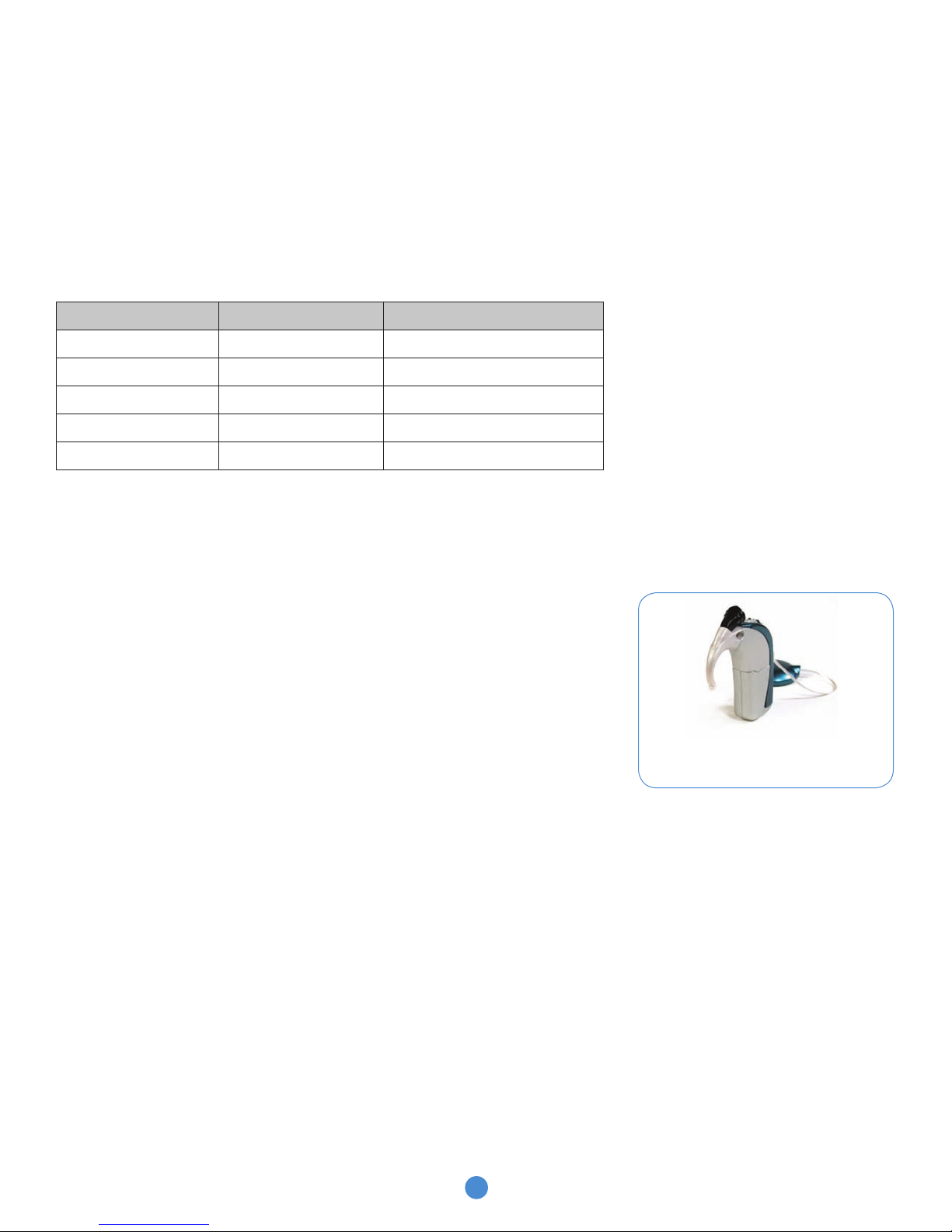

Audio-Mixing

Audio-Mixing refers to the ampliﬁcation ratio between the Processor Microphone

and an auxiliary input device. Audio-Mixing allows the child’s Processor Microphone

to remain on when connected to an auxiliary input, such as an active T-Coil, FM

System, or iPod, with a Direct Connect Earhook/Cable. This is important because it

enables the child to hear his own voice and sounds around him in addition to the

input from the auxiliary device. The Audio-Mixing is set for each program on the

Sound Processor by the audiologist during programming. The default Audio-Mixing

recommendation is 50/50. For a description of the Audio-Mixing options, refer to

the table below.

Audio-Mixing Options Processor Microphone Auxiliary Input (i.e. FM System)

Mic Only On Off

50/50 - Mic/Aux* On On

30/70 - Mic/Aux** On (-10dB) On

Aux Only (Atten.) Off On (-20dB)

Aux Only Off On

*For classroom use and the default programming setting

**For noisy environments where greater input is needed from the FM (i.e., theatre,

church, noisy restaurant, etc.)

External Telecoil

The External Telecoil (T-Coil) connects to the Direct Connect Earhook and provides

a way for wireless communication systems to interface with the Auria Sound

Processor. In order for the T-Coil to be effective, the child must have access to a

looped system or a hearing-aid-compatible telephone, both of which allow the

T-Coil to receive the electromagnetic ﬁeld generated by these devices. If T-Coil

use is attempted with a non-compatible audio device, there may be a low-level

humming or buzzing noise, or no sound at all.

The External T-Coil rotates for optimal signal reception.

The External T-Coil is also compatible with the Harmony Sound Processor and the

Direct Connect Earhook.

External T-Coil Positioned on the Direct

Connect and Auria Sound Processor

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Accessories for the Auria

Auxiliary Microphone

• The Auxiliary Microphone, also called a lapel microphone, is an additional

microphone that can be used in a number of ways. The Auxiliary Microphone

plugs into the auxiliary input jack of the Direct Connect Cable and is for use:

 • Duringtherapyorinnoisyenvironments,asitimprovesthesignal-to-noise

(S/N) ratio.

 • Asawaytotroubleshootthechild’sProcessor.Intheeventthatthechild

stops responding to sound with what looks like a functional Processor,

plug in the Auxiliary Microphone and perform a simple listening check

with the child.

 • AsasecondaryMicrophoneintheeventthatthechild’sProcessorMicro-

phone is not working.

The Auxiliary Microphone can be purchased by contacting Advanced Bionics.

Carrying Case

The Carrying Case is designed to hold all of the basic Auria Sound Processor

components and to serve as a Dri-Aid Kit. It is recommended that Auria Sound

Processor components be stored in the Carrying Case when not in use, or in

situations where the Auria Processor was exposed to excessive moisture.

NOTE: The Drying Agent within the Carrying Case should be periodically reactivated.

Accent Color Covers and Caps

A unique variety of snap-on Color Covers and Caps are available. These are easily

snapped on or off of the Auria Sound Processor or Headpiece and are sized to ﬁt

the Processor Module and battery, when attached.

Auxiliary Microphone

Carrying Case

Accent Color Covers

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Auria Processor Troubleshooting

Determining Device Function

System Sensor

The System Sensor, a handheld device that performs a system functionality test, is

for use with the Auria, Platinum BTE/CII BTE, PSP, and S-Series Sound Processors.

The System Sensor is powered by a lithium battery, which needs to be replaced

approximately every two years.

To Use the System Sensor:

Place the System Sensor over the Headpiece at a distance of approximately one (1) to

two (2) inches, then gently press the button. The System Sensor will display its status.

ORANGE light indicates that the System Sensor itself is functioning properly.

• NoORANGE light indicates that the System Sensor battery is depleted. You will

need to obtain a new System Sensor.

Once you have veriﬁed the System Sensor status (orange light), slowly move the

Sensor toward the Headpiece and observe the system-transmitting status as follows:

• SolidGREEN light means that the system is functioning properly.

• FlashingGREEN light means that the Processor is not communicating with the

implant. The Processor battery is charged, but the system is not successfully

transmitting a signal to the Implant. Stop and proceed to Troubleshooting

section of this guide.

• NoGREEN light indicates that the Processor battery is discharged and needs to

be changed.

System Sensor

TOOLS for SCHOOLS by Advanced Bionics AURIA® SOUND PROCESSOR Product Guide

Completing a Microphone Check

To test the internal Microphone of Auria, you will need to use a mini ampliﬁed speaker

(available from an electronics store).

You should perform a microphone test when the Processor is new, to establish a base-

line from which you can monitor the internal Microphone for any sound-quality issues.

The microphone test only assesses the internal Microphone of the Processor and will

not provide information about the Headpiece Cable or T-Mic.

Procedures

To assess the Microphone, you will need an empty program slot on the Auria Processor.

Speak with your student’s parent or audiologist to determine which program slot is

empty.

1. Remove the Auria Processor from the child. You will not hear any sound from

the speaker and will not be able to monitor the Microphone if the student is

wearing the Processor.

2. Connect the Direct Connect Earhook and Direct Connect Cable to Auria.

3. Connect one end of the Audio Interface Cable to the Direct Connect Cable

and the other end to the port on the mini ampliﬁed speaker (top port marked

input) or the appropriate audio input port on your computer. To monitor the

Microphone’s output while wearing headphones, plug headphones into the

headphone port of the speaker or computer.

4. Hold the Processor at an arm’s length away from the speaker to prevent

feedback and distortion. (Figure below.)

5. Turn on the Processor (attach battery) and select the microphone test position

(empty program slot), using the Program Control Selector.

6. Increase the Volume Control on the speaker while speaking normally.

7. Monitor the output from the speaker. Sounds and speech should be clear but

ampliﬁed. The quality of the sound will depend upon the quality of speaker you

are using.

Microphone testing is simple and important. When combined with the System Sensor

or FireFly Earhook, parents, educators, and clinicians have comprehensive diagnostic

tools to ensure that young children get the most out of their cochlear implants.

Auria BTE with Direct Connect Earhook

and Cable

Audio Interface Cable

Auria, Audio Interface

Cable, Direct Connect Cable,

Mini Ampliﬁed Speaker

Altri manuali per Auria

Indice

Altri manuali Advanced Bionics Apparecchiature di registrazione

Advanced Bionics

Advanced Bionics Naida CI M90 Manuale utente

Advanced Bionics

Advanced Bionics Sky CI M90 Manuale utente

Advanced Bionics

Advanced Bionics HARMONY Manuale utente

Advanced Bionics

Advanced Bionics Auria Manuale utente

Advanced Bionics

Advanced Bionics Auria Manuale utente

Advanced Bionics

Advanced Bionics Neptune Manuale utente

Advanced Bionics

Advanced Bionics CI-5295 Manuale utente

Advanced Bionics

Advanced Bionics Naida CI Q90 Manuale utente

Advanced Bionics

Advanced Bionics CPI-3 Manuale utente

Advanced Bionics

Advanced Bionics Naida CI M30 Manuale utente

Advanced Bionics

Advanced Bionics Naida CI Manuale utente

Advanced Bionics

Advanced Bionics Naida CI Q70 Manuale utente

Advanced Bionics

Advanced Bionics Marvel CI Manuale utente

Advanced Bionics

Advanced Bionics Slim HP Standard Manuale utente

Advanced Bionics

Advanced Bionics Sky CI M90 Manuale utente

Advanced Bionics

Advanced Bionics Platinum Series Manuale utente

Advanced Bionics

Advanced Bionics Slim HP Manuale utente

Advanced Bionics

Advanced Bionics Neptune Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
