ADVANCED UV LIGHT ICON Manuale utente
b
ADVANCED UV LIGHT GMBH • RUHRTALSTRASSE 85-93 • D-45239 ESSEN
Phone: ++ 49 201 8 49 12 – 10
FAX: ++ 49 201 8 49 12 – 55
e-mail:[email protected]
www.auvl.de/ www.drmueller.de
FUTURE INDUSTRIES, ORIGINAL DR. MÜLLER • 135 RESEARCH DRIVE • MILFORD, CT 06460
Phone: (203) 878-2300
(800) 376-8537
Fax: (203) 878-6424
e-mail: [email protected]
weww.futureindustries.com / www.auvl.com
OWNER‘S MANUAL
ORIGINAL DR. MÜLLER HIGH PERFORMANCE TANNING EQUIPMENT
c

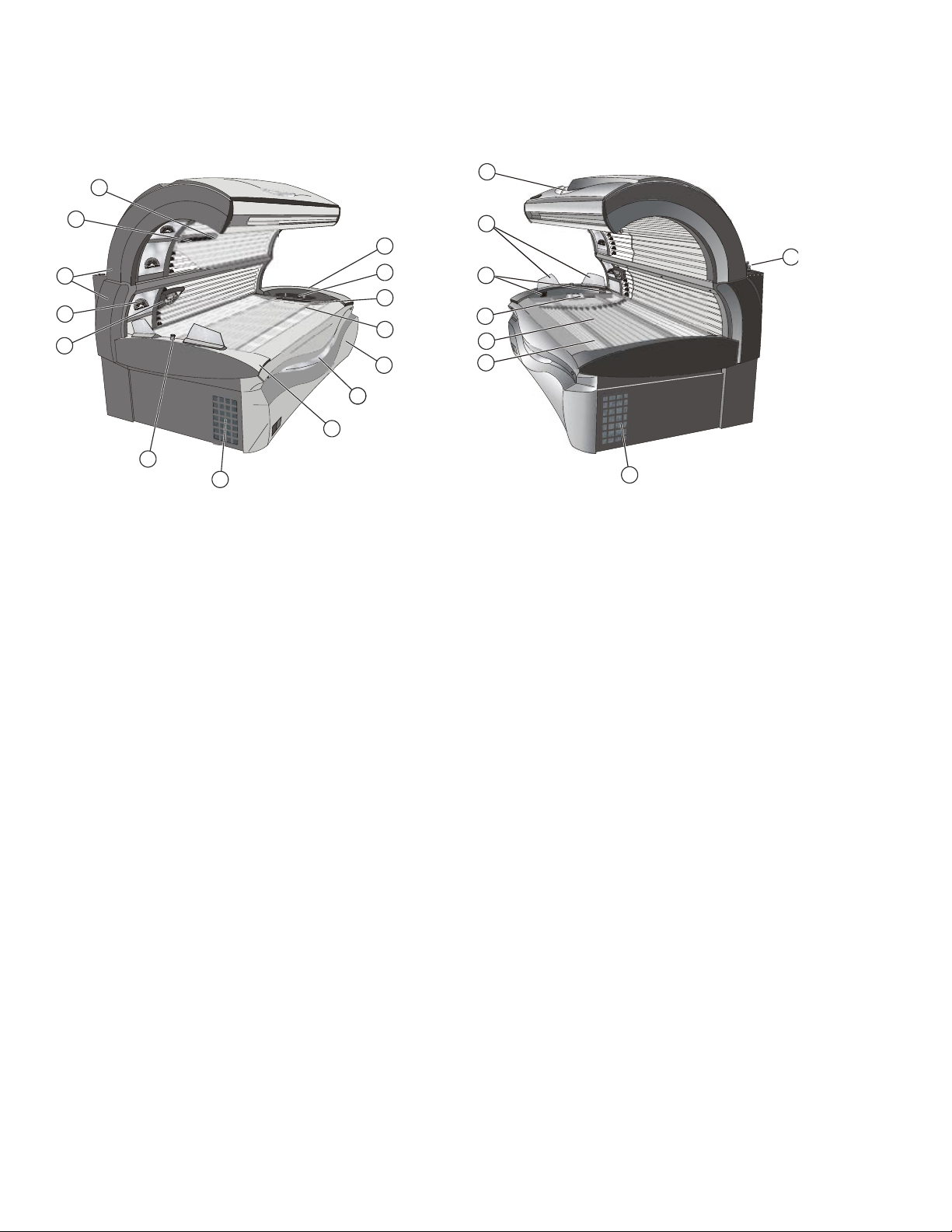

General View
ICON 46
46•04 VXT
1
2
3
4
5
6
7
8
9
10
11
12
14
17
18
13
3
4
19
15
16
20
1Side cover, footend 11 Facials
2Air exit “body cooling footend” 12 Cover for column and top
3Sunbed acrylic 13 Air exit “body cooling top”
4AC Acrylic 14 Nozzle “SunFresh”
5Front cover 15 Passive shoulder tanners
6Acrylic insert with backlighting in front cover 16 Backlighting in top canopy
7Side cover, headend 17 “SunFresh” hose
8Fresh air entry, headend 18 Fresh air entry, footend
9Emergency stop button 19 Headrest
10 Control panel 20 Loudpeakers
d
5
3
2
1
4
Rear View
1Exhaust air stack
2Heat recycling system (optional)
3Entry stud for mains supply cable with threaded gland
4Entry stud for supply cables with threaded gland for timer device and loudspeakers
5Type label, technical notices
e
Control Panel
1Display Display shows accrued session time, information on operational
status of the unit and error messages
2Button “START” Function can be modified in the operator menu
OEM standard: unit starts when external timer device is
activated
3Button “STOP” Function can be modified in the operator menue
OEM standard: Stop button is deactivated
4Button “+” After preselected option, this button
increases the intensity of the facials
increases the intensity of the body cooling
increases the music volume
re-starts facials and AC-unit
starts SunHaze aroma system
5Button “–” After preselected option, this button
reduces the intensity of the facials
reduces the intensity of the body cooling
reduces the music volume
stops the facials or the AC-unit
stops the SunHaze aroma system
6Button “Active shoulder tanner” Not available for ICON 46
7Button “Facials” Preselects option for intensity control of facials
8Button “Body cooling top” Preselects option for intensity control of body cooling top
9Button “Body cooling sunbed” Preselects option for intensity control of body cooling footend
10 Button “Add. fan shoulder tanner” Not available for ICON 46
11 Button “AC-unit” Preselects option for AC unit ON/OFF
12 Button “SunFresh” Starts SunFresh system. Sprays once after activation.
13 Button “Music” Preselects option for volume control
14 Button “SunHaze-Aroma” SunHaze aroma system ON/OFF
f
Inside the sunbed – view of electrical components
8
7
6
54
3
2
1
9
10
1
1
1SunHaze aroma system (optional)
2Cartridge for SunHaze aroma system (optional)
3SunFresh container(optional)
4Condensation water container (optional)
5AC unit (optional)
6Ballast Tray inserts
7Ballast tray with electrical components
8Power supply for SunFresh purification system
9Backlighting lamp front cover plate
10 Main PCB (Power Control Board with CPU )
11 Elec. Connection terminals and contact strip
g
Foreword
This manual helps you to operate and use the high-performance sunbed ICON46, herein
referred to as the unit or the sunbed, in a safe and proper way.
This manual is addressed to:
service personnel,
trained and qualified salon personnel and
end-users
Every person who
transports,
assembles,
starts,
operates,
controls,
maintains,
cleans,
disassembles,
stores or
disposes of
this unit, must make sure that this manual has been read and its contents is fully
understood. Keep this manual conveniently close to the sunbed for future reference.
h
Description
The ICON46 is a high-performance sunbed exclusively designed for use in
professional tanning salons. The design is laid out for heavy use in a busy
tanning salon.
The equipment was made for tanning performance, functionality and
reliability. The ICON 46 is equipped with a total of 46 x 71 inch lamps and
4 high intensity facials.
The filters and reflectors used for the facials have been treated with a
propriatory coating. The special coating has the following functions:
■ transmission of the tanning-effective UV radiation.
■ filtering of infrared radiation (heat) which is conveyed back into the unit
This technology and the integrated design of filter, reflector and lamp
technology result in very intensive tanning power for the face and upper
body region.
When designing the body cooling system, the target was increased
customer comfort and a comfortable tanning climate. The ICON 46 can
also be equipped with an AC unit.
The control panel allows the user to select several options during a tanning
session
AC unit (optional)
body Cooling
the intensity of the facials (in 2 steps)
music volume
the SunHaze aroma system (optional)
the SunFresh system (optional)
The display shows accrued session time.
In the operator menu several set-ups for service and maintenance options
can be selected. The operator menu can be entered by a special access
code.
The Icon46 can be equipped with the following optional features:
■ The SunHaze aroma system
- The SunHaze aroma system blows aromatized air into the
tanning tunnel and ousts the typical tanning odor.
■ The SunFresh system
- With the SunFresh system a finely vaporized watermist is
sprayed onto the upper body area during a tanning session
■ Built-in loudspeakers
■ AC-unit
incl. condensation water container and pump
■ A heat-recycling system to connect to the on-site salon ventilation
system
i
Table of Content
General View ..� a
Rear View ........� b
Control Panel ..� c
Inside the sunbed - view of electrical components .................................................................... d
Important Notices ................................................................................................. 1-2
Standardized features .......................................................................................................1
Typographic features ......................................................................................................1
Notices and Recommendations .....................................................................................1
Warning Notices ......................................................................................................... 1-2
Responsibilities of the owner/operator ................................................................................3
Proper use of the sunbed ....................................................................................................4
Improper use of the sunbed ................................................................................................5
Basic Safety Instructions .....................................................................................................6
Electrical connection ......................................................................................................6
Safety features ...............................................................................................................7
Site of installation ...........................................................................................................7
Safety instructions for operation .....................................................................................7
Safety instructions for transport .....................................................................................7
Safety instructions for cleaning ......................................................................................8
Safety instructions for maintenance ...............................................................................8
Safety instructions for-users ................................................................................................9
Emergency Stop button ................................................................................................10
Safety features ..................................................................................................................10
Mains disconnection scwitch ........................................................................................10
Use of emergency stop button .....................................................................................11
Safety switches ............................................................................................................12
Automatic shut-off ........................................................................................................13
Delivery ....................................................................................................................14
Technical Data ................................................................................................... 15-16
Transport ........................................................................................................... 17-18
Assembly and electrical installation .....................................................................18
Unpacking the sunbed components and accessories .......................................................19
Disassembly ......................................................................................................................20
Opening top canopy. ....................................................................................................20
Disassembly of backlighting sunbed front ....................................................................20
Disassembly of electric ballast tray ........................................................................ 20-21
j
Disassembly of sunbed acrylic .....................................................................................21
Disassembly of sunbed bench .....................................................................................22
Disassembly of assembly plate ....................................................................................22
Disassembly of AC unit ................................................................................................23
Disassembly of top canopy ..........................................................................................24
Disassembly of transport screws .................................................................................25
Removal of groundplate ...............................................................................................25
Removal of bench supports .........................................................................................25
Transport of rear column to site of installation. ............................................................25
Assembly of exhaust air stack ......................................................................................26
Positioning of rear column at site of installation. ..........................................................26
Assembly of bench supports ........................................................................................27
Installation of groundplate ............................................................................................27
Installation of AC unit. ............................................................................................ 27-28
Installation of assembly plate .......................................................................................29
Assembly of sunbed bench ..........................................................................................29
Assembly of top canopy ...............................................................................................30
Assembly of electric ballast tray ...................................................................................31
Connection of cables ....................................................................................................31
Electrical connection ....................................................................................................32
Hose connections ................................................................................................... 32-33
Installation of electric ballast tray .................................................................................33
Assembly of backlightling in sunbed front ....................................................................33
Assembly of covers ...........................................................................................................34
Assembly of covers at rear column and top canopy ....................................................34
Aassembly of covers and sunbed bench ............................................................... 34-35
Assembly of covers top canopy ...................................................................................36
Assembly of sunbed front cover ...................................................................................36
Assembly of acrylics ..........................................................................................................37
Assembly of top acrylic .......................................................................................... 37-38
Assembly of rear column acrylic ............................................................................ 38-39
Assembly of neck tanner ..............................................................................................40
Assembly of AC acrylic .................................................................................................40
Assembly of sunbed acrylic .................................................................................... 41-42
Start-Up ....................................................................................................................43
Set-up of electronic controls ..............................................................................................43
Sample set-up ..............................................................................................................44
Survey operator menu - set ups ...................................................................................45
Operation .................................................................................................................46
k
Set-up optional at control panel ........................................................................................47
Facials ..........................................................................................................................47
Body cooling in the top canopy ....................................................................................47
Body cooling in the sunbed ..........................................................................................47
AC unit .........................................................................................................................47
Starting a tanning session ...................................................................................... 47-48
Stopping a tanning session ..........................................................................................48
Starting SunFresh option .............................................................................................48
Starting SunHaze option ..............................................................................................48
Selecting music volume ...............................................................................................48
Tanning instructions ..........................................................................................................49
When not to use a sunbed ...........................................................................................49
Minimizing the eventual risks of skin or eye damage ............................................. 49-50
Definition of skin type ........................................................................................................50
What to do in case of sunburn or abnoraml skin reactions ......................................... 50-51
Recommended exposure times ........................................................................................51
Icon46 vv ......................................................................................................................52
Maintenance ............................................................................................................52
Maintenance chart .............................................................................................................53
Daily inspection prior to first start-up ............................................................................54
Annual inspection or every 1000 hours of operation ....................................................55
Replacement of UV lamps ................................................................................................55
Removing UV lamps out of the top canopy ............................................................ 55-56
Installation of UV lamps into the top canopy ................................................................56
Removing UV lamps out of the sunbed ........................................................................56
Installation of lamps into the sunbed ............................................................................57
Replacement of starters ....................................................................................................58
Survey of UV lamps and starters .................................................................................58
Disassembly of starters ................................................................................................58
Assembly of starts ........................................................................................................59
Replacement of sunbed acrylic ................................................................................... 59-60
Replacement of top canopy acrylic ...................................................................................61
Removal of top canopy acrylic .....................................................................................61
Installation of top canopy acrylic ..................................................................................62
Replacement of HID lamps and filters in the facials ..........................................................63
Disassembly of cover strip ...........................................................................................64
Disassembly of filters ............................................................................................. 64-65
Replacement of HID lamps .................................................................................... 65-66
Indice
Altri manuali ADVANCED UV LIGHT Lettino abbronzante
