Advanced Wireless Communications MINI PRO Manuale utente
NOTE TO USER
■ Illegal operation is punishable by ne, im-
prisonment or both. Refer service to Advanced
Wireless Communications only.
SAFETY
■ It is important that the operator is aware of
and understands common hazards of operating
any two-way radio.
■ We do not guarantee safety while operating
the two-way radio when using accessories and
/ or attachments not sold by Advanced Wireless
Communications.
WARNING
KEEP OUT OF EXPLOSIVE ATMOSPHERES
(GASES, DUST, FUMES, etc.)
■ Turn off your two-way radio while taking
on fuel, or while parked in gasoline service
stations.
PRECAUTIONS
Observe the following precautions to prevent
re, personal injury and two-way radio damage.
■ Do not modify or attempt to adjust this two-
way radio for any reason.
■ Do not expose the two-way radio to long
periods of direct sunlight, nor place it close to
heating appliances.
■ Do not place the two-way radio in excessively
dusty, humid, and/or wet areas, nor on unstable
surfaces.
■ If an abnormal odor or smoke is detected
coming from the two-way radio, switch OFF the
power immediately and remove the battery pack
from the two-way radio. Contact your dealer.
1. SAFETY INFORMATION
Carefully unpack the two-way radio. We recommend that you identify the items listed in the following
table before discarding the packing material. If any items are missing or have been damaged during
shipment, le a claim with the carrier immediately.
ACCESSORIES INCLUDED
Item Quantity
Antenna 1
Li-ion Battery 1
Belt Clip 1
User’s Manual 1
2. UNPACKING AND CHECKING EQUIPMENT
Thank you for purchasing the MINI PRO two-way radio from Advanced Wireless Communications
(AWC). We appreciate your business and trust in our products.
Advanced Wireless Communications is a leader in the design and integration of wireless
communications solutions. Since 1992, we’ve been creating on site wireless systems that
help businesses communicate effectively.
Whether it’s a national chain of retail stores, a 50-story ofce tower, construction site, a
large distribution center, a college campus or a retirement home, AWC has the expertise
and experience to create the best solution possible.
We’re ready to partner with you to make your communications more effective and efcient.
Ken & Ben Coons
Founders / Owners
Advanced Wireless Communications
©2013 Advanced Wireless Communications. All rights are reserved.
THANK YOU
1. Safety Information 17. Auxiliary Functions
2. Unpacking and Checking Equipment Transmitting [PTT] 8
Supplied Accessories 2Channel Scan Function 8
3. Batteries 3-4 VOX Function 8
4. Preparation Activating VOX Transmission Operation 9
Installing/Removing the Battery 5QT (50 Groups)/DQT (107 Groups
Positive and Negative Position)
9
Installing the Antenna 5 Power Saving Function 9
5. Getting Started 6 Voice Annunciation 9
6. Basic Operations 7 Wired Clone 10
CONTENTS
CHARGING WARNINGS:
Initially charging the battery pack after purchase
or extended storage (greater than 2 months) will
not bring the battery pack to its normal oper-
ating capacity. After repeating the charge/dis-
charge cycle two or three times, the operating
capacity will increase to normal.
AVAILABLE BATTERIES
Please use Advanced Wireless Communica-
tions’ branded batteries in the MINI PRO two-
way radio only. Using other batteries causes a
risk of re or damage.
Note:
1. Do not short the battery terminals or dispose
of the battery by re. Never attempt to remove
the casing from the battery pack.
2. The ambient temperature should be be-
tween 5 and 40°C while charging is in prog-
ress. Out of the range, the battery may not be
charged fully.
3. Always power OFF the two-way radio
equipped with a battery pack before charging.
Using the two-way radio while charging its bat-
tery pack will interfere with correct charging.
4. Do not plug/unplug the AC adapter and
battery during charging, to avoid interference to
the charging program.
5. The battery pack life is over when its oper-
ating time decreases even though it is fully and
correctly charged. Replace the battery pack.
6. Do not recharge the battery pack if it is
already fully charged. It will shorten the life of
the battery pack or the battery pack may be
damaged.
7. Do not charge the two-way radio while the
battery or radios are wet. Dry them with a cloth
and allow to air dry thoroughly before charging.
3. BATTERIES
Note: All batteries can cause property damage
and/or bodily injury such as burns if conductive
materials such as jewelry, keys, or beaded
chains touch exposed terminals. The conduc-
tive material may complete an electrical circuit
(short circuit) and become quite hot. Carefully
handle any charged battery, particularly when
placing it inside a pocket, purse, or other con-
tainer with metal objects.
CHARGE OPERATION
When installing the battery, the two-way
radio lights red. If three beeps sound each 30
seconds, it means low power, please start to
charge the two-way radio.
Please use the MINI PRO charger for battery
charging, the charger LED display charging
status:
LED Appears Status
Red Charging
Green Fully Charged
TO CHARGE BATTERY PACK, PER-
FORM THE FOLLOWING STEPS:
1. Plug the AC adapter cable into the adapter
jack located on the rear of the charger.
2. Put the battery pack or two-way radio with a
battery pack into the charger.
3. Plug the AC adapter into AC outlet.
4. Make sure the battery pack contacts are in
contact with the charging terminals, the charger
LED lights red and charging begins.
5. The supplied charger LED lights green,
complete charged. Remove the two-way radio
or battery pack from the charger.
Note:
1. If the charger’s LED ashes - it means that
something is wrong.
2. The charger lights red while charging after
inserting the battery. Flashing means defective
battery or the temperature is too high or low.
3. BATTERIES

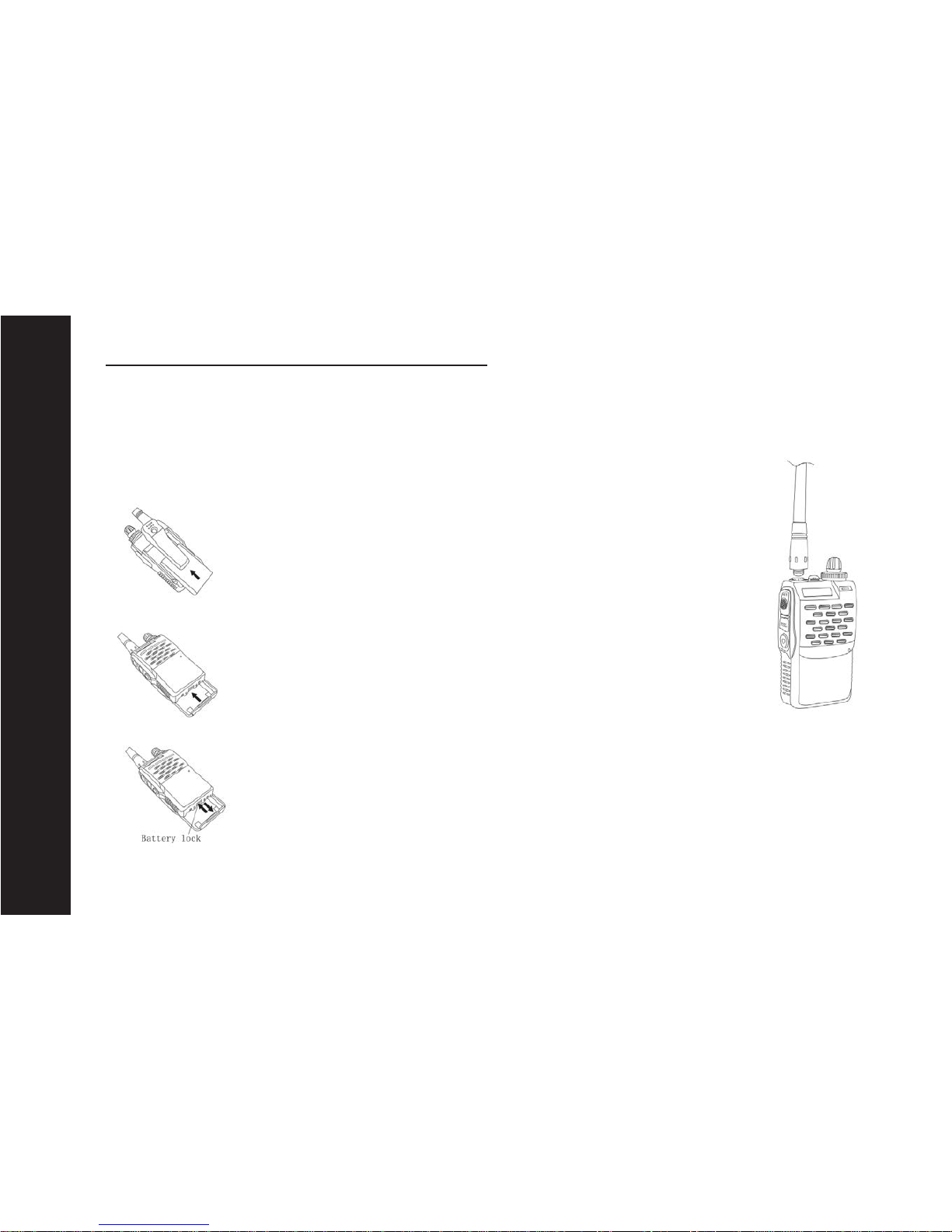

INSTALLING/REMOVING THE BATTERY
PACK
The battery pack is not charged at the factory.
Charge it before use.
1. Match the positive and
negative symbols on the
battery and radio. Slide
the battery in to the radio.
Once battery is in the radio
compartment push down on
battery near the bottom to
snap it in. Hearing the warn-
ing tone means the battery
contacts are normal.
2. Take the battery cover
and slide it on to the back of
the radio with the two tabs
facing towards the top of the
radio. Slide until tabs go in to
the radio and the cover is on.
3. On the bottom of the radio fasten the battery
latch by pushing it towards
the battery cover.
INSTALLING THE
ANTENNA
Screw the antenna into the
connector on the top of the
two-way radio by holding the
antenna at its base and
turning it clockwise until
secure.
Note: The antenna is
neither a handle, a key ring
retainer, nor a speaker/
microphone attachment point.
Using the antenna in these ways may damage
the antenna and degrade your two-way radio’s
performance.
4. PREPARATION
5. GETTING STARTED
1
2
3
5
8
9
10
11
7
4
6

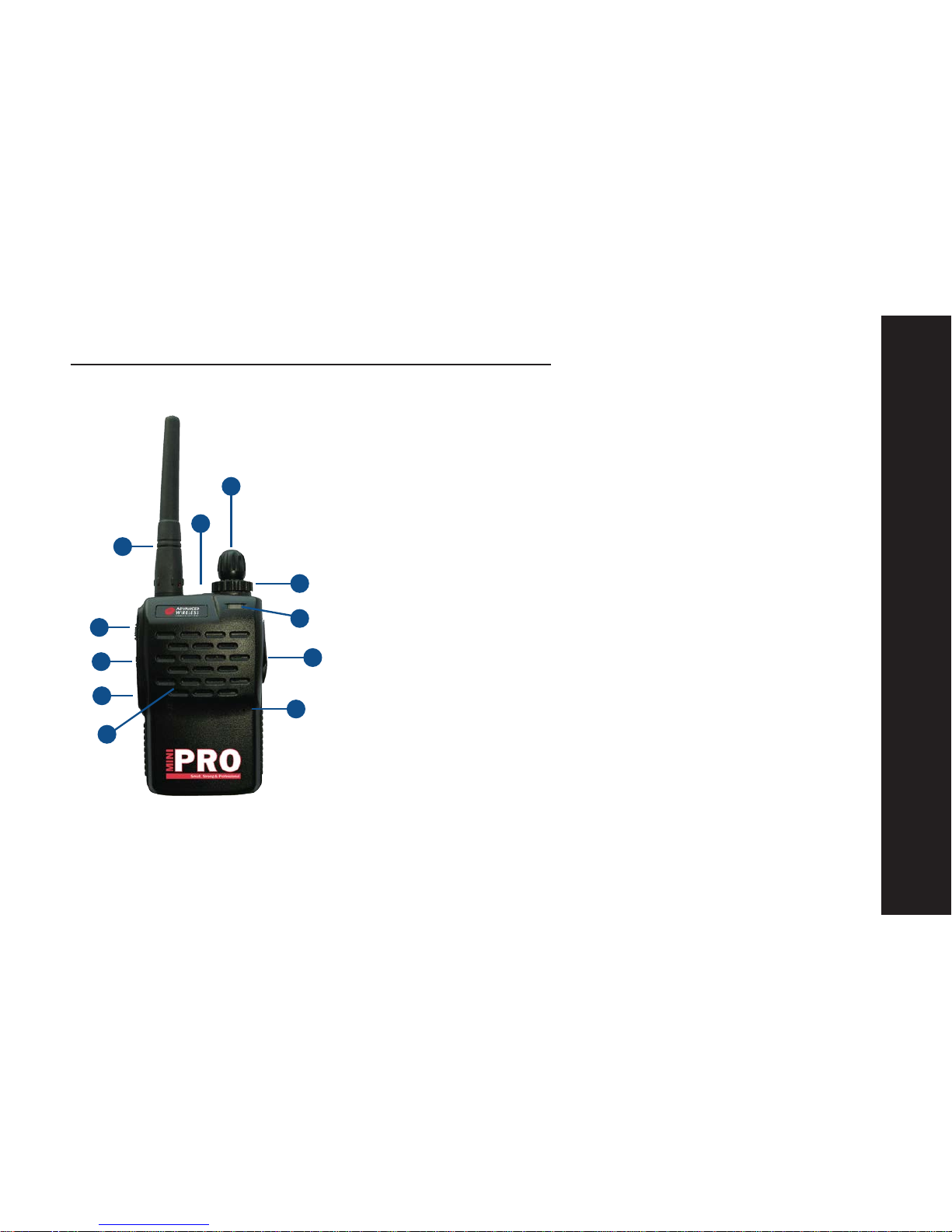

1. LED Flashlight
Press Power button
momentarily to turn ashlight
on; press key again to shut
ashlight off.
2. Volume Control
Adjust the volume level by
rotating the volume control.
3. Channel Selector
Rotate channel selector to
select channel 1-16.
4. LED Indicator
Lights red while transmitting.
Lights green while receiving
a signal. Flashing red when
the battery voltage is low
while transmitting.
5. Accessory Jack
6. Microphone
7. Speaker
8. Power Button
Press and hold for 3 seconds
to turn on - release when you
hear a tone. Press and hold
for 3 seconds to turn off -
release when you hear tone.
Press momentarily to turn
ashlight on; press key again
to shut ashlight off.
9. Scan/Monitor Button
For Scan - press button for 1 second
to enable or disable scan. A single
beep indicates that scan has been
enabled. A double beep indicates that
scan has been disabled.
For Monitor - press for 3 seconds,
then the squelch is turned off,
meanwhile you can hear the
background noise. Release
the side key, then the
squelch is opened.
10. Push-to-Talk Button
Press it and speak in to the
microphone to call the
receiver; release it to
receive.
11. Antenna (detachable)
INSTALLING/REMOVING THE BATTERY
PACK
The battery pack is not charged at
the factory. Charge before use.

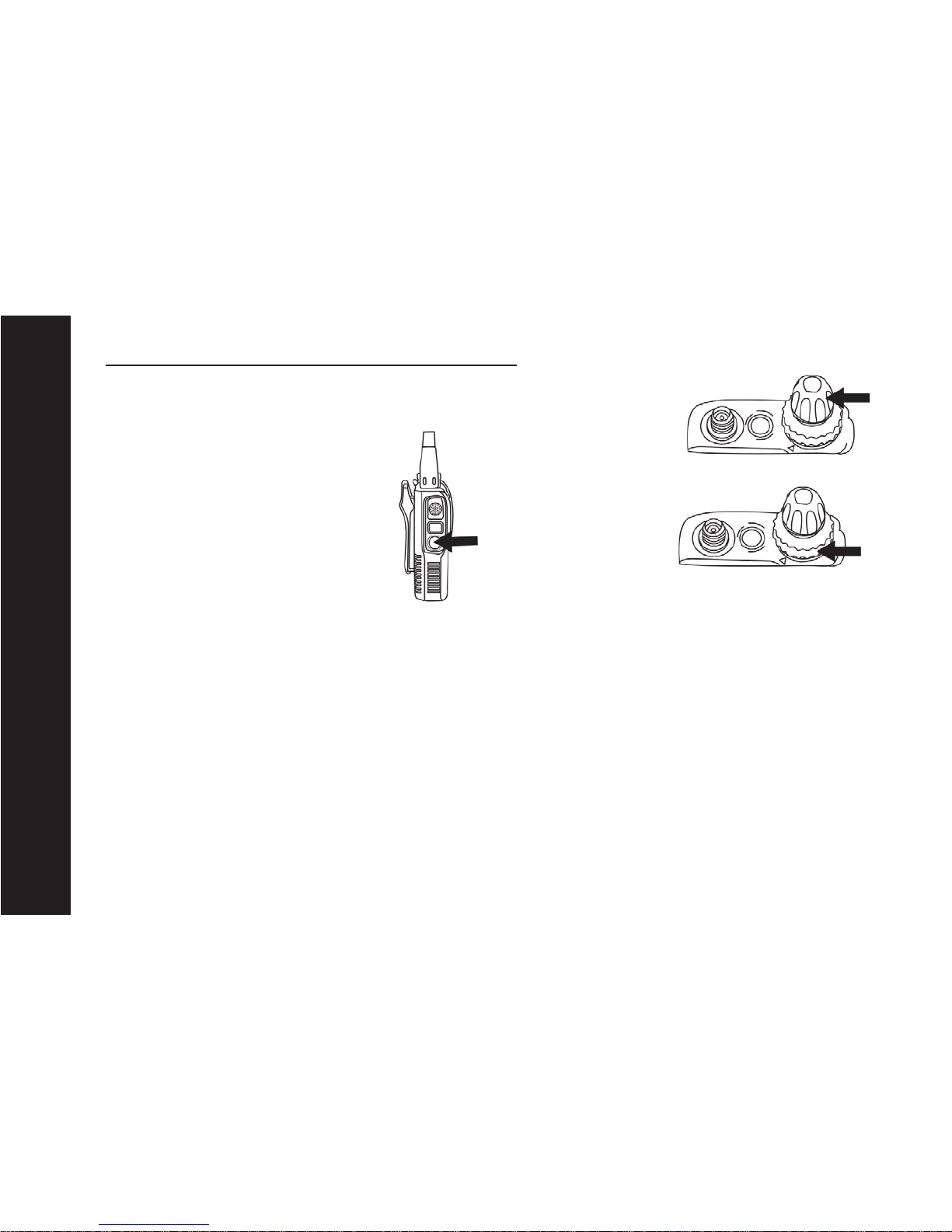

1. TURN ON THE RADIO
Install the battery and press side
key 2 (power key) for 3 seconds to
turn on (you should hear a tone).
Release the power key.
2. TURN OFF THE RADIO
Press side key 2 (power key) for 3 seconds.
After hearing the tone release the power key.
3. FLASHLIGHT
Press power key for a short time to turn the
ashlight on; and then press the power key to
turn the ashlight off.
4. VOLUME CONTROL
5. CHANGING
CHANNELS
Rotate the channel
selector to select
your desired
channel.
■ When you
receive an appro-
priate signal, you
will hear voice
from the speaker.
Note: Once the battery strength is too low, the
two-way radio will stop transmitting and sound
an alarm voice.
6. BASIC FUNCTION
