Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 1 / 7
1 For your safety
These mounting instructions apply to all DLT-V72 and DLT-V83 models. They describe
how to attach the appropriate Advantech-DLoG keyboard mounting kit.
Read and observe the mounting instructions carefully.
Keep them for future reference.
WARNING
Risk of injury due to weight and sharp-edged parts.
The DLT-V72 / DLT-V83 can fall down and cause injuries due to its weight. The
strain relief rail can have sharp edges and cause cutting injuries.
Always hold the device by the housing with both hands.
Never use the antenna cap as a handle. It can break due to the weight
involved.
Do not hold the device by the strain relief rail.
Use the assistance of a second person for installation work.
WARNING
Risk of injury and damage due to improper installation
These mounting instructions are intended for skilled personnel. Only qualified
skilled personnel may mount/install DLT-V72 / DLT-V83 devices
1.1 Tools required
−Allen key (5 mm width for M6)
−Socket wrench (size 7)
1.2 Installation sequence
If the DLT-V72 / DLT-V83 is being used with a mounting bracket and a keyboard
mounting kit:
First attach the mounting bracket to the DLT-V72 / DLT-V83.
Then attach the keyboard holder.
Not until then, mount the complete system at the deployment location, e.g. to the
forklift.
Please note: In addition to the mounting bracket, one accessory holder each can be
attached (on each side).
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 2 / 7
2 DLT-V72: Attaching the front keyboard
holder
Parts required:
−1 x Advantech-DLoG front keyboard holder
−2 x cylinder-head screw DIN912 - M6x12 - A2 Tuflok
−2 x washer ISO 8738 - A6-A2
−2 x spacer sleeve, steel
DLT-V72:

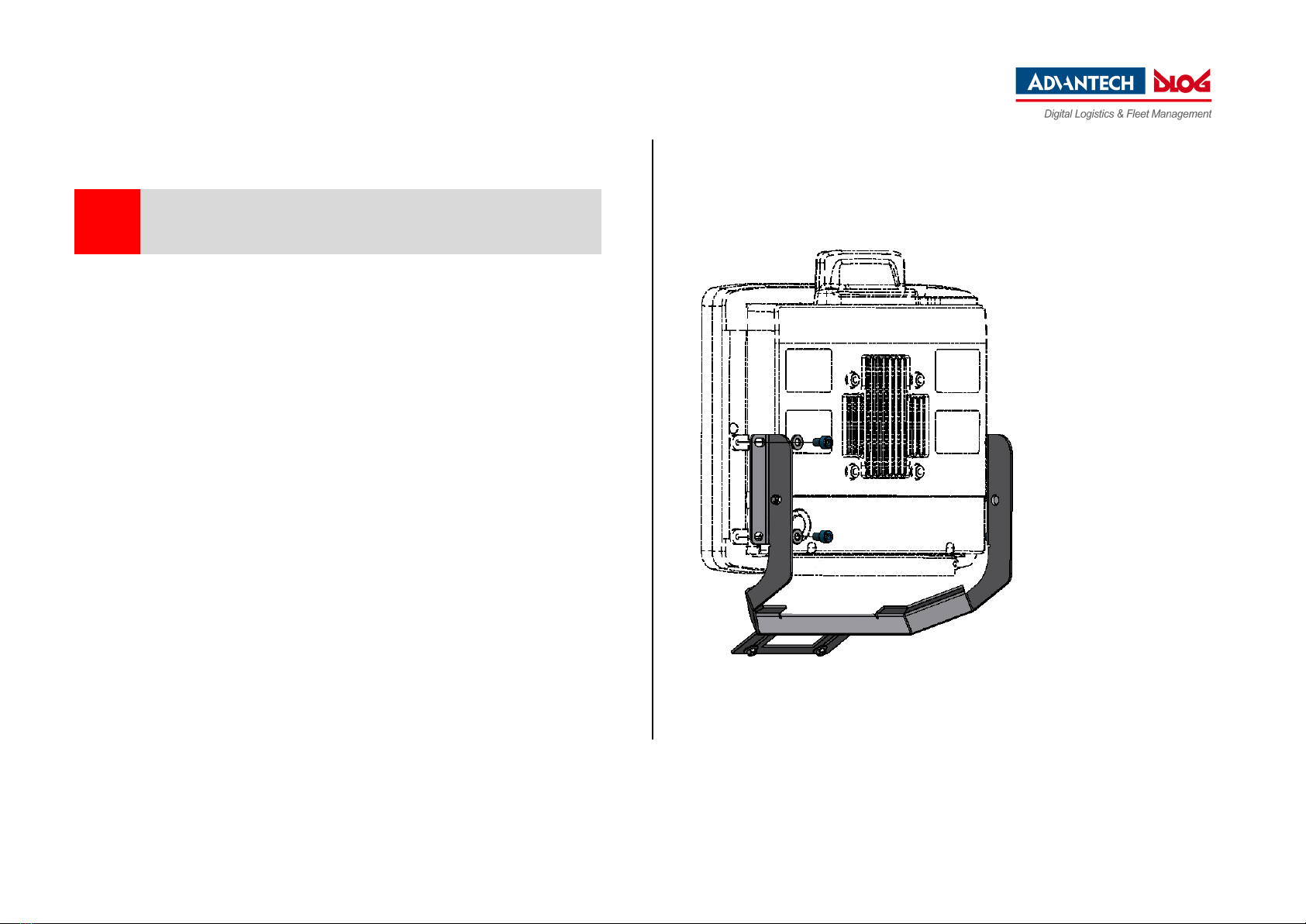

Fasten the front
keyboard holder, step
1.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 3 / 7
DLT-V72:
Fasten the front
keyboard holder,
step 2.
3 DLT-V72: Attaching the keyboard holder
right/left
The figure shows the attachment of the keyboard holder on the right; the attachment on
the left is done analogously but mirror inverted.
Parts required:
−1 x Advantech-DLoG keyboard holder right/left
−3 x cylinder-head screw DIN 912 - M6 x 10 - A2, Tuflok
−3 x washer ISO 8738 - A6-A2
−4 x nut M4 bevel washer
DLT-V72:
Fasten the
keyboard holder
sidewards.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 4 / 7
4 DLT-V83: Attaching the front keyboard
holder
Parts required:
−1 x Advantech-DLoG front keyboard holder
−4 x cylinder-head screw DIN 912 - M6 x 10 - A2 – Tuflok
−6 x washer ISO 8738 - A6-A2
−2 x spacer sleeve, steel M8 L3
−4 x nut M4 bevel washer
DLT-V83:
Fasten the
front keyboard
holder,
step 1.
DLT-V83:
Fasten the
front keyboard
holder,
step 2
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 5 / 7
DLT-V83:
Fasten the front
keyboard
holder,
step 3.
DLT-V83:
Fasten the front
keyboard
holder,
step 4.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 6 / 7
5 DLT-V83: Attaching the keyboard holder
right/left
The figure shows the attachment of the keyboard holder on the left; the attachment on
the right is done analogously but mirror inverted.
Parts required:
−1 x Advantech-DLoG keyboard holder right/left
−3 x cylinder-head screw DIN 912 - M6 x 10 - A2, Tuflok
−3 x washer ISO 8738 - A6-A2
−4 x nut M4 bevel washer
DLT-V83:
Fasten the
keyboard
holder
sidewards,
step 1.
DLT-V83:
Fasten the
keyboard
holder
sidewards,
step 2.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221 Page 7 / 7
6 Technical customer support
Service & Support
E-Mail: aeu.helpdesk@advantech.com
Advantech Europe B.V.
Science Park Eindhoven 5708,
5692ER, Son en Breugel,
The Netherlands
Internet: www.advantech.com
Attaching keyboard holder to DLT-
V72 / DLT-V83
Mounting instructions V3.00
September 30, 2022
The contact details for our global Advantech Service Centers are available on our
website: https://erma.advantech.com
by Advantech Co., Ltd 2015-2022
We reserve the right to make changes to these mounting instructions at any time and
without prior notice. Advantech accepts no liability for any technical or printing errors or
shortcomings in these instructions. Advantech accepts no liability for any damage
caused directly or indirectly by the delivery, performance or use of this material.
