IPC-6806
6-slot Node IPC Chassis
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Copyright Notice
This document is copyrighted, January 1997, by Advantech Co., Ltd.
All rights are reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time
without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this manual
is intended to be accurate and reliable. However, Advantech Co., Ltd.
assumes no responsibility for its use, nor for any infringements of the
rights of third parties which may result from its use.
Acknowledgments
IPC-6806,PCA-6106,andPCA-6106P3aretrademarksofAdvantech
Co.,Ltd.
Note
The information in this document is provided for reference only.
Advantech does not assume any liability arising out of the direct or
indirect use of the information or products described herein. This
manual is subject to change without notice.
Part No. 2002806030 3rd Edition
Printedin Taiwan January1997
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Contents
Chapter 1 General Information.................................. 1
Introduction.......................................................................... 1
Specifications...................................................................... 1
Dimensions ......................................................................... 3
Installation ........................................................................... 4
Chapter 2 System Setup............................................ 5
Removing the cover ............................................................ 5
Adding disk drives ............................................................... 6
Hold-down clamp ................................................................ 7
Wall mounting...................................................................... 8
Replacing the filter............................................................... 9
Appendix A Passive Backplanes............................ 11
Appendix B Exploded Diagram............................... 13
Appendix C Safety Instructions .............................. 15
Wichtige Sicherheishinweise ............................................ 16
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Chapter 1 General Information
1
Chapter 1 General Information
Introduction
Specially designed for the factory floor and other harsh industrial
environments, the IPC-6806 wallmount IPC chassis is ideal for system
integrators or users who require a compact, rugged PC/AT-compatible
system. The IPC-6806 features a 6-slot passive backplane and a
150-watt power supply. The chassis is only 6.5" wide and can be easily
mounted on panels or walls with the supplied brackets.
Specifications
•Construction: Heavy-duty steel
•Diskdrive capacity: One 3½"FDD and one 3½" HDD
•Indicators:LEDsforpowerOn/OffandHDD
•Controls: Reset switch on front panel
•Coolingfan: One 49-CFM fan on front panel withair filter
•Weight:5.6 kg (12.3 lbs)
•Dimensions(WxDxH):166x170x393mm(6.5" x6.7"x15.5")
•Paintcolor:Pantone415C
Passive backplane (PCA-6106)
•Slots: 6 ISA-bus, full-size
•PCboard: 4-layer PCB with ground and power planes for reduced
noise and low power-supply impedance
•Indicators:LEDsfor +5V,+12V,-5 Vand-12 V
Passive backplane (PCA-6106P3)
•Slots: 2 ISA / 3 PCI / 1 PICMG slots
•PCboard: 4-layer PCB with ground and power planes for reduced
noise and low power-supply impedance
•Indicators:LEDsfor +5V,+12V,-5 Vand-12 V
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2
IPC-6806 User's Manual
Power supply (PS-150)
•Outputrating:150watts max.
•Inputvoltage:
90~132VAC or180~264VAC @47~63Hz,autoranging
•Outputvoltage:+5V@15 A, -5 V @1A,+12V @ 5 A, -12V@1A
•Minload:+5 V @3A,-5V @ 0.2 A, +12V@1A, -12 V @ 0.2A
•MTBF:50,000hrs.at 70% load
•Safety:UL/CSA/TÜVapproved
•EMI:MeetsFCC/VDE Class A
Environmental specifications
•Operatingtemperature:0~50°C (32~122°F)
•Relativehumidity:10 ~ 95% @ 40° C, non-condensing
•Vibration(operating):
5~ 17 Hz, 0.1" double-amplitudedisplacement
17~500 Hz, 1.5 G acceleration peak to peak
•Shock(operating):10 G acceleration peak (11msec. duration)
•Safety:MeetsUL/CSA/TÜV
•EMI:Meets FCC/VDEClassA
•CEcompliant
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Chapter 1 General Information
3
Dimensions
Front view
Top view
Rear view
Unit: mm
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
4
IPC-6806 User's Manual
Installation
Unit: mm
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Chapter 2 System Setup 5
Chapter 2 System Setup
The following procedures are provided to assist you in installing
drives, plug-in cards and the hold-down clamp into the IPC-6806.
Removing the cover
To remove the cover, proceed as follows:
1. Remove the two screws (one on each side) which secure the cover
to the card cage (see Fig. 2-1). Lift the lid to expose the interior of
the chassis.
Figure 2-1: Removing the cover
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
6IPC-6806 User'sManual

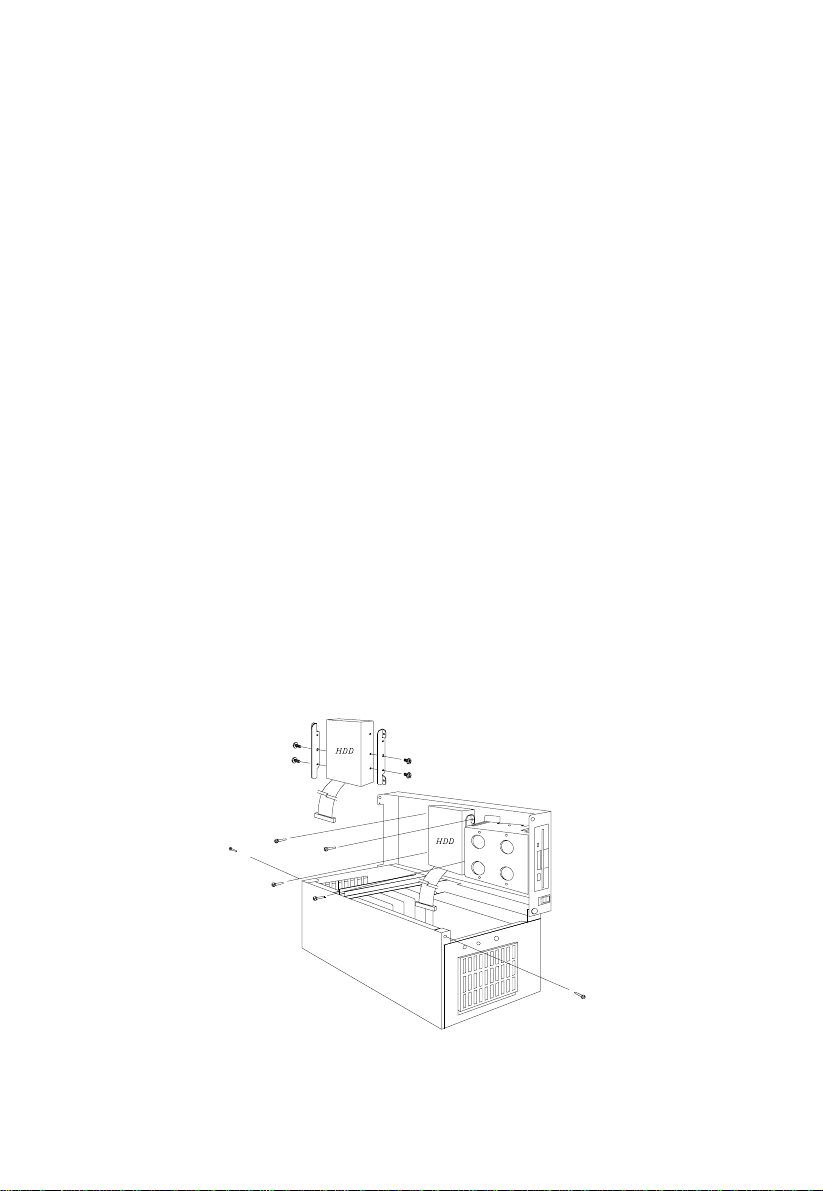

Adding disk drives
To install an HDD or FDD, refer to Fig. 2-2 and proceed as follows:
1. Hard disk drive:
a. Open the top cover of the chassis.
b. Detach the flat panel mounting bracket by removing the four
retaining screws.
c. Align the holes on the bottom of the HDD with those of the
flat-panel mounting bracket.
d. Attach the HDD to the flat-panel mounting bracket with the
four screws removed in step (a) above.
e. Connect the 40-pin flat cable and power cable to the HDD, and
attach the flat-panel mounting bracket to the chassis with the
four retaining screws.
2.Floppy disk drive:
a. Open the top cover of the chassis.
b. Remove the cover of the floppy disk drive.
c. Insert the FDD into the mounting bracket with its base facing
inward.
d. Connect a 34-pin flat cable and power cable to the FDD, and
attach the FDD to the bracket with four screws.
Figure 2-2: Installing the drives
