Advantech SKY-MXM-A1000 Manuale utente

User Manual

SKY-MXM-A1000

MXM 3.1 Type-A NVIDIA®

Quadro® Embedded A1000 with

DP 1.4a

SKY-MXM-A1000 User Manual ii

The documentation and the software included with this product are copyrighted 2023

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated, or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. The information provided in this manual is intended to be accurate and reliable.

However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any

infringements of the rights of third parties that may result from its use.

Acknowledgments

Quadro, RTX, and CUDA are trademarks of NVIDIA Corporation.

All other product names or trademarks are properties of their respective owners.

A Message to the Customer

Advantech Customer Service

Each and every Advantech product is built to the most exacting specifications to

ensure reliable performance in the harsh and demanding conditions typical of indus-

trial environments. Whether your new Advantech equipment is destined for the labo-

ratory or the factory floor, you can be assured that your product will provide the

reliability and ease of operation for which the name Advantech has come to be

known.

Your satisfaction is our primary concern. Here is a guide to Advantech’s customer

services. To ensure you get the full benefit of our services, please follow the instruc-

tions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions,

you can easily find answers in your product documentation. These answers are nor-

mally a lot more detailed than the ones we can give over the phone.

So please consult this manual first. If you still cannot find the answer, gather all the

information or questions that apply to your problem, and with the product close at

hand, call your dealer. Our dealers are well trained and ready to give you the support

you need to get the most from your Advantech products. In fact, most problems

reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Advantech engineers every busi-

ness day. We are always ready to give advice on application requirements or specific

information on the installation and operation of any of our products.

Part No. 2001A10000 Edition 1

Printed in China May 2023

iii SKY-MXM-A1000 User Manual

Declaration of Conformity

FCC Class A

This equipment has been tested and found to comply with the limits for a Class A dig-

ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for assistance.

Product Warranty (2 years)

Advantech warrants the original purchaser that each of its products will be free from

defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products that have been repaired or altered by

persons other than repair personnel authorized by Advantech, or products that have

been subject to misuse, abuse, accident, or improper installation. Advantech

assumes no liability under the terms of this warranty as a consequence of such

events.

Because of Advantech’s high quality-control standards and rigorous testing, most

customers never need to use our repair service. If an Advantech product is defective,

it will be repaired or replaced free of charge during the warranty period. For out-of-

warranty repairs, customers will be billed according to the cost of replacement mate-

rials, service time, and freight. Please consult your dealer for more details.

If you believe your product to be defective, follow the steps outlined below.

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note

anything abnormal and list any onscreen messages displayed when the prob-

lem occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain a return merchandise authori-

zation (RMA) number from your dealer. This allows us to process your return

more quickly.

4. Carefully pack the defective product, a completed Repair and Replacement

Order Card, and a proof of purchase date (such as a photocopy of your sales

receipt) into a shippable container. Products returned without a proof of pur-

chase date are not eligible for warranty service.

5. Write the RMA number clearly on the outside of the package and ship the pack-

age prepaid to your dealer.

SKY-MXM-A1000 User Manual iv

Initial Inspection

Before you begin installing your MXM GPU card, please make sure that the following

materials have been shipped:

SKY-MXM-A1000 GPU card x 1

China RoHS Doc x 1

If any of these items are missing or damaged, contact your distributor or sales repre-

sentative immediately. We have carefully inspected the SKY-MXM-A1000 mechani-

cally and electrically before shipment. It should be free of marks and scratches and in

perfect working order upon receipt. As you unpack the SKY-MXM-A1000, check it for

signs of shipping damage. (For example, damaged box, scratches, dents, etc.) If it is

damaged or it fails to meet the specifications, notify our service department or your

local sales representative immediately. Also notify the carrier. Retain the shipping

carton and packing material for inspection by the carrier. After inspection, we will

make arrangements to repair or replace the unit.

v SKY-MXM-A1000 User Manual

Contents

Chapter 1 Hardware Configuration......................1

1.1 Introduction ............................................................................................... 2

1.2 Features .................................................................................................... 2

1.3 Specifications............................................................................................ 2

1.3.1 Processor System......................................................................... 2

Table 1.1: Processor System ...................................................... 2

1.3.2 Memory ......................................................................................... 2

Table 1.2: Memory....................................................................... 2

1.3.3 Display Support and Options ........................................................ 3

Table 1.3: Display Support and Options...................................... 3

1.3.4 Operating Systems ....................................................................... 3

Table 1.4: Operating Systems ..................................................... 3

1.3.5 Software Support .......................................................................... 3

1.3.6 Graphics Options .......................................................................... 3

1.3.7 Physical......................................................................................... 3

1.3.8 Environment................................................................................. 3

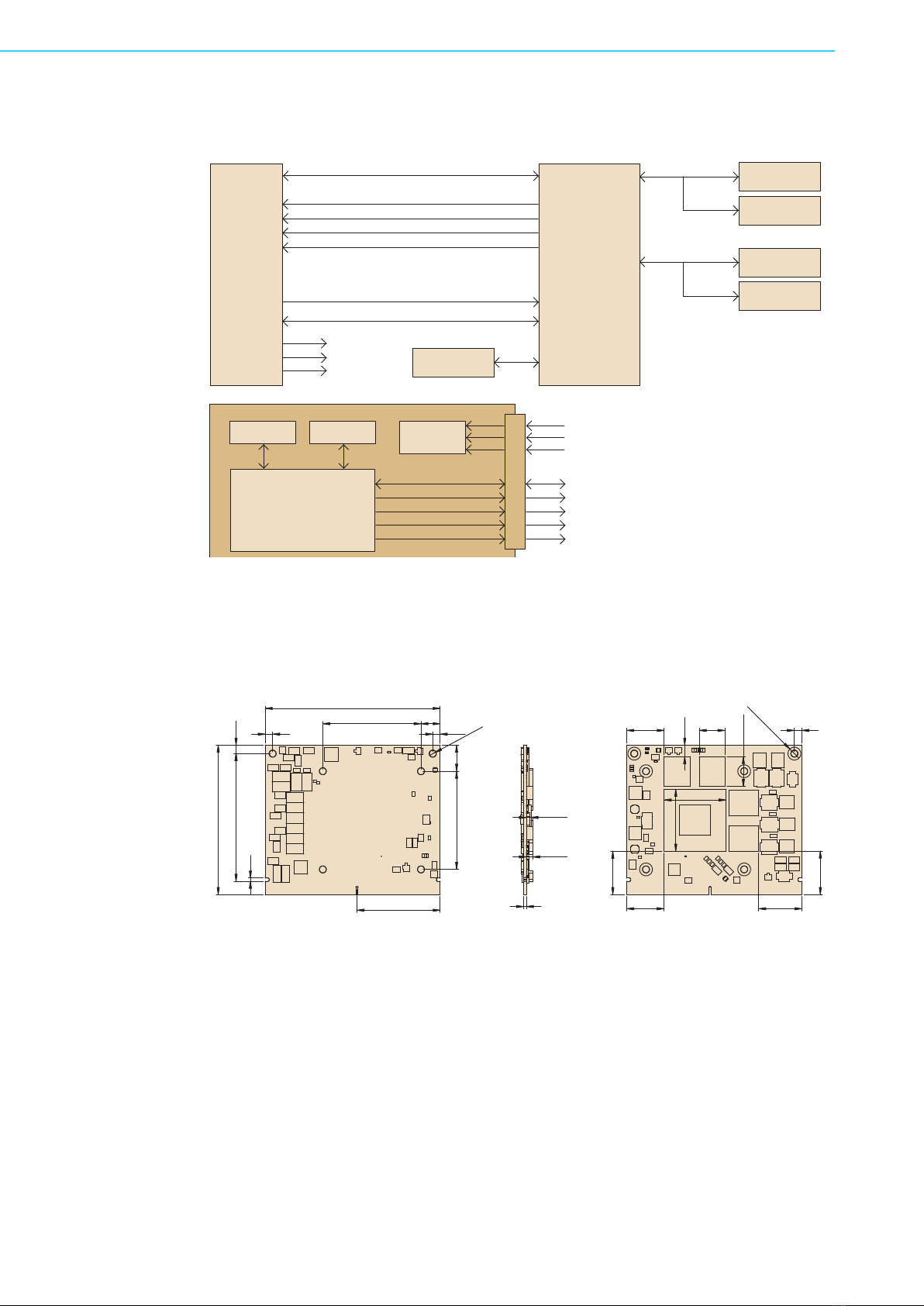

1.4 Block Diagram........................................................................................... 4

1.5 Board Dimensions..................................................................................... 4

1.6 MXM 3.1 Connector Pin Definitions .......................................................... 5

1.7 Safety Precautions.................................................................................... 6

Chapter 2 System Requirements.........................7

2.1 Power Sequencing .................................................................................... 8

Figure 2.1 Power Sequencing ..................................................... 8

Table 2.1: Signals Exempted....................................................... 8

2.2 Input Voltage Requirements...................................................................... 8

2.3 Module Power Down and Power Up ......................................................... 9

Figure 2.2 Power Sequencing ..............................9

2.4 Reset Requirements ................................................................................. 9

Figure 2.3 Reset Sequencing ..............................9

2.5 DisplayPort Interface............................................................................... 10

Figure 2.4 Dual-Mode DisplayPort Implementation ................... 10

2.6 DVI/HDMI on the DisplayPort Interface................................................... 11

Table 2.2: DisplayPort Multiplexed Signal Definition ................. 11

Figure 2.5 Dual-Mode DisplayPort Implementation ................... 11

2.7 Mechanical and Environmental Specifications........................................ 12

Table 2.3: Mechanical and Environmental Specifications ......... 12

2.8 GPU Thermal Policy................................................................................ 13

Table 2.4: GPU Thermal Policy ................................................. 13

2.9 System BIOS Requirements ................................................................... 13

SKY-MXM-A1000 User Manual vi

Chapter 1

1Hardware

Configuration

SKY-MXM-A1000 User Manual 2

1.1 Introduction

As an NVIDIA Elite Partner, Advantech offers MXM GPU cards powered by NVIDIA’s

embedded GPUs, perfect for image processing and Edge AI acceleration in manu-

facturing, medical, and gaming industries. Built on NVIDIA's latest architectures,

Advantech MXM GPUs deliver state-of-the-art technologies giving high-performing

computing and responsive capabilities for systems, as well as latency reduction,

which is ideal for deployment in applications such as auto-optical inspection, driver

assistance, and surgical systems.

The Advantech SKY-MXM-A1000 MXM module is a high-performance MXM graph-

ics module based on the NVIDIA A1000 chip. The module optimizes performance

and stability. Featuring 2048 CUDA cores, and 4GB GDDR6 memory with ECC, it

offers 6.66 TFLOPS of Single-Precision Performance. Additionally, it supports 4 Dis-

playPort outputs; making it suitable for demanding tasks like professional CAD draw-

ing, medical applications, and image processing. Additionally, the module’s small

form factor allows for easy system integration and the lower power requirement

results in efficient cooling. These features make this module an ideal choice for

embedded solutions that require high-end graphics capabilities.

1.2 Features

NVIDIA® Quadro® A1000 with MXM 3.1 Type-A form factor (82 x 70 mm)

Up to 2048 CUDA cores, 6.66 TFLOPS

GDDR6 4GB with ECC memory, 128-bit, bandwidth 224 GB/s

Up to 4 DisplayPort 1.4a outputs

Long life cycle, supports 5+ years of availability

1.3 Specifications

1.3.1 Processor System

1.3.2 Memory

Table 1.1: Processor System

GPU Quadro® A1000

Graphics Architecture NVIDIA® Ampere™ GA-107-950

CUDA Parallel-Processing Cores 2048 CUDA® cores

GPU Base/Boost Clock 1192 MHz / 1624 MHz

FP32 Performance 6.66 TFLOPS

Table 1.2: Memory

Technology GDDR6 4GB with ECC memory

Interface Width 128-bit

Bandwidth 224 GB/s

Max Clock 7000 MHz

3 SKY-MXM-A1000 User Manual

Chapter 1 Hardware Configuration

1.3.3 Display Support and Options

1.3.4 Operating Systems

1.3.5 Software Support

CUDA toolkit 11.0 and higher

CUDA compute version 8.6

OpenCL™ 3.0

DirectX® 12

OpenGL 4.6

Vulcan 1.2

1.3.6 Graphics Options

The SKY-MXM-A1000 supports 4 x DP 1.4, with ports as shown below.

1.3.7 Physical

Dimensions: 82 (W) x 70 (D) mm

Form Factor: MXM 3.1 Type-A

1.3.8 Environment

Operating: 0 ~ 55 °C (Depending on the CPU and cooling)

Non-Operating: -40 °C ~ 85 °C

Table 1.3: Display Support and Options

4 x DisplayPort 1.4a, 4K at 120Hz or 8K at 60Hz

(Requires DSC)

Supports HDMI 2.0 via DP dual-mode, 4K at 60 Hz

Table 1.4: Operating Systems

Microsoft Windows 10/11 64-bit

Linux Linux Drivers, 64-bit

MXM Port DP_A DP_B DP_C DP_D

Advantech Link A Link B Link C Link E

Link Display

Link A DisplayPort, DVI (Single Link or Dual Link With Link B)

Link B DisplayPort, DVI (Dual Link with A)

Link C DisplayPort, HDMI

Link E DisplayPort, HDMI

SKY-MXM-A1000 User Manual 4

1.4 Block Diagram

1.5 Board Dimensions

NVIDIA

Quadro A1000

EN20-P1-A1

60W

GDDR6 x32

memory down

4GB GDDR6 memory, 128-bit

Channel A/B

16Mb

+VPWR_SRC (7~20V)

+5V

+3.3V

PCI Express X8

DP_A: Display Port

DP_B: Display Port

DP_C: Display Port

DP_D: Display Port

PCIe x8 Gen3

DP 1.4a

SPI

DP 1.4a

Power Management (PWR_EN, PWR_GOOD)

GDDR6

GDDR6 x32

memory down

GDDR6 x32

memory down

GDDR6 x32

memory down

SPI - VBIOS

VBIOS GDDR6 PWM

NVIDIA

Quadro A1000

MXM V3.1 G/F

MXM V3.1 Gold Finger

P_+3.3V

P_+12V

PCIe X8 gen3

IFPA

IFPB

IFPC

IFPE

DP_A

DP_B

DP_C

DP_D

PCIe

IFPA

IFPB

IFPC

IFPE

FBB

FBA

I2CS

SPI

P_+5V

Unit: mm

29.00

20.19

20.34

17.55

5.40

12.00

14.00

Ø5.99

3.50

17.50

20.29

82.00

70.00

4.0059.80

1.50

Ø3.25

39.00

46.00

46.00 12.25

3.50

9.00

3.50

1.2

3.00

2.20

Indice

Altri manuali Advantech Hardware per computer

Advantech

Advantech PCE-7131 Manuale di installazione e funzionamento

Advantech

Advantech AdvLinuxTU Manuale utente

Advantech

Advantech USB-4750 Manuale utente

Advantech

Advantech ACP-7000 Manuale utente

Advantech

Advantech USB-4750-AE Manuale utente

Advantech

Advantech ECU-P1528PE Manuale di installazione e funzionamento

Advantech

Advantech AIMB-279 Manuale utente

Advantech

Advantech AIMC-3202 Manuale di installazione e funzionamento

Advantech

Advantech PCM-3864 Manuale di installazione e funzionamento

Advantech

Advantech ECU-479 Series Manuale utente

Advantech

Advantech PCE-5124 Manuale utente

Advantech

Advantech PCE-5133 Manuale di installazione e funzionamento

Advantech

Advantech PCL-734 Manuale utente

Advantech

Advantech SOM-4463D-S8B2E Manuale utente

Advantech

Advantech PPC-3151 Manuale utente

Advantech

Advantech AIMB-217 Manuale utente

Advantech

Advantech PCM-3753I Manuale utente

Advantech

Advantech MIC-75M11 Manuale di installazione e funzionamento

Advantech

Advantech MIO-5376 Manuale di installazione e funzionamento

Advantech

Advantech PCE-3B06-02 Manuale di installazione e funzionamento

Advantech

Advantech PCA-6186 Manuale utente

Advantech

Advantech MIC-75M20 Manuale di installazione e funzionamento

Advantech

Advantech MIO-2361 Series Manuale di installazione e funzionamento

Advantech

Advantech EPD-332 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
