Advantech IDK2121WNK2FHA2EES Manuale utente

User Manual

IDK2121WNK2FHA2E-

TFT-LCD 21.5” FHD (LED

Backlight)

IDK-2121W User Manual ii

The documentation and the software included with this product are copyrighted 2013

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable. How-

ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties, which may result from its use.

Acknowledgements

AMI is a trademark of American Megatrends Inc.

IBM and PC are trademarks of International Business Machines Corporation.

Intel® Core 2 Quad, Pentium Dual Core and Celeron are trademarks of Intel Corpo-

ration.

WinBond is a trademark of Winbond Corporation.

All other product names or trademarks are properties of their respective owners.

Part No. 2006212100 Edition 1

Printed in China Jan 2013

iii IDK-2121W User Manual

A Message to the Customer

Advantech Customer Services

Each and every Advantech product is built to the most exacting specifications to

ensure reliable performance in the harsh and demanding conditions typical of indus-

trial environments. Whether your new Advantech equipment is destined for the labo-

ratory or the factory floor, you can be assured that your product will provide the

reliability and ease of operation for which the name Advantech has come to be

known.

Your satisfaction is our primary concern. Here is a guide to Advantech’s customer

services. To ensure you get the full benefit of our services, please follow the instruc-

tions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions,

you can easily find answers in your product documentation. These answers are nor-

mally a lot more detailed than the ones we can give over the phone.

So please consult this manual first. If you still cannot find the answer, gather all the

information or questions that apply to your problem, and with the product close at

hand, call your dealer. Our dealers are well trained and ready to give you the support

you need to get the most from your Advantech products. In fact, most problems

reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Advantech engineers every busi-

ness day. We are always ready to give advice on application requirements or specific

information on the installation and operation of any of our products.

IDK-2121W User Manual iv

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be

free from defects in materials and workmanship for two years from the date of pur-

chase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation. Advantech assumes no

liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of

our customers never need to use our repair service. If an Advantech product is defec-

tive, it will be repaired or replaced at no charge during the warranty period. For out-

of-warranty repairs, you will be billed according to the cost of replacement materials,

service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note

anything abnormal and list any onscreen messages you get when the problem

occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandise

authorization) number from your dealer. This allows us to process your return

more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt)

in a shippable container. A product returned without proof of the purchase date

is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

v IDK-2121W User Manual

Contents

Chapter 1 Overview...............................................1

1.1 General Description .................................................................................. 2

1.2 Display Characteristics.............................................................................. 2

Table 1.1: Display Characteristics ............................................... 2

1.3 Optical Characteristics .............................................................................. 3

Table 1.2: Display Characteristics ............................................... 3

1.4 Functional Block Diagram ......................................................................... 5

Figure 1.1 Function block diagram .............................................. 5

1.5 Absolute Maximum Ratings ...................................................................... 5

1.5.1 Absolute Ratings of TFT LCD Module .......................................... 5

1.5.2 Absolute Ratings of Backlight Unit................................................ 5

1.5.3 Absolute Ratings of Environment.................................................. 5

1.6 Outline Dimension..................................................................................... 6

1.6.1 IDK-2121WR-1KFHA1E................................................................ 6

1.6.2 IDK-2121WN-1KFHA1E................................................................ 8

Chapter 2 Electrical Characteristics.................11

2.1 Power Specification................................................................................. 12

Table 2.1: Power specification................................................... 12

2.1.1 Signal Electrical Characteristics.................................................. 13

Table 2.2: Signal electrical characteristics ................................ 13

2.2 Backlight Driving Conditions ................................................................... 13

Table 2.3: Backlight driving conditions ...................................... 13

Chapter 3 Signal Characteristics.......................15

3.1 Pixel Format Image ................................................................................. 16

3.2 Pin Description ........................................................................................ 16

Table 3.1: Pin Description ......................................................... 16

3.3 The Input Data Format ............................................................................ 18

3.4 Interface Timing ...................................................................................... 19

3.4.1 Timing Characteristics ................................................................ 19

3.4.2 Input Timing Diagram.................................................................. 19

3.5 Power ON/OFF Sequence ...................................................................... 20

Chapter 4 Connector & Pin Assignment...........21

4.1 TFT LCD Module..................................................................................... 22

4.1.1 Connector ................................................................................... 22

Table 4.1: Connector ................................................................. 22

4.1.2 Pin Assignment ........................................................................... 22

Table 4.2: Pin Assignment......................................................... 22

4.2 Backlight Unit .......................................................................................... 22

4.2.1 Signal for LED light bar connector .............................................. 22

4.2.2 LED Driver Board........................................................................ 23

Table 4.3: Specification ............................................................. 23

Figure 4.1 Dimension................................................................. 24

Chapter 5 Touch Screen & Touch Controller ...25

IDK-2121W User Manual vi

5.1 Touch Screen.......................................................................................... 26

5.1.1 Touch Characteristics ................................................................. 26

5.1.2 Optical Characteristics................................................................ 26

5.1.3 Environment Characteristics....................................................... 26

5.1.4 Mechanical Characteristics......................................................... 26

5.1.5 Electronic Characteristics ........................................................... 26

5.1.6 General specification .................................................................. 27

5.2 Touch controller ...................................................................................... 27

5.2.1 Touch Controller Characteristics ................................................ 27

5.2.2 Pin Assignment and Description................................................. 28

Figure 5.1 Board mounted header............................................. 29

5.2.3 Physical dimension ..................................................................... 30

Appendix A Handling Precautions ....................... 31

A.1 Optical Characterisctics .......................................................................... 32

Chapter 1

1Overview

IDK-2121W User Manual 2

1.1 General Description

IDK-2121W series is a Color Active Matrix Liquid Crystal Display composed of a TFT-

LCD panel, a driver circuit, and backlight system. The screen format is intended to

support the FHD (1920(H) x 1080(V)) screen and 16.7M colors (RGB 8-bits data). All

input signals are dual LVDS interface. Driver board for the backlight is included.

1.2 Display Characteristics

The following are characteristics summary under 25°C condition:

Table 1.1: Display Characteristics

Item Unit Description

Screen Diagonal [mm] 546.86(21.53”)

Active Area [mm] 476.64 (H) x 268.11 (V)

Pixels H x V 1920 (x3) x 1080

Pixel Pitch 248.25 (per one triad) × 248.25

Pixel Arrangement [um] R.G.B. Vertical Stripe

Display Mode VA Mode, Normally Black

White Luminance (Center) [cd/m2]1200 (Typ.)

Contrast Ratio 2500 (Typ.)

Optical Response Time [msec] 16 ms (Typ., on/off)

Nominal Input Voltage VDD [Volt] +5.0 V

Backlight Input Voltage [Volt] +12.0 V

Power Consumption

(VDD line + LED line)

[Watt] VDD: 4.4 + PLED: 36.1 = 40.5 (Typ.)

(with LED driver board, all white pattern)

Weight [Grams] R series: 2600 (Typ.)

N series: 1200 (Typ.)

Physical Size [mm] R series: 495.6(W) × 292.2(H) × 19.8(D) Typ.

N series: 495.6(W) × 292.2(H) × 16.9(D) Typ.

Electrical Interface Dual channel LVDS

Support Color 16.7M colors (RGB 8 bits)

Surface Treatment Anti-Glare, 3H

Temperature Range

Operating

Storage (Shipping)

[°C]

N-series/R series

0 to +50-2

0 to +60

RoHS Compliance RoHS Compliance

TCO Compliance TCO 5.1 Compliance

3 IDK-2121W User Manual

Chapter 1 Overview

1.3 Optical Characteristics

Optical Equipment: BM-7, DT-101, or equivalent

Note 1: Definition of viewing angle

Viewing angle is the measurement of contrast ratio at the screen center, over a

180°horizontal and 180°vertical range (off-normal viewing angles). The 180° viewing

angle range is broken down as below: 90° (θ)? horizontal left and right, and 90° (Φ)

vertical high (up) and low (down). The measurement direction is typically perpendicu-

lar to the display surface with the screen rotated to its center to develop the desired

measurement viewing angle.

Table 1.2: Display Characteristics

Item Unit Conditions Min. Typ. Max. Note

Viewing Angle [degree]

Horizontal(Right) CR

= 10 (Left)

150 178 -

Vertical (Up) CR = 10

(Down)

150 178 -

Contrast ratio Normal Direction - 3500 - 1

Response Time [msec]

Raising Time (TrR) - 10 12

Falling Time (TrF) - 6 7 5

Raising + Falling - 16 19

Color / Chromaticity

Coordinates (CIE)

Red x 0.589 0.639 0.689

Red y 0.283 0.333 0.383

Green x 0.284 0.334 0.384

Green y 0.573 0.623 0.673

Blue x 0.105 0.155 0.205

Blue y 0.000 0.048 0.098

Color Coordinates (CIE)

White

White x 0.263 0.313 0.363

White y 0.279 0.329 0.379

Central Luminance [cd/m2]-1200-

Luminance Uniformity [%] - 85 - 3

Crosstalk (in 60Hz) [%] 1.5

Flicker dB -20

IDK-2121W User Manual 4

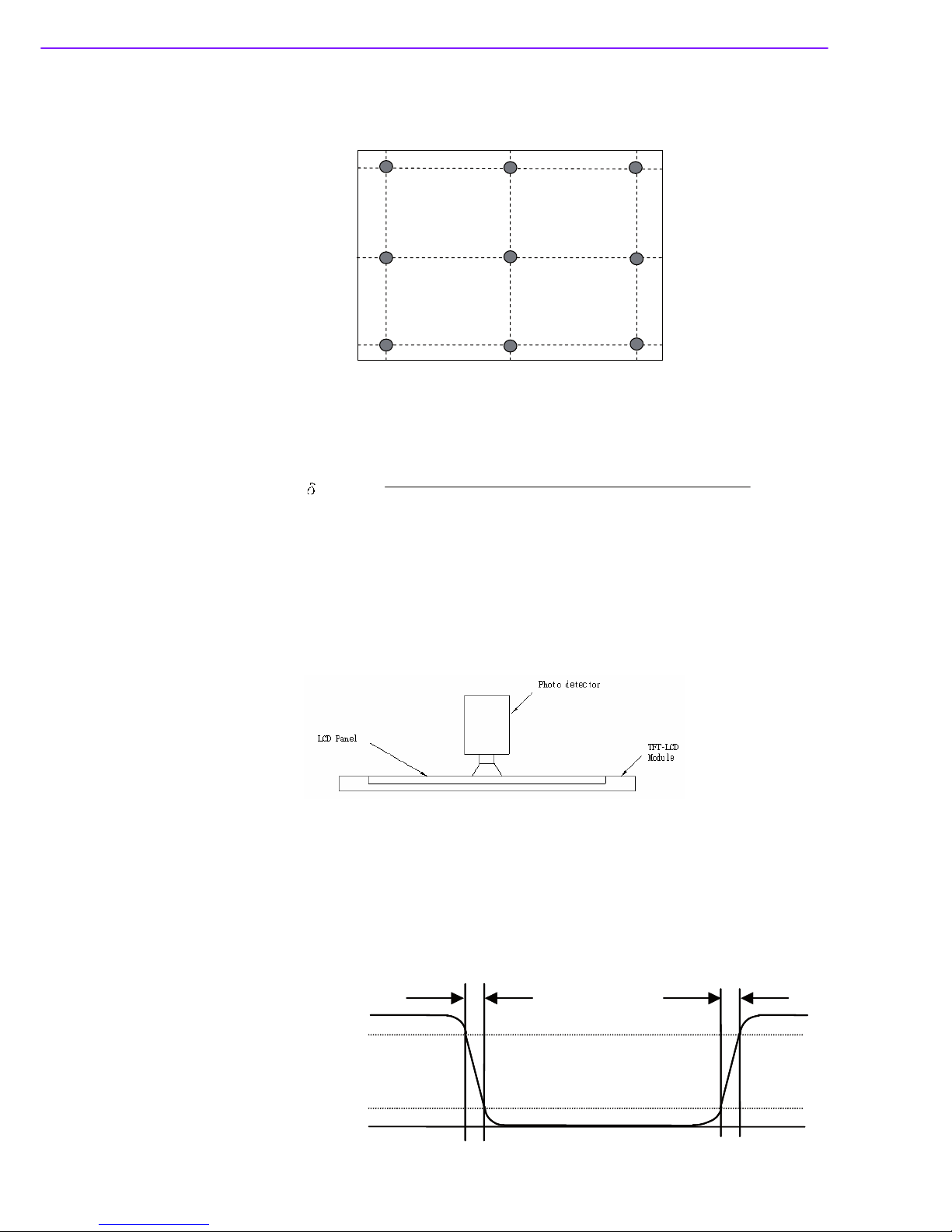

Note 2: 9 points position

Note 3: The luminance uniformity of 9 points is defined by dividing the maximum

luminance values by the minimum test point luminance

Note 4: Measurement method

The LCD module should be stabilized at given temperature for 30 minutes to avoid

abrupt temperature change during measuring. In order to stabilize the luminance, the

measurement should be executed after the backlight has been on for 30 minutes in a

stable, windless and dark room. Optical Equipment: DT-100, or equivalent

Note 5: Definition of response time:

The output signals of the photo detector are measured when the input signals are

changed from “Full Black” to “Full White” (rising time), and from “Full White” to “Full

Black ”(falling time), respectively. The response time is the interval between the 10%

and 90% of amplitudes. Please refer to the figure as below.

50 %

90 %

90 % 50 %

10 %

Minimum Bri

htness of nine points

=MaximumBri

htness of nine points

100

Optical

response

White Black White

Tf Tr

Optical

response

White Black White

Indice

Manuali TV LCD popolari di altre marche

LG 32LC4R* Manuale utente

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuale utente

Salora

Salora 22LED1600 Manuale utente

Samsung

Samsung LA32E420 Guida

Dell

Dell W1900 19 Istruzioni utente

Samsung

Samsung LN40C670M1F Manuale utente

Samsung

Samsung Series 4+ Manuale utente

Samsung

Samsung 5 Series Manuale utente

Grundig

Grundig 40 VLE 8230 BP Manuale utente

Philips

Philips 43PFL4901/F7 Manuale utente

Sony

Sony Bravia XBR-43X830C Manuale utente

LG 32LS350 Manuale utente

VIORE

VIORE LED32VF60 Manuale utente

Toshiba

Toshiba Regza 42HL167 Manuale utente

JVC

JVC LT-32A220 Manuale utente

Philips

Philips 20TA1000/93 Manuale utente

Philips

Philips 32PFL3158T/12 Manuale utente

Sony

Sony Bravia KDL-V32XBR2 Manuale utente
