DVP-7010BE

4 Channel PCI-bus

Surveillance

Capture card

DVP-7010BE User’s Manual

This documentation and the software included with this product

are copyrighted in 2006 by Advantech Co., Ltd. All rights are

reserved. Advantech Co., Ltd. reserves the right to make

improvements in the products described in this manual at any time

without notice. No part of this manual may be reproduced, copied,

translated or transmitted in any form or by any means without the

prior written permission of Advantech Co., Ltd. Information

provided in this manual is intended to be accurate and reliable.

ADVANTECH CO., LTD. assumes no responsibility for its use, nor

for any infringements of the rights of third parties which may result

from its use.

Acknowledgments

IBM and PC are trademarks of International Business Machines

Corporation. MS-DOS, Windows, Microsoft Visual C++ and Visual

BASIC are trade-marks of Microsoft Corporation. Intel and Pentium

are trademarks of Intel Corporation. Delphi and C++ Builder are

trademarks of Inprise Corporation.

CE notification

The DVP-7010BE, developed by ADVANTECH CO., LTD., has

passed the CE test for environmental specifications when shielded

cables are used for external wiring. We recommend the use of

shielded cables. This kind of cable is available from Advantech.

Please contact your local supplier for ordering information

On-line Technical Support

For technical support and service, please visit our support website

at: http://www.advantech.com/support

PartNo.2062701010 1stEdition

Printed in Taiwan July.2006

Rev. 1.00

CHAPTER

General Information

DVP-7010BE User’s Manual

Chapter 1 General Information

DVP-7010BE is 4 channel input, PCI-bus video capture card. It supports

up to 4 channel input by share-frame technology and captures up to D1

resolution at 30/25 fps frame rate. DVP-7010BE supports NTSC/PAL

composite video input through BNC connectors and digitizes the data to

PC through PCI bus. The DVP-7010BE is a digital video surveillance card

with SDK (software develop kit).It provides 4 pairs GPIO for user any kind

application needs.

1.1 HardwareRequirement

Intel Pentium III 1GHz or above (CPU speed depends on

video frame rate, channels and resolution)

256 MB RAM or above

Free PCI slot(s)

CD-ROM

Hard disk with 1G free space

1.2 Software Requirement

Microsoft Windows XP with DirectX 9.0 or above

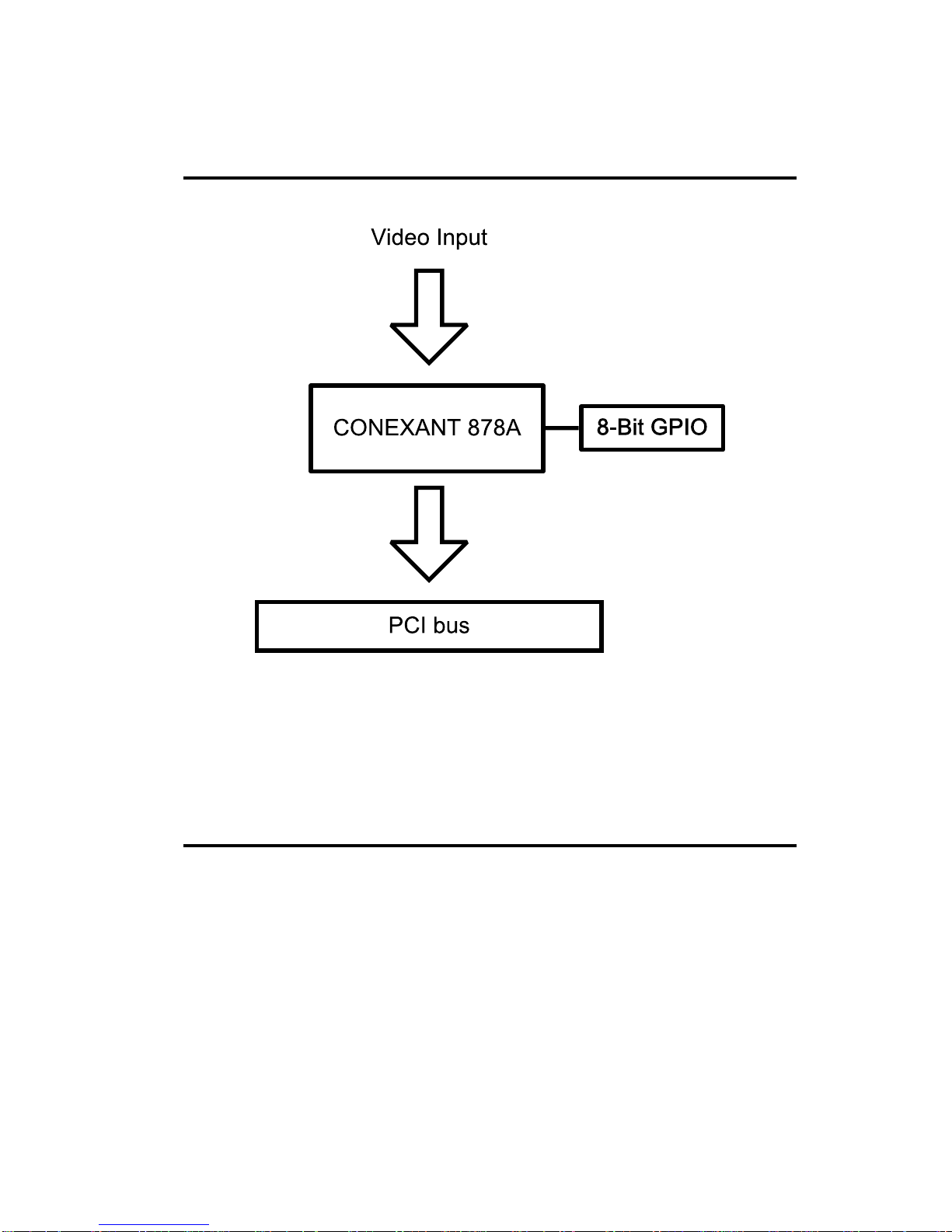

1.3 BlockDiagram

Figure 1.1 System diagram

1.4 Packing List

DVP-7010BE PCI capture card X 1

Utility CD (Driver, Manual, SDK, Sample, Sample source code) X 1

Connection cable for WDT X 1

DVP-7010BE User’s Manual

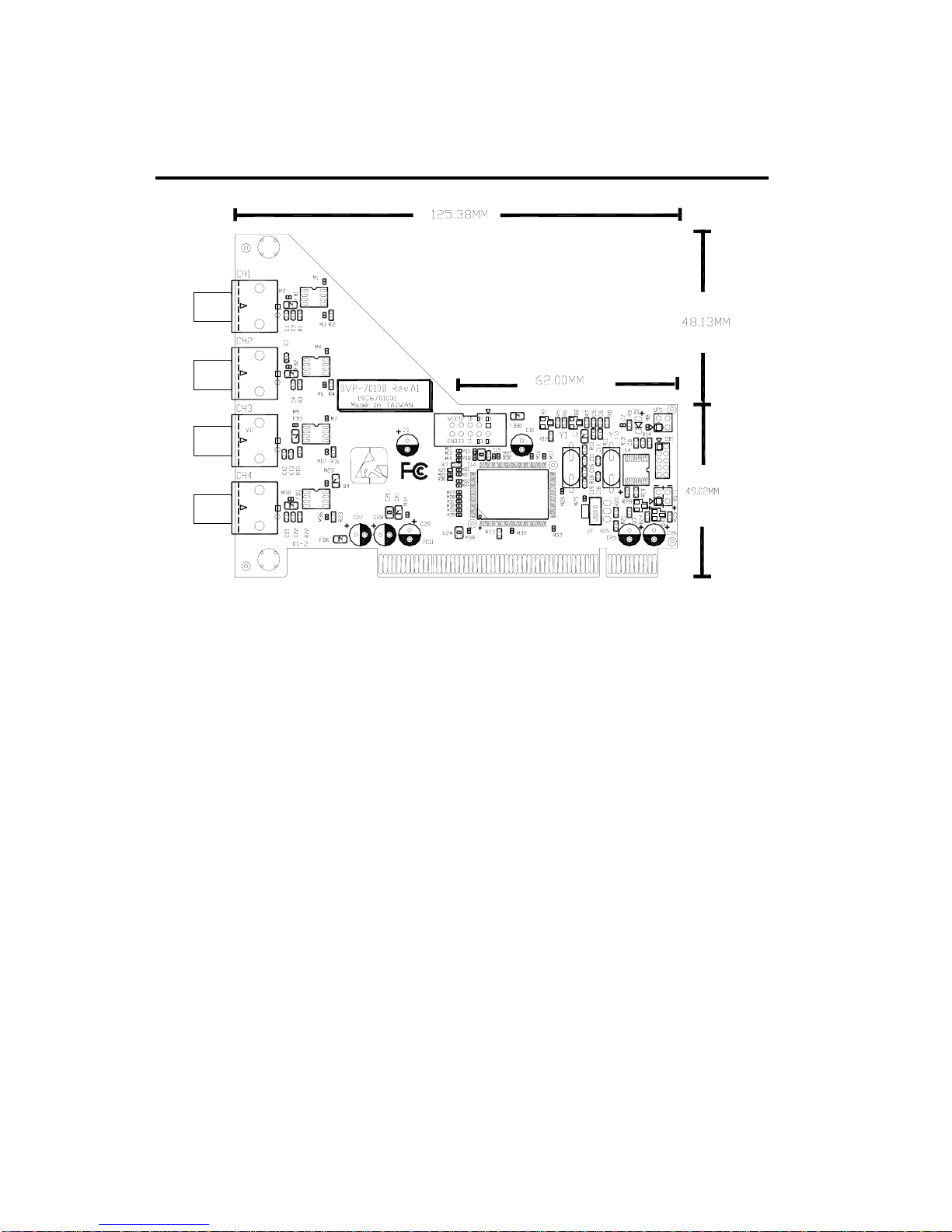

1.5 Dimensions

Figure 1.2 Dimensions

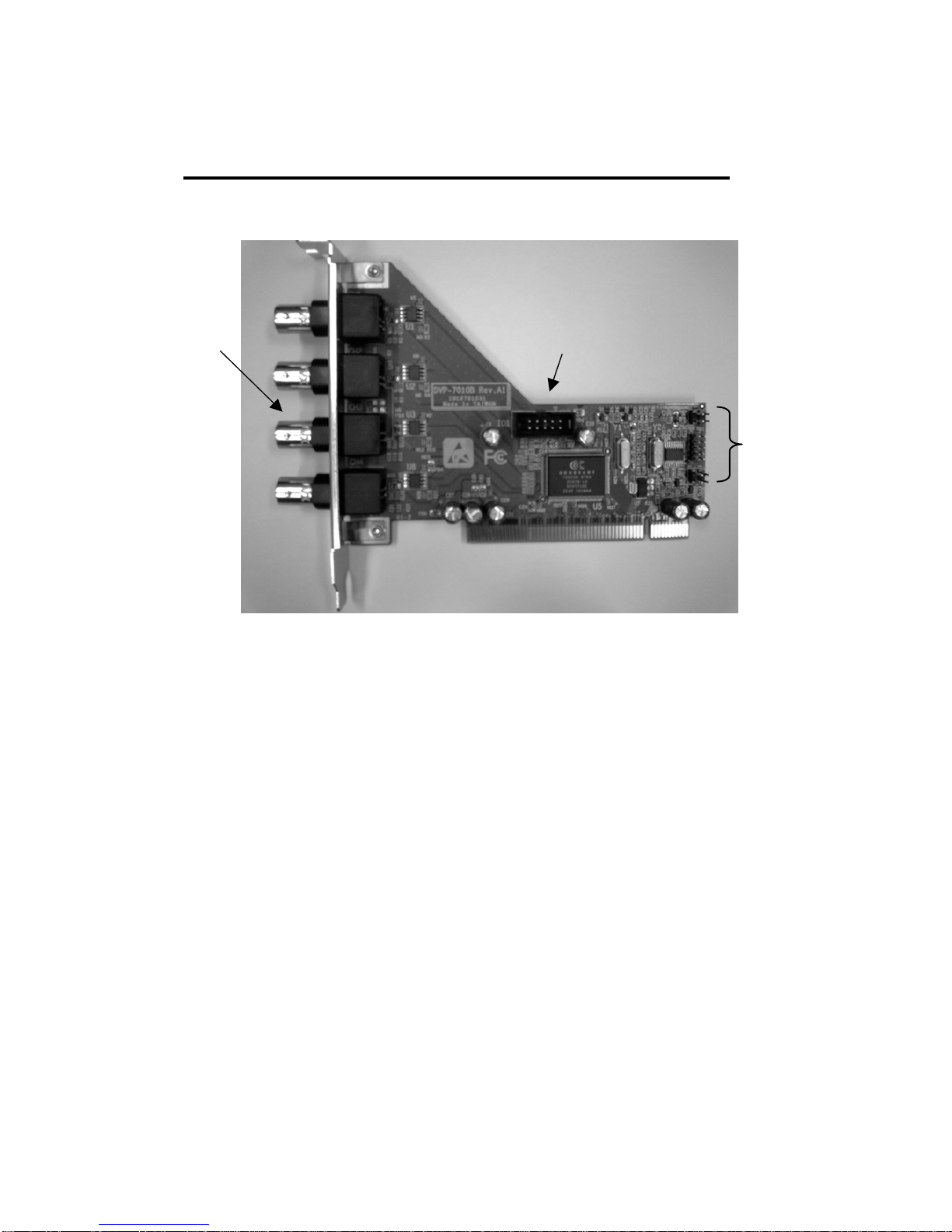

1.6 Connector location

Figure 1.3 connector location

GPIO: J1

Video input

for ODM

customer only

DVP-7010BE User’s Manual

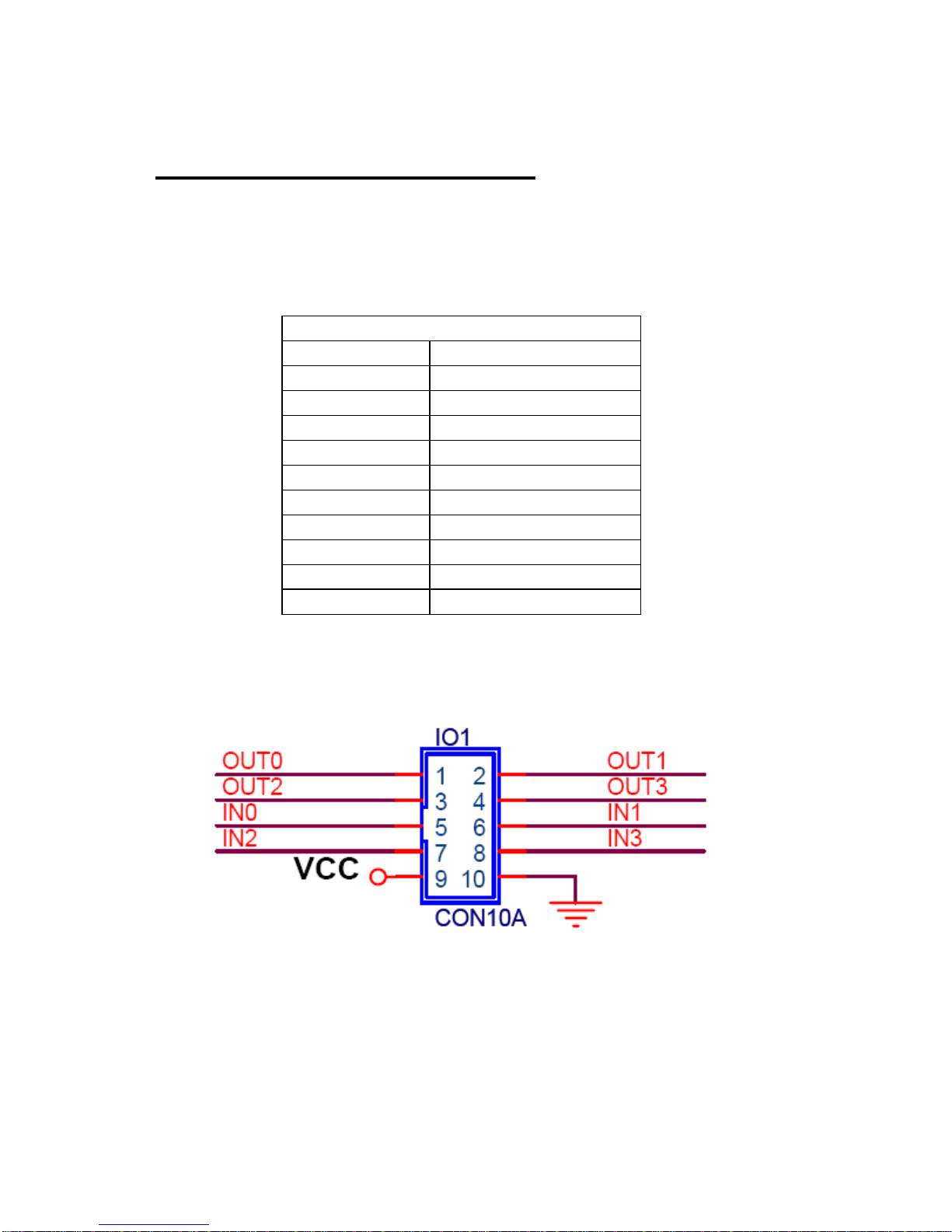

1.7 Pin definition

1.7.1 GPIO: J1

•8 bit TTL/CMOS level Digital I/O.

GPIO (J1) Pin define

Pin no. Description

Pin 1 OUT0

Pin 2 OUT1

Pin 3 OUT2

Pin 4 OUT3

Pin 5 IN0

Pin 6 IN1

Pin 7 IN2

Pin 8 IN3

Pin 9 VCC

Pin 10 GND

Table 1.1 GPIO J1 pin definition

Figure 1.4 GPIO(J1) pin definition

1.8 HardwareInstallation

1 Turn off your computer and unplug the power cord.

2 Remove the cover of your computer.

3 Touch the metal part on the surface of your computer to

neutralize the static electricity that might be on your body.

4 Place the DVP-7010BE into Mother Board PCI slot.

5 Connect appropriate accessories (Video cable to camera. if

necessary) to the DVP-7010BE.

6 Replace the cover of your computer chassis.

7 Plug in the power cord and turn on the computer.

Note: Keep the anti-static bag for future use. You might need the original bag

to store the card if you have to remove the card from the PC or transport it

elsewhere.

1.9 Software / Driver Installation

Before you begin

To facilitate the installation of the enhanced display device drivers

and utility software, you should read the instructions in this chapter

carefully before you attempt installation. The device drivers for the

DVP-7010BE board are located on the software installation CD.

The auto-run function of the driver CD will guide and link you to the

utilities and device drivers under Windows system. Before you

begin, it is important to note that most display drivers need to have

the relevant software application already installed in the system

prior to installing the enhanced display drivers. In addition, many of

the installation procedures assume that you are familiar with both

the relevant software applications and operating system

commands. Review the relevant operating system commands and

the pertinent sections of your application software user’s manual

before performing the installation.

DVP-7010BE User’s Manual

Installation

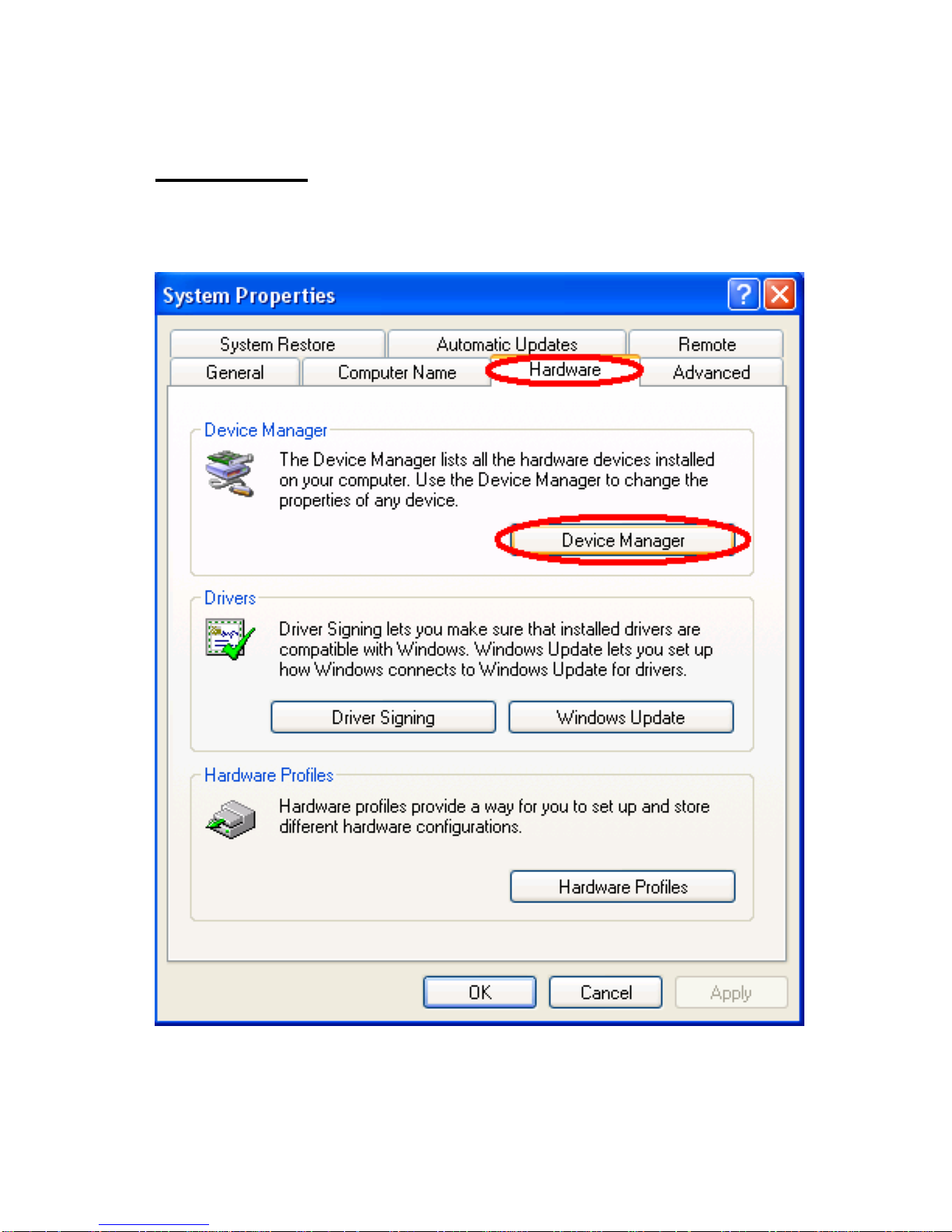

Step 1: Pop-up the “System Properties” window, choose the

“Hardware” page, and press the “Device Manager” bottom.
