3Operating Instructions

Operating Instructions

1Safety instructions

Electrical safety

•This appliance must be only connected by a registered electrician.

•In the event of a fault or damage to the appliance: Take the fuses out or switch off.

•Repairs to the appliance must only be carried out by qualified service engineers.

Considerable danger may result from improper repairs. If repairs become necessary,

please contact our Customer Services or your dealer.

Child Safety

•Never leave children unsupervised when the appliance is in use.

•Children should be supervised to ensure that they do not play with the appliance.

•Accessible parts may become hot during use. To avoid burns young children should be

kept away.

Safety whilst using

•People (including children) who, because of their physical, sensory or mental capabili-

ties or their inexperience or ignorance are not able to use the device safely, should not

use this device without supervision or instruction by a responsible person.

•This appliance is intended to be used for cooking, roasting and baking food in the

home.

•Take care when connecting electric appliances to sockets nearby. Do not allow con-

necting leads to come into contact with or to catch beneath the hot oven door.

•Warning: Risk of burns! The interior of the oven becomes hot during use.

•Using ingredients containing alcohol in the oven may create an alcohol-air mixture

that is easily ignited. In this case, open the door carefully. Do not have embers, sparks

or naked flames in the vicinity when opening the door.

3Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in

products containing starch, can constitute a health risk due to acrylamides. Therefore we

recommend cooking at the lowest possible temperatures and not browning foods too

much.

How to avoid damage to the appliance

•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on

the oven floor, as the heat that builds up will damage the oven enamel.

•Fruit juices dripping from the baking tray will leave stains, which you will not be able

to remove. For very moist cakes, use a deep tray.

•Do not put any strain on the oven door when open.

•Never pour water directly into the oven when it is hot. This could cause damage to or

discolouration of the enamel.

Description of the Appliance4

•Rough handling, especially around the edges of the front panel, can cause the glass to

break.

•Do not store any flammable materials inside the oven. These could ignite when the

oven is switched on.

•Do not store any moist foods inside the oven. This could damage the oven enamel.

•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-

ture may condense in the oven interior or on the glass doors and may get into the

units.

3Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not affect the

appliance’s suitability for normal and correct use. They therefore do not constitute a de-

fect in the sense of the warranty law.

Description of the Appliance

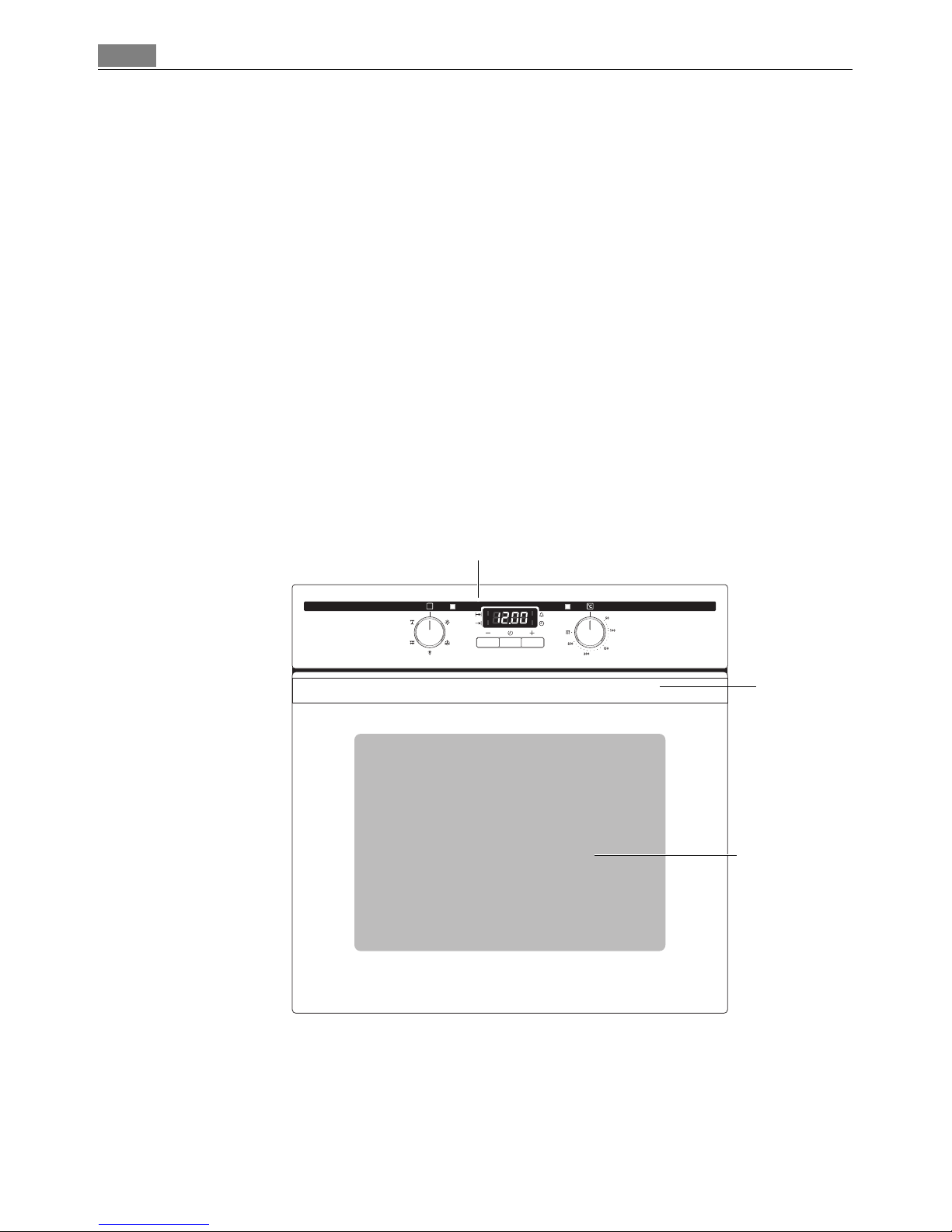

General Overview

Full glass door

Control panel

Door

handle

5Description of the Appliance

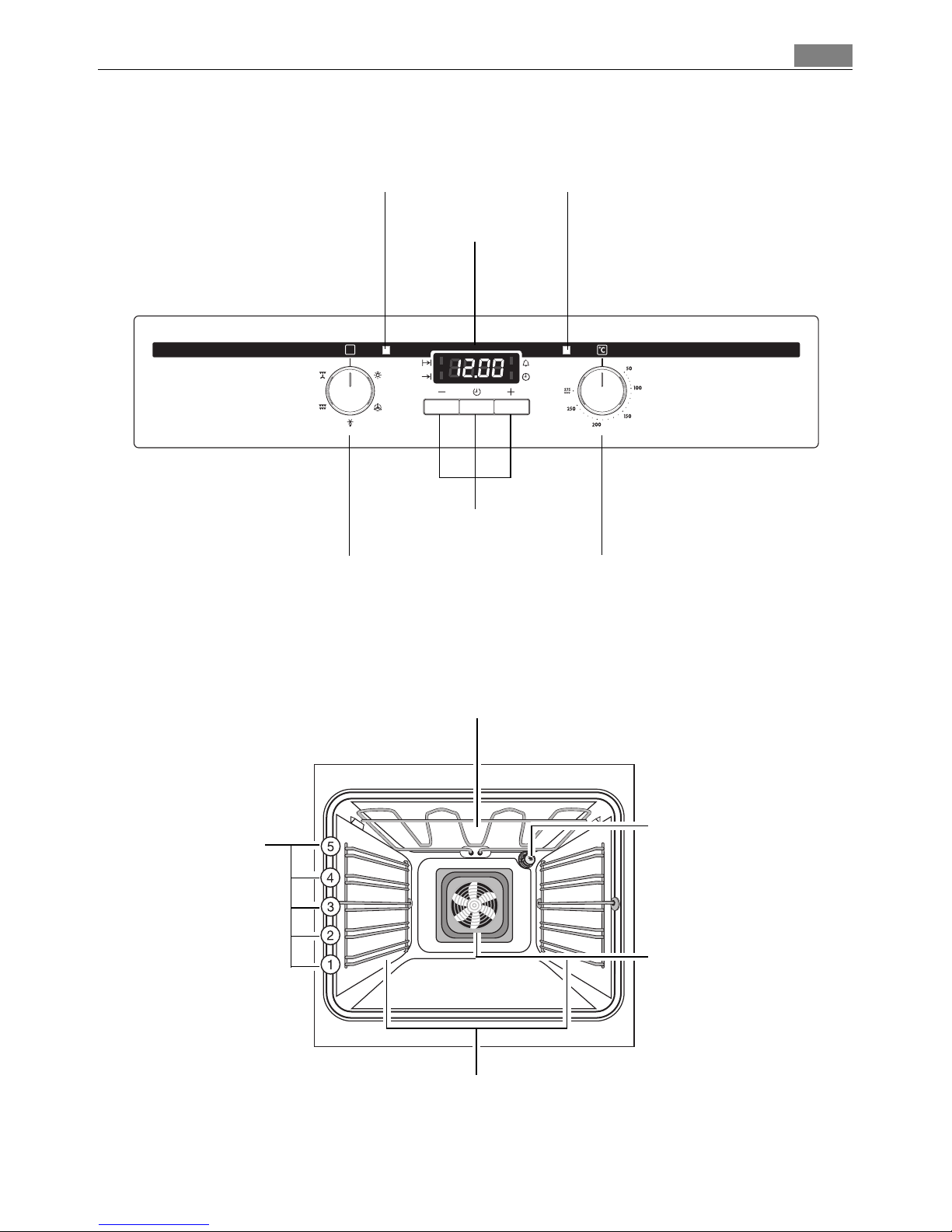

Control Panel

Oven Features

Oven Power Indicator Temperature Pilot Light

Time display

Clock function buttons

Temperature selector

Oven Functions

Top heat and heating elements

Oven lighting

Fan heating element

Fan

Shelf positions

Oven shelf runners,

removable

Before Using for the first time6

Oven accessories

Oven shelf

For cookware, cake tins, roasts and grilled foods.

Baking tray

For cakes and biscuits.

Roasting Pan

For baking and roasting or as a pan for collect-

ing fat.

Before Using for the first time

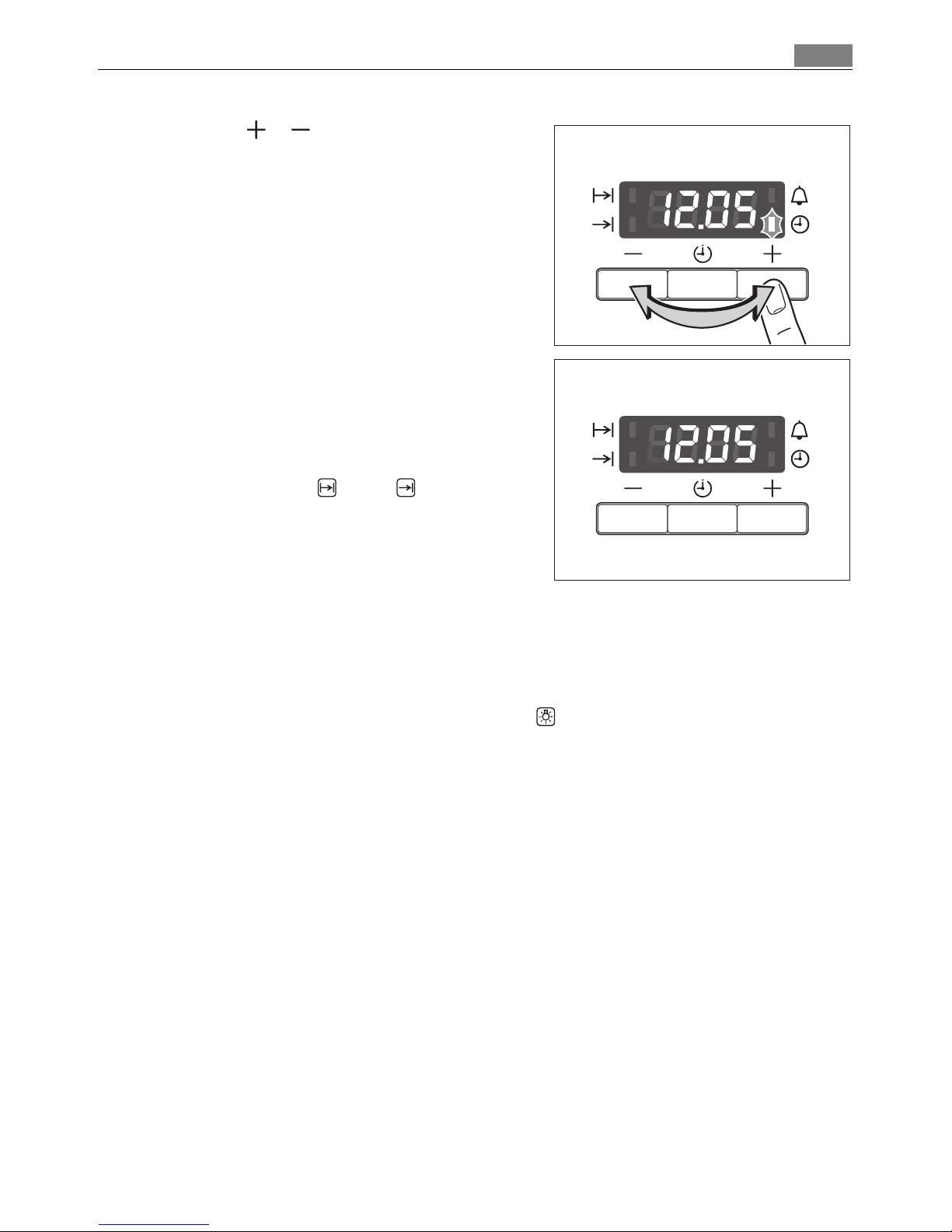

Setting and changing the time

3The oven only operates when the time has been set.

When the appliance has been connected to the

electrical supply or when there has been a pow-

er cut, the function indicator Time of day

flashes automatically.

1. To change a time that has already been set,

press the Selection button repeatedly until

the function indicator Time of day flashes.

7Before Using for the first time

2. Using the or button, set the current time.

After approx. 5 seconds, the flashing stops and

the clock displays the time set.

The appliance is now ready to use.

3The time can only be changed if no automatic

function (Duration or End ) has been set.

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

1Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.

1. Turn the oven function switch to oven lighting .

2. Remove all accessories and the shelf support rails and wash them with warm water and

washing up liquid.

3. Then wash out the oven with warm water and washing-up liquid, and dry.

4. Wipe the front of the appliance with a damp cloth.

Using the Oven8

Using the Oven

Switching the Oven On and Off

1. Turn the oven functions dial to the desired function.

2. Turn the temperature selector to the desired temperature.

The power indicator is lit as long as the oven is in operation.

The temperature pilot light is lit as long as the oven is heating up.

3. To turn the oven off, turn the oven functions dial and the temperature selector to the

Off position.

3Cooling fan

The fan switches on automatically in order to keep the appliance’s surfaces cool. When

the oven is switched off, the fan continues to run to cool the appliance down, then

switches itself off automatically.

Temperature Pilot Light

Oven Functions Temperature selector

Oven Power Indicator

9Using the Oven

Oven Functions

The oven has the following functions:

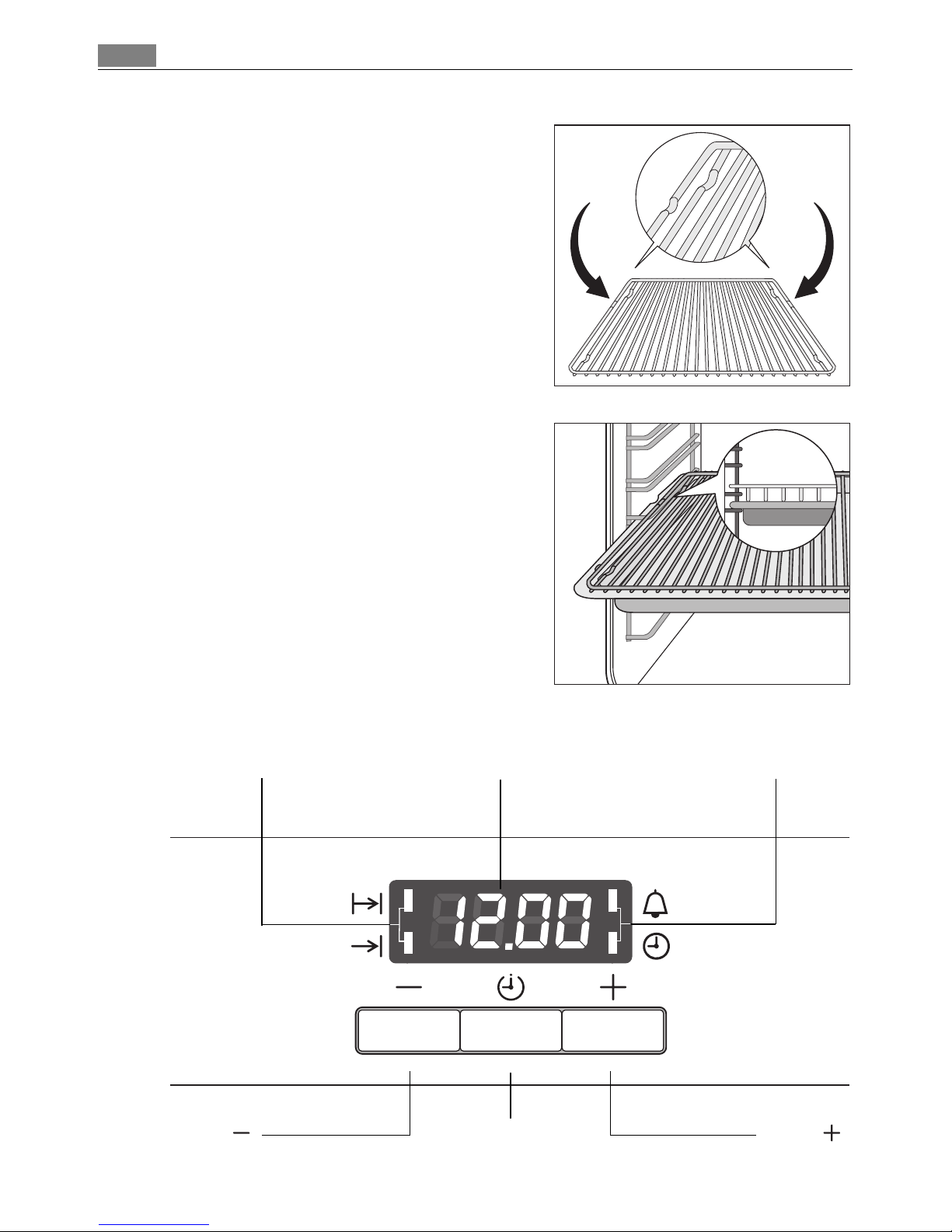

Inserting the Oven Shelf, Baking Tray and Roasting Pan

3Shelf runner safety and anti-tip device

As a shelf runner safety device, all insertable components have a small curved indenta-

tion at the bottom on the right and left-hand edge.

Always insert insertable components so that this indentation is at the back of the oven

interior. This indentation is also important for preventing the insertable components

from tipping.

Inserting the baking tray or roasting pan

Push the baking tray or roasting pan between

the guide bars of the selected oven level.

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

cleaning.

True fan For baking on up to three oven levels at the same time.

Set the oven temperatures 20-40 °C lower than when using

Conventional.

Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or

other frozen foods.

Dual grill For grilling flat food items in large quantities and for toast-

ing.

Rotitherm For roasting larger joints of meat or poultry on one level.

The function is also suitable for gratinating and browning.

Using the Oven10

Inserting the oven shelf:

Insert the oven shelf so that the feet point

downwards.

Push the oven shelf between the guide bars of

the selected oven level.

3The high rim around the oven shelf is an addi-

tional device to prevent cookware from slip-

ping.

Inserting the oven shelf and roasting pan

together

Lay the oven shelf on the roasting pan.

Push the roasting pan between the guide bars

of the selected oven level.

Clock Functions

Selector Button ButtonButton

Time display Function IndicatorsFunction Indicators
