Dear customer,

Please read these operating instructions carefully

and pay particular attention to the safety notes

indicated in the first pages. We recommend that you

keep this instruction booklet for future reference and

pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly

important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

132992970-EWF800•GB 10/07/03 10:19 Pagina 2

ENGLISH

Maintenance 18

Bodywork 18

Door seal 18

Detergent dispenser drawer 18

Water inlet filter 18

Drain pump 18

Emergency emptying out 19

Frost precautions 19

Something not working? 20-21

Warnings 4-5

Disposal 5

Tips for environmental protection 5

Technical specifications 6

Installation 7

Unpacking 7

Positioning and levelling 7

Water inlet 7

Water drainage 8

Electrical connection 8

Your new washing machine 9

Description of the appliance 9

Detergent dispenser drawer 9

Use 10

Control panel 10

Controls 10

Washing hints 11

Sorting the laundry 11

Temperatures 11

Before loading the laundry 11

Maximum loads 11

Laundry weights 11

Removing stains 11

Detergents and additives 12

International wash code symbols 13

Operating sequence 14-15

Washing programmes 16-17

Contents

132992970-EWF800•GB 10/07/03 10:19 Pagina 3

Installation

•All internal packing must be removed before using

the appliance. Serious damage may be caused to

the machine or adjacent furniture if the protective

transit devices are not removed or are not

completely removed. Refer to the relevant

paragraph in the instruction book.

•Any electrical work required to install this appliance

must be carried out by a qualified electrician.

•Any plumbing work required to install this

appliance must be carried out by a qualified

plumber.

•After having installed the machine, check that it is

not standing on its electrical supply cable.

•If the appliance is placed on a carpeted floor,

ensure that air can circulate freely between the feet

and the floor.

Use

•This appliance is designed for domestic use. It

must not be used for purposes other than those for

which it was designed.

•Only wash fabrics which are designed to be

machine washed. Follow the instructions on each

garment label.

•Do not overload the appliance. Follow the

instructions in the instruction book.

•Make sure that all pockets are empty. Objects such

as coins, safety pins, pins and screws can cause

extensive damage.

•Do not machine wash garments saturated with

petroleum, methylated spirits, trichlorethylene, etc.

If such fluids have been used to remove stains

prior to washing, wait until they have completely

evaporated from the fabric before placing garments

in the appliance.

•Place small items such as socks, belts, etc. in a

cloth bag or pillowcase to prevent them getting

trapped between the drum and the tub.

•Use only the recommended quantities of fabric

softener. An excessive amount could damage the

laundry.

Warnings

•Leave the porthole door slightly ajar when the

appliance is not in use. This preserves the door

seal and prevents the formation of musty smells.

•Always check that water has emptied out before

opening the door. If not, drain the water following

the instructions in the instruction book.

•Always unplug the appliance and shut the water

tap after use.

General safety

•Repairs to the machine must be carried out only by

qualified personnel. Repairs carried out by

inexperienced persons could cause serious

danger. Contact your local Service Centre.

•Never pull the power supply cable to remove the

plug from the socket; always take hold of the plug

itself.

•During high temperature wash programmes the

door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before

installing or using the appliance.

132992970-EWF800•GB 10/07/03 10:19 Pagina 4

ENGLISH

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are

recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

To save water, energy and to help protect the

environment, we recommend that you follow these

tips:

•Normally soiled laundry may be washed without

prewashing in order to save detergent, water and

time (the environment is protected too!).

•The machine works more economically if it is fully

loaded.

•With adequate pre-treatment, stains and limited

soiling can be removed; the laundry can then be

washed at a lower temperature.

•Measure out detergent according to the water

hardness, the degree of soiling and the quantity of

laundry being washed.

Child safety

•Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

•The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

•Keep all detergents in a safe place out of children’s

reach.

•Make sure that children or pets do not climb into

the drum.

•When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

132992970-EWF800•GB 10/07/03 10:19 Pagina 5

DIMENSIONS Height 85 cm

Width 60 cm

Depth 59 cm

MAXIMUM LOAD Cotton 5 kg

Synthetics 2,0 kg

Delicates 2,0 kg

Woollens 1,0 kg

SPIN SPEED 800 rpm max.

POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

TOTAL POWER ABSORBED 2200 W

MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 5 N/cm2

Maximum 80 N/cm2

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

132992970-EWF800•GB 10/07/03 10:19 Pagina 6

ENGLISH

Unpacking

All transit bolts and packing must be

removed before using the appliance.

You are advised to keep all transit devices so that

they can be refitted if the machine ever has to be

transported again.

1. Using a spanner, unscrew and remove the two

rear bottom screws. Slide out the two plastic pins.

2. Lay the machine on its back, taking care not to

squash the hoses. This can be avoided by

placing one of the corner packing pieces between

the machine and the floor.

3. Remove the polystyrene block from the bottom of

the machine and release the two plastic bags.

4. Very carefully slide out the left polythene bag,

removing it towards the right and then

downwards.

5. Very carefully slide out the right polythene bag,

removing it towards the left and then upwards.

6. Set the machine upright and remove the

remaining rear screw. Slide out the relevant pin.

P0001

7. Plug all the holes with the plugs which you will

find in the envelope containing the instruction

booklet.

Positioning and levelling

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is

not impeded by carpets, rugs etc. Check that the

machine does not touch the wall or other kitchen

units.

Carefully level by screwing the adjustable feet in or

out. Never place cardboard, wood or similar

materials under the machine to compensate for any

unevenness in the floor.

Water inlet

Connect the water inlet hose supplied with the

machine to a tap with a 3/4" thread.

Do not use already employed hoses for water

connection.

P1088

P1051

P0002

Installation

132992970-EWF800•GB 10/07/03 10:19 Pagina 7

The other end of the inlet hose which connects to

the machine can be turned in any direction. Simply

loosen the fitting, rotate the hose and retighten the

fitting, making sure there are no water leaks.

The inlet hose must not be lengthened. If it is too

short and you do not wish to move the tap, you will

have to purchase a new, longer hose specially

designed for this type of use.

Important!

Before connecting up the machine to new pipework

or to pipework that has not been used for some

time, run off a reasonable amount of water to flush

out any debris that may have collected in the pipes.

Water drainage

The end of the drain hose can be positioned in three

ways:

Hooked over the edge of a sink using the plastic

hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked

when the machine is emptying.

This could be done by tying it to the tap with a piece

of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be

above the trap so that the bend is at least 60 cm

above the ground.

Directly into a drain pipe at a height of not less

than 60 cm and not more than 90 cm.

The end of the drain hose must always be

ventilated, i.e. the inside diameter of the drain pipe

must be larger than the outside diameter of the drain

hose.

P0022

P0021

Any extension applied to the drainage hose should

not be longer than 200 cm and its diameter must not

be smaller than that of the original hose. Use a

suitable fitting for the connection.

The drain hose must not be kinked.

For a correct functioning of the machine the

drain hose must remain hooked on the proper

support piece situated on the top part of the

back side of the appliance.

Electrical connection

This machine is designed to operate on a 220-230

V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.2 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility

for damage or injury through failure to comply

with the above safety precaution.

Should the appliance power supply cable

need to be replaced, this should be carried

out by our Service Centre.

Please ensure that when the appliance is

installed the power supply cable is easily

accessible.

P1118

132992970-EWF800•GB 10/07/03 10:19 Pagina 8

ENGLISH

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and

detergent consumption.

•The temperature selector dial will allow you to choose the most suitable temperature for your laundry.

•The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes

from being deformed.

•The balance control device ensures the machine is stable during the spin.

•The ECO valve allows total use of detergent and reduces water consumption so saving energy.

1Detergent dispenser drawer

2Control panel

3Door handle

4Drain pump

5Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Your new washing machine

Description of the appliance

C0069

132992970-EWF800•GB 10/07/03 10:19 Pagina 9

Use

1Programme chart

It will help you to choose the most suitable washing

programme for your laundry.

2 On/Off button AÇMA KAPAMA

Press this button to start the machine. The same

button is used to switch the machine off.

Before selecting a programme or changing an

ongoing programme the machine must be

switched off by depressing the On/Off button.

3 Mains-on light

It comes on when the machine starts operating and

goes out at the end of the programme.

4 Half load button YARIM YÜK

Select this button to reduce water consumption on

the rinse cycle when washing a smaller load of

cottons or linens (max. load size=2.5 kg).

5 Spin speed reduction button

DEVIR DÜÇÜRME

By depressing this button the spin speed is reduced

as follows:

●cotton and linen: from 800 to 400 rpm

●synthetics, delicates and wool: from 750 to

400 rpm.

6Temperature selector dial

(SICAKLIK)

To select the washing temperature turn the dial to

the required value.

When your laundry is only lightly soiled, a cold wash

can be used (dial to position ).

7Programme selector dial

To select the required washing programme turn the

dial clockwise.

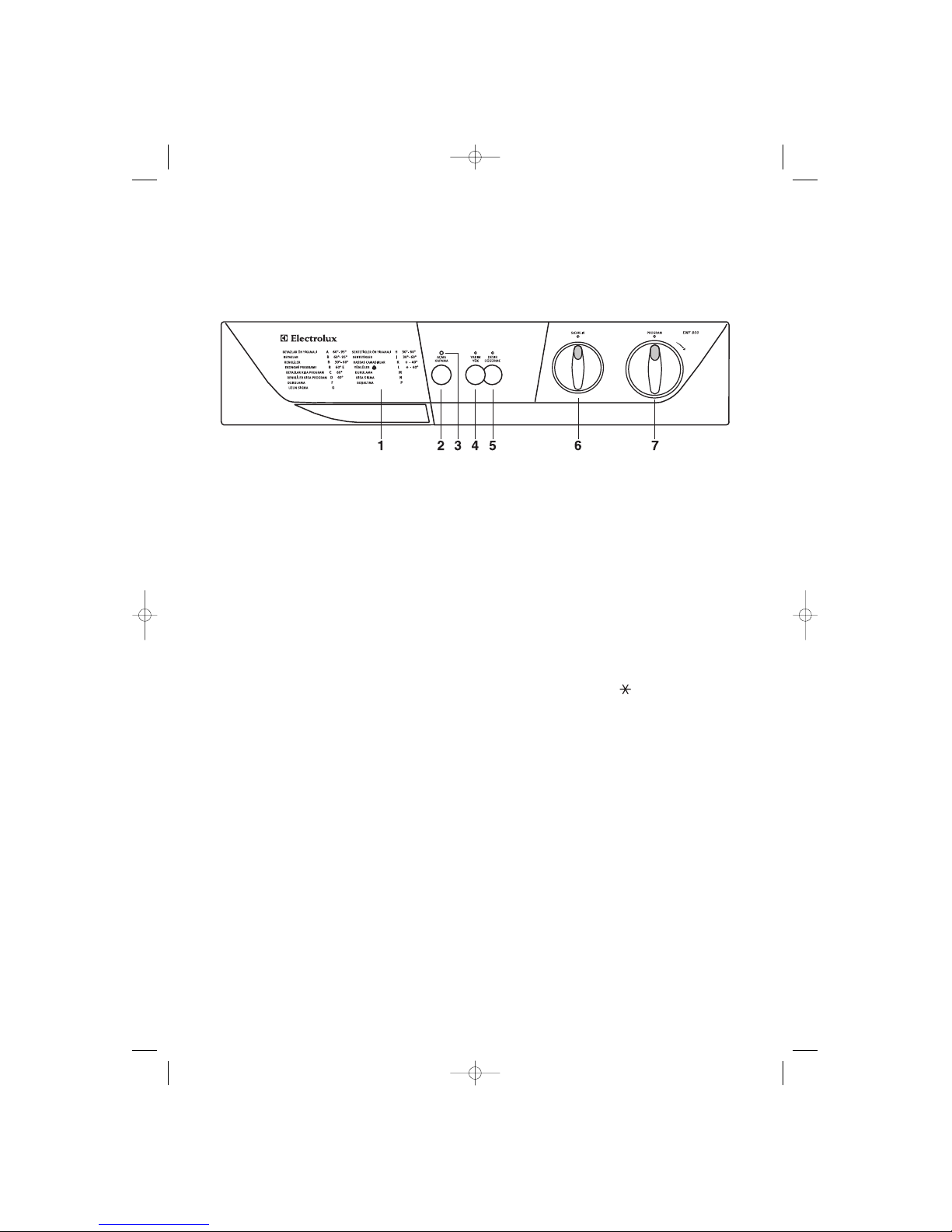

Control panel

132992970-EWF800•GB 10/07/03 10:19 Pagina 10

Indice

Altri manuali AEG Electrolux Rondella

AEG Electrolux

AEG Electrolux LAVAMAT 62825 Manuale operativo

AEG Electrolux

AEG Electrolux LAVAMAT 84850 A Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 74800 Manuale operativo

AEG Electrolux

AEG Electrolux LAVAMAT 72640 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 54840 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 72750 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT LAVALOGIC 1820 Manuale operativo

AEG Electrolux

AEG Electrolux EW 648 F Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT L 12510 VI Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 74850 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 64819 Manuale operativo

AEG Electrolux

AEG Electrolux LAVAMAT L 56840 Manuale utente

AEG Electrolux

AEG Electrolux EW2208F Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 74950 A3 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT BELLA 1481 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT LAVALOGIC 1620 Manuale operativo

AEG Electrolux

AEG Electrolux LAVAMAT 84950 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 60895 Manuale utente

AEG Electrolux

AEG Electrolux EMW2000 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 72650 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 5.0 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT 74850 Manuale utente

AEG Electrolux

AEG Electrolux LAVAMAT Lavamat 88810 Manuale operativo

AEG Electrolux

AEG Electrolux EW 940 T Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
