Dear customer,

Please read these operating instructions carefully and pay particular attention

to the safety notes indicated in the first pages.

We recommend that you keep this instruction booklet for future reference and

pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do

not start it but contact your local Service Centre.

The symbols you will see on some paragraphs of this booklet have the follow-

ing meaning:

The warning triangle emphasize information that is particularly impor-

tant for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instruc-

tions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the

machine are marked with this symbol.

Our contribution to the protection of the environ-

ment: we use recycled paper.

125987091.qxp 2007-03-23 14:46 Page 2

Contents

Important safety information ............4

Disposal............................................................5

Tips for environmental protection 6

Description of the appliance ............7

Installation ......................................................8

Positioning ............................................................8

Fitting the vent hose ........................................9-10

Door reversal ......................................................11

Stacking kit ..........................................................11

Electrical connection ..........................................12

Use......................................................................13

The control panel................................................13

Drying times ..................................................14-15

Operating sequence............................................16

Useful hints ........................................................18

Maintenance and Cleaning ..............20

External cleaning ................................................20

Cleaning the door ..............................................20

Cleaning the filter................................................20

Something not working?....................21

Technica specifications ......................22

Contents

125987091.qxp 2007-03-23 14:46 Page 3

Important safety information

Installation

• Any electrical work required to install this appliance should be carried out by

a qualified electrician or competent person.

• Care must be taken to ensure that the appliance does not stand on the

electrical supply cable.

• If the machine is situated on a carpeted floor, please adjust the feet in order

to allow air to circulate freely.

• This tumble dryer is designed to be vented through to the open air. It should

have its own ventilation system which should not be joined with any other

ventilation system connected to any other appliance.

Use

• This appliance is designed for domestic use only. If the machine is used for

any other purposes or is not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be placed in the dryer.

•Danger of explosion: Never tumble dry items that have been in contact

with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they could cause an explosion.

Tumble dry only items washed with water.

• Please make sure that no gas lighters have accidentally been left in pockets

of garments to be loaded into appliance.

• Leave the door slightly ajar when the appliance is not being used. This will

allow the seal to be preserved.

• Clean fluff filter after using tumble dryer. To prevent fire risks, do not use

the appliance if the fluff filter is damaged.

• Do not allow fluff to accumulate around the dryer.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in

any way.

• Under no circumstances should you attempt to repair the machine yourself.

Repairs carried out by inexperienced persons may cause injury or serious

malfunctioning. Contact your local Electrolux Service Centre. Always insist

on genuine Electrolux spare parts.

125987091.qxp 2007-03-23 14:46 Page 4

Disposal

Child safety

• Children are often not aware of how dangerous electrical appliances can

be. When the machine is working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be danger-

ous to children - danger of suffocation! Keep them out of children’s reach.

• Make sure that children or pets do not climb into the drum.

• When the appliance is to be scrapped, cut off the electrical supply cable

and destroy the plug with the remaining cable. Disable the door catch in

order to prevent children from becoming trapped inside while playing.

Disposal

• Packaging materials

The materials marked with the symbol are recyclable.

This means that they can be recycled by disposing of them properly in appro-

priate collection containers.

• Machine

Use authorised disposal sites for your old appliance. Help to keep your coun-

try tidy!

Old machine

Use authorised disposal sites for your old appliance. Help to keep your country

tidy!

The symbol on the product or on its packaging indicates that this product

may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this

product. For more detailed information about recycling of this product, please

contact your local city office, your household waste disposal service or the shop

where you purchased the product.

125987091.qxp 2007-03-23 14:46 Page 5

Tips for environmental protection

To save energy and to help protect the environment, we recommend that you

follow these hints:

• Try to load the maximum capacity of the machine as small loads are

uneconomical.

• Always load well spun laundry. The higher the spin speed, the lower the

electricity consumption and the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and saves energy.

Select the drying programme according to the type of laundry and the

required degree of dryness.

• To utilize the maximum load, laundry which is to be dried ready to put away

(store dry) can be dried together with items to be ironed. To do this, select

the programme for iron-dry, remove the iron-dry items at the end of the pro-

gramme and then finish-dry the rest of the load.

• Clean the filter regularly to avoid excessive drying times and high electricity

consumption.

• Ventilate the room well. The room temperature should not exceed +35°C

during drying

125987091.qxp 2007-03-23 14:46 Page 6

Description of the appliance

123 4 5

120

100

20

40

FRESH

& COOL

HALF

HEAT

DRYING TIME T30

1 Worktop

2 Half Power Button

3 Start Button

4 Mains-On Light

5 Time Selector Dial

6 Rating Plate

7 Fluff filter

8 Door Handle

9 Adjustable feet

11 Side vent outlets

12 Ring nut

13 Rear vent outlet

125987091.qxp 2007-03-23 14:46 Page 7

Installation

Positioning

It is recommended that, for your convenience, the machine is positioned

close to your washing machine.

Whilst drying, the tumble dryer will expel a certain amount of warm, very

moist air, and this should be removed from the room as quickly as possible to

prevent condensation. In an extremely well ventilated room or close to an

open window, this may occur naturally.

However, in general, it is better to carry the dryer's exhaust outside via the

100 mm diameter flexible hose supplied with the appliance; ending either

temporarily at an open window, or permanently at a fixed ventilation grille, fit-

ted to an exterior wall or window.

The tumble dryer must be installed in a clean place, where dirt does not build

up.

Make sure there are no obstructing items or material near the air-intake lou-

vres provided at

the back (e.g. paper, rags etc.).

To keep vibration and noise to a minimum when the dryer is in use, it should

be placed on a firm, level surface.

Once in its permanent operating position,

check that the dryer is absolutely level with

the aid of a spirit level. If it is not, raise or

lower the feet until it is

P0046

The feet must never be removed.

Do not restrict the floor clearance through deep-pile carpets, strips of

wood or similar. This might cause heat build-up which would interfere

with the operation of the appliance.

Important

When operating the tumble dryer, the room temperature must not exceed

35°C, as it may affect the performance of the appliance.

125987091.qxp 2007-03-23 14:46 Page 8

Advice: If the hose is long and the room temperature low, the moisture might

condense to water inside the hose. This is an unavoidable natural phe-

nomenon. To prevent this water from Iying in the hose or flowing back into

the tumble dryer, it is advisable to drill a small hole (dia.

3 mm) in the lowest point of the hose and to place a small container below

it.(See picture, point B).

Once connected to the dryer, run the vent hose to the desired outlet point,

ensuring that the run’s overall length is less than 2 m, and that it contains no

more than two bends. As to the outlet itself, if you have decided on a fixed

wall/window grille, a good local builder’s merchant should be able to supply

you with the necessary fittings and installation advice.

Installation

Fitting the vent hose

To simplify the installation, there is a choice of vent outlets: one at the back,

the others in the left and right-hand side.

Connect the hose to whichever is the more convenient by pulling the ring nut

(A) from the vent outlet at the back, screwing it on to the hose and pushing it

firmly back into place.

The unused vents should now be sealed with the special snap covers provid-

ed.

P1028

P1027

P1056

125987091.qxp 2007-03-23 14:47 Page 9

Installation

P0055

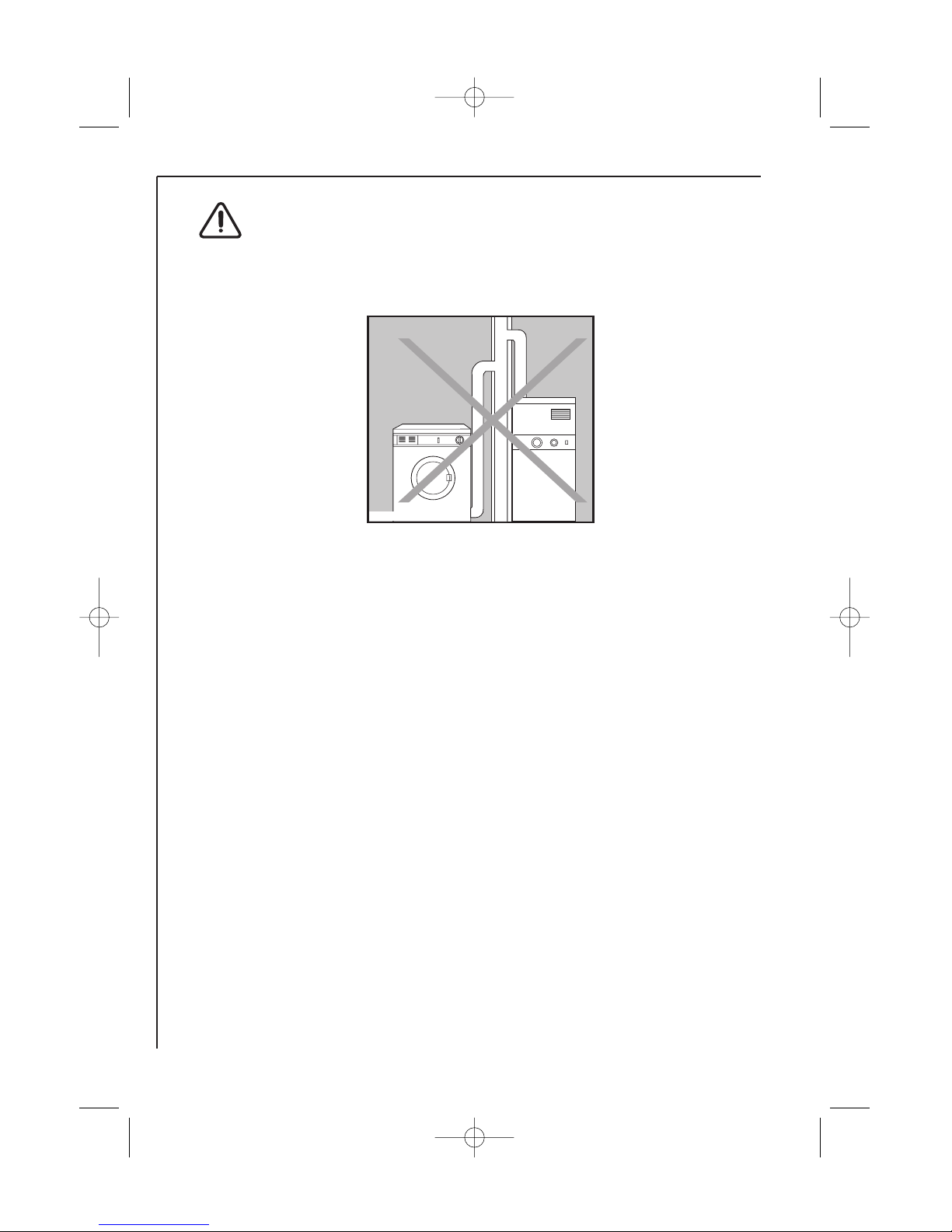

It is important not to connect the vent hose to, for example, a

cooker hood, or a chimney or flue pipe designed to carry the

exhaust from a fuel burning appliance.

Note that to avoid condensation problems, it is essential that the dryer be fit-

ted with the flexible hose to carry its “exhaust” at least beyond the kitchen

units; preferable outside the kitchen.

In order to prevent the appliance from overheating, it is important that the

steam exhaust is unobstructed.

Therefore, in case of a permanent hose fitted to an exterior wall or ceiling, it

must be ensured an exhaust capacity of at least 150 m3/h.

If the dryer is fitted next to kitchen units, make sure that the vent hose

is not squashed. If the hose is partially squashed, drying efficiency will

be reduced, resulting in longer drying times and higher energy con-

sumption.

If the hose is completely squashed, the safety cut-outs with which the

machine is fitted may operate.

125987091.qxp 2007-03-23 14:47 Page 10

Altri manuali per LAVATHERM T30

Indice

Altri manuali AEG Asciugatrice

AEG

AEG LAVATHERM 65370AH3 Manuale utente

AEG

AEG LAVATHERM 8DBG842R Manuale utente

AEG

AEG LAVATHERM 8DBG862 Manuale utente

AEG

AEG LAVATHERM T8DHC862B Manuale utente

AEG

AEG LAVATHERM 8DEE95S Manuale utente

AEG

AEG LAVATHERM 6DEL821G Manuale utente

AEG

AEG LAVATHERM 743 U Manuale utente

AEG

AEG LAVATHERM T6DCE821B Manuale utente

AEG

AEG TR859P4B Manuale utente

AEG

AEG HE 181 Manuale utente

AEG

AEG LAVATHERM 86280IC Manuale utente

AEG

AEG LAVATHERM 86585IH Manuale utente

AEG

AEG T8DEC846R Manuale utente

AEG

AEG T8DBG861 Manuale utente

AEG

AEG TR9MUNCHEN Manuale utente

AEG

AEG LAVATHERM 3400 Manuale utente

AEG

AEG LAVATHERM M8C952BS Manuale utente

AEG

AEG TR89P54B Manuale utente

AEG

AEG LAVATHERM 56800 Manuale operativo

AEG

AEG LAVATHERM 8DSC869C Manuale utente

AEG

AEG 7000 Series Manuale utente

AEG

AEG LAVATHERM 8DEC846R Manuale utente

AEG

AEG T8DC49BS Manuale utente

AEG

AEG LAVATHERM 97689IH Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
