AEG BSK798280B Manuale utente
BSK798280B
BSK798280M
EN User Manual | Steam oven
aeg.com\register
Welcome to AEG! Thank you for choosing our appliance.
In our drive to be sustainable, we are reducing paper assets and provide full user
manuals online. Access your full user manual at aeg.com/manuals
Get usage advice, brochures, trouble shooter, service and repair information at
aeg.com/support
For more recipes, hints, troubleshooting download My AEG Kitchen app.
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 4
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. PRODUCT DESCRIPTION............................................................................. 8
4. CONTROL PANEL........................................................................................ 10
5. BEFORE FIRST USE....................................................................................11
6. DAILY USE....................................................................................................13
7. CLOCK FUNCTIONS.................................................................................... 19

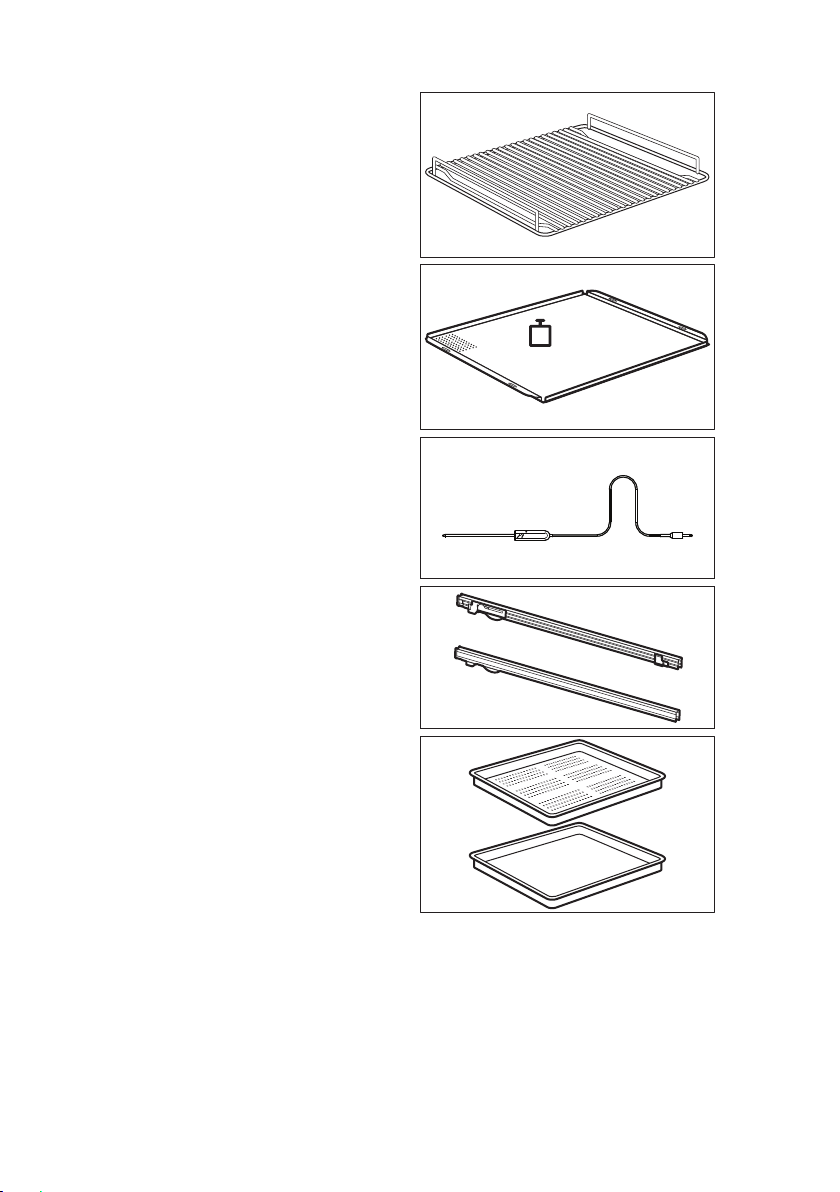

8. USING THE ACCESSORIES........................................................................21
9. ADDITIONAL FUNCTIONS...........................................................................24
10. HINTS AND TIPS........................................................................................ 25
11. CARE AND CLEANING.............................................................................. 28
12. TROUBLESHOOTING................................................................................ 34
13. ENERGY EFFICIENCY...............................................................................37
14. MENU STRUCTURE...................................................................................38
15. IT'S EASY!...................................................................................................40
16. ENVIRONMENTAL CONCERNS................................................................41
2 ENGLISH

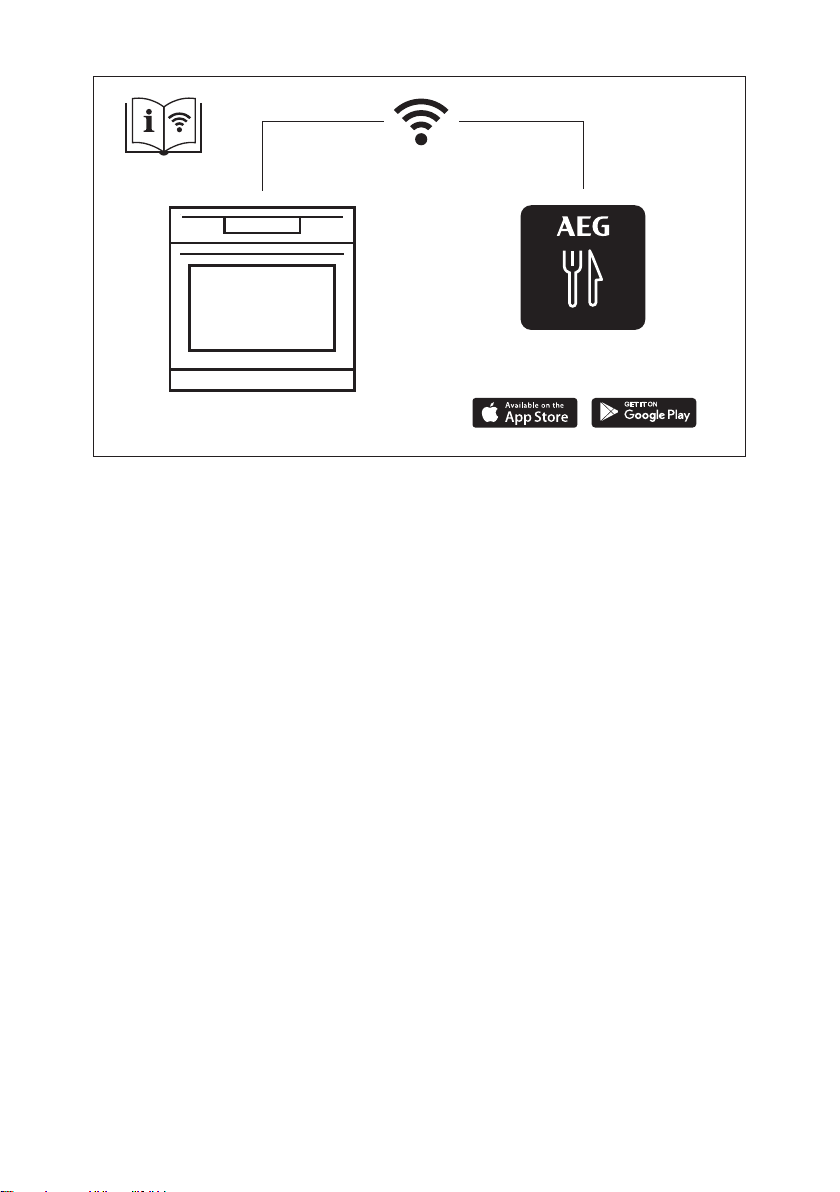

My AEG Kitchen app
ENGLISH 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do not
play with the appliance and mobile devices with My AEG
Kitchen .
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
4 ENGLISH
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Only a qualified person must install this appliance and
replace the cable.
• Do not use the appliance before installing it in the built-in
structure.
• Disconnect the appliance from the power supply before
carrying out any maintenance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons to avoid an electrical hazard.
• The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
• WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements or the surface of the appliance cavity.
• Always use oven gloves to remove or insert accessories or
ovenware.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
ENGLISH 5
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the appliance door opens without restraint.
• The appliance is equipped with an electric
cooling system. It must be operated with
the electric power supply.
• The built-in unit must meet the stability
requirements of DIN 68930.
Cabinet minimum height
(Cabinet under the worktop
minimum height)
578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the
appliance
594 mm
Height of the back of the
appliance
576 mm
Width of the front of the ap‐
pliance
595 mm
Width of the back of the ap‐
pliance
559 mm
Depth of the appliance 567 mm
Built in depth of the appli‐
ance
546 mm
Depth with open door 1027 mm
Ventilation opening mini‐
mum size. Opening placed
on the bottom rear side
560x20 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance is supplied without a main
plug and a main cable.
2.3 Use
WARNING!
Risk of injury, burns and electric shock or
explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
6 ENGLISH
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not share your Wi-Fi password.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Always cook with the appliance door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure the
door is never closed when the appliance
operates. Heat and moisture can build up
behind a closed furniture panel and cause
subsequent damage to the appliance, the
housing unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
2.5 Steam Cooking
WARNING!
Risk of burns and damage to the
appliance.
• Released Steam can cause burns:
– Be careful when you open the
appliance door when the function is
activated. Steam can release.
– Open the appliance door with care
after the steam cooking operation.
2.6 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
ENGLISH 7
2.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
21
10
9
3
5
4
3
2
1
5
4
6
7
8
Control panel
Display
Water drawer
Socket for the food sensor
Heating element
Lamp
Fan
Descaling pipe outlet
Shelf support, removable
Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Grill- / Roasting pan
To bake and roast or as a pan to collect fat.
8 ENGLISH
Trivet
For roasting and grilling.
Use the trivet only with the Grill- / Roasting pan.
Patisserie tray
For rolls, pretzels and small pastries. Suitable for
steam functions. The discolouration of the surface
has no effect on the functions.
≤5 kg
Food sensor
To measure the temperature inside food.
Telescopic runners
For inserting and removing trays and wireshelf
more easily.
Steam set
One unperforated and one perforated food
container.
The steam set drains the condensing water away
from the food during steam cooking. Use it to
prepare vegetables, fish, chicken breast. The set
is not suitable for food that needs to soak in the
water e.g. rice, polenta, pasta.
ENGLISH 9
4. CONTROL PANEL
4.1 Control panel overview
1 2 3 4 5 6
1ON / OFF Press and hold to turn the appliance on and off.
2Menu Lists the appliance functions.
3Favourites Lists the favourite settings.
4Display Shows the current settings of the appliance.
5Lamp switch To turn the lamp on and off.
6Fast Heat Up To turn on and off the function: Fast Heat Up.
Press Move
3s
Press and hold
Touch the surface with fingertip. Slide fingertip over the surface. Touch the surface for 3 seconds.
4.2 Display
150°C
12:30
15min START
85°C
G F DE C
A B
Display with key functions set.
A. Wi-Fi
B. Time of day
C. START/STOP
D. Temperature
E. Heating functions
F. Timer
G. Food sensor (selected models only)
10 ENGLISH
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali AEG Forno
AEG
AEG BSK772221M Manuale utente
AEG
AEG BEB355020M Manuale utente
AEG
AEG BCK456220B Manuale utente
AEG
AEG BPK744L21M Manuale utente
AEG
AEG BEB100010M Manuale utente
AEG
AEG B 60 L Manuale utente
AEG
AEG BPE556060M Manuale utente
AEG
AEG BSK774121M Manuale utente
AEG
AEG BSE772380M Manuale utente
AEG
AEG EPE63522BM Manuale utente
AEG
AEG COMPETENCE 524 B Manuale utente
AEG
AEG COMPETENCE 9950 B Manuale utente
AEG
AEG NC4013001 Manuale utente
AEG
AEG DCB331010M Manuale utente
AEG
AEG KME761000B Manuale utente
AEG
AEG COMPETENCE 7658 B Manuale utente
AEG
AEG B 60 LFV Manuale utente
AEG
AEG BPB331021B Manuale utente
AEG
AEG BE2003021 Manuale utente
AEG
AEG SURROUNDCOOK BES331010M Manuale utente
