AEG DUK731110M Manuale utente
USER
MANUAL
EN User Manual
Built-Under Double Oven
DUK731110M
CONTENTS
1. SAFETY INFORMATION......................................................................................2
2. SAFETY INSTRUCTIONS.................................................................................... 4
3. PRODUCT DESCRIPTION...................................................................................7
4. CONTROL PANEL................................................................................................8
5. BEFORE FIRST USE............................................................................................9
6. DAILY USE......................................................................................................... 10
7. CLOCK FUNCTIONS..........................................................................................12
8. USING THE ACCESSORIES..............................................................................14
9. ADDITIONAL FUNCTIONS.................................................................................16
10. HINTS AND TIPS..............................................................................................18
11. CARE AND CLEANING.................................................................................... 26
12. TROUBLESHOOTING......................................................................................29
13. ENERGY EFFICIENCY.....................................................................................30
14. ENVIRONMENTAL CONCERNS......................................................................32
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.aeg.com2
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the
built-in structure.
•Disconnect the appliance from the power supply
before carrying out any maintenance.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
ENGLISH 3
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•The control panel must be connected to specified
heating unit with matching colours of connectors, to
avoid possible hazard.
•The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from
other appliances and units.
• Before mounting the appliance, check
if the oven door opens without
restraint.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
www.aeg.com4
• The built-in unit must meet the
stability requirements of DIN 68930.
Cabinet minimum
height (Cabinet under
the worktop minimum
height)
(720) mm
Cabinet width 600-605 mm
Cabinet depth 550 mm
Height of the front of
the appliance
715 mm
Height of the back of
the appliance
708 mm
Width of the front of
the appliance
594 mm
Width of the back of
the appliance
538 mm
Depth of the appli‐
ance
568 mm
Built in depth of the
appliance
547 mm
Depth with open door 998 mm
Ventilation opening
minimum size. Open‐
ing placed on the bot‐
tom rear side
600x20 mm
Mounting screws 3.5x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance is supplied without a
main plug and a main cable.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household
(indoors) use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
ENGLISH 5
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
• Do not clean the catalytic enamel with
detergents.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
www.aeg.com6
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. PRODUCT DESCRIPTION

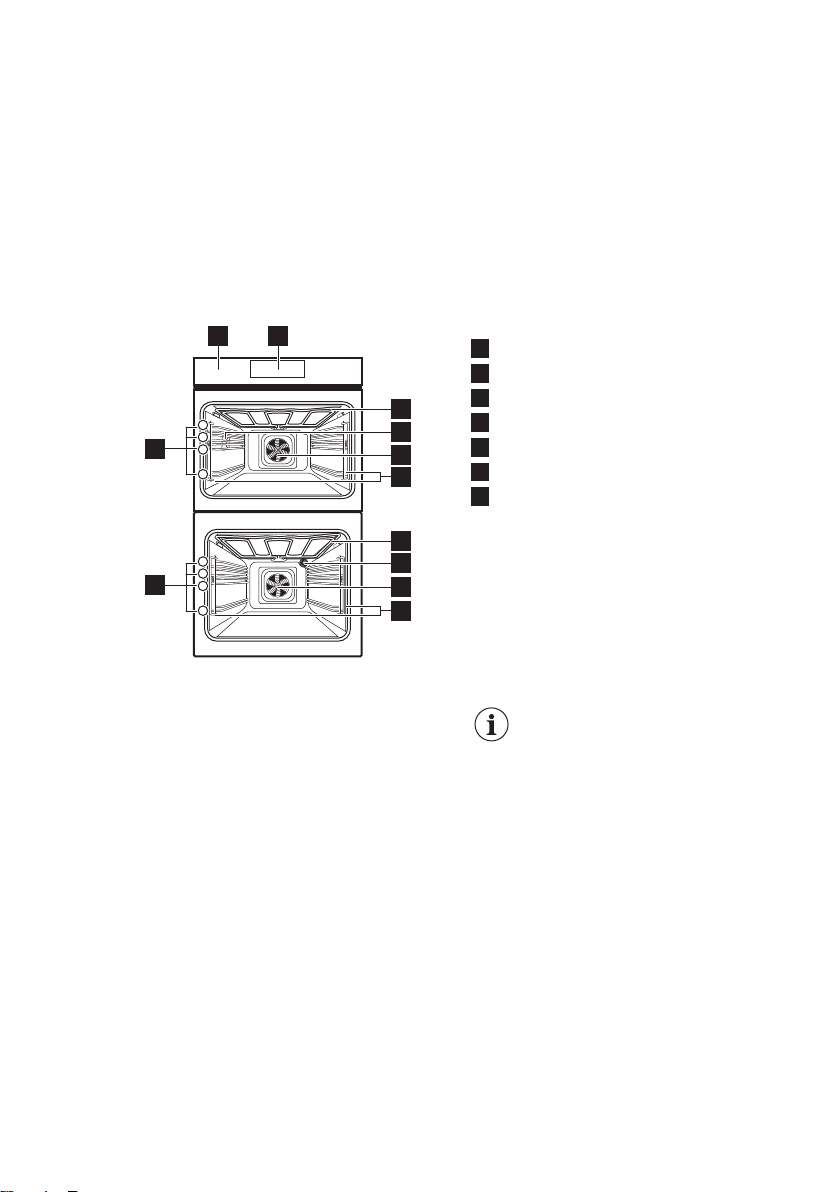

3.1 General overview
21
6
6
1
2
3
4
7
1
2
3
4
7
3
3
5
5
4
4
1Control panel
2Electronic programmer
3Heating element
4Lamp
5Fan
6Shelf support, removable
7Shelf positions
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•Trivet
For roasting and grilling.
Use the trivet only with
the Grill- / roasting pan.
•Telescopic runners
With the telescopic runners you can
put in and remove the shelves more
easily.
ENGLISH 7

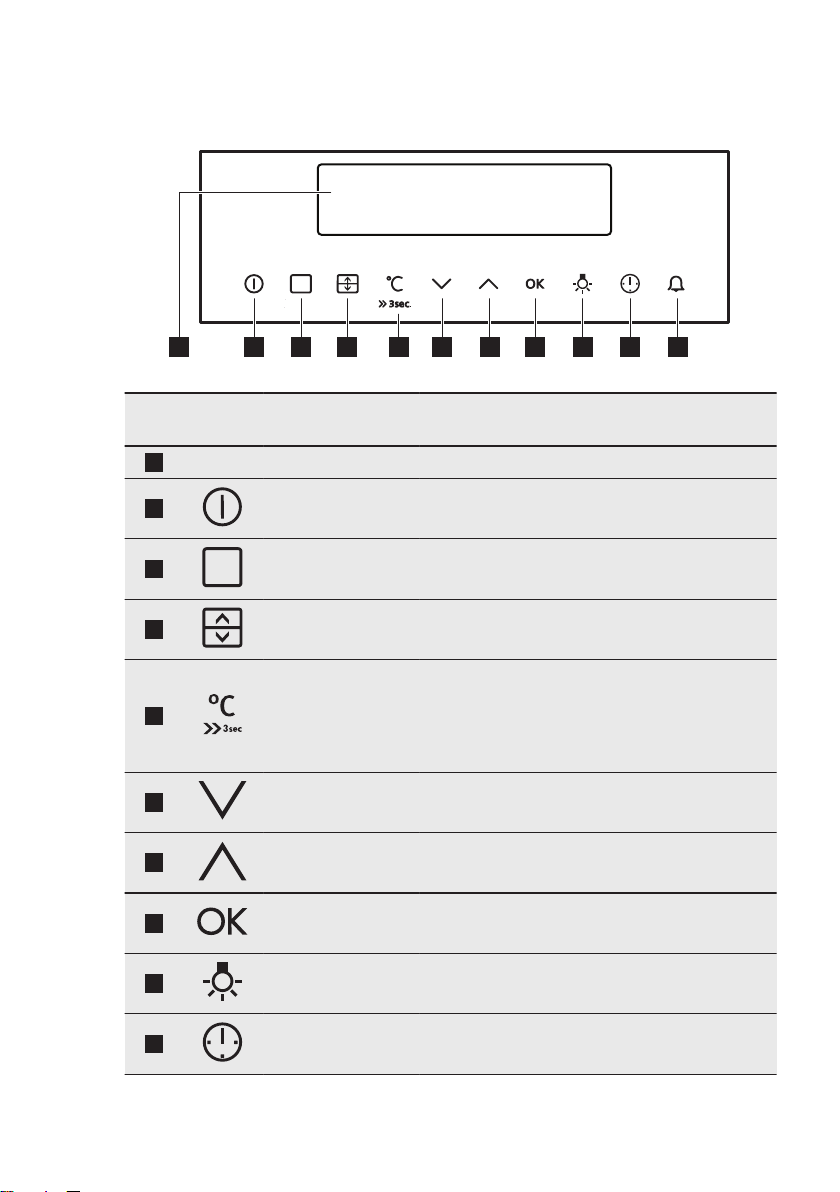

4. CONTROL PANEL
4.1 Electronic programmer
1110987654321
Use the sensor fields to operate the appliance.
Sensor
Field
Function Description
1- DISPLAY Shows the current settings of the appliance.
2ON / OFF To activate and deactivate the appliance.
3OPTIONS To set an oven function or a cleaning function.
4OVEN SELECTION To switch between top and main oven.
5
TEMPERATURE /
FAST HEAT UP
To set and see the cavity temperature or the
core temperature sensor temperature (if
present). If you press and hold it for three sec‐
onds, it turns the Fast heat up function ON or
OFF.
6DOWN To move down in the menu.
7UP To move up in the menu.
8OK To confirm the selection or setting. To move
down in the menu.
9OVEN LIGHT To activate or deactivate the oven lamp.
10 CLOCK To set the clock functions.
www.aeg.com8
Sensor
Field
Function Description
11 MINUTE MINDER To set the Minute Minder.

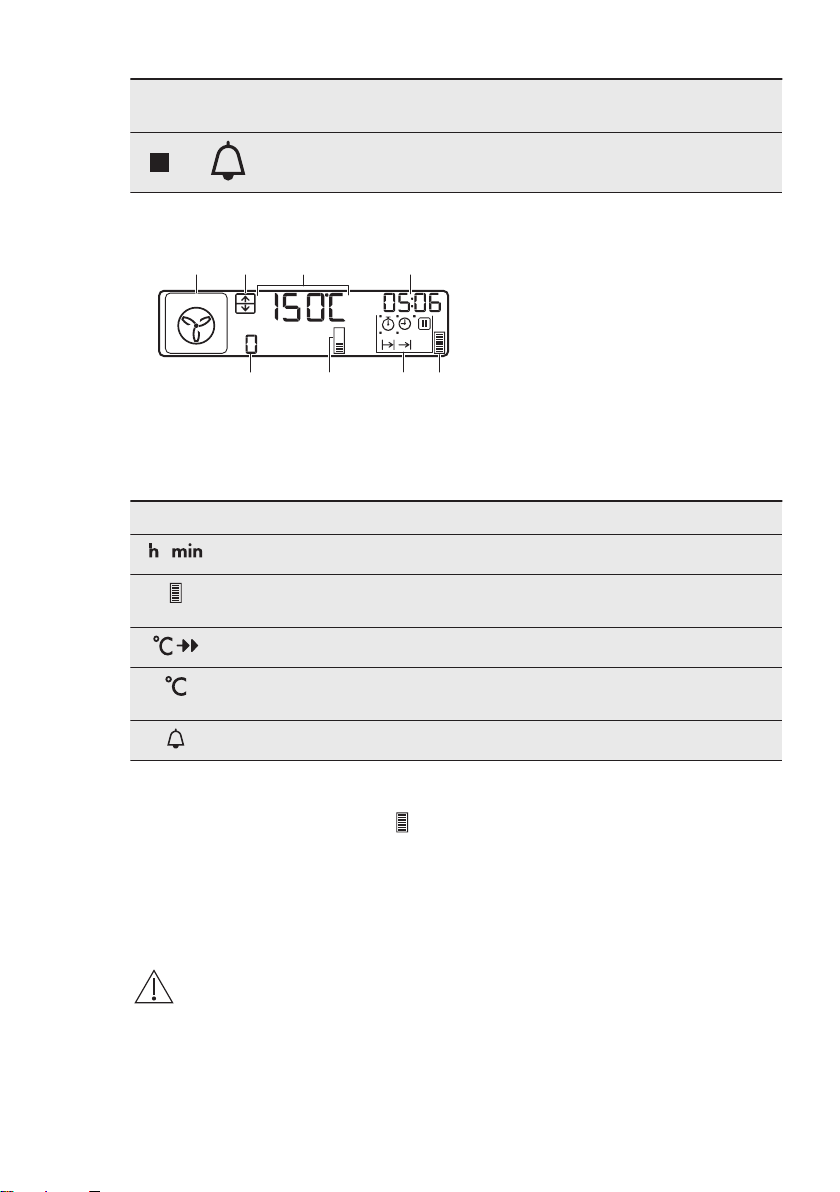

4.2 Display
A B C D
EFGH
A. Oven function symbol
B. Top / Main oven indicator
C. Temperature / time of day display
D. Clock / Residual heat display /
Minute Minder
E. Residual heat indicator
F. Indicators for the clock functions
G. Heat-up indicator / Fast Heat Up
indicator
H. Number of the oven function /
programme
Other indicators of the display:
Symbol Name Description
/ h / min A clock function operates.
Heat-up / residual heat indica‐
tor
Shows the temperature level in the appli‐
ance.
Temperature / fast heat up The function operates.
Temperature You can examine or change the tempera‐
ture.
Minute minder The minute minder function operates.
4.3 Heat up indicator
If you turn on the heating function,
appears. The bars show that the
temperature in the oven increases or
decreases.
When the oven is at the set temperature,
the bars go off the display.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories
before the first use.
Put the accessories and the removable
shelf supports back to their initial
position.
ENGLISH 9
5.2 Preheating
Preheat the empty oven to burn off the
remaining grease.
Preheat the two ovens. Heat up one
oven at a time.
Set the functions listed below, if
applicable.
1. Set the function and the
temperature to 250ºC.
Let the appliance operate for 1 hour.
2. Set the function and the
temperature to 250ºC.
Let the appliance operate for 15
minutes.
3. Set the function and the
temperature to 250ºC.
Let the appliance operate for 15
minutes.
Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure
that the airflow is sufficient.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Selecting an oven
1. Press to turn on the oven.
2. Press again and again until the
display shows the top / main oven
indicator.
The top / main oven indicator shows
which cavity is selected.
6.2 Top oven functions
Oven function Application
True Fan Cook‐
ing
To bake on one shelf position and to dry food.
Pizza Function To bake pizza. To make intensive browning and a
crispy bottom.
Slow Cooking To prepare tender, succulent roasts.
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Defrost To defrost food (vegetables and fruit). The defrosting
time depends on the amount and size of the frozen
food.
Grill To grill thin pieces of food and to toast bread.
Turbo Grilling To roast large meat joints or poultry with bones on one
shelf position. To make gratins and to brown.
www.aeg.com10
Altri manuali per DUK731110M
2
Indice
Altri manuali AEG Forno
AEG
AEG COMPETENCE CB1100-1W Manuale utente
AEG
AEG DUE731110M Manuale utente
AEG
AEG BE6914001M Manuale utente
AEG
AEG PRO COMBI BS1830470X Manuale utente
AEG
AEG BCE455350M Manuale utente
AEG
AEG BG 60.1 LFV Manuale utente
AEG
AEG KSK782220M Manuale utente
AEG
AEG COMPETENCE 5250 B Manuale utente
AEG
AEG B 601 DG Manuale utente
AEG
AEG B 60 D Manuale utente
AEG
AEG KME861000M Manuale utente
AEG
AEG Competence 5308 B Manuale utente
AEG
AEG COMPETENCE D5701-4 Manuale utente
AEG
AEG BPK74238PT Manuale utente
AEG
AEG DEK431010M Manuale utente
AEG
AEG B 2.60 D Manuale utente
AEG
AEG NC7013001 Manuale utente
AEG
AEG BH 8.30 Manuale utente
AEG
AEG BPK552220W Manuale utente
AEG
AEG BPE546360M Manuale utente
