EN User Manual
Oven
ECE455020B
ECE455020M
ECS45522CM
CONTENTS
1. SAFETY INFORMATION......................................................................................2
2. SAFETY INSTRUCTIONS.................................................................................... 4
3. PRODUCT DESCRIPTION...................................................................................7
4. CONTROL PANEL................................................................................................7
5. BEFORE FIRST USE............................................................................................9
6. DAILY USE........................................................................................................... 9
7. CLOCK FUNCTIONS..........................................................................................11
8. USING THE ACCESSORIES..............................................................................12
9. ADDITIONAL FUNCTIONS.................................................................................13
10. HINTS AND TIPS..............................................................................................13
11. CARE AND CLEANING.................................................................................... 29
12. TROUBLESHOOTING......................................................................................32
13. ENERGY EFFICIENCY.....................................................................................33
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.aeg.com2
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•The control panel must be connected to specified
heating unit with matching colours of connectors, to
avoid possible hazard.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
ENGLISH 3
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•Do not use the appliance before installing it in the
built-in structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from
other appliances and units.
• Before mounting the appliance, check
if the oven door opens without
restraint.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
• The built-in unit must meet the
stability requirements of DIN 68930.
www.aeg.com4
Cabinet minimum
height (Cabinet under
the worktop minimum
height)
578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
594 mm
Height of the back of
the appliance
576 mm
Width of the front of
the appliance
595 mm
Width of the back of
the appliance
559 mm
Depth of the appli‐
ance
567 mm
Built in depth of the
appliance
546 mm
Depth with open door 1027 mm
Ventilation opening
minimum size. Open‐
ing placed on the bot‐
tom rear side
560 x 20 mm
Mounting screws 4 x 25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance is supplied without a
main plug and a main cable.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
ENGLISH 5
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
• Do not clean the catalytic enamel with
detergents.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
www.aeg.com6
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
1
2
3
4
5
13 10
8
9
11
12
21
7
643 5
1Control panel
2Knob for the heating functions
3Power lamp / symbol
4Display
5Temperature indicator / symbol
6Control knob (for the temperature)
7Knobs for the cooking zones
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Cavity embossment
13 Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
4. CONTROL PANEL
4.1 Knobs for the cooking zones
You can operate the hob with the knobs for the cooking zones.
ENGLISH 7
You must read the Safety chapters in the hob user manual.
4.2 Heat settings
Knob indication Function
0 Off position
Keep warm setting
1 - 9 Heat settings
1. Turn the knob to a necessary heat
setting.
2. To complete the cooking process,
turn the knob to the off position.
4.3 Automatic heat-up
Only applicable for hobs with
the automatic heat-up
function.
The automatic heat-up function heats the
cooking zone with full power for some
time.
1. Turn the knob for the cooking zone
clockwise as far as possible (beyond
the highest heat setting).
2. Immediately set the necessary heat
setting.
3. To deactivate the function, turn the
knob to the off position.
4.4 Using the double zone (if
applicable)
To activate the double zone,
turn the knob clockwise. Do
not turn it through the stop
position.
1. Turn the knob clockwise to position
9.
2. Turn the knob slowly until you can
hear a click. The two cooking zones
are on.
3. To set the necessary heat setting
refer to "Heat settings".
4.5 Retractable knobs
To use the appliance press the knob.
The knob comes out.
4.6 Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
4.7 Display
A B
A. Clock functions
B. Timer
www.aeg.com8
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. Press: .
2. , - press to set the
hour. Press: .
3. , - press to set the
minutes. Press: .
1. Remove all accessories
and removable shelf
supports from the oven.
2. Clean the oven and the
accessories with a soft
cloth, warm water and a
mild detergent.
1. Set the maximum tem‐
perature for the function:
.
Time: 1 h.
2. Set the maximum tem‐
perature for the function:
.
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf
supports in the oven.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 How to set: Heating
function
Step 1 Turn the knob for the heating
functions to select a heating
function.
Step 2 Turn the control knob to select
the temperature.
Step 3 When the cooking ends, turn
the knobs to the off position to
turn off the oven.
6.2 Setting the function: True Fan Cooking PLUS
WARNING!
Risk of burns and damage to the appliance.
Step 1 Make sure that the oven is cold.
ENGLISH 9

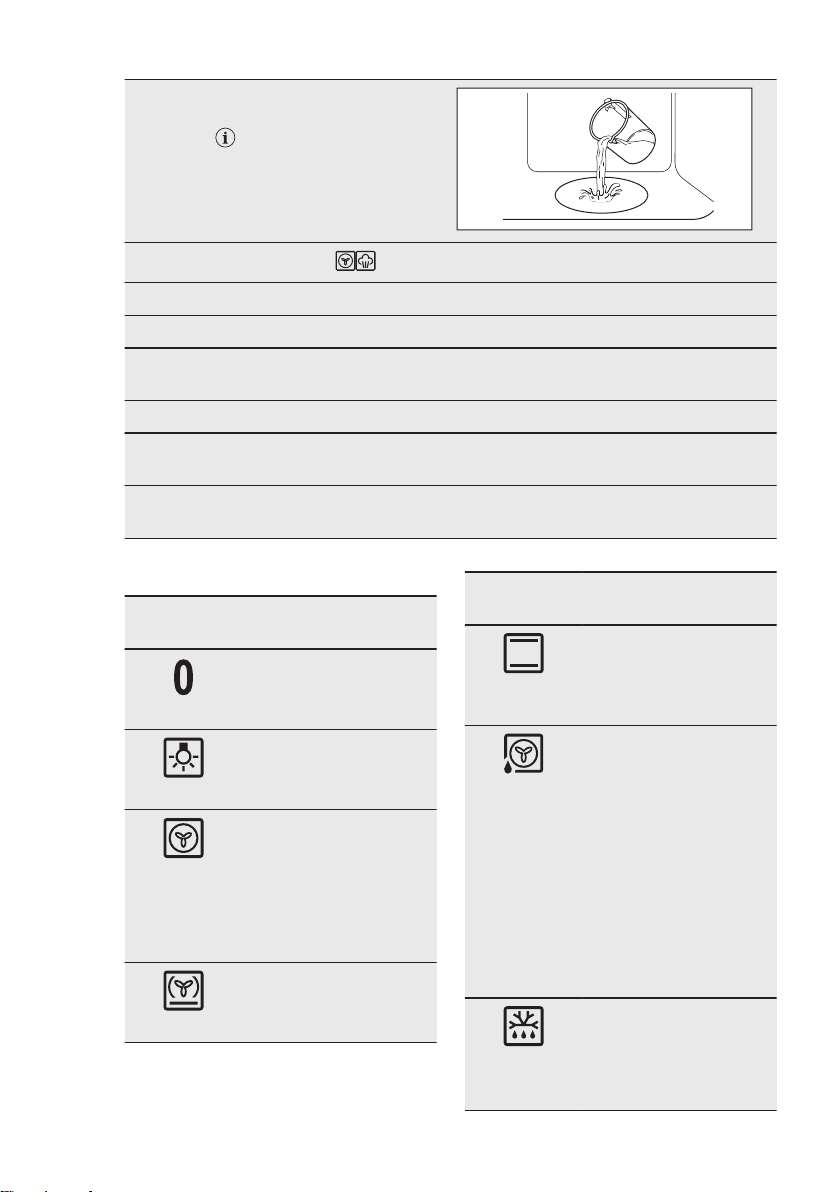

Step 2 Fill the cavity embossment with
tap water.
The maximum capacity of
the cavity embossment is 250
ml. Do not refill the cavity em‐
bossment during cooking or
when the oven is hot.
Step 3 Set the function: .
Step 4 Turn the control knob for the temperature to set temperature.
Step 5 Preheat the empty oven for 10 min to create humidity.
Step 6 Put food in the oven.
Refer to "Hints and tips" chapter. Do not open the oven door during cooking.
Step 7 Turn the knob for the heating functions to the off position to turn off the oven.
Step 8 After the function ends, carefully open the door. Released humidity can cause
burns.
Step 9 Make sure that the oven is cold. Remove the remaining water from the cavity
embossment.
6.3 Heating functions
Heating func‐
tion
Application
Off position
The oven is off.
Light
To turn on the lamp.
True Fan
Cooking
To bake on up to three
shelf positions at the
same time and to dry
food.
Set the temperature 20 -
40 °C lower than for Con‐
ventional Cooking.
Pizza Function
To bake pizza. To make
intensive browning and a
crispy bottom.
Heating func‐
tion
Application
Conventional
Cooking
To bake and roast food
on one shelf position.
Moist Fan
Baking
This function is designed
to save energy during
cooking. When you use
this function, the temper‐
ature in the cavity may
differ from the set tem‐
perature. The residual
heat is used. The heating
power may be reduced.
For more information re‐
fer to "Daily Use" chap‐
ter, Notes on: Moist Fan
Baking.
Defrost
To defrost food (vegeta‐
bles and fruit). The de‐
frosting time depends on
the amount and size of
the frozen food.
www.aeg.com10
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali AEG Forno
AEG
AEG B 60 L Manuale utente
AEG
AEG BE5013001 Manuale utente
AEG
AEG B8831-5 Manuale utente
AEG
AEG DCB331010M Manuale utente
AEG
AEG COMPETENCE B8340-1 Manuale utente
AEG
AEG COMPETENCE 520B Manuale utente
AEG
AEG BD320P Manuale utente
AEG
AEG B47410-5 Manuale utente
AEG
AEG NC7003000 Manuale utente
AEG
AEG BBS6400B1 Manuale utente
AEG
AEG BPE548070B Manuale utente
AEG
AEG BPS33102ZM Manuale utente
AEG
AEG BPS355061M Manuale utente
AEG
AEG KB7100000 Manuale utente
AEG
AEG BD740S Manuale utente
AEG
AEG 40006VS Manuale utente
AEG
AEG DCK431110M Manuale utente
AEG
AEG COMPETENCE 530 B Manuale utente
AEG
AEG KE8404021M Manuale utente
AEG
AEG B 60 LFV Manuale utente
