AEG KB9810EM Manuale utente
KB9810E
User manual Electric built-in oven
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an integral
part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it toany future owner ofthe appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
2
Contents
Operating instructions 6
Safety information 6
Electrical safety 6
Children's safety 6
Safety during use 6
Microwave 7
How to avoid damage to the appliance 9
Do not use the appliance 10
Description of product 11
General view 11
Control panel 12
Oven layout 12
Accessories Oven 13
Before using for the first time 13
Setting and changing the time 13
Cleaning for the first time 14
Getting to know the appliance 15
Operating the oven 15
The electronic oven controls 15
The display field 15
The control panel 16
Selecting the oven function 17
Changing the oven temperature 17
Thermometer symbol 17
Switching the oven off 18
Fast Warm Up 18
Oven Functions 18
Microwave 19
Combi Function 21
Microwave Quick Start 22
Information on power settings 23
Inserting the oven shelf and baking tray 24
Additional functions 24
Microwave Programmes 24
Contents 3
315786713-00-16082007
Memory function 26
Clock functions 27
Countdown 28
Microwave Cook Time min. 29
Cook Time 30
End Time 31
Cook Time and End Time combined 32
Other functions 33
Switching off the display 33
Child safety device 34
Button Beep 35
Automatic switch-off 35
Uses, Tables and Tips 35
Baking 35
General instructions 36
Baking Table 37
Tips for baking 39
Bakes and Gratins Table 40
Frozen Ready Meals Table 40
Roasting 41
Roasting Table 41
Single economy grill 43
Grilling Table 43
Rotitherm Roasting 43
Oven functions: Rotitherm Roasting 43
Defrosting 44
Defrosting Table 45
Drying 45
Making preserves 46
Preserves table 46
Microwave 47
Information about operation 47
Suitable cookware and materials 48
Microwave Cooking Table 50
Combi-Function Table 53
Tips for the microwave 55
Test dishes in accordance with IEC 60705 55
Programmes 56
4Contents
POTATO GRATIN (serves 4-5) 58
CHICKEN 1200 G 58
Cleaning and care 59
The outside of the appliance 59
Oven interior 60
Accessories 60
Side rails 60
Removing the side rails 60
Replacing the side rails 61
Oven lighting 61
If something is wrong… 62
Electrical Connection 63
Installation instructions 64
Safety information for the installer 64
Disposal 69
Guarantee/Customer Service 69
GREAT BRITAIN & IRELAND 69
European Guarantee 71
www.electrolux.com 72
Service 74
Contents 5
315786713-00-16082007
Operating instructions
Safety information
Important safety instructions!
Read carefully and keep for future use!
Electrical safety
•This appliance must only be connected by a qualified installation engineer.
• In the event of a fault or damage to the appliance: Take the fuses out or switch
off.
• Should the door seal and the door seal surfaces be damaged, the appliance must
not be operated until they are repaired.
•Repairs to the appliance must only be carried out by qualified service
engineers. Considerable danger may result from improper repairs. If repairs
become necessary, please contact our Customer Care Department or your dealer.
Children's safety
• Small children must be kept away from the appliance. Make sure that children
do not touch the appliance when playing.
• Always heat baby food in jars or bottles with the lid or top off. After heating,
stir or shake well, so that the heat is equally distributed. Before you give the
baby food to the child, please be sure to test the temperature.
• When operating the grill (alone or in combination with the microwave) the
viewing window becomes hot. Therefore keep small children away from the door
of the appliance.
• Never leave children unsupervised while the appliance is operating.
• This appliance is fitted with a child safety device.
Safety during use
• This appliance should be used only for normal domestic cooking, roasting and
baking of food.
6Safety information
• Be careful if connecting electrical appliances to sockets near to this appliance.
Electrical leads must not be caught under the hot oven door.
•Warning: Risk of burns! The interior surfaces of the oven become very hot
during use.
• If you use ingredients containing alcohol in the oven, a slightly flammable mix-
ture of alcohol and air may ensue. In this case, be careful when opening the
door. Do not handle any sources of heat, sparks or naked flames when doing so.
• People (including children), who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance, are not able to use the appliance
safely, should not use this appliance without supervision by or instruction from
a responsible person.
Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially
in products containing starch, can constitute a health risk due to acrylamides.
Therefore we recommend cooking at the lowest possible temperatures and not
browning foods too much.
Microwave
• Only switch the appliance on when there is food inside it. With no food in it, the
appliance could be overloaded.
•Only use microwave safe cookware (see section Uses, Tables and Tips: Suitable
cookware and materials).
• To protect the interior or the door of the appliance from corrosion through
escaping steam (condensed water), please dry the appliance thoroughly with a
cloth after each use.
• Do not leave the appliance unattended, if food is being heated or cooked in
disposable containers made of plastic, paper or other flammable materials.
• If smoke appears, keep the appliance closed. Switch off the appliance and dis-
connect from the power supply. Do not use the appliance under any circum-
stances, if it is no longer working correctly.
Safety information 7
• When heating liquids always put a cof-
fee spoon or a glass rod in the container
to avoid boiling delay. With boiling de-
lay the boiling temperature is reached
without the typical steam bubbles ris-
ing.
If the container is shaken even slightly
the liquid can suddenly boil over or
spray violently. Risk of burns!
• Prick food with "skin" or "peel", such as
potatoes, tomatoes, sausages, with a
fork several times before cooking so
that the food does not burst.
• Ensure that a minimum temperature of
70°C is reached when cooking/heating
food. For this please refer to the power
and time data in the tables. Never use
mercury or liquid thermometers to
measure the temperature of the food.
• Foods heated with microwaves give off
heat to the cookware. Use oven gloves
or something similar!
• Do not overcook the dishes by using
powers and times that are too high. The food can dry out, burn or set itself alight
in certain places.
• The interior of the oven, the grill heating element and the accessories become
hot when the appliance is operating. Please be careful when handling them and
use oven gloves or similar for this reason. Risk of burns!
• Metal objects must be at least 2 cm from the walls of the oven interior and the
oven door. Otherwise spark discharges may be caused and the appliance can be
damaged
• If not advised otherwise, do not use aluminium foil.
• Do not get anything caught between the door and the door frame.
• Always keep the door seal, the door seal surfaces and the interior clean. Lack of
cleanliness in the appliance can lead to dangerous situations.
• Do not store any flammable materials inside the oven. These could ignite when
the oven is switched on.
min 70 C
70
0
8Safety information
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place a baking tray or
saucepan etc. on the floor, as otherwise the oven enamel will be damaged by
the heat build-up.
• Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause damage
to and discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause the
glass to break.
• Do not store any flammable materials inside the oven. These could ignite when
the oven is switched on.
• Do not store any moist foods inside the oven. This could cause damage to the
enamel.
• Do not leave dishes uncovered in the oven after switching off the cooling fan.
Moisture may form inside the oven or on the glass door and also get onto the
kitchen units.
Information on the oven enamel
Changes to the colour of the oven's enamel surface as a result of use do not affect
the appliance's suitability for normal and correct use. They therefore do not con-
stitute a defect in terms of warranty law.
Safety information 9

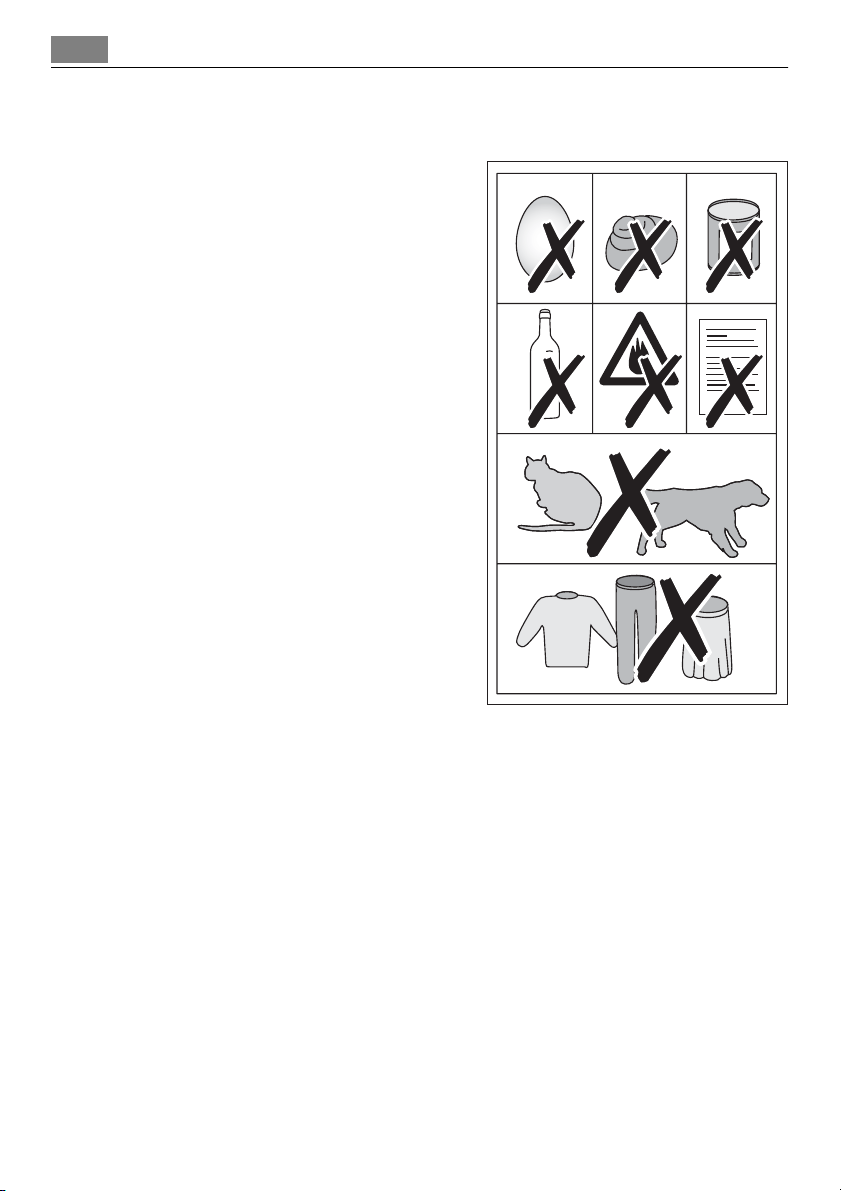

Do not use the appliance
... for cooking eggs in their shells (with fried
eggs, pierce the yolks first) and snails, as oth-
erwise these burst.
Cooking oil (fondue, deep frying) and drinks
with high alcohol content: Spontaneous ig-
nition! Risk of explosion!
... for heating tightly closed containers, e. g.
tins, bottles, screw top jars.
... for drying animals, textiles, grain pillows
and gel cushions and other flammable ma-
terials: Risk of fire!
... for cookware made of porcelain, ceramic
or earthenware that has small holes, e. g. on
handles or unglazed bottoms. Moisture
penetrating holes can cause the cookware to
crack when it is heated.
10 Safety information
