AEG 2460 D Manuale utente
2460 D/2490 D
Dunstabzugshaube
Afzuigkap
Hotte aspirante
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Manuel de montage et d’utilisation
Operating and Installation Instructions
48
Contents
Safety warnings 49
for user 49
for kitchen unit installer 49
Introduction 51
Extractor version 51
Filter Version 51
Bedienung der Dunsthaube 52
Maintenance and care 53
Metal grease filter 53
Open the metal grease filter 53
Carbon filter 54
Changing the light bulb 55
Cleaning 56
Special accessories 56
Technical assistance service 56
Guarantee conditions 57
Technic Details 59
Mounting accessories included 59
Electrical connection 60
Safety warnings for the electrician 60
Wall unit mounting 61
49
Safety warnings
for user
•Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
•Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
•The hot oil in the frying pan might ignite due to overheating.
•The risk of self-ignition increases when the oil being used is dirty.
•It is extremely important to note that overheating can cause a fire.
•Never carry out any flambécooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch
off the automatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, causing a fire hazard.
for kitchen unit installer
•When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
•Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly more noisy.
•When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.
•The national decree on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
•The air outlet must not be connected to chimney flues or combus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
50
•It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
by the relevant authorities.
•When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
•National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
•Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
•If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
•Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
•If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
•When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
—short and straight outlet hose
—keep bends in outlet hose to a minimum
—never install the hoses with an acute angle, they must
always follow a gentle curve only
—keep the hose as large as possible (preferably the same
diameter as the outlet hole).
•Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.
51
Introduction
Extractor version
•The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one activated carbon filter (special
accessory).
•You will need original AEG carbon filter for this function (see Special
Accessories).
•The air is discharged to the outside through a pipe, which must be
fitted to connection flange A. Fig. 1.
•In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly more noisy.
Fig. 1
Filter Version
•The air is filtered through an activated charcoal filter and returned to
the kitchen through the top grill of the outlet pipe.
•You will need an original AEG KF20 activated carbon filter for the
filtering function. (See Special Accessories).
•Fix the deflector using 4 screws Ø3,5x6.5 mm. Fig. 2.
•Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.
A
52
Fig. 2
Bedienung der Dunsthaube
•The hood is fitted with one motor having several speed. Turn the
hood on a few minutes before you start cooking then you will get an
underpressure in the kitchen. It should be left on after cooking for
about 15 minutes or until all odours have disappeared. The control
switches are located on the unit’s front panel:
a- Indicator lamp
b- Light ON/OFF switch
c- Motor OFF - Speed 1 push-button
d- Speed 2 push-button
e- Speed 3 push-button
53
Maintenance and care
•The hood must always be disconnected from the mains power
supply before beginning any maintenance work.
Metal grease filter
•The purpose of the grease filters is to aspirate grease particles
which form during cooking and it must always be used, either in the
external evacuation or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Open the metal grease filter
•First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
Soak grease filters for about one
hour in hot water with a grease-
loosening cleaner, then rinse off
thoroughly with hot water. Repeat the
process if necessary. Refit the
grease filters when it are dry.
Dishwasher machine
Place grease filters in dish washer.
Select most powerful washing
programme and highest temperature,
at least 65°C. Repeat the process.
Refit the grease filters when it are
dry.
When washing the metal grease filter in the dishwasher a slight
discoloration of the filter can occur, this does not have any impact
on its performance.
•Clean the inner housing using a hot detergent solution only
(never use caustic detergents, abrasive powders or brushes).
Bild 3
54
Carbon filter
•The carbon filter should only be used if you want to use the hood in
its filtering function.
•To do this you will need an original AEG activated carbon filter (see
special accessories).
•Cleaning/replacing the carbon filter
Unlike other carbon filters, the LONGLIFE carbon filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month. The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest tempera-
ture (65ºC). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
carbon, the filter should be dried in an oven for 10 minutes with a
temperature of maximum 100ºC.
After approximately three years of use, the carbon filter should be
replaced with a new, as the odour reduction capacity will be
reduced.

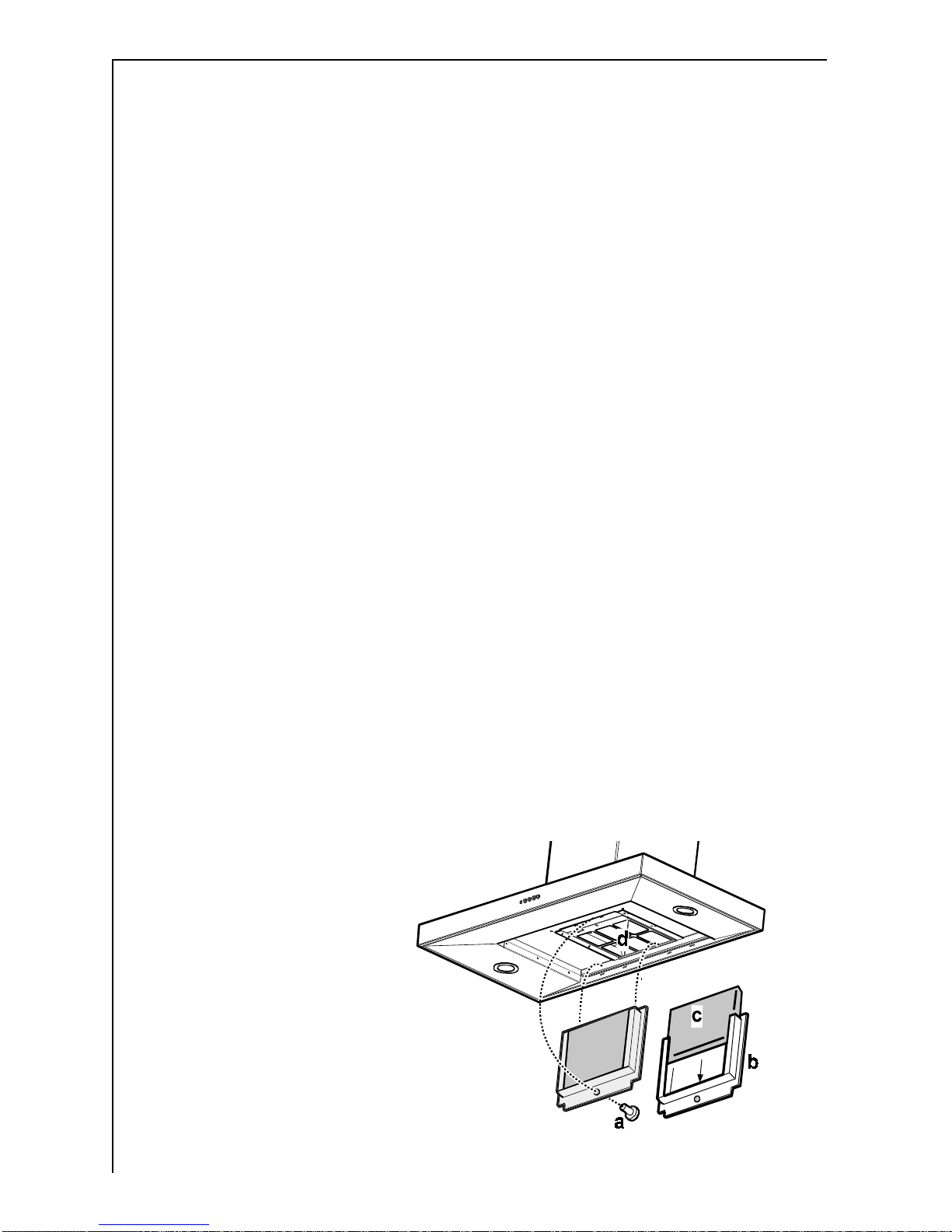

•Mounting
Remove the frame bwhich supports the filter cby unscrewing it
from the hood a, Fig. 4.
Insert the coal mattress inside the frame and put all parts back in
their place.
•To dismount proceed in reverse order.
•Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
•The activated carbon filter can be ordered from the AEG technical
assistance service.
Fig. 4
55
Fig. 5
Warning
•Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
•The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.

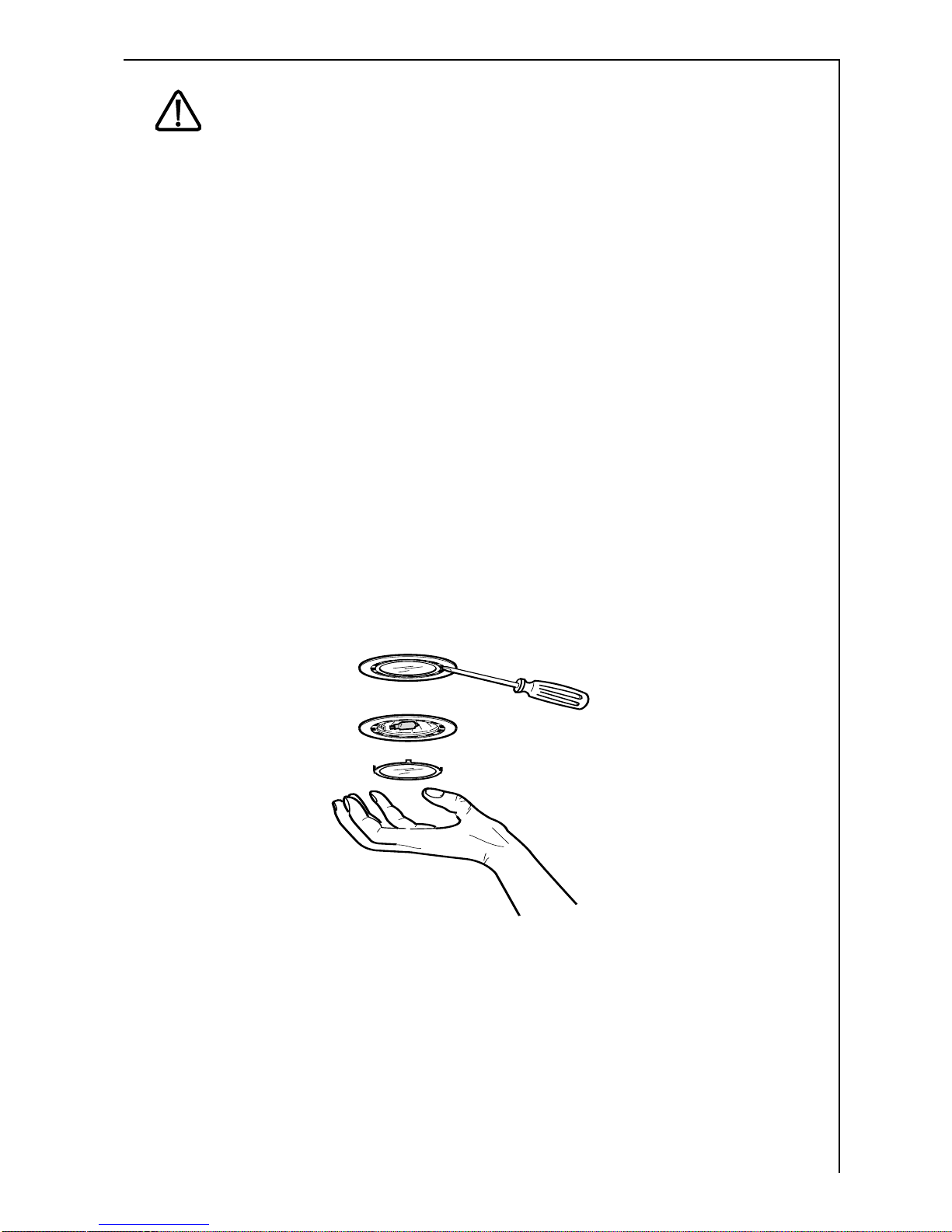

Changing the light bulb
•Disconnect the cooker hood from the main supply.
•Remove the lamp cover, use a screw driver as a lever. Fig. 5.
•Replace the old bulb with a new one of the same type.
•Remount the lamp cover.
•If the light does not come on, make sure the bulb has been inserted
in correctly before contacting the technical assistance service.
56
Cleaning
•Warning: always disconnect the hood from the mains power supply
before cleaning it.
Never insert pointed objects in the motor’s protective grid.
•Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
•Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
•It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Special accessories
Carbon filter KF20 942 120 600
Technical assistance service
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Altri manuali per 2460 D
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali AEG Cappa di ventilazione
AEG
AEG X91384MI01 Manuale utente
AEG
AEG DVK7990HB Manuale utente
AEG
AEG DPB5650M Manuale utente
AEG
AEG X56263MP0 Manuale utente
AEG
AEG X59155MK10 Manuale utente
AEG
AEG DFA 630 Manuale utente
AEG
AEG 310 D Manuale utente
AEG
AEG DD 8890 Scheda tecnica
AEG
AEG DK 9160 Manuale utente
AEG
AEG DPB3622S Manuale utente
