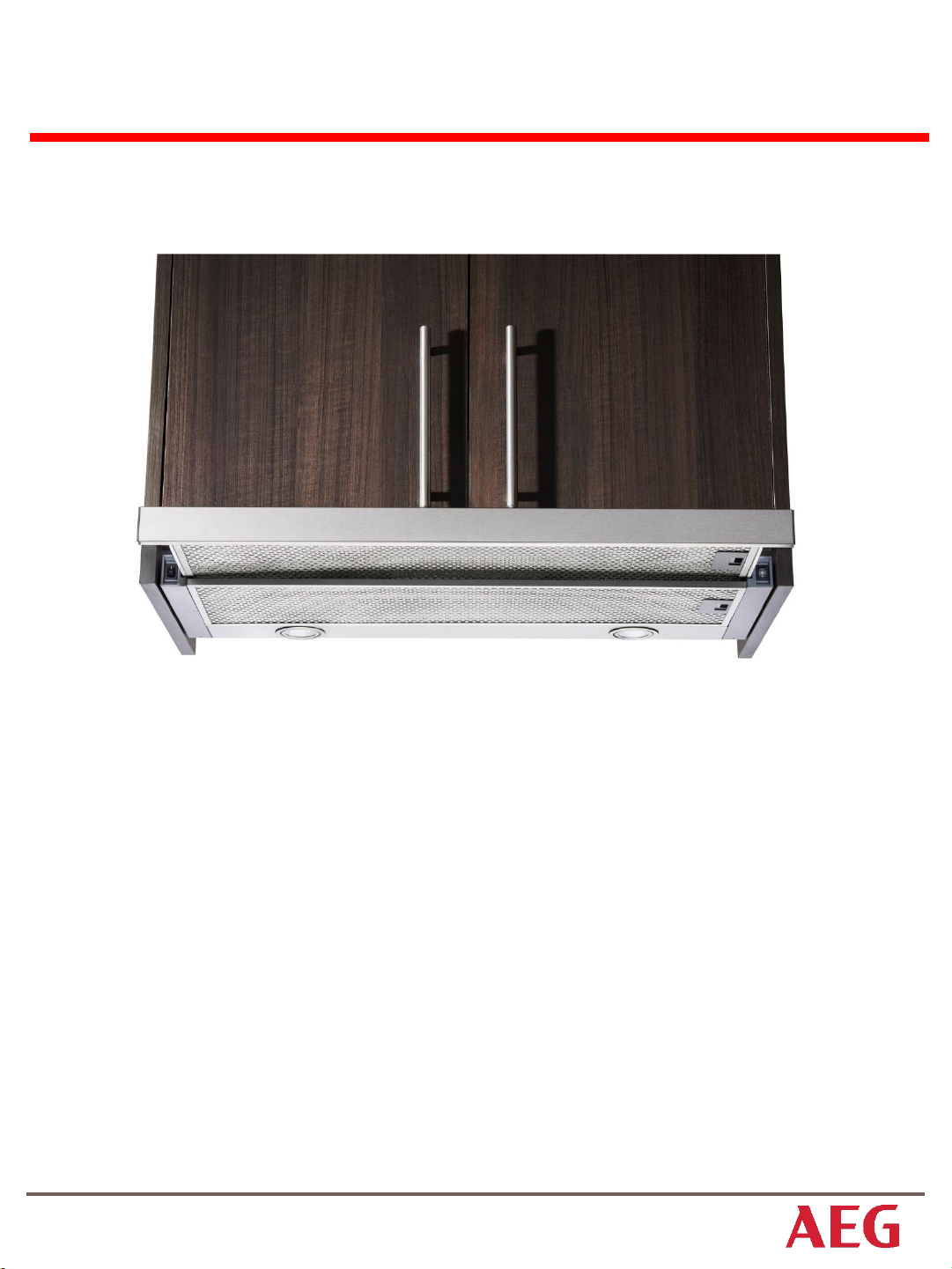

PERFEKT GLIDE 30-REC

30” Built-in Telescopic Range Hood

Specifications are subject to change without notice

V1.2

PERFEKT GLIDE 30-REC

30” Built-in Telescopic Range Hood

•D: 11” x W: 2913/16”

•D: 280mm x W: 758mm

RANGE HOOD DIMENSIONSRANGE HOOD FEATURES

•30” (76cm) stainless steel built-in glide-out range hood

•Recirculating

•LED lighting (3,200 Lumens)

•2 speed adjustment

•2 x dishwasher safe honey comb filters

•Electronic switch controls

•Quiet (7 sones/56dB) 300 CFM motor

•115 Volt, 60Hz, 15AMP

•AEG Range Hoods are supplied with a Canadian

cord and plug

•Electrical cord located 65/16” (160mm) from the

top right corner of the unit at the rear

ELECTRICAL REQUIREMENTS

Specifications are subject to change without notice

V1.2

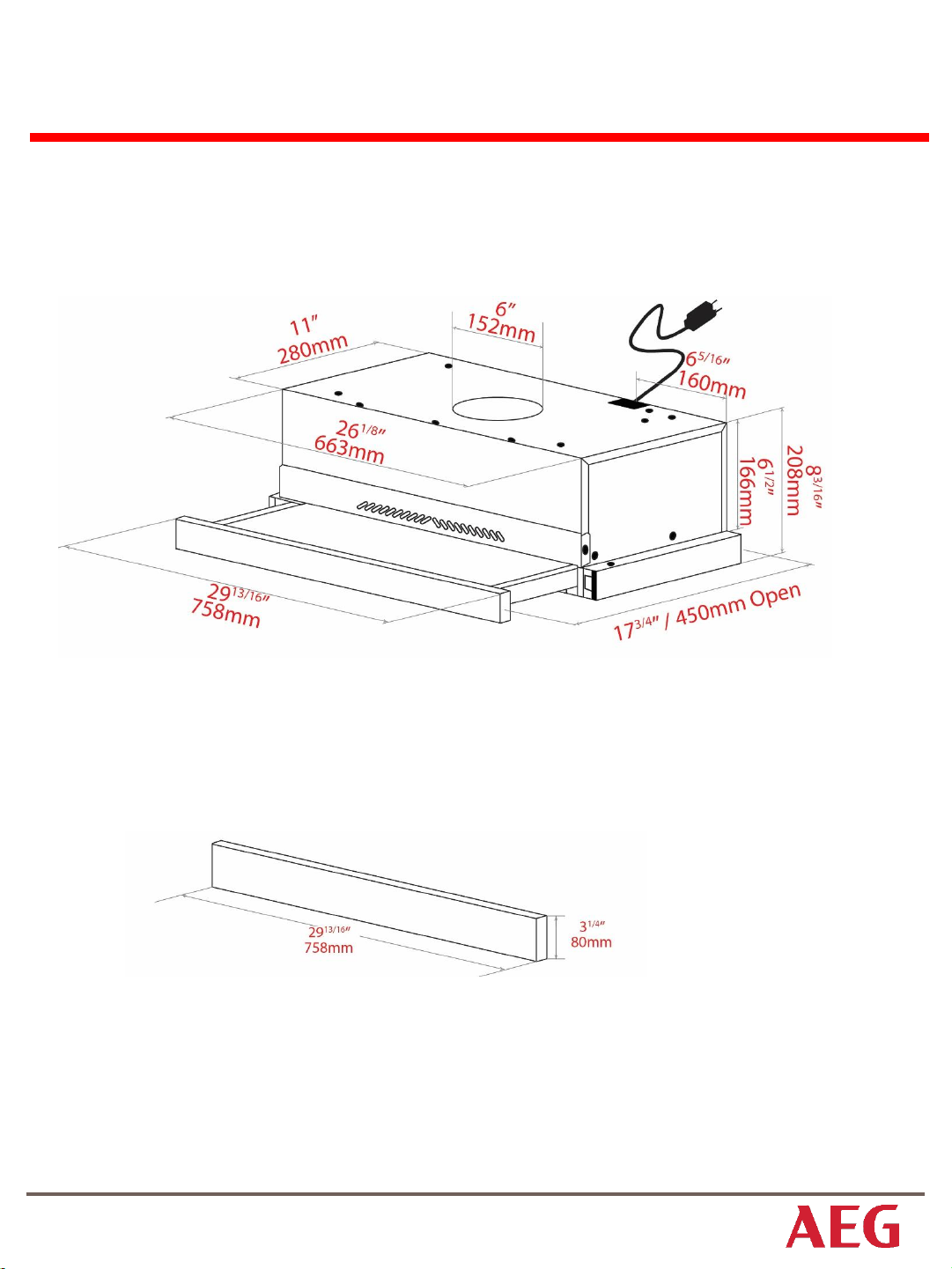

Specifications

PERFEKT GLIDE 30-REC

D: 11” x W: 2913/16”

D: 280mm x W: 758mm

RANGE HOOD DIMENSIONS

FRONT PANEL - DUCTED

Specifications are subject to change without notice

V1.2

FRONT VIEW SIDE VIEW

69/16”

166mm

Shelf Supports

Range hood

81/4”

210mm

External Gable

External Gable

Specifications

PERFEKT GLIDE 30-REC

30”

762mm

CABINET BOX DESIGN - (RECICULATING)

Specifications are subject to change without notice

V1.2

Specifications

PERFEKT GLIDE 30-REC

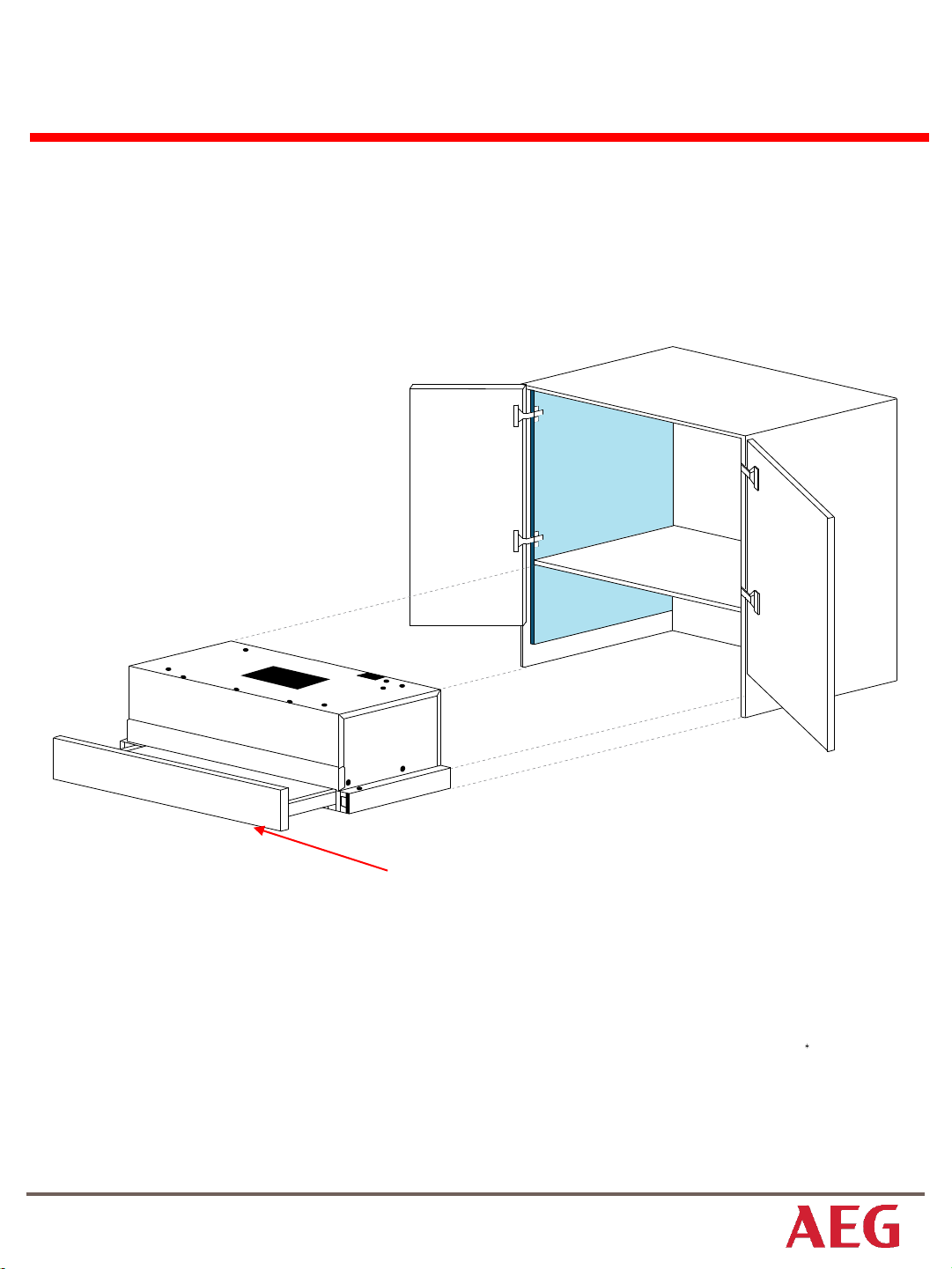

•1. Pull the glide forward

•2. Remove the 4 screws holding the glide to the panel

•3. Install the matching front panel using the 4 screws

*Custom panel provided by customer

NOTE: Removing the front stainless steel trim

FRONT PANEL INSTALLATION

Specifications are subject to change without notice

V1.2

Specifications

PERFEKT GLIDE 30-REC

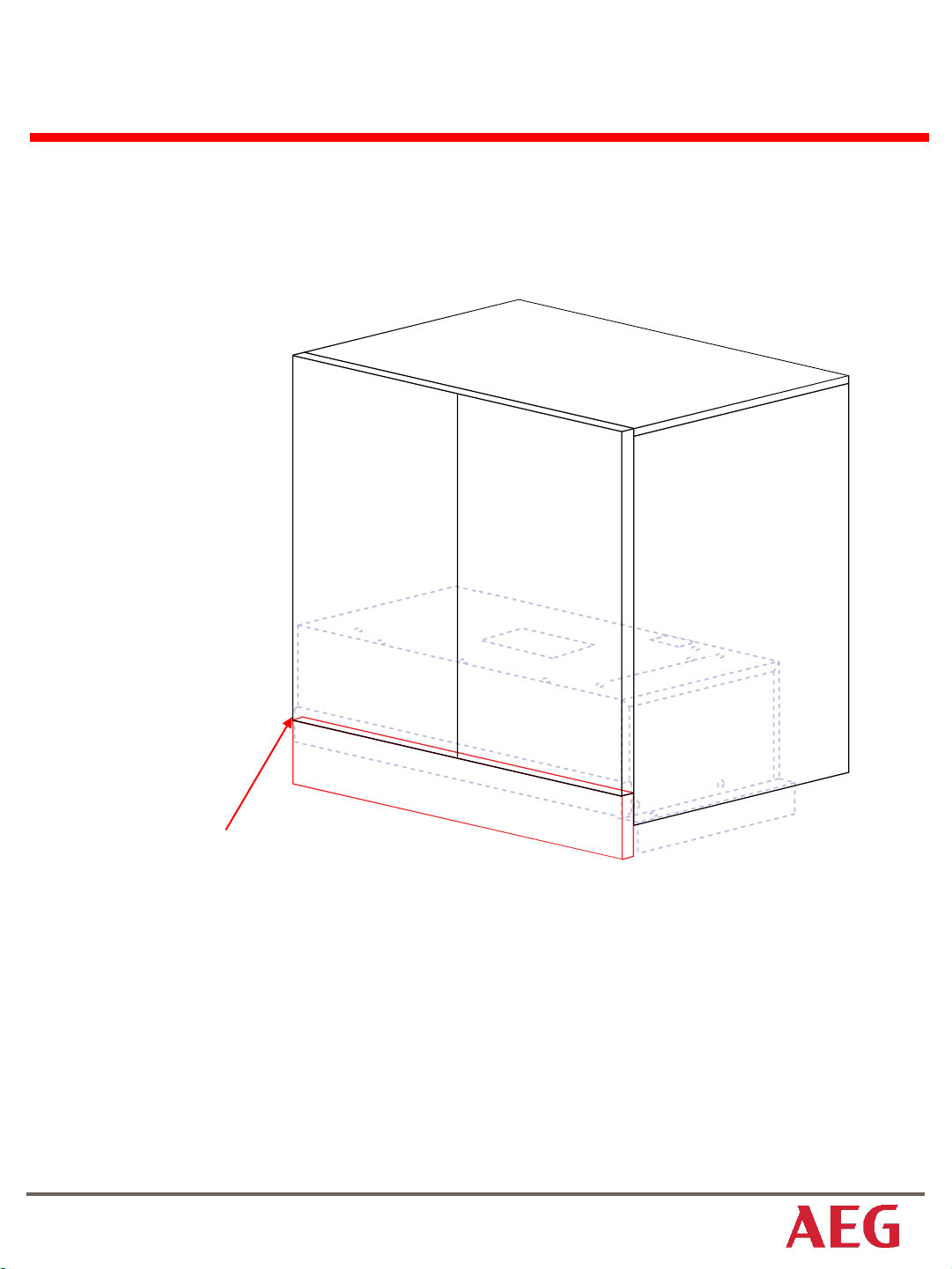

•Ensure that the cabinet door panel is

shortened to accommodate the

larger sized Range Hood Front Panel

NOTE: Cabinet Door Panel Height

Specifications are subject to change without notice

V1.2

Specifications

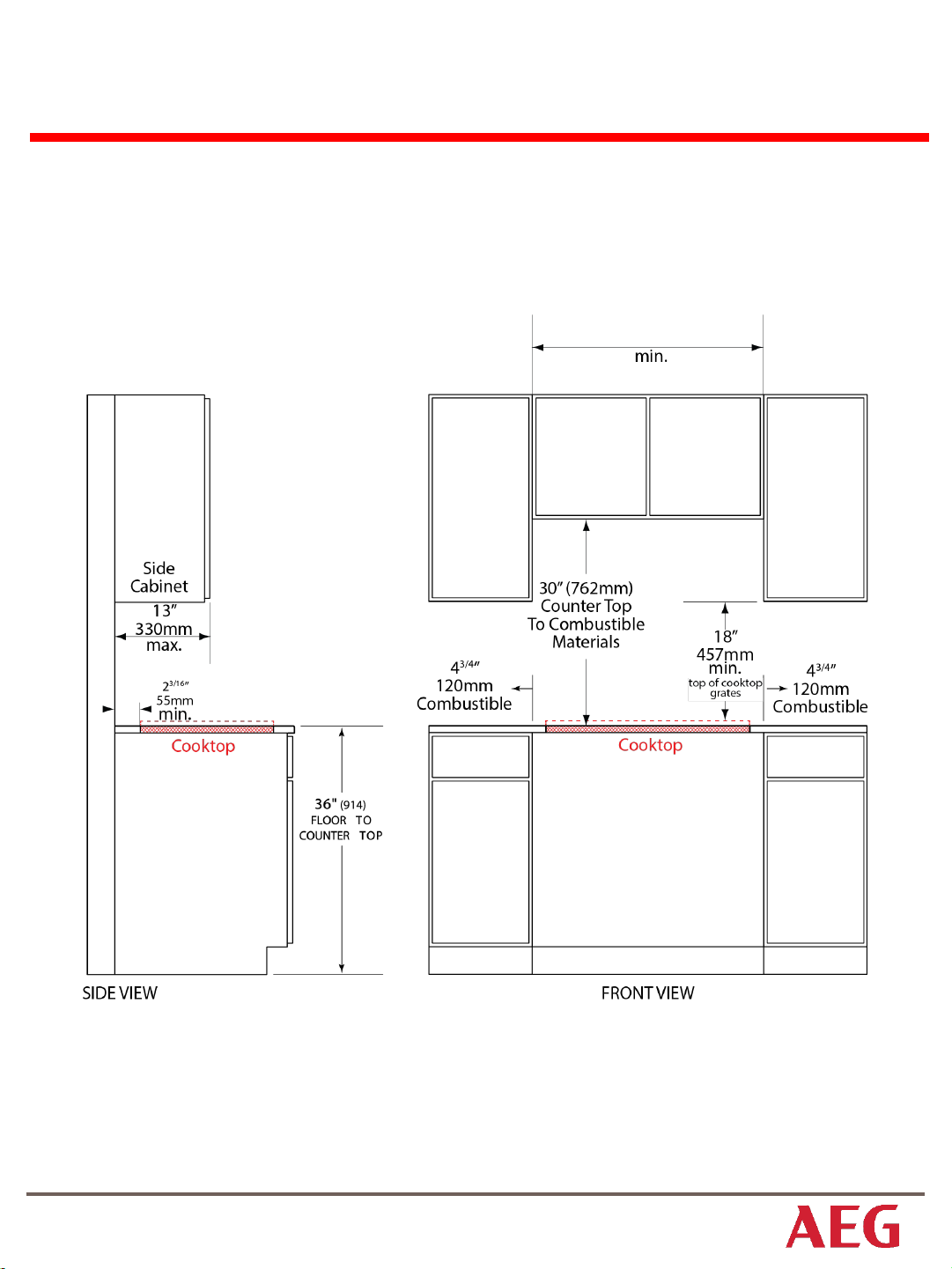

RECOMMENDED CABINET MINIMUM CLEARANCE

(GAS COOKING SURFACE)

PERFEKT GLIDE 30-REC

30”

762mm

Specifications are subject to change without notice

V1.2

Specifications

RECOMMENDED CABINET MINIMUM CLEARANCE

(ELECTRIC / INDUCTION COOKING SURFACE)

24” (610mm)

PERFEKT GLIDE 30-REC

30”

762mm
