AEI COMMUNICATIONS Analog BYOD Master Manuale utente

Analog BYOD Master

BY-3000-X(A)

Quick Guide

V 1.5

1 Over view

The analog BYOD master is an analog telephone to Wi-Fi connection adaptor that provides voice

communication. Read this QIG carefully to learn how to operate this product and take advantage of its features.

Package Contents

When unpacking the phone, ensure all the following items are present and undamaged. If anything

appears to be missing or broken, contact your dealer for a replacement.

1. Base Unit

2. AC Adaptor

3. Line Cable

4. Quick Installation Guide (This document)

2 Product Description

The following contains important information to help you familiarize with the functions of the phone.

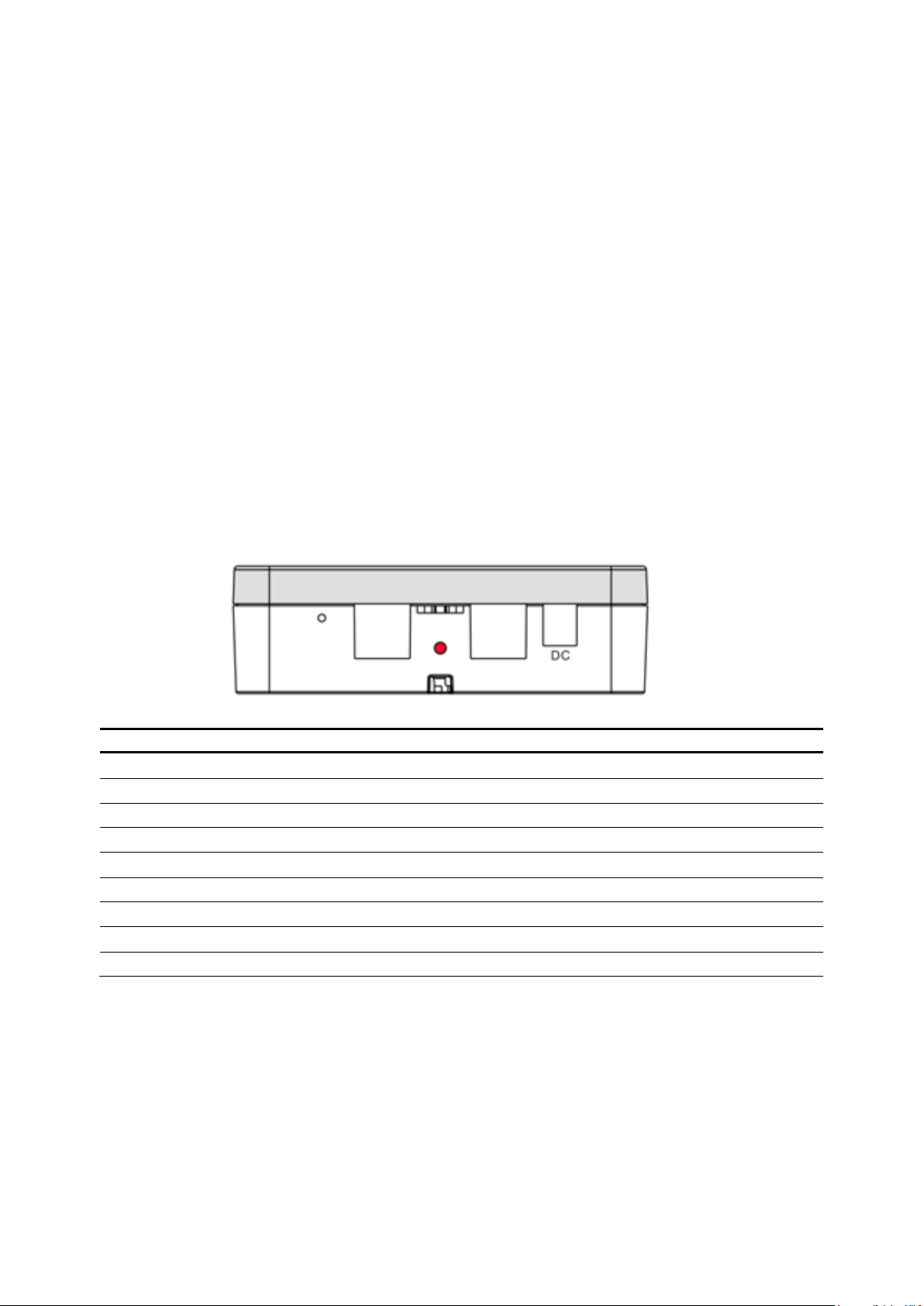

Back View

Name

Description

Setting Button

To rest device to factory default or change device connecting mode.

Line in

Connects to line cord.

Line out

Connects to existing analog phone.

DC Power jack

Connects to AC power adapter.

Status LED

Off

Device is connected to a AP

Red

Device is NOT connected to a AP

Green

Device is in AP mode or under Wi-Fi Sync

Blinking Green

Device is under factory resetting

Setting

Button

Line in

Line out

Status LED

3. Installation

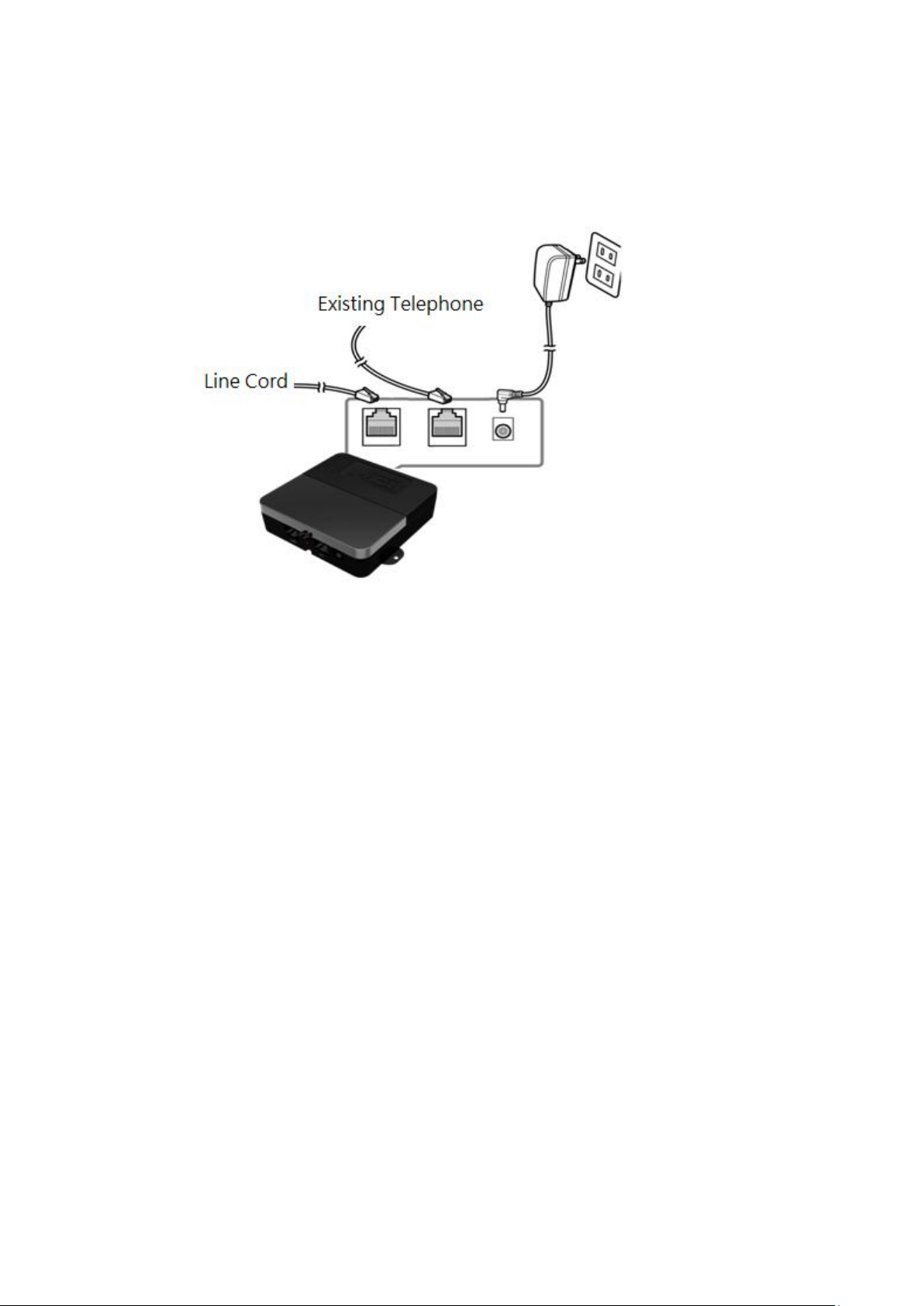

The following illustration shows how to install the phone on the wall.

1. Setup 1st BYOD Master:

A. Web setup: Please use Firefox as the browser.

(i) Boot the BYOD Master to AP mode. Press the setting button and power on the 1st BYOD Master,

till the status LED light up in green, the BYOD Master is in AP mode.

(ii) Use a PC to scan and connect to the BYOD Master by the SSID: ”ADB8000” and Password

“ADB8000123”

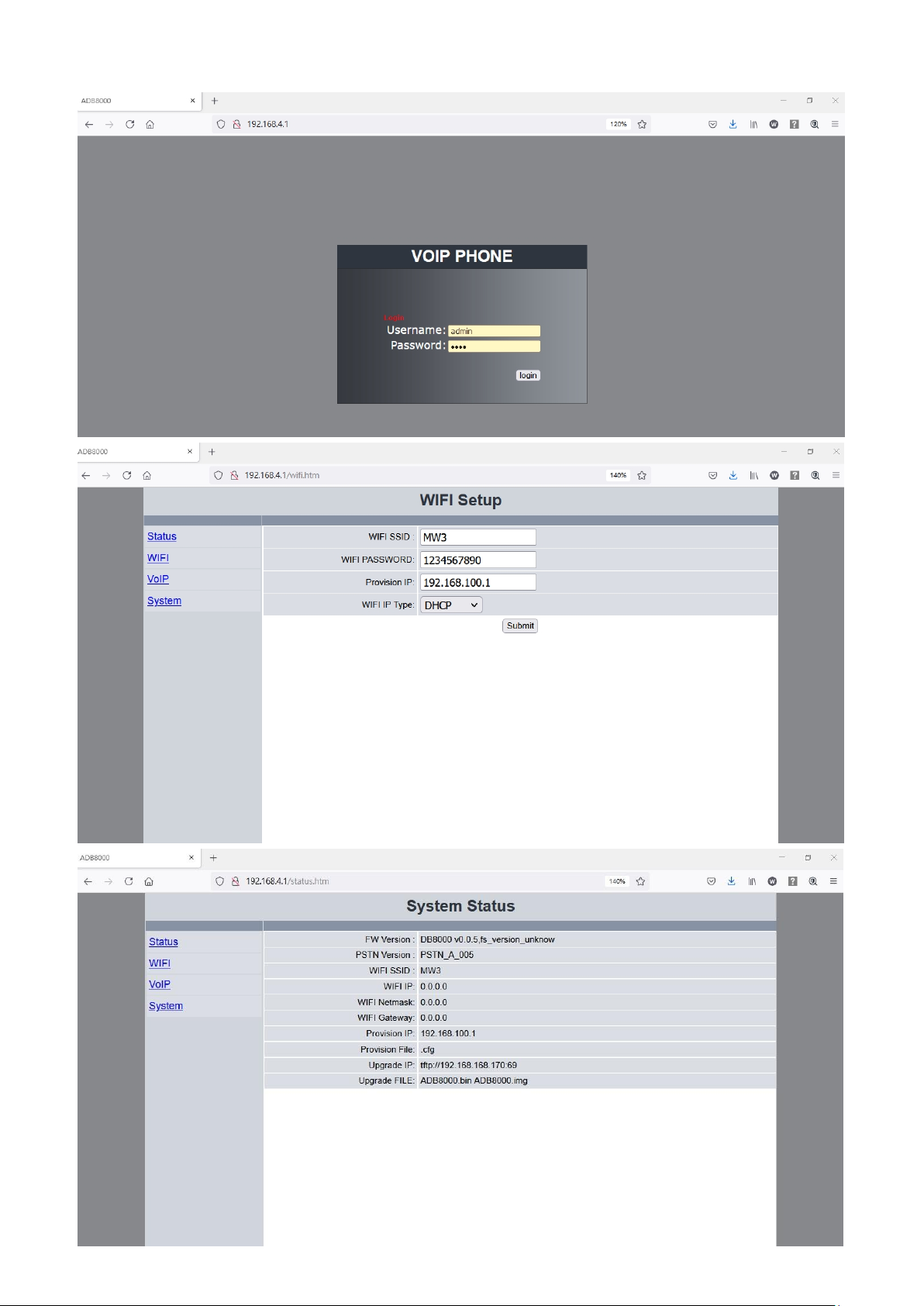

(iii) The PC will get its IP address as “192.168.4.x”. Open a browser (Firefox suggested) and enter

the web address “192.168.4.1” to access web interface of BYOD Master

(iv) Basic setup:

(a) Input the SSID/password of destination access point and the TFTP provision server IP

address.

(b) Remove and plug in the power jack to reboot the BYOD Master.

Master will retrieve the corresponding provision file.

B. 1st BYOD Master provisioning

(i) BYOD Master will download the provision file through specified TFTP server. Please prepare

and setup the TFTP server and provision file prior to provisioning.

(ii) The provision filename is defined as the “MAC address.cfg”. For example - “000e43d30001.cfg”.

2. Setup 2nd and other BYOD Masters

A. Boot the 1st BYOD Master to AP mode: Press the setting button and power on the 1st BYOD Master.

When status LED lights up in green, the 1st BYOD Master is in AP mode.

B. Power on the 2nd BYOD Master, and the status LED of the 2nd BYOD Master would lights up in red.

Press and hole the setting button (5 seconds) till the status LED lights up in green. The 2nd BYOD

Master will perform will perform the Wi-Fi sync. (If the destination access point SSID field was

specified, the 2nd BYOD Master will be factory reset.)

C. Wi-Fi Sync

(i) The 2nd BYOD Master will connect to 1st BYOD Master and synchronize the Wi-Fi

SSID/Password of destination access point and the provision server IP address with the 1st

BYOD Master. The 2nd BYOD Master will reboot after the synchronization is completed.

(ii) After rebooting, the 2nd BYOD Master will link to specified access point and download the

provision file from TFTP server.

3. Factory default reset

User can remove all data by resetting a BYOD Master to factory default.

Boot the BYOD Master. Press and hold the setting button (5 seconds) till the LED is in green to perform

factory reset.

4 Support

For technological support, please email to support@aeicommunication.com.
