AeroPlus Sbach 342 Manuale utente

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Sbach34260”manual



ItemNo：A‐E070002

Specifications

WingSpan  60"(1520mm)

Length  58.5"(1490mm)

WingArea 738sq.in.(47.6sq.dm.)

FlyingWeight 5‐5.5lbs(2300‐2500g)

Glow  Glow:.46‐.522C.52‐.824C

Electric  Brushlessoutrunner8Oz.

PROP  APC16x10E‐17x8E

LI‐POLY  5‐6S3800‐5000mAh

Radio  4CH/5Sor4s1ESC（70A)



Description

CarbonFibre:Wingtube,tailgear;

Fiberglassservoarmsandhorn;

Lightweightwheels

ball‐linkhardware

PoweredbyElectricorGlow



Colourscheme



 

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Unpacking



Carefullyunpackthemodelmakingsurethatifyouuseasharpknifetoopenbags,nottocutanycoveringonthe

model.Inspecteachitemtomakesurenotransitdamagehashappened.Ifyouarenothappywithanypartor

areunsurepleasecontacttheDealerthatyoupurchasedfrom.



Covering



Duetothemodelspendingtimeindifferentclimateszonesfromthefactoryonitswaytoyou,someofthe

coveringmayhavewrinkles.Wehighlyrecommendthatyoutaketimetore‐sealallcoveringedgeswithaniron

andtouseaheatguntoremoveanywrinklesandre‐tightenthecovering.Itisbesttodothisnowwhiletheplane

isnotassembled,remembertonotletanyheatgetnearanypartslikethecanopyorcowlasthismaycause

damage.



AssemblyTips



Wealsorecommendthatyougooveralltheaccessiblejointswithcyanoglue.Wickglueintoareasofhighstress

aroundtheU/Cplateandmotorbox.



UseNutlockonallmetaltometaljoints.Evenifyouareusingelectricwithlowvibrationlevelsitwillmakesure

thatthingsdonotdropoffyourairplane!!



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



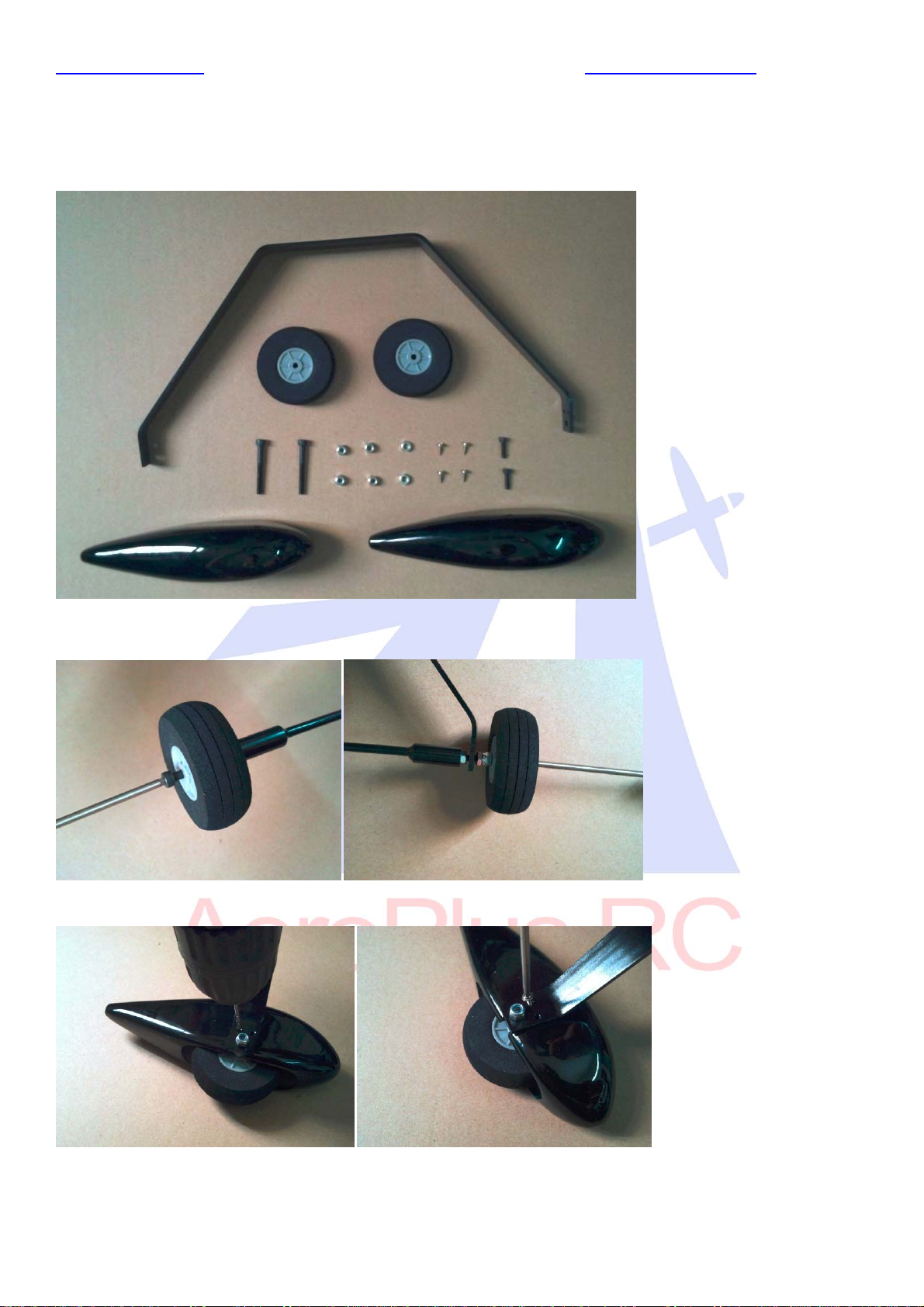

LandingGearAssembly



Tostopthefuselagegettingdamagedwhilethemodelisassembledwerecommendfittingthelandinggearfirst.



Pusheachaxlethroughthewhellholes,andtightenupwith1xselflockingnutand1xblindnut.Thenaxlethoughtheholeoflandinggear,and

tightenupwith1xselflockingnut



 



TheU/Crakesforwardsousethecorrectwheelpantperside,andusingafinedrill,drillholesforthescrews.

 



Nowlineupthewheelinthecentreofthewheelpantopeningandtightenthecollets.Remembertousenutlockandtomakesurethewheelcan

movefreely.

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



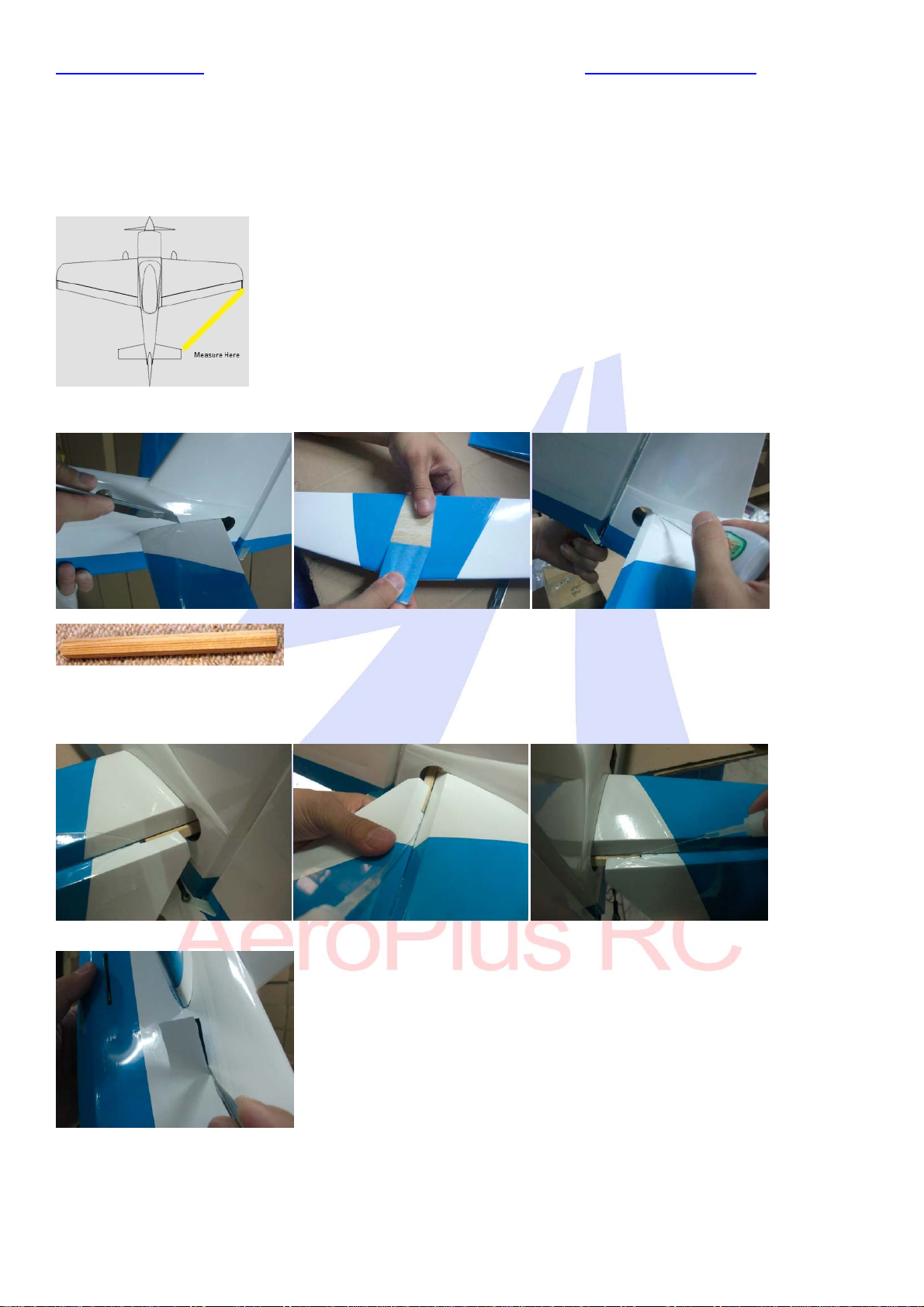

RearStab

Removetheelevatorsandhingesfromtherearstabandplaceitintheopening.

Itisimportantthatcareistakenwhenaligningtherearstab.Measureeachsidetomakesurethatanequalamountshowsoneachside.

FittheCFwingtubeandlookingfromthefrontandbackcheckthattheelevatorplateisinhorizontalalignmenttotherearstab.Ifitisnotthentrim

theopeningsothatitisequal.

Fitthewingsandmeasurefromtheendofthewingtotheelevatorstabtomakesurethatbothsidesareequal



Glueing–Onceyouthinkyouarereadytoglue,measureagain.Werecommend2methodsforgluing.Eitherremovethecoveringontheareathatis

coveredbythefuselageandgluewithCAorleavethecoveringonandgluewiththincyno.Wickinginthinfirst,ifalargegapisvisiblethenuse

mediumorthick.Remembertowickinsmallamountsatatimekeepingtheplanelevel,thiswillensurethegluestayswhereitneedstobe.

  

Dependingonifyouarefitting1or2elevatorservo’syoumayneedtofittheelevatorjoiningbar.



Gluethejoinerbarinto1oftheelevatorhalveswithepoxy.

Nowwecanhingeoneoftheelevatorswiththejoinerbargluedin.

Apply‘vaseline’tothehingepointonthehingesandtogluetheseintotheboththestabandelevatorhalf.Wipeoffexcessgluebeforeitsets.

Dryfittheotherelevatorhalfwiththehingesandmakesurethatbothhalvesaligntothestab.Trimwherethejoinerbarsitsifrequired.

Gluethehingesinbothstabandelevatoragain.Whilegluingusetapetokeepitinalignment

  



Removethecoveringfortheelevatorservo



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Removethecoveringwheretheelevatorhornsfit,useeitherasolderingironorasharpknife.



Theareaonthehornsthatgoesinsidetheelevatorneedstoberoughedupwithsandpaper.Thisallowsabettergluejoint.



Gluethehornsinplacewithepoxyglue.Putaboltthroughtheballjointholetomakesurethatthehornsstayinalignmentwhiledrying.

Beforefittingtheelevatorservofixanextensionleadsothatthewirecanberoutedthroughthefuselage.Ontheservoleadjointaddaservoplug

clip.



FittheElevatorServoservoandusingafinedrill,drillholesfortheservoscrews.Removetheservoanddropthincynointoall4holes.



Re‐fittheelevatorservoandsecureitinwithservoscrews.

CentretheservousingyourTX,andfitaservoarm.Useeitheranaftermarketarmorattachthearmsthatweresuppliedtoaservohead.Screwball

jointsontothepushrod(useplierstoholdpushrod)andboltinplacewithsuppliedbolts.Centreofservoshouldalignwithelevatorflattothestab.

 

Ifyouareusingdualelevatorservosthenrepeattheprocessontheotherside.



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Rudder

Removethecoveringwheretherudderhornspushthroughwitheitheraknifeorsolderingiron.



Testfittherudderhorns

 

Sandtheareaonthehornthatfitsinsidetheruddersothegluebondsbetter



GluetherudderhingesintoboththerudderandfinusingCA.Remembertousevaselineonthehingejoint.Whiledryingusetapetokeepitin

alignment.

 

GluetherudderhornsthroughtherudderwithCA.Usetheballjointandboltwhilegluingtomaintainalignment.



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Assembletherudderservocontrolarmasbelow,drillholesforscrewsandusecynotostopthenutsfromcomingloose.

 

Fittherudderservoanddrillholesusingafinedrillfortheservoscrews,dropthincynointotheholestostrengthenthewood.

 

Usingservoscrewsfixtheservoinplace,notethesplineistowardsthefrontoftheplane



Theclosedloopwiresareassembledintheplane;attachtherearballjointstotherudder.Dothistobothsides.



Fitthearmontotherudderservoandcrimpthewirestoatauttension

  



TailGear



Locateallpartsasinpicture,whenassemblingremembertonutlockallparts



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



AssembletheGearasperphoto



Attherearofthefuselageyouwillfindaplywoodarea,laytheCFgearonthisandmarkthe3holes.Takingcaretomakesureitisstraight.

Drilleachholewithafinedrillanddropthincynointotheholestostrengthenthewood.

 



Screwthegearonwiththethreesuppliedselftapingscrews.



Drillaholeinthebaseoftherudderfortheruddersteeringguide.



Beforegluingwithcyano,placeitoverthethinrod.

 



AileronServos

Theaileronsonthewingsarepre‐glued.Checkeachonebygentlypullingtomakesurethattheyaresecure

Removethecoveringwheretheaileronhornsaregluedinplace.Useeitherasolderingironorasharpknife

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Usingsandpaperroughtheareathatwillbegluedintotheaileron.



Gluebothhornsinwithepoxyglue,useaboltthroughthehornswhengluingtomakesurethealignmentiscorrect.



Fittheaileronservoanddrillfineholeswheretheservoscrewswillfit.



Ifrequiredinstallaservoextensionleadontotheservo,remembertouseaservoplugclip.



Fittheservoandcentretheservoarm.



www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Usingthepushrodsuppliedscrewballjointsontoeachend.Thecorrectlengthwillleavetheaileronlineduptotheinnerpartstillattachedtothe

wing.


