AeroWorks STINGRAY Guida

ASSEMBLY MANUAL

AND USER GUIDE

STINGRAY

By 3D AEROWORKS

OVERVIEW:

This custom design of a high speed futuristic fighter is designed for quick and easy

construction printed in PLA. For best results the canopy should be printed with clear PLA and

the motor mount and propeller assembly in regular PLA or PETG. Designed to suit the 2826

2200kv outrunner on a 5x5 propeller. Utilising only ailerons and elevator, this model performs

high speed and aerobatic flight extremely well. Links to components used can be found on

the last page of the user guide.

This model has taken many hours of hard work and testing in order to provide a nice flying

aircraft. Please do not share it. Please show your appreciation by directing interested parties

to the link below.

https://cults3d.com/en/3d-model/various/stingray-800mm-pusher

GENERAL SPECIFICATIONS

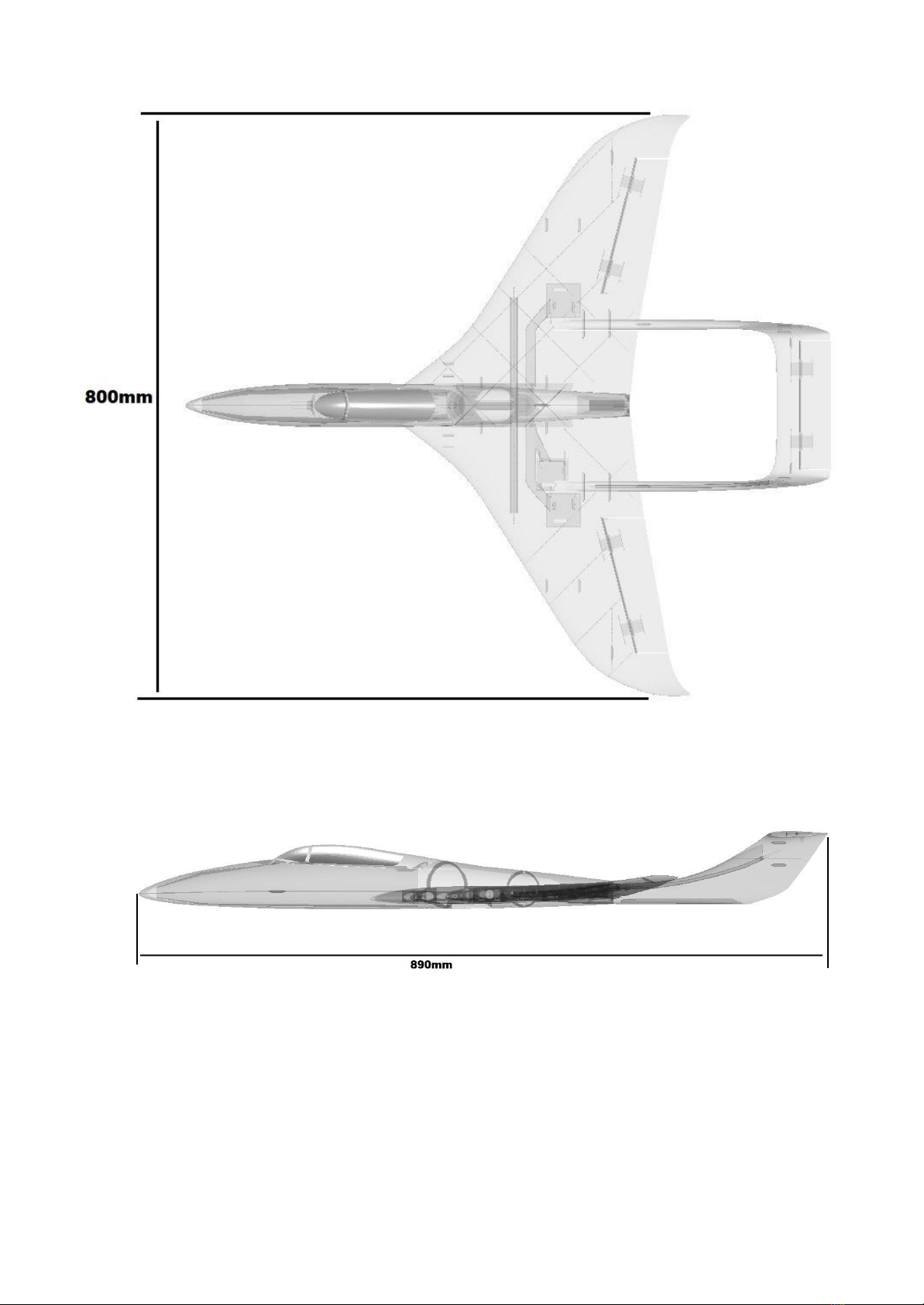

WINGSPAN: 800mm

PRINT TIME: 55 hrs

PRINT COST: $10 USD

PRINT WEIGHT: 450g

FLYING WEIGHT: 800g

ELECTRICS

MOTOR: 2826 2200KV or (2836 2500kv high power)

ESC: 30amp

SERVOS: 9g MICRO

BATTERY: 2200mah 3s (or similar)

INCLUDED:

STL FILES OF ALL COMPONENTS (scale to 1000% if not using S3D)

FACTORY FILES FOR (S3D) SIMPLIFY 3D FOR PRINTERS: 200x200200

REQUIRED TOOLS:

KNIFE

LIGHTER

SANDPAPER (MEDIUM GRIT 320 recommended)

PLIERS

CA GLUE

SCREW DRIVERS

FILE OR RASP

REQUIRED COMPONENTS:

X1 2826 2200KV MOTOR (or similar)

X1 30AMP ESC

X1 2200MAH 3S LIPO OR SIMILAR

X2 9G SERVO

BAMBOO SKEWERS 3MM

X2 10mm X 10mm X 2mm MAGNET (ROUND)

X4 16mm x 29mm HINGES

VELCRO

X1 10mm x 8mm x 300mm carbon tube or pine rod (OPTIONAL)

M2 x10mm screws

1mm piano wire

ASSEMBLY INSTRUCTIONS

1

All faces which are to be glued to other parts need to be given a light sanding (scuff the

surface) to assist with glue adhesion.

2

Check the fitment of all parts before gluing to make sure a good bond takes place. There

should not be any gaps visible in the joins.

Glue sections of the fuselage together using CA glue. (see images)

3

Remove the servo tunnel access in the fuselage section. (highlighted red)

4

Cut two 10mm-15mm sections of food skewer. Insert into the “Boom 1” sections and glue the

“boom 2” sections in place as shown.

5

Do the same for connecting “Boom 3” to “Boom 2” as shown.

6

Fit the elevator to the horizontal stabiliser and connect the stabiliser to each side of the

booms.

IMPORTANT! Only 2 small drops of CA is needed for each slot for the hinges. Too much CA

and the hinge will bind and be unusable.

TIP: After adding the CA, use a tissue to wipe away the excess.

7

Connect the front and rear wing sections using 3mm skewer.

8

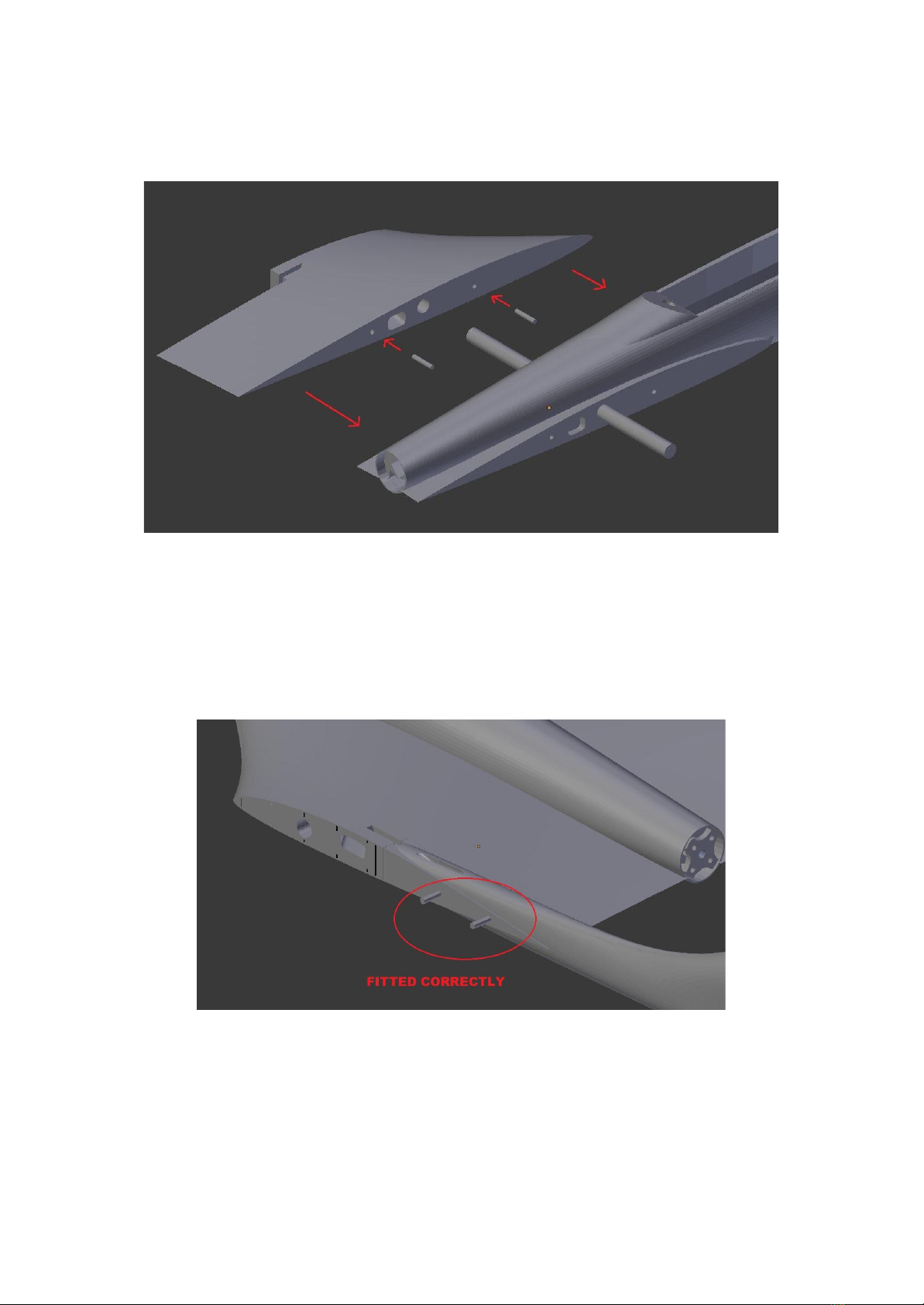

Insert the main spar through the fuselage.

9

Fit small sections of 3mm skewer into the inner section of both wings. Align these tabs with

the holes in the fuselage as the wings are glued to the fuselage.

10

Cut four 35mm lengths of 3mm skewer and pin the tail boom to the aft section of the inner

wings. The pins will protrude from the booms as they also align the middle wing section and

hold the boom in place. Glue around the boom to secure it in place.
