Aerpro FP8435 Manuale utente
DoubleDIN Fitting Kit Installation Manual
1
Part Number. Colour
FP8435 black
FP8436 pianoblack
VW up!2011-2016*
pos. designation
(1) facia plate
(2) mountingbracket right
(3) mountingbracket left
(4) mounting frame
(5) facia climate control
(6) connection piece ahead
(7) template
(8) mountingbracket complete
(9) washer
(10) flat-head screw (M5x8)
(11) self-tappingscrew with collar
1
4
5
2
3
10
8
9
10
10
11
10
6
7
* Only for models with manualair conditioning and glove box
2
OEM dashboardSEAT Mii/SKODA CITIGO /VW up!with manualair conditioning

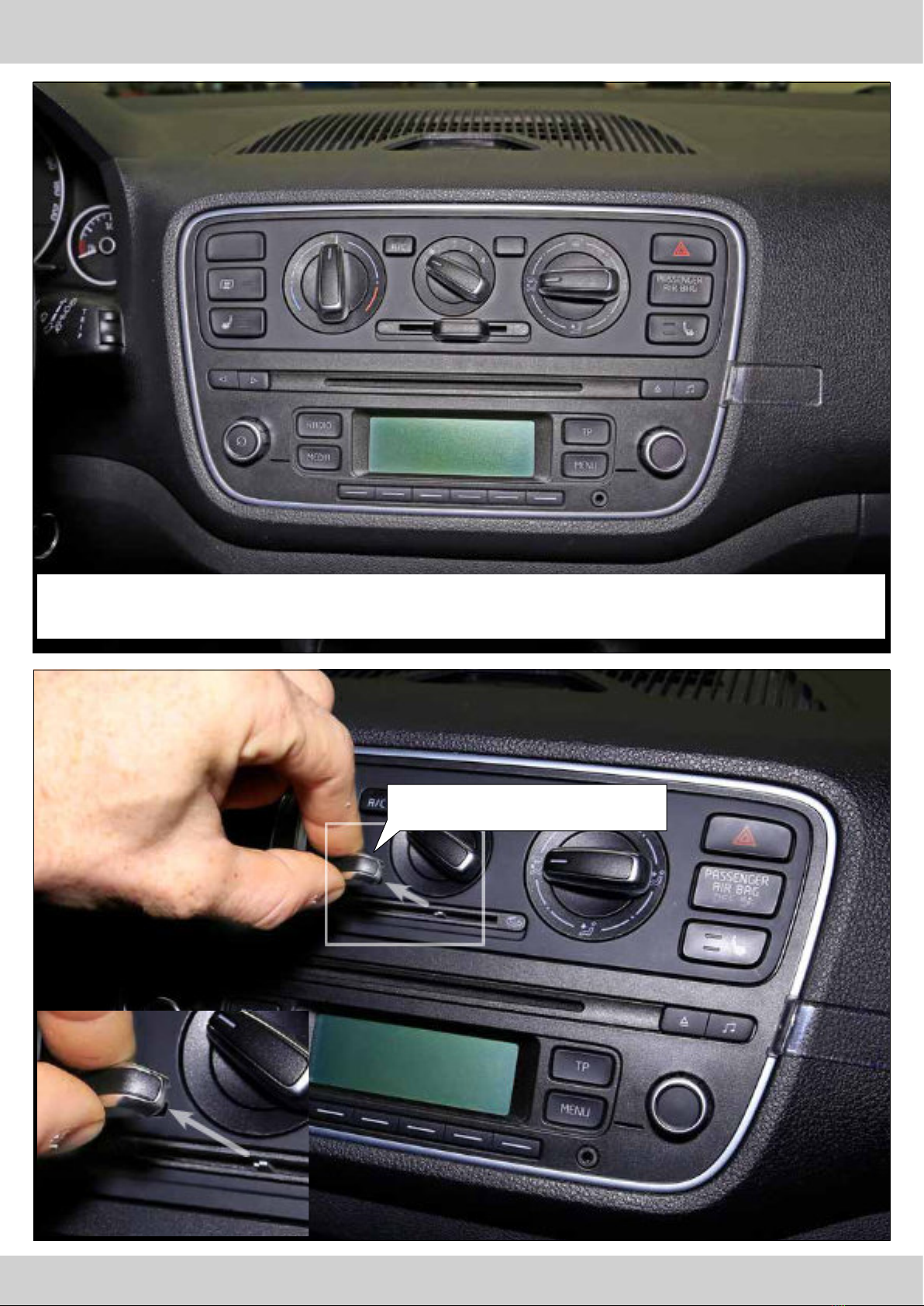

Pull off the circulatingairswitch
3
Unclip panel
Remove panel
4
Remove 4 TX20 screws (screws willbe requiredforreassembly)
Place tworeleasekeys
into the providedslots
5
Partially removethe OEM head
unit fromthe dashboard
6
Disconnect the switch panel
7
Fully removethe OEMhead
unit fromthe dashboard
Disconnect the switch panel
8
Disconnect allwiringfrom
the OEM head unit
Disconnect allwiringfrom
the OEM head unit
9
10

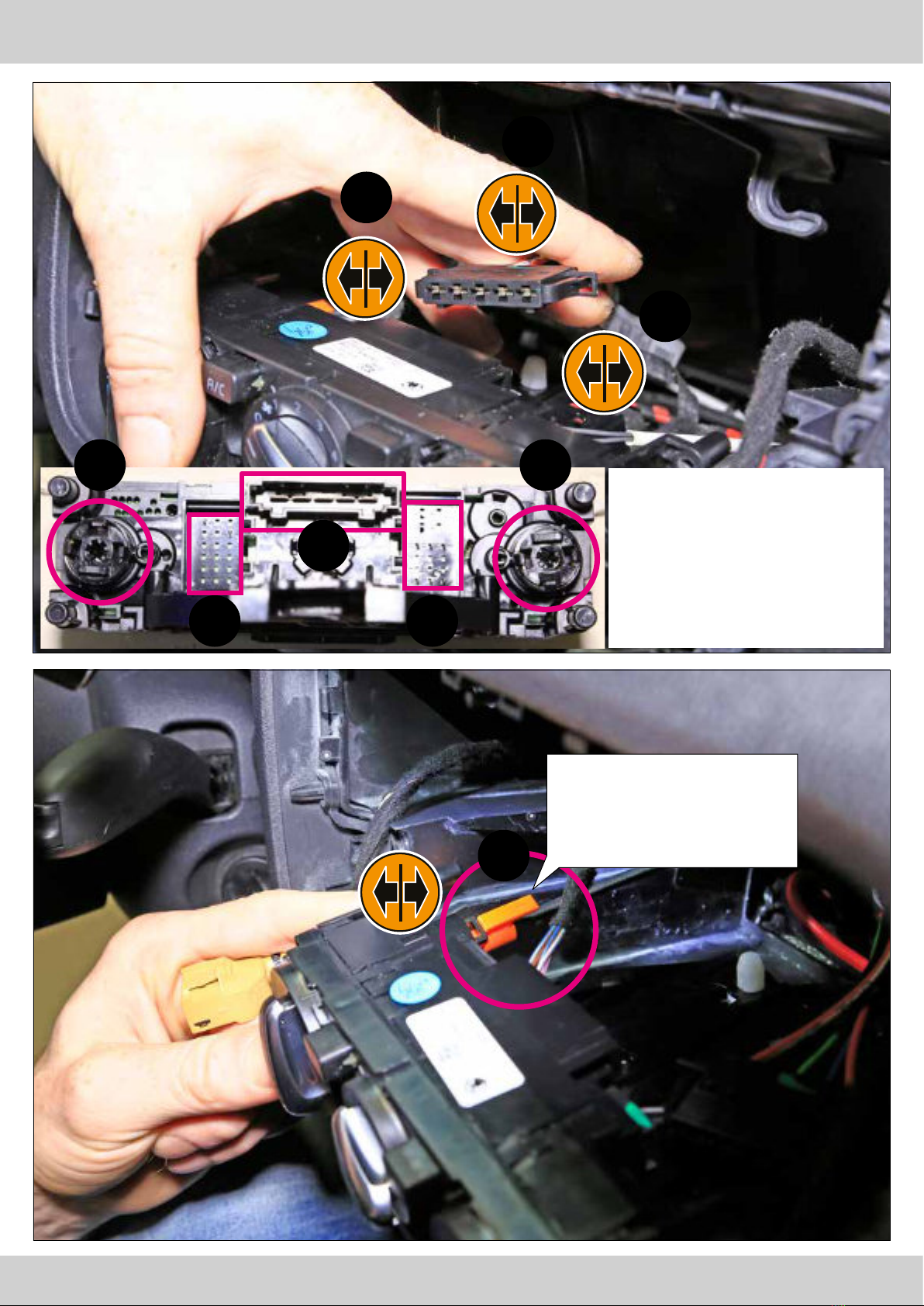

Pull 3 plugsand2 Bowden
cables out ofthe air
conditioningcontrol panel
Pull the Bowdencable out of
the airconditioningcontrol
unit
A
1
1
2
A
C
C
B
B
