OPERATING INSTRUCTIONS

#9700 EnerPlex

Power Center

AERVOE INDUSTRIES, INC.

Gardnerville, NV 89410 • 1-800-227-0196

www.aervoe.com • mailbox@aervoe.com

97000inst; cs05/18

TABLE OF CONTENTS Page No.

Important Warnings & Safeguards 2

FCC Requirements 3

Parts Identiﬁcation 4

Set-Up Instructions 7

Charging & Storage 7

Using Power 8

Shutdown & Storage 10

Frequently Asked Questions 10

Care & Maintenance 10

Troubleshooting 11

Speciﬁcations 12

Typical Charging Times 13

Typical Operating Times 13

Warranty 14

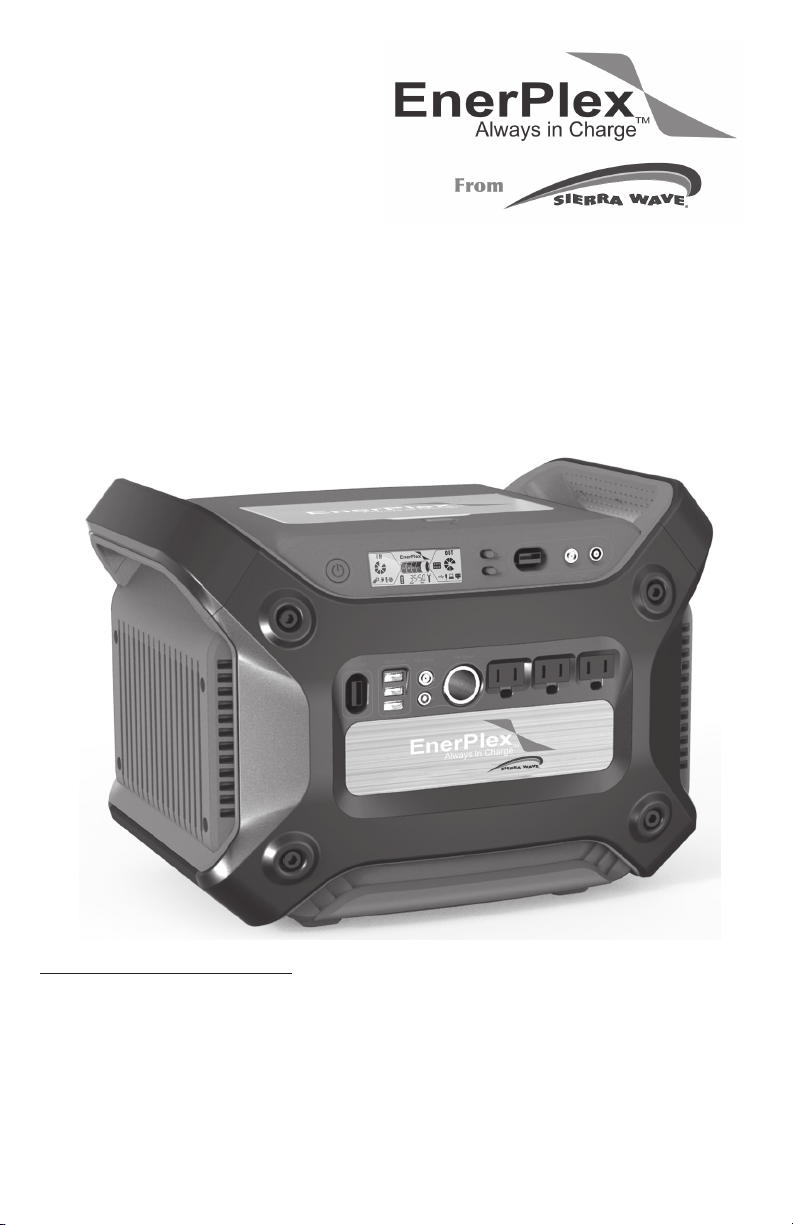

#9700 SIERRA WAVE ENERPLEX POWER CENTER

EnerPlex Power Center by Sierra Wave is a reliable, portable energy source for times when standard

120V AC or 12V DC power is not available. Use it to operate your appliances when the power is out,

tools on the job, lighting while camping, or any time power is needed in a remote location. Unlike

gasoline generators, the EnerPlex Power Center doesn’t emit carbon monoxide and is completely silent

which makes it safe and convenient to use indoors.

The EnerPlex Power Center is equipped with a high-capacity 1200 watt-hour Samsung NMC lithium

battery for safe, reliable operation. It also includes a 1000-watt pure sine wave inverter to power AC

devices. The unit may be charged in 3 different ways and can be done while you operate your devices.

1. 120V AC (wall charger included)

2. 12V DC vehicle power (12V DC charger included)

3. Solar charging (sold separately) using either Sierra Wave #9680 80-watt or #9690 120-

watt Solar Panel or other compatible panels.

Multiple power outputs for devices.

1. 120V AC, 10A

2. 12V DC, 10A

3. 5V USB, 2.4A

4. 19V Laptop, 6.3A

IMPORTANT WARNINGS & SAFEGUARDS

1. Read all instructions thoroughly before operating this unit to avoid injury to self or property and

to avoid damaging the unit. Keep instructions handy for reference during use.

2. STOP! Charge the internal battery before using for the ﬁrst time. See charging information

below.

3. WARNING: Do not disassemble unit. There are no user serviceable parts. Contact Aervoe

Industries, Inc. at 800-227-0196 for all repairs. Failure to do so can cause injury and voids the

warranty.

ENERGIZED EQUIPMENT - ELECTRICAL SHOCK & EXPLOSION HAZARDS

GENERATES LETHAL VOLTAGES

• Do not submerge in liquid or operate in wet environments. Device is not waterproof

or water resistant. Operate in dry environments only. Failure to do so could cause

injury and damage the unit.

• Do not operate in ﬂammable or explosive environments

• Do not operate if the unit is damaged in any way including loose electronics or if

charging cords are frayed and wires are exposed.

• Do not plug inverter 120V AC outlets into external 120V AC outlets of any kind

• Do not place foreign objects inside the power outlets

• Do not use any AC powered devices over 1200W (10A) for risk of damage to the

batteries or inverter

• Monitor battery regularly during charging

• Consult your physician before using with CPAP devices or other non-life support

medical equipment

• Do not block the air inlets or vents

• Do not replace fuses with larger amperage values. Use only speciﬁed fuses.

• Not recommended for use or storage below 14º (-10ºC) or above 120ºF (49ºC).

• Place out of direct sunlight to prevent overheating.

• Administer close supervision when operating around children

DANGER: Contains lithium high-energy batteries. Follow all precautions to prevent injury, property

damage and ﬁre at all times during storage and operation.

• Keep away from sparks, open ﬂames and heat sources

• Do not drop, puncture or incinerate

• Stop use immediately if you notice a leak or damage to the battery or unit. If it

malfunctions, contact Customer Service at 800-227-0196.

• Battery SDS is available online at www.aervoe.com

• Follow your local battery disposal regulations

Battery SDS is available online at www.aervoe.com.

FCC REQUIREMENTS

Warning: Changes or modiﬁcations to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

• Consult the dealer or an experienced radio/TV technician for help

Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

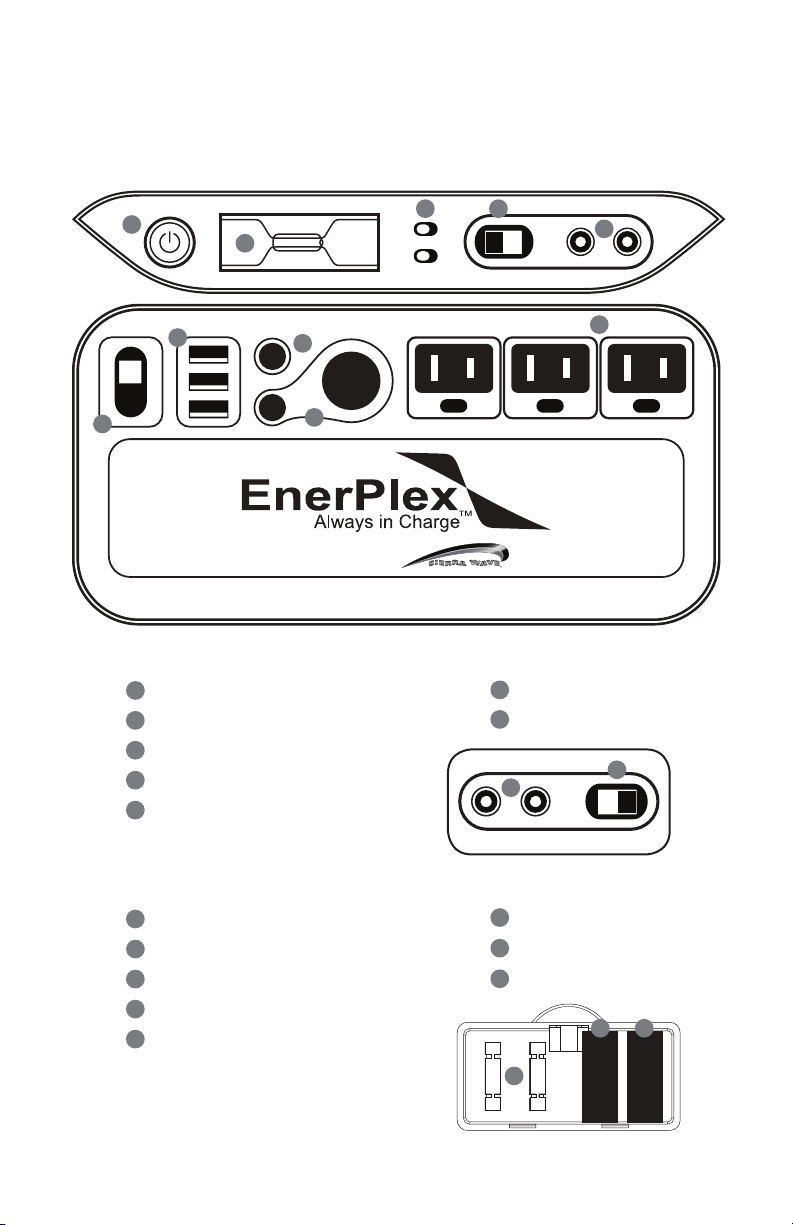

PARTS IDENTIFICATION

110V-AC OUTLETS12V Output12V OutputsUSB Outputs 19V Outputs

POWER 12V DC Inputs

OFF ON/DC

OFF ON/AC

Power Button

LCD Display

AC/DC ON/OFF Switches

Anderson DC Input

7.4mm DC Inputs

Anderson DC Output

3 USB Outputs

19V DC Laptop Output

3 AC Outlets

12V Outputs

(barrel port & 6.5 x 3mm port)

FRONT INPUT BACK INPUT

FRONT OUTPUT FUSE COMPARTMENT

7.4mm DC Inputs

35 Amp ATO Fuse

Anderson DC Input

15 Amp ATO Fuse

Spare Fuse Holder

M N

LCD Display

12V DC Inputs

INPUT & OUTPUT IDENTIFICATION

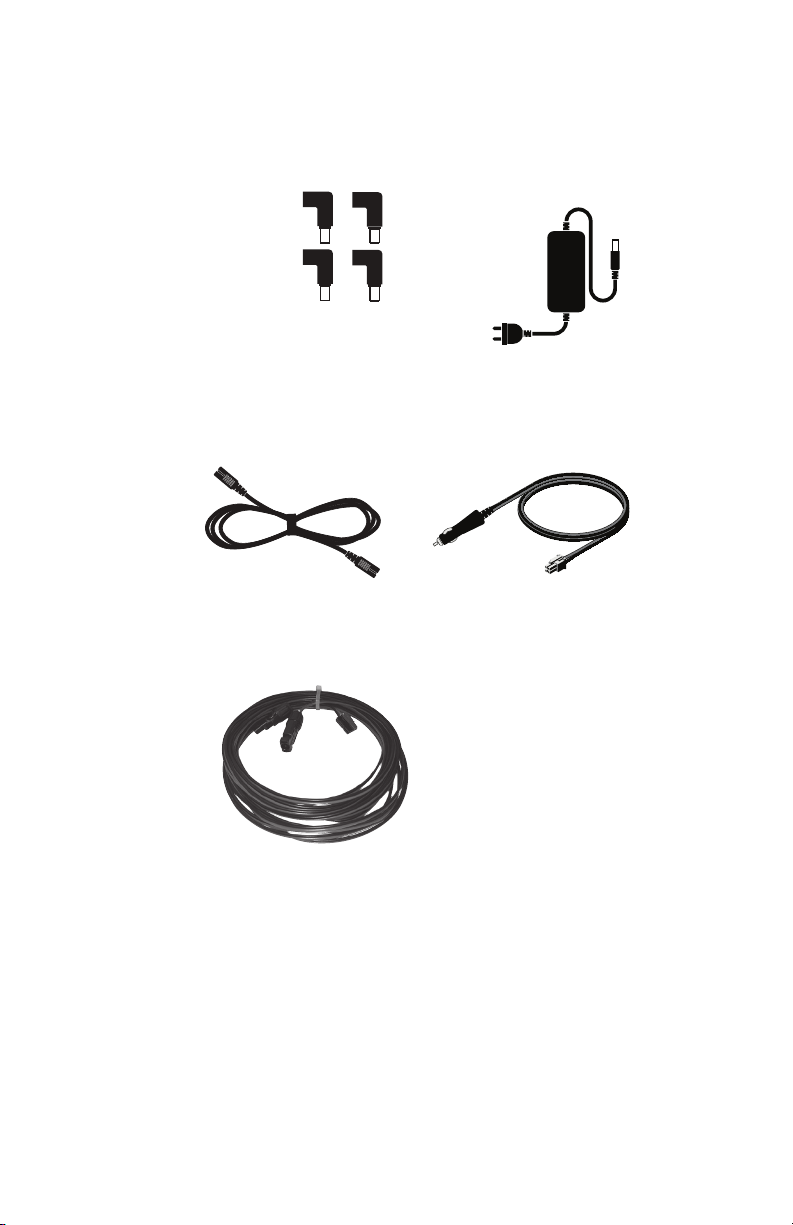

ACCESSORIES

M20 Tip for HP

M11 for Thinkpad

M20 Tip for HP

M9 Tip for Dell

M11 for Thinkpad

M20 Tip for HP

M9 Tip for Dell

M11 for Thinkpad

M9 Tip

for Dell

Use the corresponding tips with the laptop tip cable

to charge your laptop from the 19V output on the

front of the Generatr

M9 Tip

for Generatr

M20 Tip

for HP

M11 Tip

for Thinkpad

110V AC Wall Adapter

Laptop Tip Cable 12V to Anderson Cable

#9504 30 ft. Solar Connecton Cable

MC4 to Anderson

(sold separately)

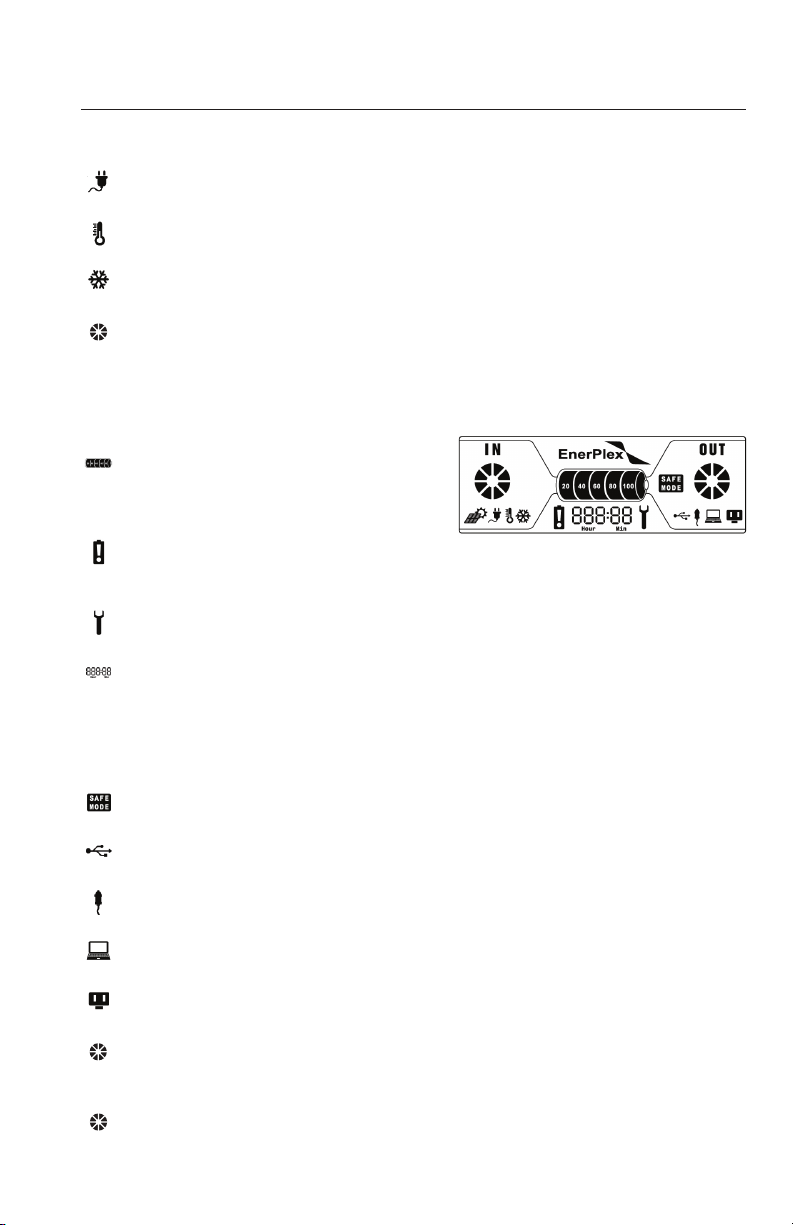

LCD Screen Information

OUT

Inputs

Wall Outlet Input

Icon will illuminate when charging from a wall outlet.

High Temp Alarm

The internal temperature is too warm, move to a cool location.

Low Temp Alarm

The internal temperature is too cool, move to a warm location.

Input Activated (when spinning)

When the Input Indicator is spinning, the unit is charging from one of its inputs.

Battery

Battery Level Indicator

• All segments lit = Battery full

• No segments lit = Battery empty

• Flashing segments = charging level

Battery Alarm

The unit is malfunctioning, disconnect all loads and reset the unit by

powering it off.

Repair Indicator

Requires repair, contact Aervoe Industries, Inc. for assistance.

Numeric Display

Shows the approximate hours and minutes left at the current discharge rate.

Outputs

Half Power Output

The unit has entered Safe Mode, disconnect all loads and reset by powering it off.

USB Output

Icon will illuminate when the unit is powered on.

12V Output

Icon will illuminate when the unitis powered on and DC switch is ON.

19V / Laptop Output

Icon will illuminate when the unit is powered on and DC switch is ON.

110V Output

Icon will illuminate when the unit is powered on and AC switch is ON.

Output Activated (when spinning)

When the Output Indicator is spinning, the unit is discharging from one of

its outputs.

Output Disabled (when blinking)

When the Output Indicator is blinking, the unit has disabled all outputs.

Refer to Troubleshooting for guidance.

SET-UP INSTRUCTIONS

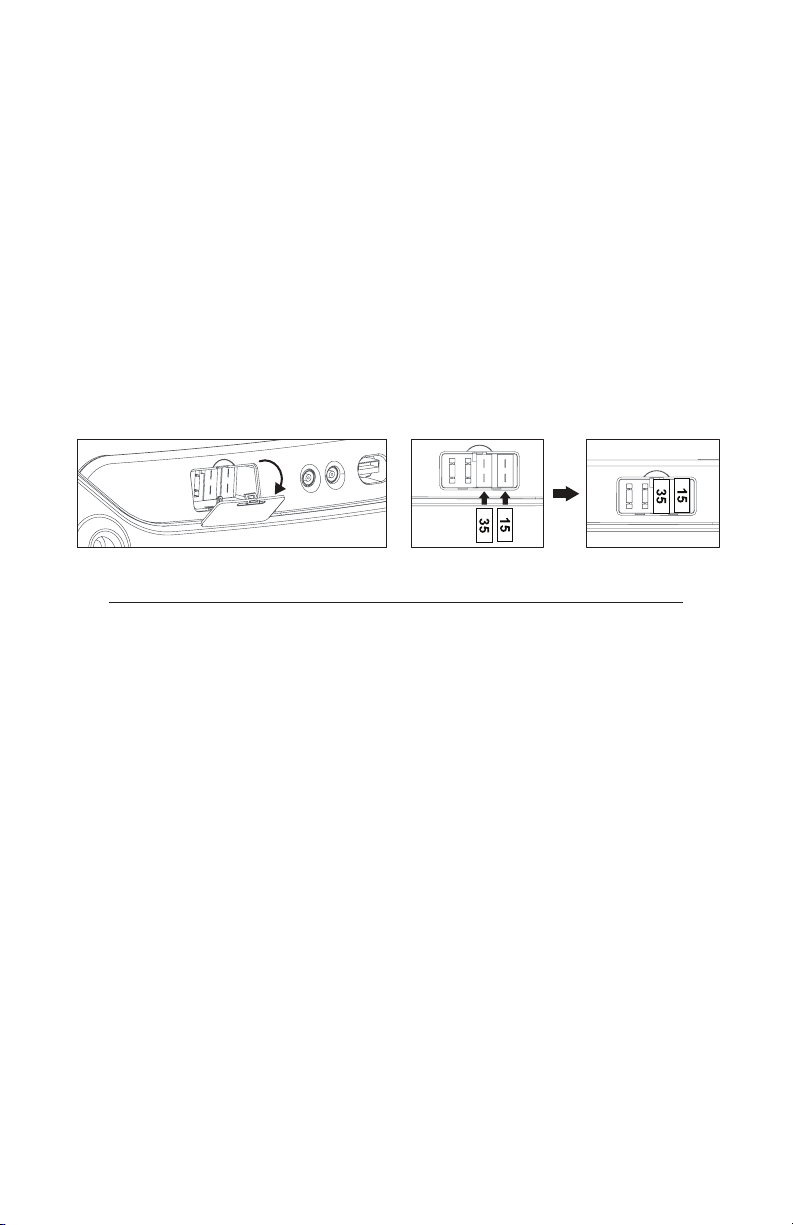

Fuse Installation (included) and Power Check

1. Make sure the unit is off and everything is unplugged.

2. Open the fuse compartment on the back of the unit.

3. Fuses are provided. Firmly insert the 15A fuse ﬁrst into the right slot and then the 35A fuse

into the left slot (see diagram). There may be a small spark when inserting the fuses. This

is normal as the electrical connection is now complete.

4. Close the compartment.

IMPORTANT: Incorrect placement may cause damage to the unit and not seating fuses

ﬁrmly can make the unit inoperable. Replacement fuses can be purchased at most

automotive retailers.

5. Verify the fuses are installed correctly by pressing the Power Button. The LCD Display will

turn on. Turn on the AC and DC switch, you should hear a beep and the cooling fan should

turn on. If nothing happens, remove the fuses and reinstall making sure they are in the

correct location. Replace the fuses if needed.

6. If the battery is too low these features may not activate. In either case, before using for the

ﬁrst time allow the unit to charge completely without any devices plugged into the outputs

(see CHARGING SECTION).

CHARGING & STORAGE

For maximum efﬁciency and battery life, fully charge before ﬁrst use and after each use. During long-

term storage, remove all cables and charge every 3 months. With routine charging the batteries will

maintain proper conditioning. Failure to do so can affect battery performance and life cycle.

Three methods of charging are available:

• 120V AC charger included

• 12V DC charger included

• Solar charging (Sierra Wave #9580 or #9690 Solar Collector is recommended. You will also

need #9504 30ft. Solar Charge Cable.)

Charging While Operating Devices

The Power Center allows you to use all outputs even while it is charging from any of the 3 listed

methods. IMPORTANT: If any output becomes disabled once the unit has been fully charged, simply

disconnect the charging method from the Power Center, operate your device for a few seconds, and

reconnect the charging method.

AC Charging (Only use the one included. Using other adapters can cause damage to the unit.)

Connect the AC plug into your 120V AC wall outlet and the other end with the 7.4 mm plug into 1 of

the 4 inputs (there are 2 on the front and 2 on the back).

The INPUT INDICATOR on the LCD screen will start spinning and the BATTERY INDICATOR will ﬂash

and show the current charge level. Once fully charged, the Battery Indicator will show 5 solid bars. The

LED indicator on the AC charger will also illuminate.

1. Disconnect the charger when ﬁnished.

2. Estimate 14-16 hours to fully charge the battery if the level is between 0-1 on the Battery

Indicator.

12V DC Vehicle Charging (Only use the 12V to Anderson cable included. Using other adapters can

cause damage to the unit.)

Charge the EnerPlex from any vehicle with a 12V power receptacle.

CAUTION: To prevent a dead vehicle battery, keep your vehicle running while charging.

1. Connect the DC plug into your 12V DC vehicle power receptacle and the red/black

Anderson connectors into 1 of the 2 inputs (there is one on the front and one on the back).

2. The INPUT INDICATOR on the LCD screen will start spinning and the BATTERY INDICATOR

will ﬂash and show the current charge level. Once fully charged, the Battery Indicator will

show 5 solid bars.

3. There is a replaceable protection fuse located inside of the 12V plug. Replace with a

250V/10A glass fuse if needed.

4. Disconnect the charger when ﬁnished.

5. Estimate 14-16 hours to fully charge the battery if the level is between 0-1 on the Battery

Indicator.

Solar Charging

This unit includes a built-in solar charge controller to prevent the internal battery from overcharging

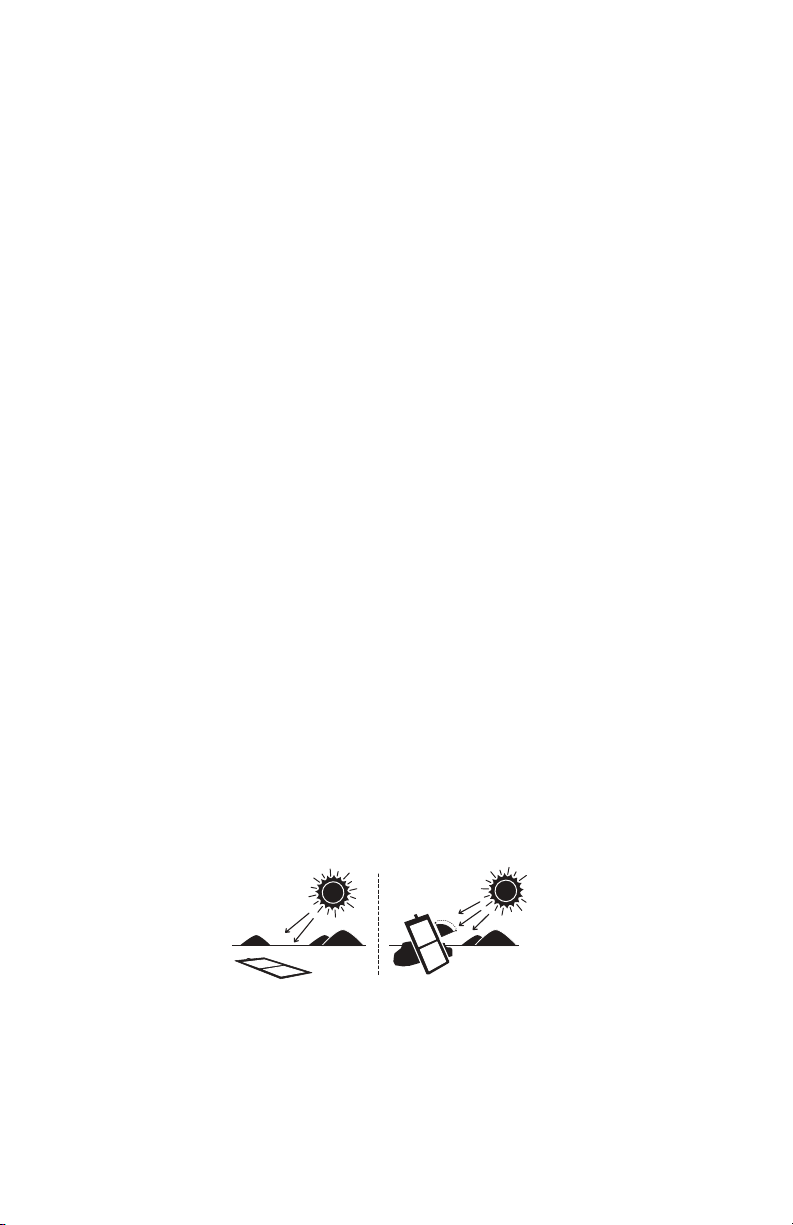

and maximize charging efﬁciency. Charging times are estimated based on ideal sunlight conditions. To

maximize, we recommend angling the solar panel toward the sun as shown.

These instructions are written for use with a Sierra Wave brand solar collector.

1. Read the operating instructions for your solar panel carefully prior to connecting to the

EnerPlex Power Center.

2. Place the solar panel in a sunny location, preferably facing southwest and in direct sunlight.

3. If possible, place the EnerPlex indoors or out of direct sunlight and use the long 30 ft.

charge cable to connect it to the solar panel.

4. Connect the MC4 +/- ends of the 30 ft. cable to the MC4 ends on the solar panel. Connect

the red/black Anderson ends of the cable into 1 of the 2 inputs (there is one on the front

and one on the back).

5. The INPUT INDICATOR on the LCD screen will start spinning and the BATTERY INDICATOR

will ﬂash and show the current charge level. Once fully charged, the Battery Indicator will

show 5 solid bars.

6. The EnerPlex power outputs may be used while it is being charged. This can help to

increase use time.

7. Disconnect the solar panel when ﬁnished.

8. Charging time will depend on the type and wattage of the solar panel and the amount of

sunlight hitting the panel. Estimate 14-16 hours to fully charge the battery when using the

Sierra Wave #9690 120W Solar Panel on a bright sunny day.

Solar charging times are estimates based on ideal sunlight conditions. To maximize

charging capabilities we recommend angling your solar panels toward the sun to

receive the most direct sunlight.

90°

Average Performance Best Performance

USING POWER

• Once fully charged, the unit is ready to be connected to your electrical devices using any of

the following power outputs. Additionally, the unit may be charged at the same time power

is used.

• Monitor the Battery Indicator in the LCD display for battery status. When the level drops

below 2 bars, stop using and recharge.

• If the battery level is fully discharged, the OUTPUT INDICATOR will ﬂash. At this time all

outputs will be disabled. Once battery level is sufﬁcient, they will function again.

• See troubleshooting section for other battery fault information.

CAUTION: DO NOT use with any life support system. Aervoe assumes no liability, written or implied,

when used with medical equipment.

AC Output – includes a pure sine wave inverter. Do not exceed 1000W or 9A total combined devices

usage.

1. Press the POWER BUTTON. The LCD display will turn on. Verify there is sufﬁcient battery

power to operate your device.

2. Move the AC Switch to the ON/AC position. The cooling fan and inverter should be heard.

3. Plug in your AC device to any of the 3 110V outlets and operate normally.

4. The 110V OUTPUT icon will show in the LCD Display and the OUTPUT ACTIVATED icon will

spin indicating power is being provided to your device.

DC Output

There are 3 types of 12V DC power outputs available. They may be used simultaneously if needed.

• 12V DC/10A barrel power port - standard vehicle power receptacle style

• 12V DC/10A 6.5mm x 3mm power port

• Anderson power port - for devices using Anderson red/black power pole connectors.

CAUTION: Do not confuse this output with the 12V DC charging inputs. Damage could

occur if power input was plugged into this port.

1. Press the POWER BUTTON. The LCD display will turn on. Verify there is sufﬁcient battery

power to operate your device.

2. Move the DC Switch to the ON/DC position.

3. Plug in your 12V device to any of the 3 12V DC outlets and operate normally.

4. The 12V OUTPUT icon will show in the LCD Display and the OUTPUT ACTIVATED icon will

spin indicating power is being provided to your device.

5V USB Output

There are 3, 5V/2.4A rated USB ports available. They may be used simultaneously if needed. All 3 have

the same rating, please disregard the printing for iPhone, General, and Galaxy under each port.

1. Press the POWER BUTTON. The LCD display will turn on. Verify there is sufﬁcient battery

power to operate your device.

2. Plug in your USB device to any of the 3 outlets and operate normally.

3. The USB OUTPUT icon will show in the LCD Display and the OUTPUT ACTIVATED icon will

spin indicating power is being provided to your device.

19V DC Laptop Power Output

Four popular laptop adapter tips and charging cord are included to connect your laptop to the EnerPlex

19V DC output port. If your laptop requires a different connector you can use your laptop’s AC power

cord plugged into the 110V AC output.

1. Press the POWER BUTTON. The LCD display will turn on. Verify there is sufﬁcient battery

power to operate your device.

2. Move the DC Switch to the ON/DC position.

3. Identify the correct adapter tip for your laptop and connect it to the charging cord and then

to your laptop. Plug the other end into the 19V DC output and operate or charge normally.

4. The LAPTOP OUTPUT icon will show in the LCD Display and the OUTPUT ACTIVATED icon

will spin indicating power is being provided to your device.

SHUTDOWN & STORAGE

• Disconnect all devices

• Turn off the AC and DC switches

• Press and hold the Power Button until the LCD display turns off

• To maintain battery life the unit should be charged every 3 months, even when not in use.

FREQUENTLY ASKED QUESTIONS

How often will I need to recharge?

All lithium-ion batteries will naturally lose charge over time. To ensure a healthy battery, recharge at

least every 3 months.

Can I replace the battery?

No. There are no user replaceable parts in this unit. Do not open the unit and attempt to replace the

battery or electronics under any circumstances. Injury, electric shock, and damage to the unit could

occur. Doing so will void the warranty If you have questions, please contact Aervoe Industries, Inc. at

800-227-0196.

Can I charge the EnerPlex while it is being used?

Yes, the power outputs can be used while you are simultaneously charging it. However, if the power

you’re drawing is more than the power going into it, the battery will slowly deplete. When the battery

is empty the outputs will become disabled. They will automatically function again when the battery

reaches 20%.

Can I charge it from any vehicle’s 12V power source (car, boat, RV)?

Yes, using the 12V charging feature is perfect for on-the-go charging. Use the 12V charger provided

with the unit. The vehicle should remain running while charging to prevent the vehicle battery from

going dead.

Can I operate multiple power outputs at the same time?

Yes, all of the power outputs can be used at the same time as long as the power requirements do not

exceed the speciﬁcation for each power port and the battery’s charge level is maintained.

How long will my unit operate my connected devices on a full charge?

This depends on many factors including the charge capacity of the EnerPlex battery and the power

draw from the devices operated. See examples provided below.

Indice

Altri manuali Aervoe Alimentazione elettrica

Aervoe

Aervoe SIERRA WAVE 9654 Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
