Quick Start Guide

NVIDIA Jetson Series System

Aetina AT017-XNX-EN70

Aetina AT017-NAO-EN70

Document Change History

- 2 -

Version

Date

Description

Authors

V1.0

2021/01/12

Initial Release.

Eric Chu

V1.1

2022/11/01

Initial Release.

Joann Tung

1. System Specification

- 3 -

Specification

AT017

-XNX-EN70 / AT017-NAO-EN70 Description

Module

AT017

-XNX-EN70

NVIDIA Xavier NX

AT017

-NAO-EN70

NVIDIA Jetson Nano

Dimension

120(W)

x 72.5(D) x 100(H) mm

Display

1 x HDMI

Audio

HDMI Integrated

Ethernet

1 x RJ45 GbE(10/100/1000)

USB

2 x USB3.2 Gen1 Type A

1 x USB Micro AB(OTG Only)

CARD

1 x Micro SD CARD Slot

M.2

1 x M.2 E Key 2230(PCIe/USB2.0)

mPCIe

1x mPCIe(mSATA only)

Terminal

blcok

2x 20 Pin Terminal Block

(8x GPIO/1x RS232/1x SPI/1x I2C/1x UART/1x Relay)

Input

Power

12V/5A DC input

Operating

Temperature

-20°Cto +55°C

Storage

Temperature

-40°Cto +85°C

Warranty

14 Months

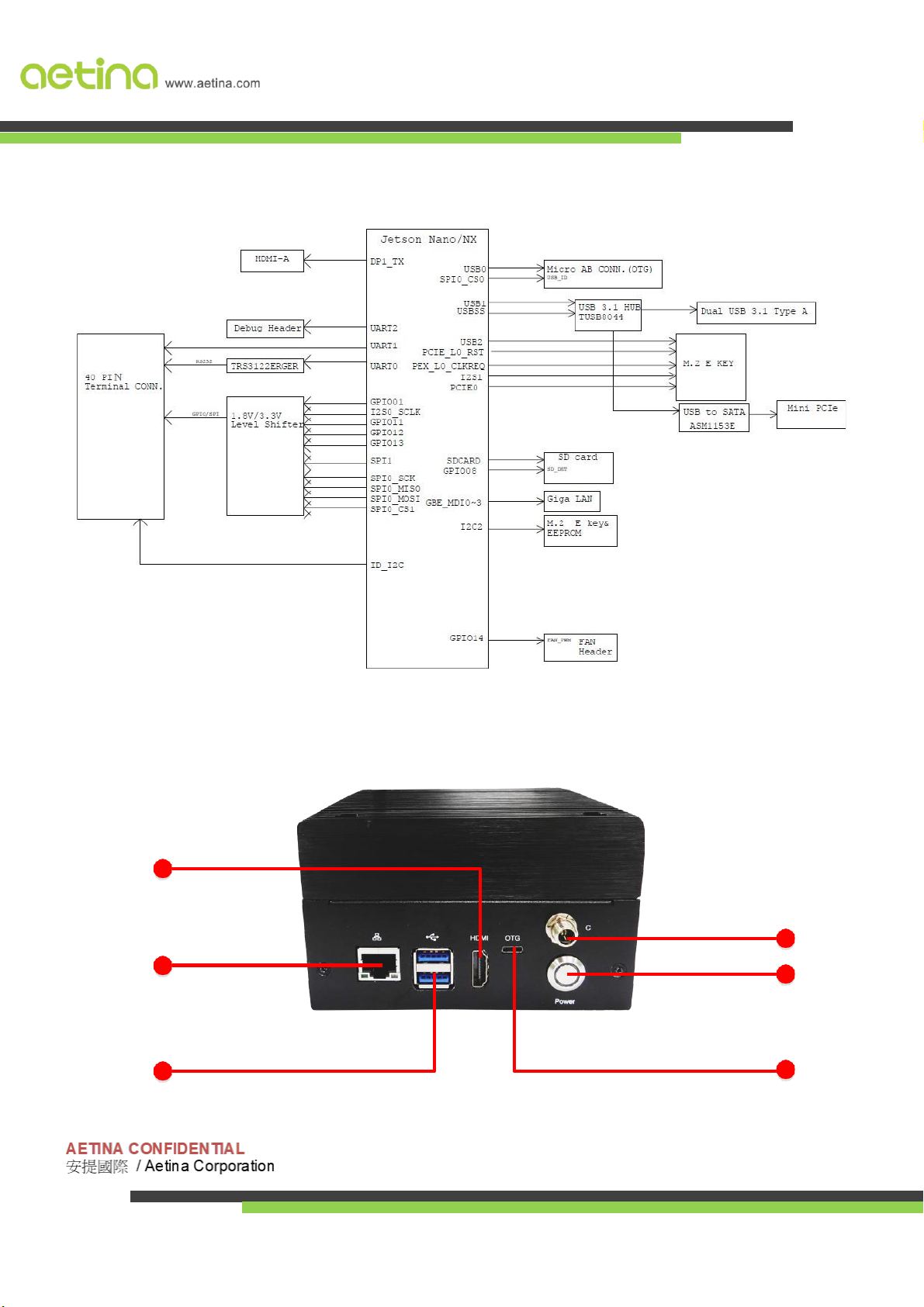

2. Block Diagram

2.1 IO Connector

RJ45

- 4 -

HDMI

USB3.2 Gen 1

Type A

DC Jack

Power Button

USB

Type AB

2.2 Mechanical Diagram

Terminal Block

- 5 -

3Connectors and Pinouts

3.2 2x 20 Pin Terminal Block

- 6 -

Pin20

Pin21

Pin1

Pin40

-7 -
