The Agilent E3633A and Agilent E3634A are high performance 200 watt single-

output dual range programmable DC power supplies with both PIB and RS-

232 interfaces. The combination of bench-top and system features in these

power supplies provides versatile solutions for your design and test

requirements.

Convenient bench-top features

• Single-output dual range

• Easy-to-use knob control settings

• Highly visible vacuum-fluorescent display meters

• High accuracy and high resolution

• Remote voltage sensing

• Overvoltage and overcurrent protection

• Output on/off

• Excellent load and line regulation and low ripple and noise

• Operating states storage

• Portable, ruggedized case with non-skid feet

• Front and Rear output terminals

• Retrieving/Scrolling error messages on the display

Flexible system features

• PIB (IEEE-488) and RS-232 interfaces are standard

• SCPI (Standard Commands for Programmable Instruments) compatibility

• I/O setup easily done from front-panel

• Software calibration, no internal adjustments required

Agilent E3633A and E3634A

DC Power Supplies

The Front Panel at a Glance

1 8V/20A range selection key (E3633A)

25V/7A range selection key (E3634A)

220V/10A range selection key (E3633A)

50V/4A range selection key (E3634A)

3Overvoltage protection key

4Overcurrent protection key

5Display limit key

6Recall operating state key

7 Store operating state/Local key

8Error/Calibrate key

9I/O Configuration/Secure key

10 Output On/Off key

11 Control knob

12 Resolution selection keys

13 Voltage/current adjust selection key

1 8V/20A* or 25V/7A** range selection key Selects the 8V/20A or 25V/7A

range and allows the full rated output to 8V/20A or 25V/7A.

2 20V/10A* or 50V/4A** range selection key Selects the 20V/10A or

50V/4A range and allows the full rated output to 20V/10A or 50V/4A.

3 Overvoltage protection key Enables or d sables the overvoltage protect on

funct on, sets tr p voltage level, and clears the overvoltage cond t on.

4 Overcurrent protection key Enables or d sables the overcurrent protect on

funct on, sets tr p current level, and clears the overcurrent cond t on.

5 Display li it key Shows voltage and current l m t values on the d splay and

allows knob adjustment for sett ng l m t values.

6 Recall operating state key Recalls a prev ously stored operat ng state from

locat on ‘‘1’’, ‘‘2’’, or ‘‘3’’.

7 Store operating state / Local key1 Stores an operat ng state n locat on ‘‘1’’,

‘‘2’’, or ‘‘3’’ / or returns the power supply to local mode from remote nterface

mode.

8 Error / Calibrate key2 D splays error codes generated dur ng operat on, self-

test and cal brat on / or enables cal brat on mode (the power supply must be

unsecured before perform ng cal brat on). See Service Guide for more deta ls

on cal brat on.

9 I/O Configuration / Secure key3 Conf gures the power supply for remote

nterfaces / or secure or unsecure the power supply for cal brat on. See

Service Guide for more deta ls on how to secure or unsecure the power supply.

10 Output On/Off key Enables or d sables the power supply output. Th s key

toggles between on and off.

11 Control knob Increases or decreases the value of the bl nk ng d g t by turn ng

clockw se or counter clockw se.

12 Resolution selection keys Move the bl nk ng d g t to the r ght or left.

13 Voltage/current adjust selection key Selects the knob control funct on for

voltage or current adjustment.

1The key can be used as the ‘‘Local’’ key when the power supply is in the remote

interface mode.

2You can enable the ‘‘calibration mode’’ by holding down this key when you

turn on the power supply.

3You can use it as the ‘‘Secure’’ or ‘‘Unsecure’’ key when the power supply is

in the calibration mode.

*For Agilent E3633A Model **For Agilent E3634A Model

Front-Panel Voltage and Current Limit Settings

You can set the voltage and current l m t values from the front panel us ng the

follow ng method.

1Select the des red range us ng the range select on keys after turn ng on the

power supply.

2Press the key to show the l m t values on the d splay.

3Move the bl nk ng d g t to the appropr ate pos t on us ng the resolut on

select on keys and change the bl nk ng d g t value to the des red voltage l m t

by turn ng the control knob. If the d splay l m t t mes out, press the key

aga n.

4Set the knob to current control mode by press ng the key.

5Move the bl nk ng d g t to the appropr ate pos t on us ng the resolut on

select on keys and change the bl nk ng d g t value to the des red current l m t

by turn ng the control knob.

6Press the key to enable the output. After about 5 seconds, the d splay

w ll go to output mon tor ng mode automat cally to d splay the voltage and

current at the output or the d splay w ll go to output mon tor ng mode

mmed ately by press ng the key aga n.

Note All front panel keys and controls can be disabled with remote interface commands.

The Agilent E3633A and Agilent E3634A must be in "Local" mode for the front panel

keys and controls to function.

Use the voltage/current adjust select on key, the resolut on select on keys,

and the control knob to change the voltage and current l m t values.

Display

Limit

Display

Limit

Voltage

Current

Output

On/Off

Output

On/Off

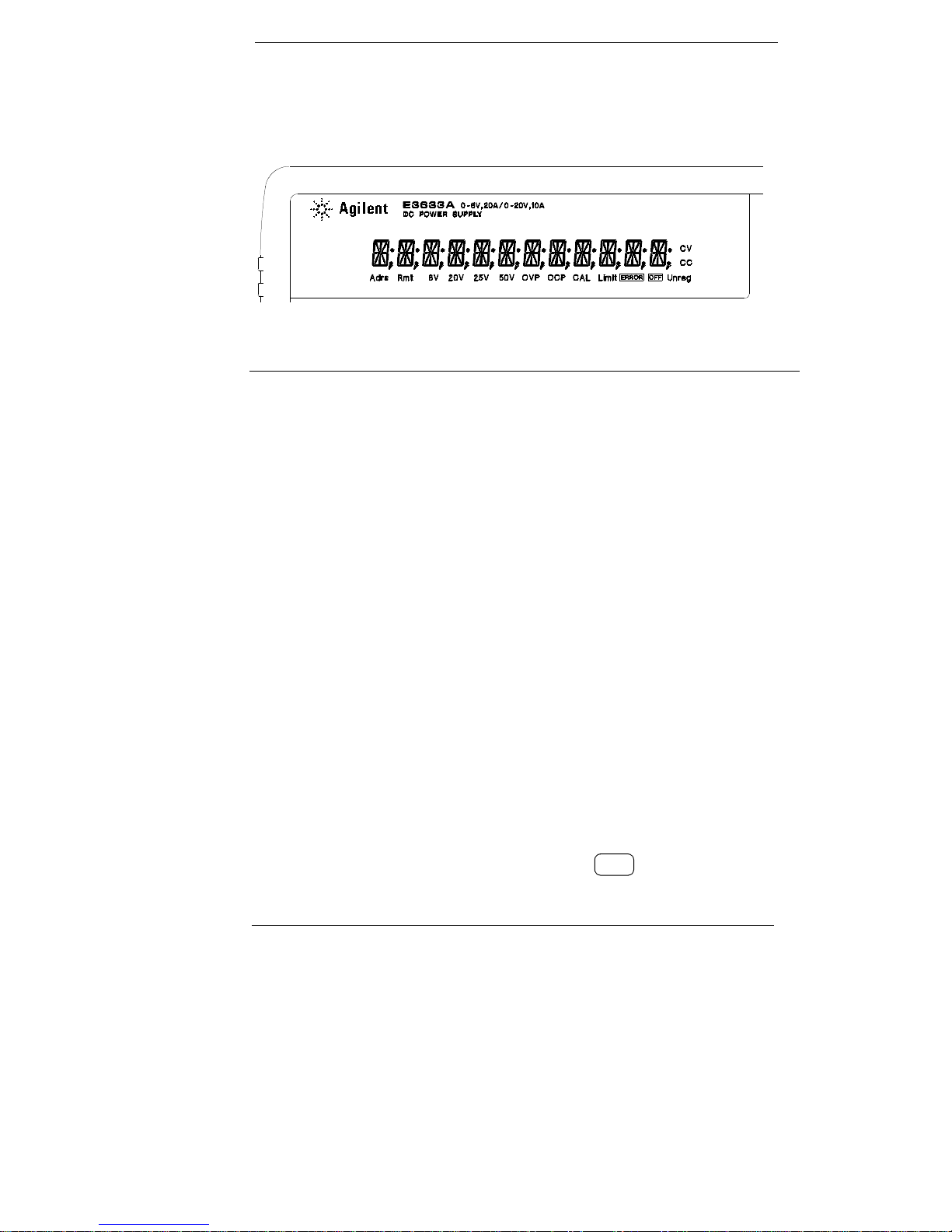

Display Annunciators

Adrs Power supply is addressed to listen or talk over a remote interface.

Rmt Power supply is in remote interface mode.

8V Shows the 8V/20A range is selected. (Agilent E3633A model)

20V Shows the 20V/10A range is selected. (Agilent E3633A model)

25V Shows the 25V/7A range is selected. (Agilent E3634A model)

50V Shows the 50V/4A range is selected. (Agilent E3634A model)

OVP The overvoltage protection function is enabled when the

annunciator turns on or the overvoltage protection circuit has

caused the power supply to shutdown when the annunciator blinks.

OCP The overcurrent protection function is enabled when the

annunciator turns on or the overcurrent protection circuit has

caused the power supply to shutdown when the annunciator blinks.

CAL The power supply is in calibration mode.

Limit The display shows the limit values of voltage and current.

ERROR Hardware or remote interface command errors are detected and

the error bit has not been cleared.

OFF The output of the power supply is disabled (For more information,

see page 52 in the User’s Guide).

Unreg The output of the power supply is unregulated (output is neither CV

nor CC).

CV The power supply is in constant voltage mode.

CC The power supply is in constant current mode.

To review the display annunciators, hold down key as you turn on

the power supply.

Display

Limit

The Rear Panel at a Glance

Use the front-panel key to:

•Select the GPIB or RS-232 interface (see chapter 3 in User’s Guide).

•Set the GPIB bus address (see chapter 3 in User’s Guide).

•Set the RS-232 baud rate and parity (see chapter 3 in User’s Guide).

1Power-line voltage setting

2Power-line fuse-holder assembly

3AC inlet

4Power-line module

5GPIB (IEEE-488) interface connector

6RS-232 interface connector

7Rear output terminals

I/O

Config

In This Book

This is the Service uide for your Agilent E3633A and E3634A DC power

supplies. Unless otherwise stated, the information in this manual applies to

both two models.

Specifications Chapter 1 lists the power supply’s specifications and

describes how to interpret these specifications.

Quick Start Chapter 2 prepares the power supply for use and helps you get

familiar with the front panel features.

Calibration Procedures Chapter 3 provides performance verification and

calibration procedures.

Theory of Operation Chapter 4 describes block and circuit level theory

related to the operation of the power supply.

Service Chapter 5 provides guidelines for returning your power supply to

Agilent Technologies for servicing, or for servicing it yourself.

Replaceable Parts Chapter 6 contains a detailed parts list of the power

supply.

ackdating Chapter 7 describes the difference between this manual and

older issues of this manual.

Schematics Chapter 8 contains the power supply’s schematics, disassembly

drawings, and component locator drawings.

f you have questions relating to the operation of the power supply, call

1-800-452-4844 in the United States, or contact your nearest Agilent

Technologies Sales Office.

f your Agilent E3633A or Agilent E3634A fails within three years of purchase,

Agilent will repair or replace it free of charge. Call 1-800-258-5165 ("Express

Exchange") in the United States, or contact your nearest Agilent Technologies

Sales Office.

Contents

Chapter 1 Specifications

Performance Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11

Supplemental Characteristics - - - - - - - - - - - - - - - - - - - - - - - - - - - 13

Chapter 2 Quick Start

To Prepare the Power Supply for Use - - - - - - - - - - - - - - - - - - - - - 23

To Check the Rated Voltages of the Power Supply- - - - - - - - - - - 25

To Check the Rated Currents of the Power Supply - - - - - - - - - - 26

To Use the Power Supply in Constant Voltage Mode - - - - - - - - - 28

To Use the Power Supply in Constant Current Mode - - - - - - - - - 30

To Store and Recall the Instrument State - - - - - - - - - - - - - - - - - - 32

To Program Overvoltage Protection - - - - - - - - - - - - - - - - - - - - - - 34

Setting the OVP Level and Enable the OVP Circuit - - - - - - - - 34

Checking OVP Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35

Clearing the Overvoltage Condition - - - - - - - - - - - - - - - - - - - - 35

To Program Overcurrent Protection - - - - - - - - - - - - - - - - - - - - - - 37

Setting the OCP Level and Enable the OCP Circuit - - - - - - - - 37

Checking OCP Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38

Clearing the Overcurrent Condition - - - - - - - - - - - - - - - - - - - - 38

To Rack Mount the Power Supply - - - - - - - - - - - - - - - - - - - - - - - - 40

Chapter 3 Calibration Procedures

Agilent Technologies Calibration Services - - - - - - - - - - - - - - - - - 45

Calibration Interval- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45

Automating Calibration Procedures - - - - - - - - - - - - - - - - - - - - - - 46

Test Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46

Recommended Test Equipment - - - - - - - - - - - - - - - - - - - - - - - - - - 47

Performance Verification Tests - - - - - - - - - - - - - - - - - - - - - - - - - - 48

Self-Test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48

Performance Verification Tests - - - - - - - - - - - - - - - - - - - - - - - 48

Measurement Techniques- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49

Setup for Most Tests - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49

Electronic Load - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49

eneral Measurement Techniques - - - - - - - - - - - - - - - - - - - - - 50

Current-Monitoring Resistor- - - - - - - - - - - - - - - - - - - - - - - - - - 50

Programming - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 50

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Agilent Technologies Alimentazione elettrica

Agilent Technologies

Agilent Technologies E3631A Manuale utente

Agilent Technologies

Agilent Technologies E3647A Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Agilent Technologies

Agilent Technologies 66111A Manuale utente

Agilent Technologies

Agilent Technologies 6443B Manuale di servizio

Agilent Technologies

Agilent Technologies E3620A Manuale utente

Agilent Technologies

Agilent Technologies N5769A Guida rapida

Agilent Technologies

Agilent Technologies N2775A Manuale utente

Agilent Technologies

Agilent Technologies 6625A Manuale utente

Agilent Technologies

Agilent Technologies 6625A Manuale utente

Agilent Technologies

Agilent Technologies 6010A Manuale utente

Agilent Technologies

Agilent Technologies 66000A Manuale utente

Agilent Technologies

Agilent Technologies 6023A Manuale utente

Agilent Technologies

Agilent Technologies 66312A Manuale utente

Agilent Technologies

Agilent Technologies N5700 Series Manuale utente

Agilent Technologies

Agilent Technologies E3630A Manuale di servizio

Agilent Technologies

Agilent Technologies E4356A Istruzioni operative

Agilent Technologies

Agilent Technologies 6541A Manuale utente

Agilent Technologies

Agilent Technologies 66 A Series Manuale utente

Agilent Technologies

Agilent Technologies 6116A Manuale utente

Agilent Technologies

Agilent Technologies AN 372-1 Istruzioni per l'installazione e il funzionamento

Agilent Technologies

Agilent Technologies 66309B/D Manuale utente

Agilent Technologies

Agilent Technologies 729-0800 Manuale utente

Agilent Technologies

Agilent Technologies 6010A Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente

Elmdene

Elmdene G1380xN-y-s Series Manuale utente

DTS

DTS Megashock 5 Manuale utente
