Agilent Technologies N8900 series Manuale utente



Agilent

N8900 Series Autoranging

System DC Power Supply

Operating and Service Guide

Agilent N8900 Series Autoranging

System DC Power Supply

Operating and Service Guide

This document includes user,service, and programming information for the Agilent N8900 Series Autoranging System

DC Power Supply. If you have feedback on this document, please contact Agilent at www.agilent.com/find/n8900-

docfeedback.

Preliminary Information

Legal and Safety Information

Models and Options

Specifications and characteristics

Operating Information

Introduction to the Instrument

Installing the Instrument

Getting Started

Using the Power Supply

Front Panel Menu Reference

SCPI Programming Information

Introduction to the SCPI Language

Commands by Subsystem

Command Quick Reference

SCPI Error Messages

Service Information

Performance Verification - pending

Calibration Procedure - pending

Contact Agilent Technologies

You can contact Agilent Technologies for warranty, service, or technical support.

lIn the United States: (800) 829-4444

lIn Europe: 31 20 547 2111

lIn Japan: 0120-421-345

Use www.agilent.com/find/assist for information on contacting Agilent worldwide, or contact your Agilent Technologies

Representative.

Version 1, December 2013

Manual part number N8900-90901

2 Agilent N8900 Series Operating and Service Guide

Legal and Safety Information

Legal Notices

Safety Notices

Safety Symbols

Legal Notices

No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or

translation into a foreign language) without prior agreement and written consent from Agilent Technologies, Inc. as

governed by United States and international copyright laws.

Agilent Technologies, Inc.

550 Clark Drive, Suite 101

Budd Lake, New Jersey 07828 USA

Software and Documentation Revisions

For the latest firmware revision go to the product page at www.agilent.com/find/N8900.

You can download the latest version of this document at www.agilent.com/find/n8900-doc. The latest version is also

available for mobile devices at www.agilent.com/find/n8900-mobilehelp.

The hardware and/or software described in this document are furnished under a license and may be used or copied only

in accordance with the terms of such license.

Warranty

The material contained in this document is provided "as is," and is subject to being changed, without notice, in future

editions. Further, to the maximum extent permitted by applicable law, Agilent disclaims all warranties, either express

or implied, with regard to this manual and any information contained herein, including but not limited to the implied

warranties of merchantability and fitness for a particular purpose. Agilent shall not be liable for errors or for incidental or

consequential damages in connection with the furnishing, use, or performance of this document or of any information

contained herein. Should Agilent and the user have a separate written agreement with warranty terms covering the

material in this document that conflict with these terms, the warranty terms in the separate agreement shall control.

Certification

Agilent Technologies certifies that this product met its published specifications at time of shipment from the factory. Agi-

lent Technologies further certifies that its calibration measurements are traceable to the United States National Insti-

tute of Standards and Technology, to the extent allowed by the Institute's calibration facility, and to the calibration

facilities of other International Standards Organization members

Restricted Rights Legend

If software is for use in the performance of a U.S. Government prime contract or subcontract, Software is delivered and

licensed as "Commercial computer software" as defined in DFAR 252.227-7014 (June 1995), or as a "commercial

Agilent N8900 Series Operating and Service Guide 3

Legal and Safety Information

item" as defined in FAR 2.101(a) or as "Restricted computer software" as defined in FAR 52.227-19 (June 1987) or any

equivalent agency regulation or contract clause. Use, duplication or disclosure of Software is subject to Agilent Tech-

nologies’ standard commercial license terms, and non-DOD Departments and Agencies of the U.S. Government will

receive no greater than Restricted Rights as defined in FAR 52.227-19(c)(1-2) (June 1987). U.S. Government users

will receive no greater than Limited Rights as defined in FAR 52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any technical data.

Technical Support

If you have questions about your shipment, or if you need information about warranty, service, or technical support,

contact Agilent Technologies.

Safety Notices

The following general safety precautions must be observed during all phases of operation of this instrument. Failure to

comply with these precautions or with specific warnings or instructions elsewhere in this manual violates safety stand-

ards of design, manufacture, and intended use of the instrument. Agilent Technologies assumes no liability of the cus-

tomer’s failure to comply with the requirements.

HAZARDOUS VOLTAGES All models generate voltages in excess of 60 VDC, with some

models rated at up to 1,500 VDC! Ensure that all instrument connections, load wiring,

and load connections are either insulated or covered so that no accidental contact

with lethal output voltages can occur.

General

The equipment is for industrial use. It is not applicable for IT mains supply systems.

Equipment operators are subject to all applicable safety regulations. Along with the warning and safety notices in this

manual, all relevant safety, accident prevention, and environmental regulations must also be followed. In particular,

the operators of the equipment:

lMust be informed of the relevant safety requirements.

lMust have read and understood the operating manual before using the equipment.

lMust use the designated and recommended safety equipment.

Do not use this product in any manner not specified by the manufacturer. The protective features of this product may

be impaired if it is used in a manner not specified in the operating instructions.

Environmental Conditions

Environmental condition are described under Common Characteristics.

Before Applying Power

Verify that all safety precautions are taken. All connections must be made with the unit turned off, and must be per-

formed by qualified personnel who are aware of the hazards involved. Improper actions can cause fatal injury as well as

equipment damage.

4 Agilent N8900 Series Operating and Service Guide

Legal and Safety Information

Note the instrument's external markings described under "Safety Symbols". Only operate the product at the rated

mains voltage and phase as stipulated on the input label.

Ground the Instrument

This product is provided with protective earth terminals. To minimize shock hazard, the instrument must be connected

to the AC mains through a grounded power cable, with the ground wire firmly connected to an electrical ground (safety

ground) at the power outlet. Any interruption of the protective (grounding) conductor or disconnection of the pro-

tective earth terminal will cause a potential shock hazard that could result in injury or death.

External Voltage Sources

Do not connect voltage sources to the output of the power supply with voltage ratings that are greater than the nom-

inal voltage rating of the supply. Under no circumstances can you connect an external voltage with reversed polarity to

the output terminal. Equipment damage will result.

Do Not Operate in an Explosive Atmosphere.

Do not operate the instrument in the presence of flammable gases or fumes.

Do Not Remove the Instrument Cover

Only qualified, service-trained personnel who are aware of the hazards involved should remove instrument covers.

Always disconnect the power cable and any external circuits before removing the instrument cover.

Do Not Modify the Instrument

Do not install substitute parts or perform any unauthorized modification to the product. Return the product to an Agi-

lent Sales and Service Office for service and repair to ensure that safety features are maintained.

Fuses

The instrument contains an internal fuse, which is not customer accessible.

In Case of Damage

Instruments that are not functioning correctly, appear damaged or defective should be made inoperative and secured

against unintended operation until they can be repaired by qualified service personnel.

A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like

that, if not correctly performed or adhered to, could result in personal injury or DEATH. Do not proceed

beyond a WARNING notice until the indicated conditions are fully understood and met.

Agilent N8900 Series Operating and Service Guide 5

Legal and Safety Information

A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not cor-

rectly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond

a CAUTION notice until the indicated conditions are fully understood and met.

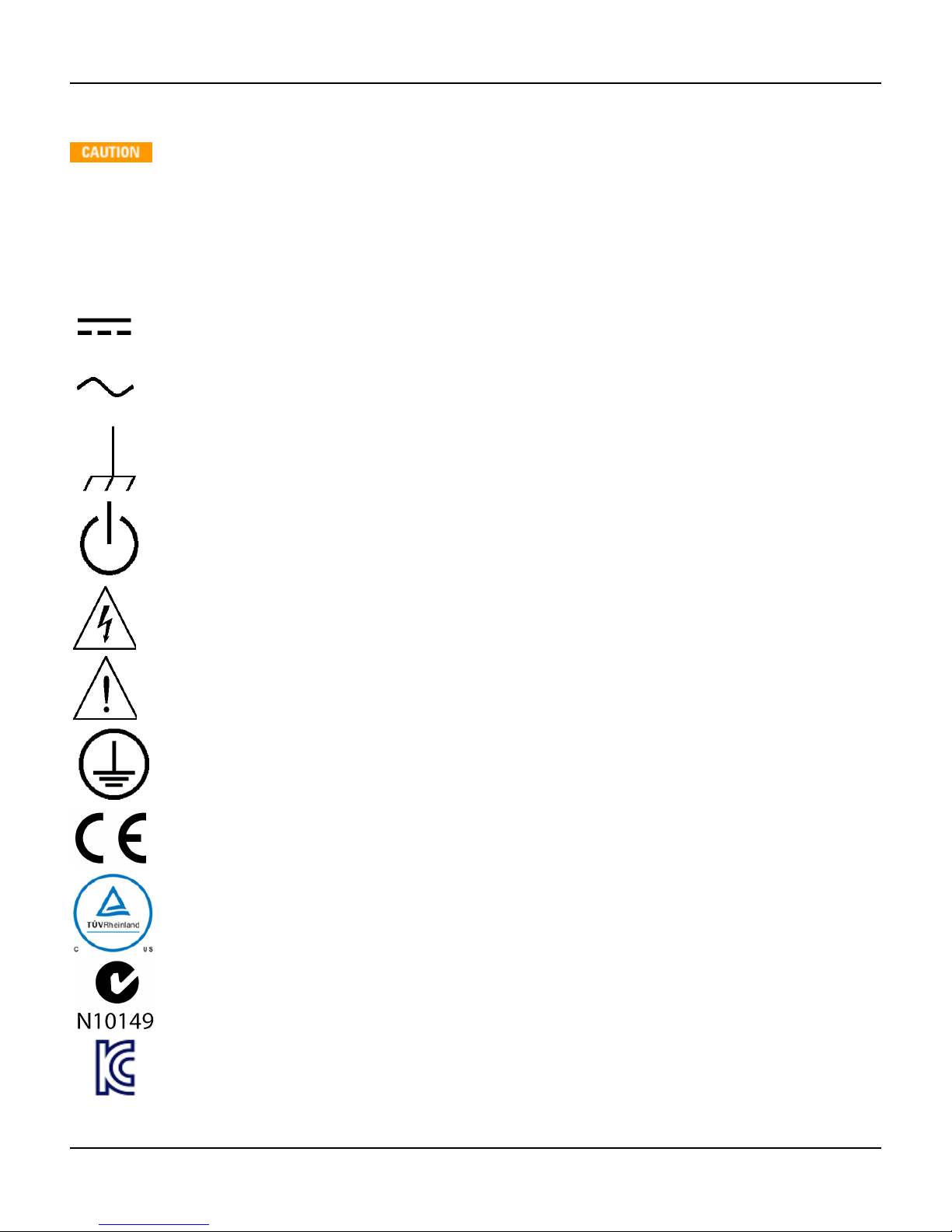

Safety Symbols

Direct current

Alternating current

Frame or chassis terminal

Standby supply. Unit is not completely disconnected from AC mains when switch is off.

Caution, risk of electric shock

Caution, refer to accompanying documents

Earth ground terminal

The CE mark is a registered trademark of the European Community.

The TUV mark is a registered trademark of the European community.

The C-tick mark is a registered trademark of the Spectrum Management Agency of

Australia. This signifies compliance with the Australian EMC Framework regulations

under the terms of the Radio Communications Act of 1992.

South Korean Class A EMC Declaration

This equipment is Class A suitable for professional use and is for use in electromagnetic

environments outside of the home.

6 Agilent N8900 Series Operating and Service Guide

Legal and Safety Information

Contains one or more of the 6 hazardous substances above the maximum con-

centration value (MCV), 40 Year EPUP.

1SM1-A This text indicates that the instrument is an Industrial Scientific and Medical Group 1

Class A product (CISPER 11, Clause 4).

ICES/NMB-

001

This text indicates product compliance with the Canadian Interference- Causing Equip-

ment Standard (ICES-001).

Agilent N8900 Series Operating and Service Guide 7

Models and Options

Model Ratings

5 kW Models Voltage Current AC mains

N8920A

N8921A

N8923A

N8924A

N8940A

N8941A

N8943A

N8944A

80 V

200 V

500 V

750 V

80 V

200 V

500 V

750 V

170 A

70 A

30 A

20 A

170 A

70 A

30 A

20 A

208 VAC

400 VAC

10 kW Models Voltage Current AC mains

N8925A

N8926A

N8928A

N8929A

N8930A

N8945A

N8946A

N8948A

N8949A

N8950A

80 V

200 V

500 V

750 V

1000 V

80 V

200 V

500 V

750 V

1000 V

340 A

140 A

60 A

40 A

30 A

340 A

140 A

60 A

40 A

30 A

208 VAC

400 VAC

15 kW Models Voltage Current AC mains

N8931A

N8932A

N8934A

N8935A

N8937A

N8951A

N8952A

N8954A

N8955A

N8957A

80 V

200 V

500 V

750 V

1500 V

80 V

200 V

500 V

750 V

1500 V

510 A

210 A

90 A

60 A

30 A

510 A

210 A

90 A

60 A

30 A

208 VAC

400 VAC

Accsssories/Options

Accessory/Option Number Description

Pending

8 Agilent N8900 Series Operating and Service Guide

Specifications and Characteristics

Specifications

Supplemental Characteristics (typical)

Common Characteristics (typical)

Unless otherwise noted, specifications are warranted over the ambient temperature range of 0°C to 45°C after a 30-

minute warm-up period. Specifications apply from >2% to 100% of rated voltage and from >1% to 100% of rated cur-

rent, measured at the output terminals with local sensing (sense terminals not connected).

Supplemental characteristics are not warranted but are descriptions of performance determined either by design or by

type testing. All supplemental characteristics are typical unless otherwise noted.

Specifications and characteristics are subject to change without notice.

Specifications

Specification 5 kW N8920A

N8940A

N8921A

N8941A

N8923A

N8943A

N8924A

N8944A

DC Ratings

Voltage:

Current:

Power:

0 - 80 V

0 - 170 A

5 kW

0 - 200 V

0 - 70 A

5 kW

0 - 500 V

0 - 30 A

5 kW

0 - 750 V

0 - 20 A

5 kW

Output ripple & noise1

CV rms:

CV peak-to-peak:

16 mV

200 mV

40 mV

300 mV

70 mV

350 mV

200 mV

800 mV

Load regulation

Voltage:

Current:

40 mV

255 mA

100 mV

105 mA

250 mV

45 mA

375 mV

30 mA

Voltage programming &

measurement accuracy2≤ 80 mV ≤ 200 mV ≤ 500 mV ≤ 750 mV

Current programming &

measurement accuracy2≤ 340 mA ≤ 140 mA ≤ 60 mA ≤ 40 mA

Transient response3

Recovery Time:

Settling band:

1.5 ms

0.8 V

1.5 ms

2 V

1.5 ms

5 V

1.5 ms

7.5 V

Agilent N8900 Series Operating and Service Guide 9

Indice

Altri manuali Agilent Technologies Alimentazione elettrica

Agilent Technologies

Agilent Technologies N5700 Series Manuale utente

Agilent Technologies

Agilent Technologies 729-0800 Manuale utente

Agilent Technologies

Agilent Technologies U8030A Series Manuale utente

Agilent Technologies

Agilent Technologies E3647A Manuale utente

Agilent Technologies

Agilent Technologies 66332A Manuale utente

Agilent Technologies

Agilent Technologies E3634A Manuale utente

Agilent Technologies

Agilent Technologies E3630A Manuale di servizio

Agilent Technologies

Agilent Technologies 654xA Series Manuale utente

Agilent Technologies

Agilent Technologies 729-0800 Manuale utente

Agilent Technologies

Agilent Technologies E3631-90002 Manuale utente

Agilent Technologies

Agilent Technologies E3620A Manuale di servizio

Agilent Technologies

Agilent Technologies E3632A Manuale utente

Agilent Technologies

Agilent Technologies 664XA Series Istruzioni operative

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Agilent Technologies

Agilent Technologies 6611C Manuale utente

Agilent Technologies

Agilent Technologies 6010A Manuale utente

Agilent Technologies

Agilent Technologies 6680A Guida rapida

Agilent Technologies

Agilent Technologies E3633A Manuale utente

Agilent Technologies

Agilent Technologies U8001A Manuale utente

Agilent Technologies

Agilent Technologies E3631A Manuale utente

Agilent Technologies

Agilent Technologies E3614A Manuale di servizio

Agilent Technologies

Agilent Technologies 6571A Manuale utente

Agilent Technologies

Agilent Technologies U8001A Manuale

Agilent Technologies

Agilent Technologies 6621A Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente

Elmdene

Elmdene G1380xN-y-s Series Manuale utente

DTS

DTS Megashock 5 Manuale utente
