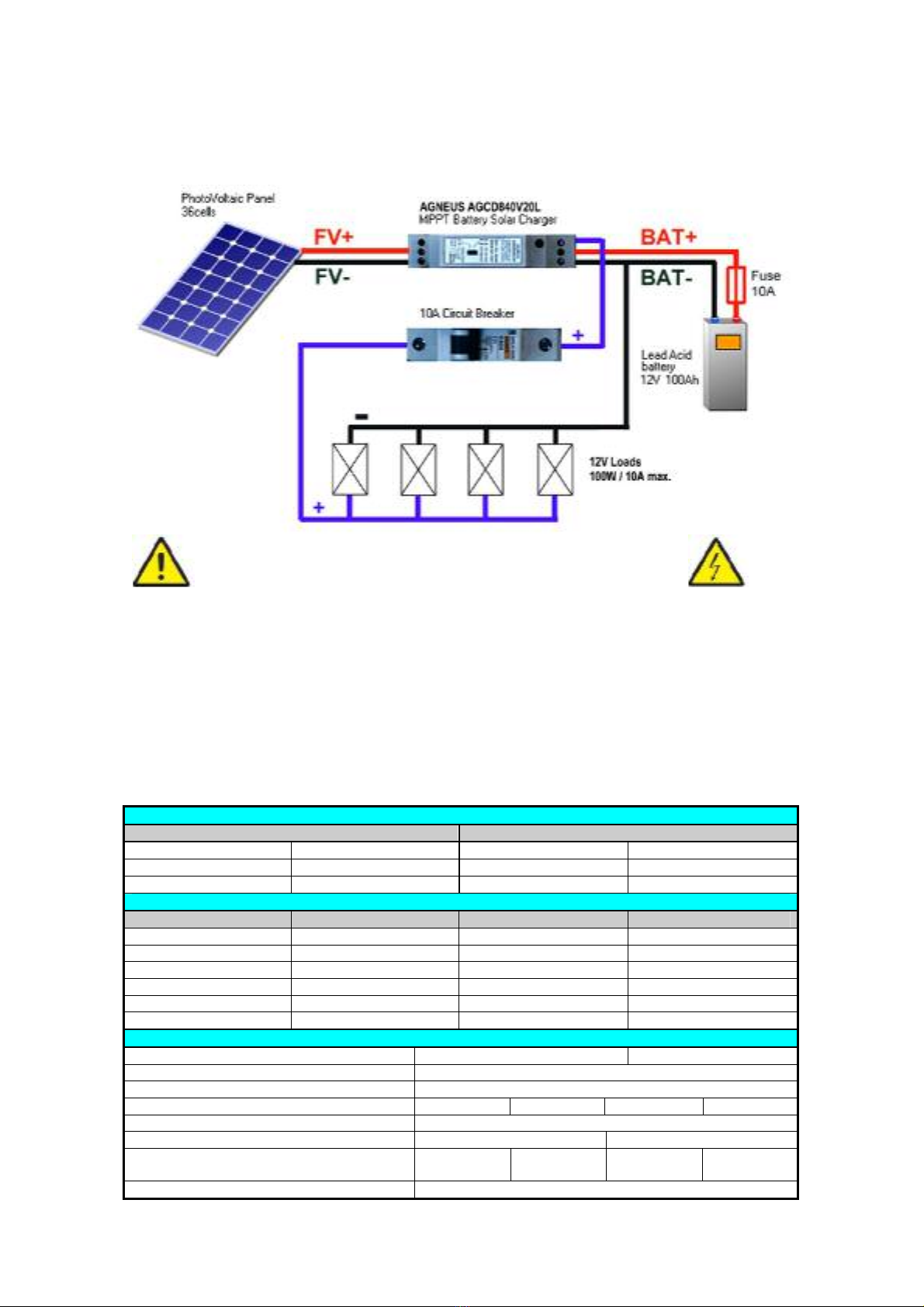

Installation and connection (see figures 1 and 2)
Protects the regulator from direct sun light and rain and place it in a dry and non flammable surface (the
regulator warms up during operation). The distance between the regulator and the battery should be as
short as possible, always bellow 1m length. Use wires of 2,5mm2of maximum thickness.
Between regulator output OUT+ (4) and loads positive side (12V luminaries, for example), we will insert
the switch breaker, as shown in the figure 2. User loads negative side will be connect directly to the
battery negative terminal.
Before begin to install, be sure that battery is not connected!
1. Install the electric enclosure and inserts the regulator and the switch breaker in the DIN RAIL.
2. Connect the regulator output terminal OUT+ (4) at switch breaker nearest terminal. Be sure that the
switch lever is at OFF position. Connect the other the switch breaker terminal to the positive side of
your desired loads to be supplied.
3. With battery unconnected, insert the positive wire of battery BAT+ to the regulator terminal (5).
After, insert the negative wire BAT- to the regulator terminal (6).
4. Now proceed to make the battery connections. Attention! If inverts the battery polarity, could be
produced irreparable damages over the regulator.
5. Connect the positive wire of the photovoltaic module PV+ to the regulator terminal (2)
6. Connect the negative wire of the photovoltaic module PV- to the regulator terminal (3)
Components Technical Specifications
Lead acid Battery Photovoltaic module
Nominal Voltage 12V Peak power 70Wp maximum
Maximum capacity C10 120Ah VOC (open circuit) 31V maximum
Minimum capacity C10 40Ah ISC (short circuit) 5A maximum
Technical Specifications - AGNEUS regulator
Specification Nominal Maximum Minimum
Battery voltage VBAT 12V 15V 10V
Track VMPP PV module 17V 25V VBAT
Charge current 5A 6A 0,01A
Load current 7,5A 10A 0A
Self consumption 2W 3W 0,1W (night)
Temperature 25ºC 60ºC -15ºC
General data - AGNEUS regulator
Dimensions & weight (width x height x deep) 19mm x 93mm x 71mm 100 gr.
Kind of regulation Maximum Power Point Tracking MPPT
Deep Charge algorithm 4 estates with active control of charge current
Battery charge control voltages 13,5VFLOAT 14,4VBULK 14,5VCONTROL 15VEQUALIZE
Charge cycles interval Minimum 1 day till a maximum of 30 days
Load Control Cut-off voltage: 11,2V Load re-connection: 11,75V
Device protections Low battery PV module
polarity
overcharge short circuit
Case protection degree IP54 AGNEUS regulator
