Agora Models JAGUAR E-TYPE Manuale

STAGE 41: RIGHT FRONT WHEEL

STAGE 42: FRONT FLOOR PANEL

STAGE 43: FLOOR PANEL ASSEMBLY

STAGE 44: FINAL DRIVE UNIT

STAGE 45: REAR SUBFRAME

STAGE 46: REAR SUBFRAME

LEFT SUSPENSION

STAGE 47: REAR SUBFRAME

RIGHT SUSPENSION

STAGE 48: INSTALLING THE

REAR SUBFRAME

Pack 06

BUILD INSTRUCTIONS

AGORAMODELS JAGUAR E-TYPE

Spare screws are included with each part. Occasionally, you may be instructed to keep spare or

unused screws for a later stage. Keep these spares in a safe place and label them correctly.

Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary

slightly. Using the wrong screws may damage the parts.

When securing parts together using multiple screws, ﬁt each screw loosely to ensure all the

parts are correctly aligned before gently tightening them ﬁrmly, but not overtight, in the order

in which you placed them.

The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling

it to hold the screws and make assembly easier.

If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove

it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make

it easier to drive home.

During the course of this build, you will receive many pieces that you will assemble immediately

– following the instructions in the corresponding stage – and other pieces that you should store

safely to one side, for use in future assembly stages.

Left and Right! When building your Jaguar, the left or right hand side refers to each side as you

are sitting in the car.

WARNING: Some parts are assembled using magnets. These magnets can cause serious injury

if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed,

seek medical help straight away.

Advice from the experts

AGORAMODELS JAGUAR E-TYPE

Name

Tyre

Washer

Screws type AM07 x2

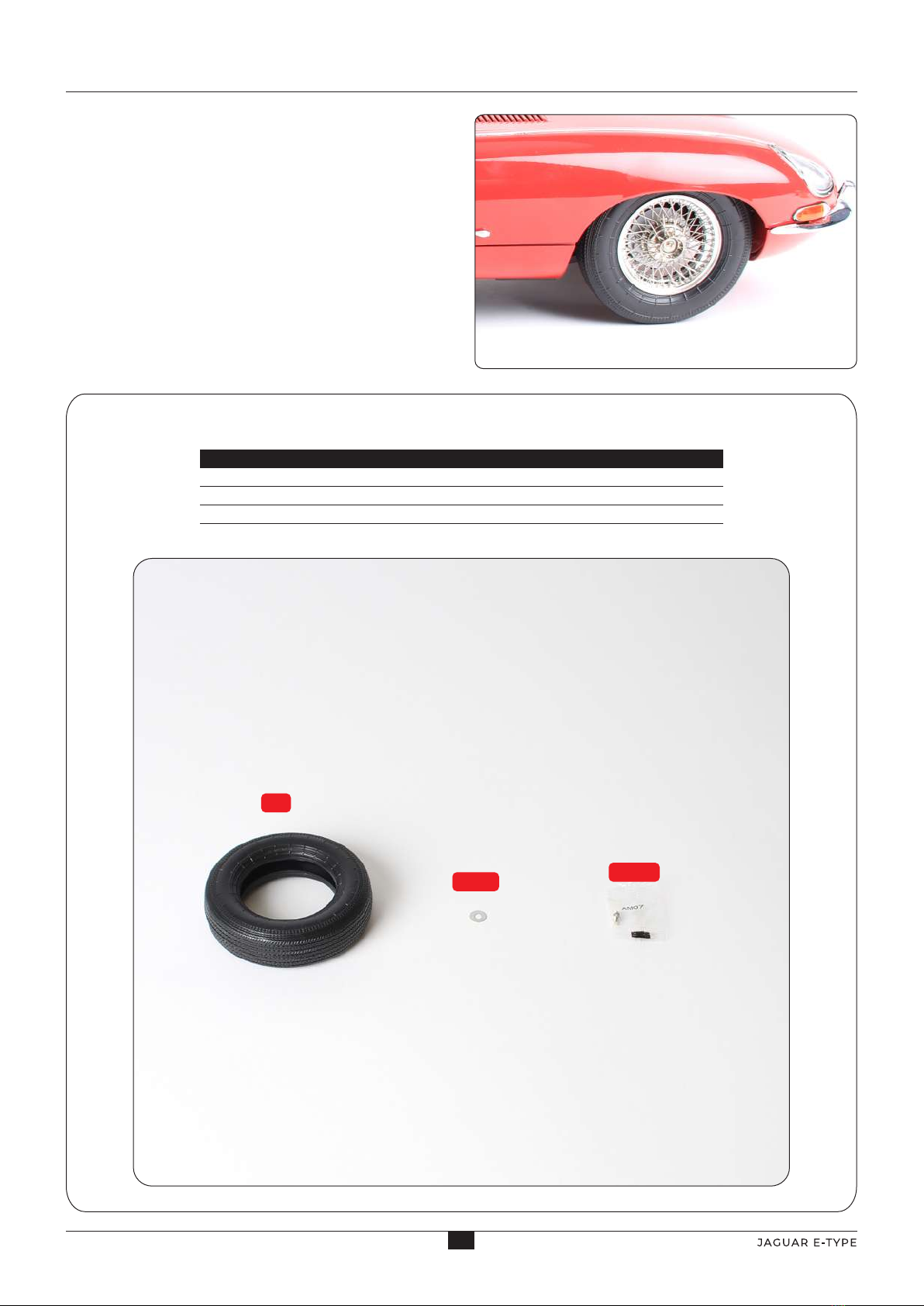

STAGE 41 PARTS LIST

In this stage you’ll ﬁx the right front

wheel to the subframe.

Washer

Stage 41: Right Front Wheel

AM07 x2

Tyre

AGORAMODELS JAGUAR E-TYPE

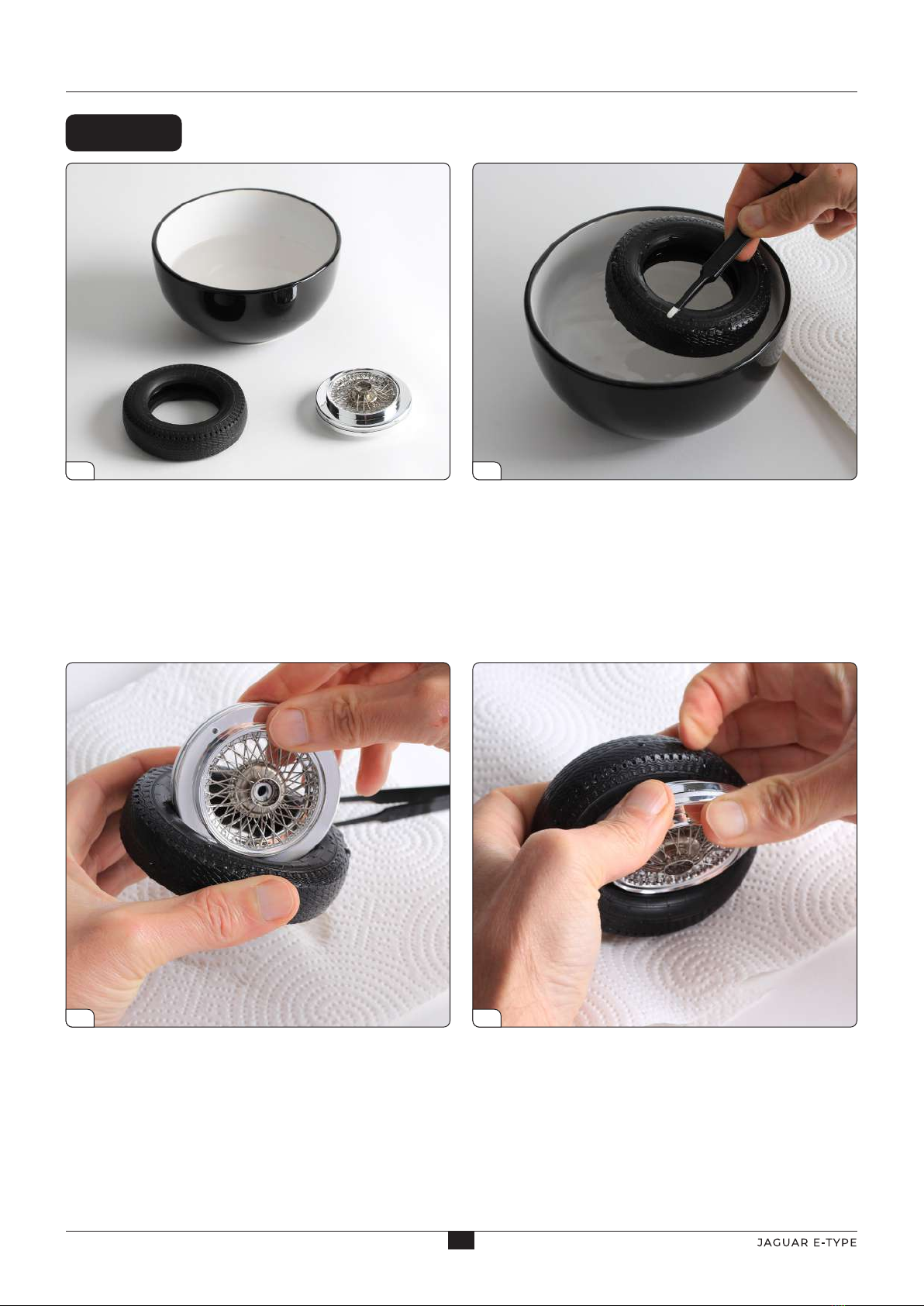

Take the completed wheel from stage 40. Prepare a hot water bath by

ﬁlling a small bowl with boiling water. Soak the tyre in the water for 2

minutes.

Note: The tyre shown in pictures 1-4 is the spare tyre from Stage 25,

and differs slightly in the tread pattern from the tyre supplied in this

Stage. The method for ﬁtting the tyre is the same.

Working quickly while the tyre is pliable, push the wheel into the tyre

and twist to ﬁt the outer wheel rim under the inner rim of the tyre.

Carefully remove the tyre from the water bath using tongs or tweezers

- the tyre will be very hot! Shake off any excess water and dab on

kitchen paper or a towel.

Keep pushing and pulling, working around the tyre, until the side walls

ﬁt comfortably over the wheel rim on both sides.

Stage 41: Right Front Wheel

STEP 1

AGORAMODELS JAGUAR E-TYPE

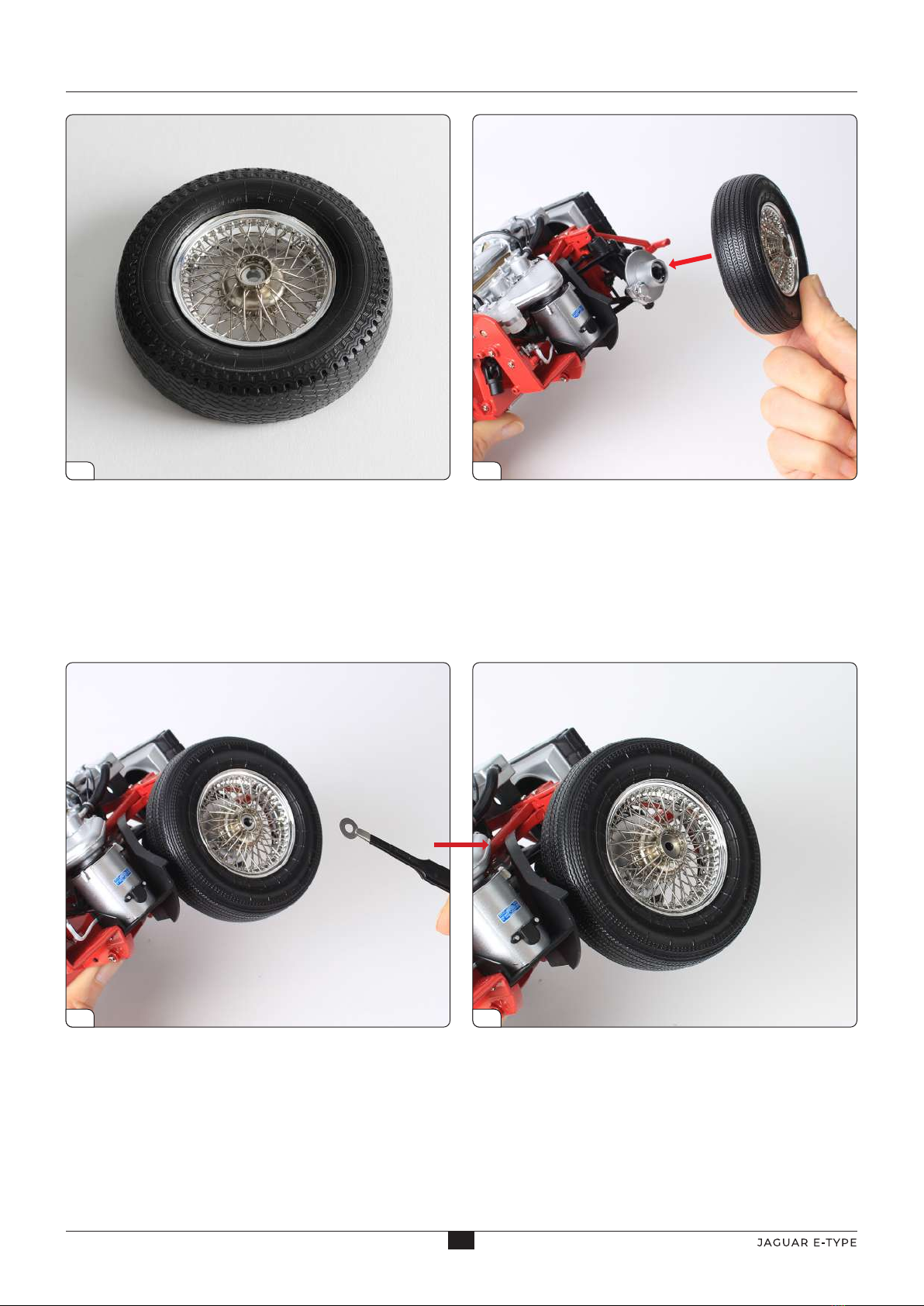

The tyre has been fully ﬁtted to the wheel and is now ready to ﬁx to

the front subframe assembly from Stage 37.

Take the washer and drop it onto the end of the stub axle, as shown in

picture 8.

Holding the wheel as shown, align the two lugs on the wheel centre

with the two notches in the right front axle. Position the wheel in

place, ensuring the lugs ﬁt into the notches.

Stage 41: Right Front Wheel

AGORAMODELS JAGUAR E-TYPE

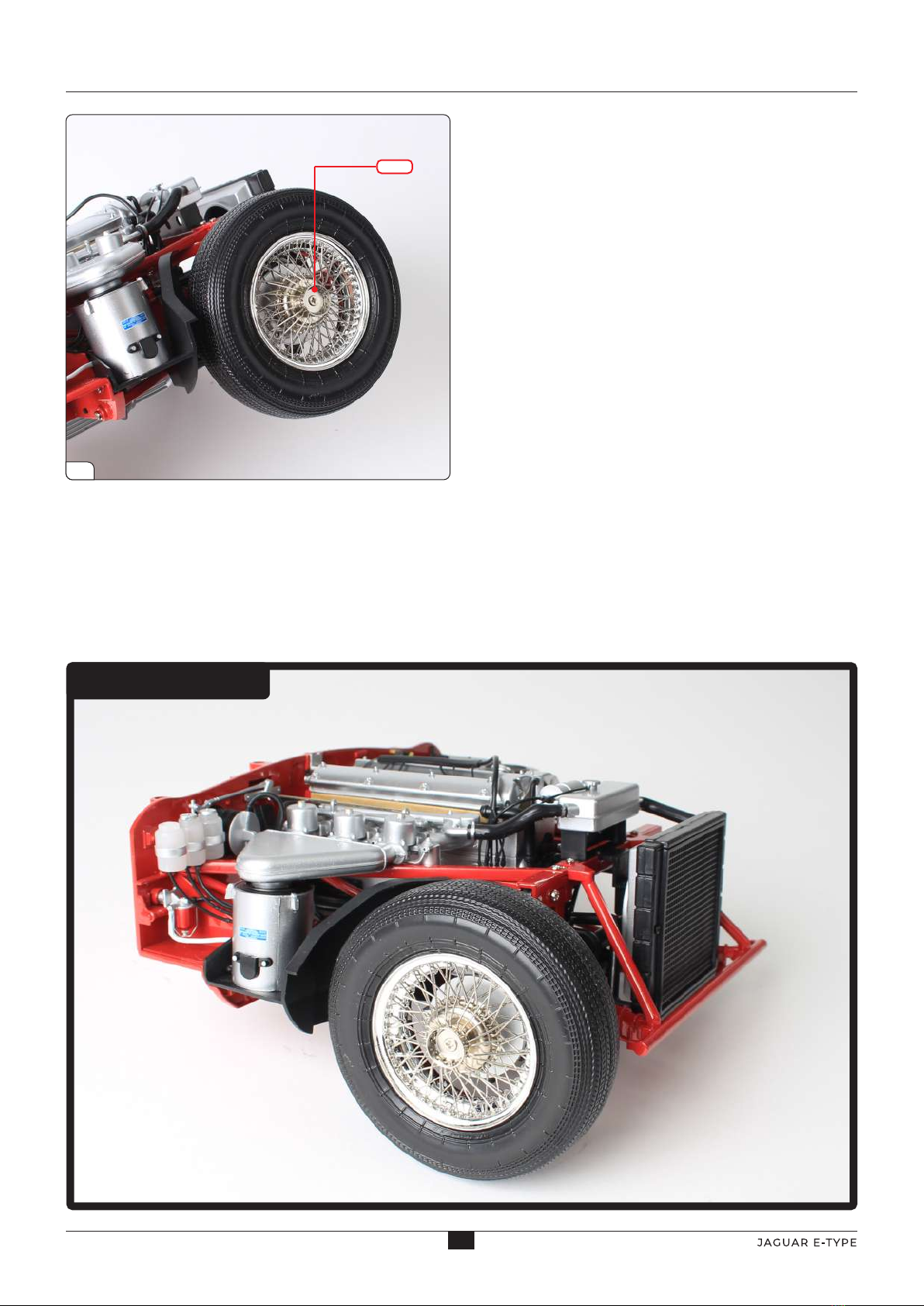

Secure the washer and right wheel in place using a type AM07 screw.

Stage 41: Right Front Wheel

AM07

STAGE COMPLETE

AGORAMODELS JAGUAR E-TYPE

Name

Front ﬂoor panel

STAGE 42 PARTS LIST

There is no assembly in this Stage,

unpack the front ﬂoor panel and

move straight to Stage 43.

Stage 42: Front Floor Panel

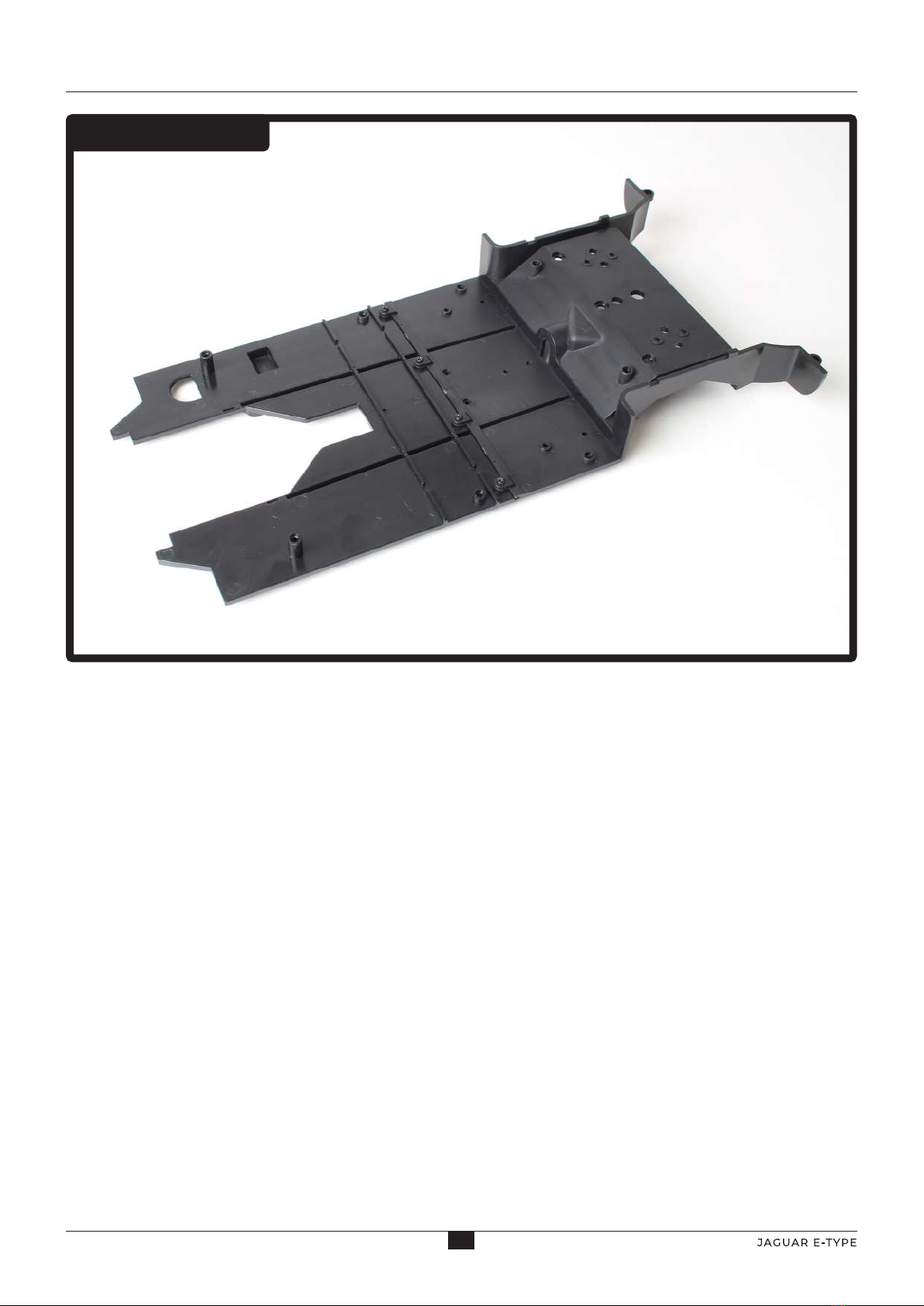

Front ﬂoor panel

AGORAMODELS JAGUAR E-TYPE

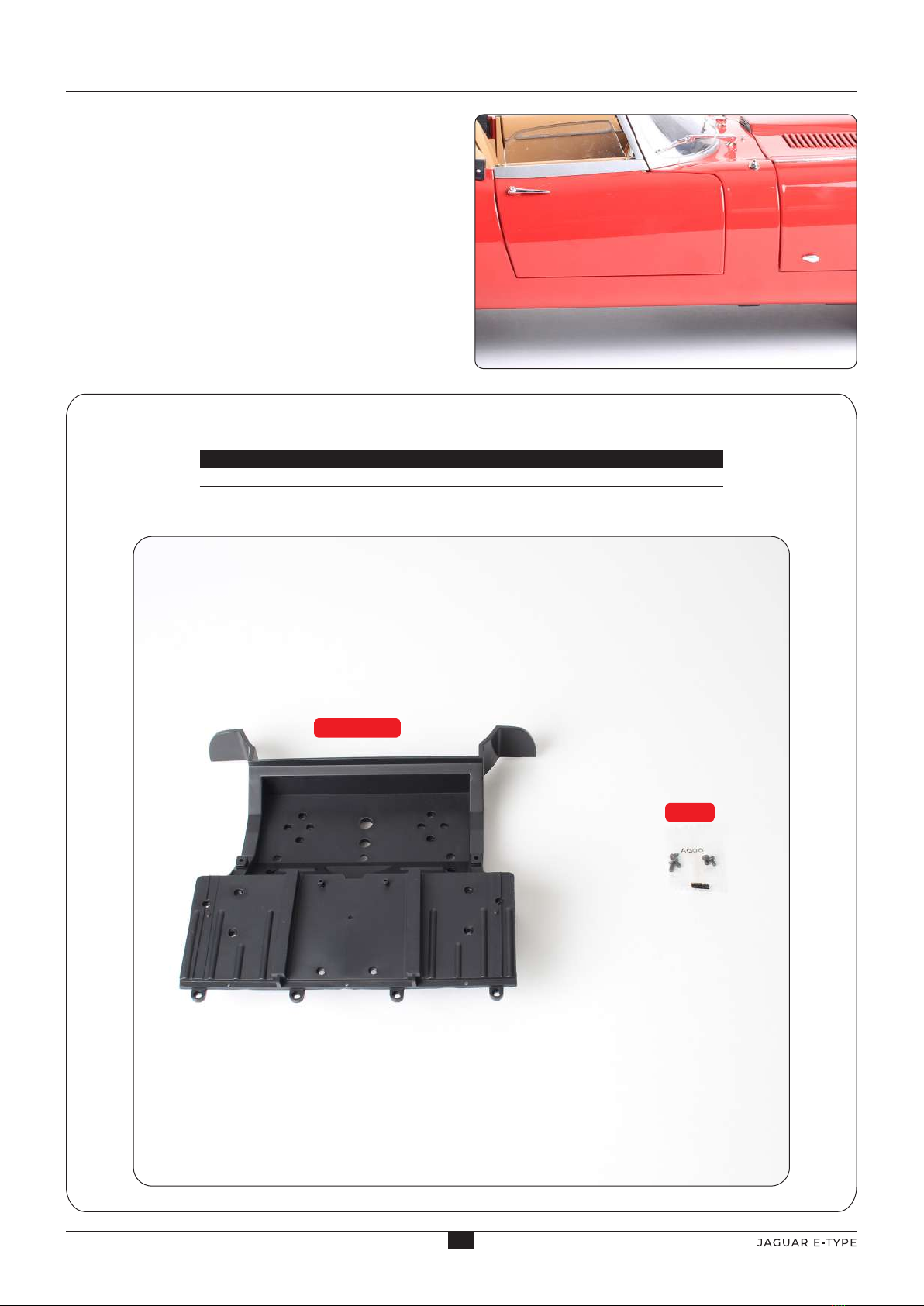

Name

Rear ﬂoor panel

Screws type AG06 x5

STAGE 43 PARTS LIST

Now you’ll assemble the ﬂoor

panel, attaching the front and rear

components together.

AG06 x5

Stage 43: Floor Panel Assembly

Rear ﬂoor panel

AGORAMODELS JAGUAR E-TYPE

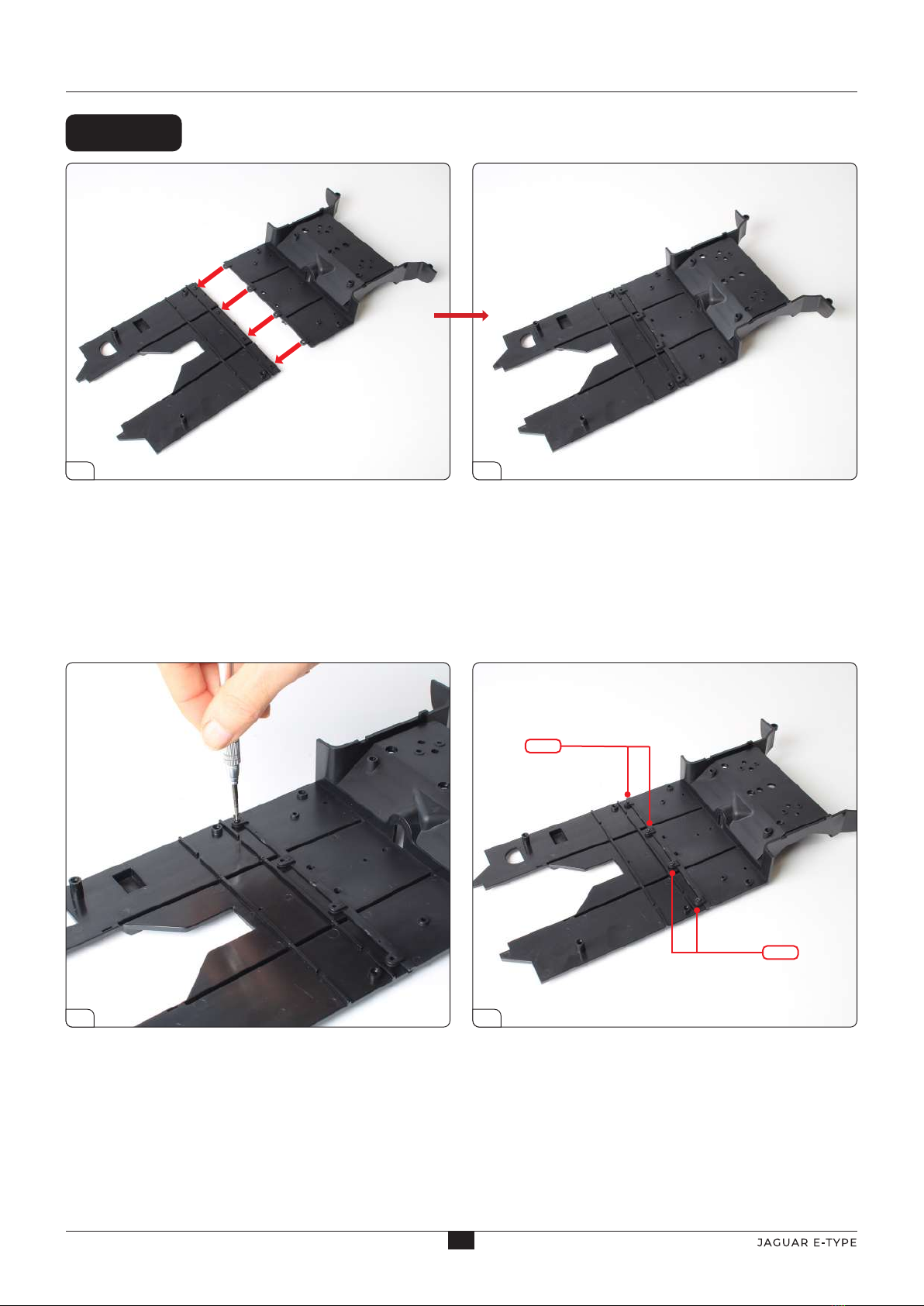

Take the rear ﬂoor panel and the front ﬂoor panel from Stage 42. Line

up the four screw holes on the rear panel with the protruding holes on

the front panel as shown.

Screw the parts together using 4x type AG06 screws.

Fit the rear panel onto the front panel.

Stage 43: Floor Panel Assembly

AG06

STEP 1

AGORAMODELS JAGUAR E-TYPE

STAGE COMPLETE

Stage 43: Floor Panel Assembly
