Agri-Fab 45-01772 Manuale utente

• Safety

• Assembly

• Operation

• Maintenance

• Parts

PRINTED IN U.S.A. FORM NO. 7592 (REV. 7/03)

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

OWNERS MANUAL

MODEL NO.

45-01772

14 CU. FT. FARM/YARD CART

Agri-Fab¨

the fastest way to purchase parts

www.speedepart.com

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

RULES FOR SAFE OPERATION

FIGURE 1

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED

(1) Screw Driver

(1) Pliers

(1) 7/16" Wrench

When assembling your cart, place the heads of all

screws to the inside and hex nuts with flat washers

to the outside.

The bottom panel has one galvanized

edge; this is the rear. The front edge

has three holes. See figure 2.

NOTE

2. Line up three holes in bottom panel with holes in

front angle assembly. Start three 1/ " x 1" screws

through bottom panel, then through angle. Secure

screws with flat washers and hex nuts. Tighten

securely. See figure 2.

1. Lay the front angle assembly down (flat) on floor

and stand the bottom panel in position as shown in

figure 2.

Preventing accidents is the responsibility of every

equipment operator. The following general safety

precautions must be fully understood and followed by

every operator.

1. Do not at any time carry passengers in this cart. It

is designed for carrying materials only and not

intended to carry passengers.

2. Be careful on any grade (hill) and stay off of steep

grades.

3. Use caution when loading cart to avoid tipping.

. Avoid large holes and ditches when transporting

loads.

REF. QTY. DESCRIPTION

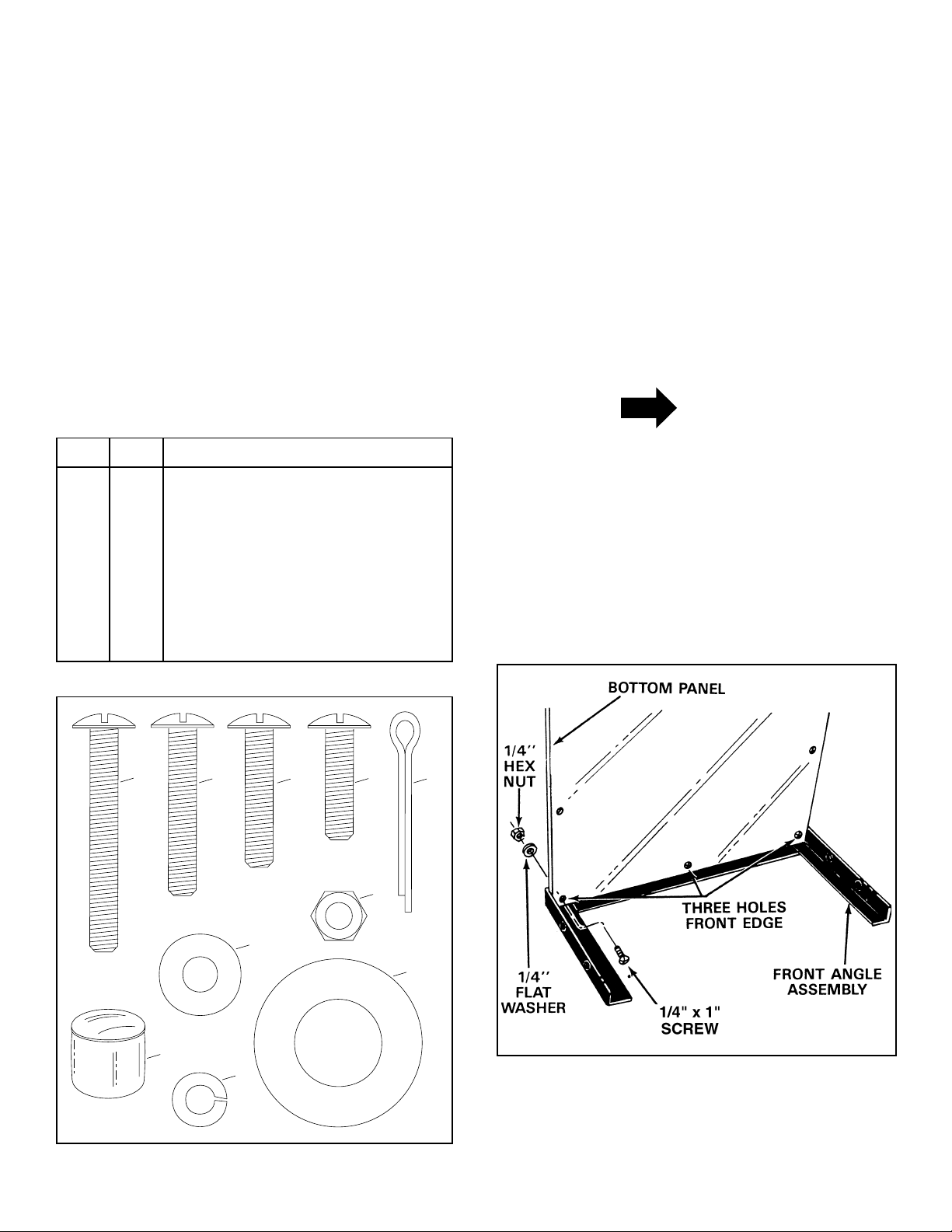

Your Farm/Yard Cart carton contains a hardware

package with parts as shown in the chart below

and in figure 1.

Contents of Hardware Pack: (See figure 1)

A 6 Screws, 1/ -20 x 2" Long

B 2 Screws, 1/ -20 x 1-1/2" Long

C Screws, 1/ -20 x 1-1/ " Long

D 25 Screws, 1/ -20 x 1" Long

E Cotter Pins

F 37 Hex Nuts, 1/ -20 Thread

G Flat Washers, 1-1/2" O.D.

H 33 Flat Washer, 1/ " I.D.

I Lock Washers, 1/ "

J 2 Tube Cap, 1" x 1" Long

HARDWARE REFERENCE CHART

FIGURE 2

1/4" x 1"

1/4" x 2"

1/4" x 1-1/4"

ABCD

1/4" x 1-1/2'

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

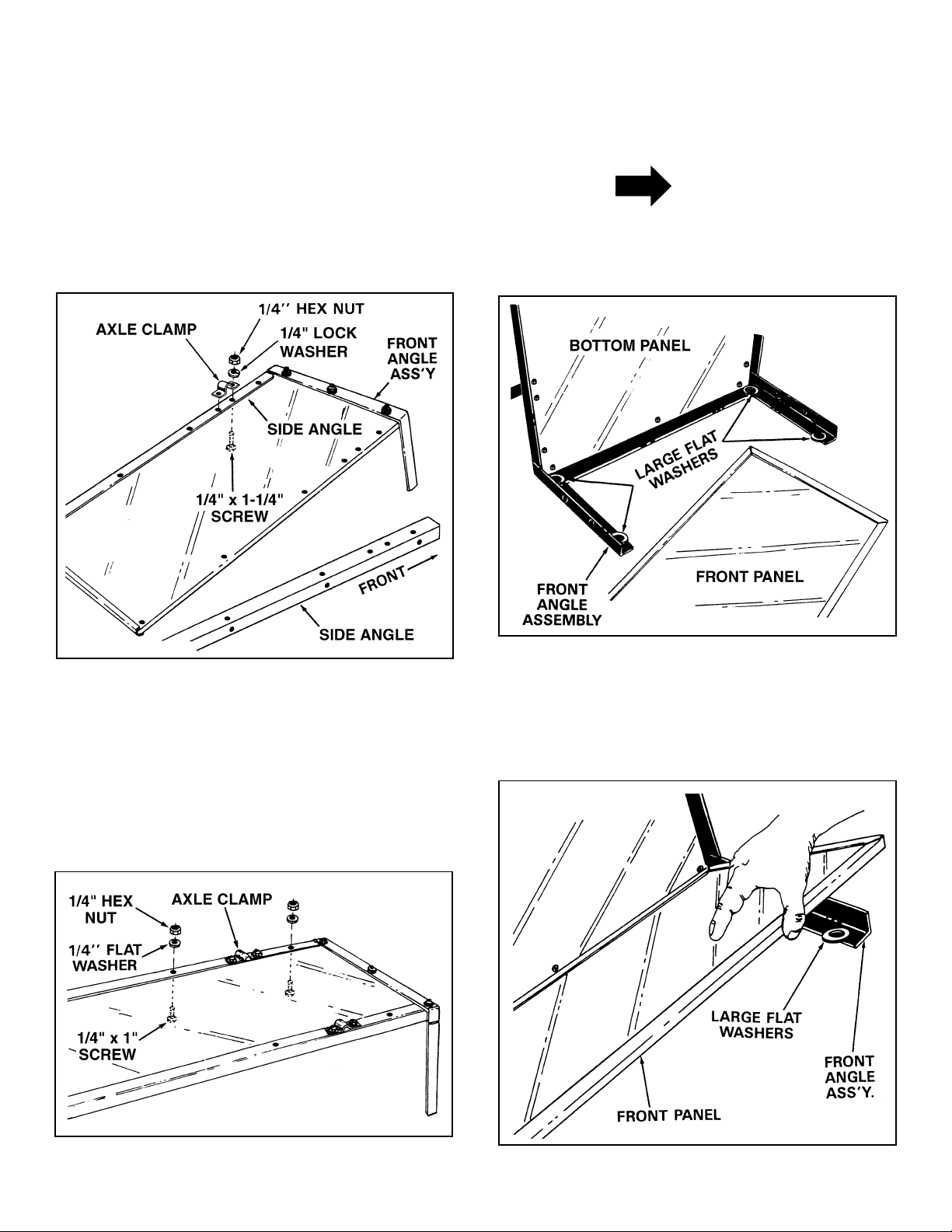

3. Turn the front angle assembly and bottom panel

upside down as shown in figure 3.

. Lay each side angle on the bottom panel so that

the two holes (for the axle clamp) are closer to the

front angle assembly. See figure 3.

5. Secure both axle clamps to the side angles and

the bottom panel using four 1/ " x 1-1/ " screws,

lock washers and hex nuts. Make only finger

tight until the axle is assembled. See figure 3.

FIGURE 5

FIGURE 3

7. Stand the cart on end with the front angle assem-

bly down on the floor. Temporarily place the four

large 1-1/2" dia. flat washers (axle washers) on

the inside of front angle assembly. See figure 5.

These washers act as shims and are

just for assembly purposes. You will

remove them later to use on the axle.

NOTE

8. Lay the front panel down onto the front angle

assembly, on top of the four large 1-1/2" dia.

washers. See figure 6.

FIGURE 4

6. Assemble four 1/ " x 1" screws, flat washers and

hex nuts to the side angles and bottom panel

using the holes on each side of the axle clamps.

Tighten the four nuts. See figure .

FIGURE 6

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

FIGURE 8

FIGURE 7

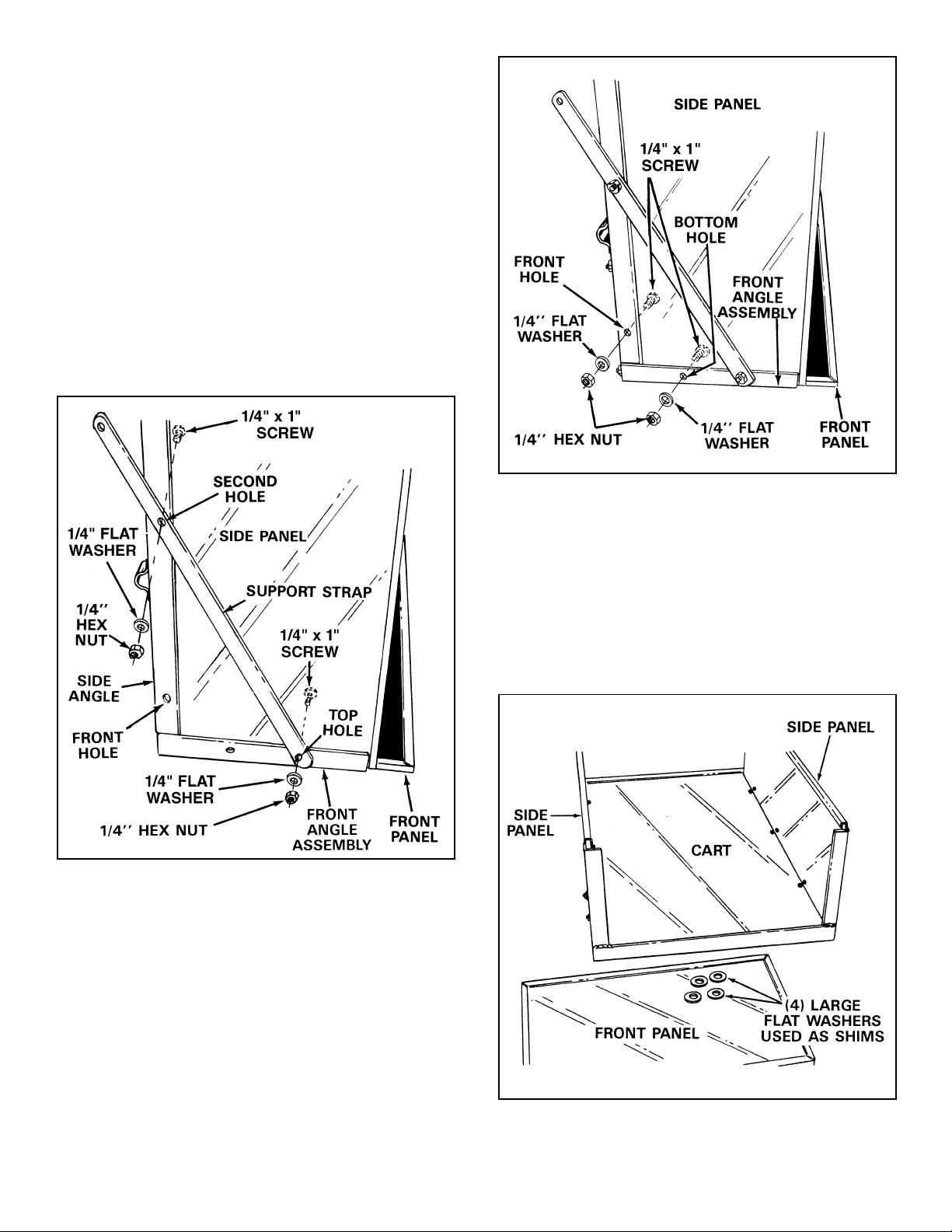

9. Position a side panel against a side angle, resting

it down on top of the front panel. Place a support

strap on the outside of the side angle and start a

1/ " x 1" screw through the second hole in the

side panel, the side angle and the support strap.

Secure with a flat washer and hex nut. Make only

finger tight at this time. See figure 7.

10. Start a 1/ " x 1" screw through the top hole in the

side panel, the front angle assembly and the sup-

port strap. Secure with a flat washer and hex nut.

Make only finger tight at this time. See figure 7.

11. Repeat steps 9 and 10 for the other side panel.

FIGURE 9

15. Lay the cart down on the floor so that the sides are

in the normal upright position. Remove the front

panel by sliding it up, then remove the four large

washers you used for shims. See figure 9.

12. Start one 1/ " x 1" screw through the bottom hole

in the side panel and the front angle assembly.

Start another 1/ " x 1" screw through the front hole

in the side panel and the side angle. Secure with

two flat washers and two hex nuts, making only

finger tight at this time. See figure 8.

13. Repeat step 12 for the other side panel.

1 . Tighten all nuts and screws securely at this time,

except for nuts and screws in axle clamps. See

figure 8.

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

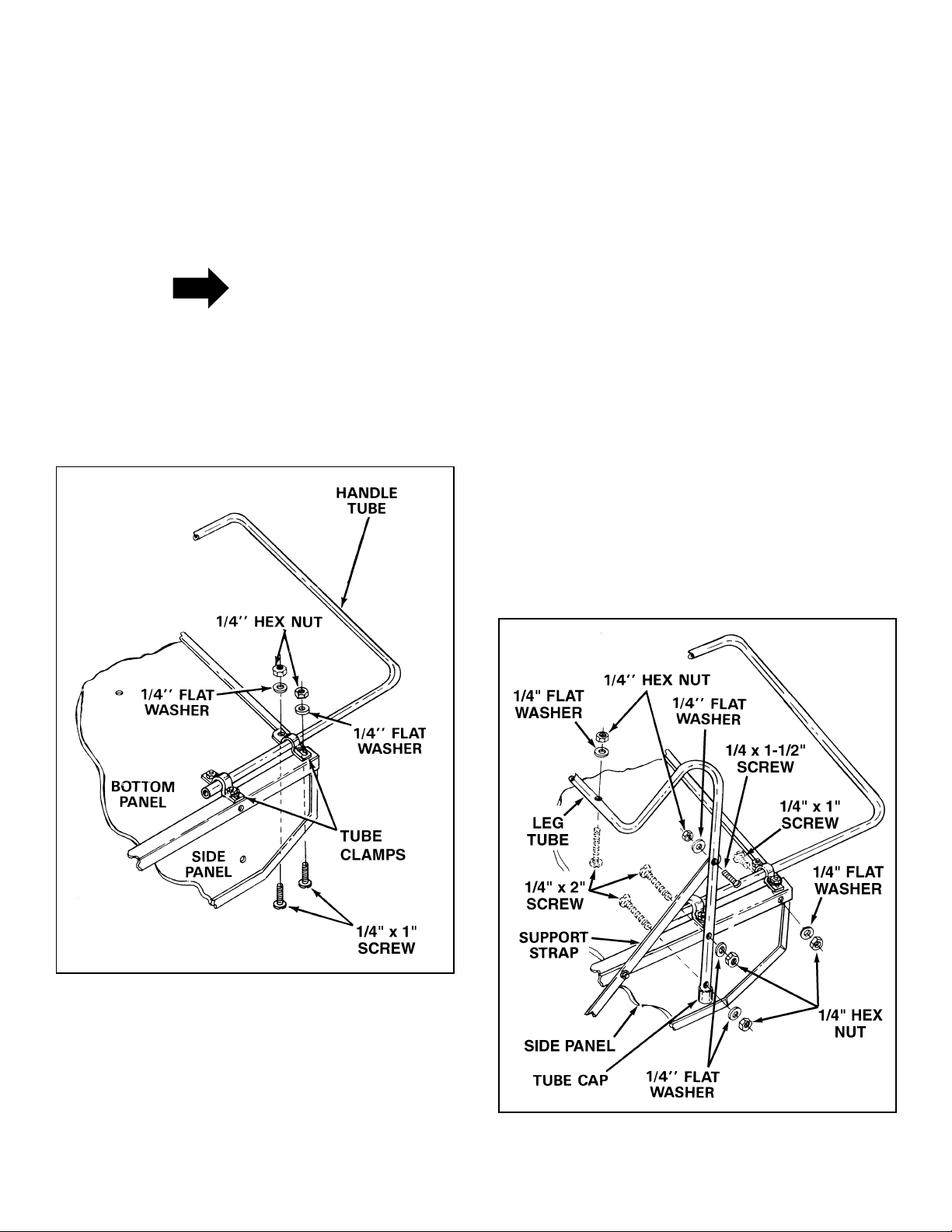

16. Turn the cart upside down. Place the handle tube

on the bottom of the cart as shown in figure 10.

Place the four tube clamps over the handle tube,

with the longer leg of each tube clamp to the

outside. Secure the four tube clamps over the

handle tube using eight 1/ " x 1" screws, eight flat

washers and eight hex nuts. Make only finger tight

until all eight screws are in place and then tighten

securely. See figure 10.

The length of the handle tube can be

adjusted by sliding the tube in or out

before tightening the four clamps. See

figure 10.

NOTE

FIGURE 10

17. Insert a 1/ " x 1" screw through the hole at the rear

of each side panel and the hole at the rear of each

side angle. Secure with 1/ " flat washers and 1/ "

hex nuts, making only finger tight at this time.

See figure 11.

18. Place the tube caps on the ends of the "W" shaped

leg tube. See figure 11.

19. With the cart still upside down, assemble the leg

tube to the bottom of the cart. Line up the two

holes in the center of the leg tube with the holes in

the bottom of the cart. Secure the leg tube to the

bottom of the cart with two 1/ " x 2" screws, 1/ "

flat washers and 1/ " hex nuts. Make only finger

tight at this time. See figure 11.

20. Attach the leg tube to the side panels with four 1/ "

x 2" screws, 1/ " flat washers and 1/ " hex nuts.

Make only finger tight at this time. See figure

11.

21. Fasten the support straps to the leg tube with two

1/ " x 1-1/2" screws, 1/ " flat washers and 1/ "

hex nuts. See figure 11.

22. At this time tighten securely all screws and nuts

assembled in figure 11.

FIGURE 11

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

FIGURE 12

26. Turn cart right side up, so that it rests on its

wheels.

27. Place front panel in guides to complete assembly.

28. Your cart is now ready to use.

MAINTENANCE

1. Grease or oil wheel bearings occasionally. Use

automotive wheel bearing type grease or 20 weight

oil.

2. Periodically retighten all screws, especially after

heavy use. Do not exceed load capacity rating

of 400 lbs.

3. Clean cart thoroughly after each use.

. Store indoors during severe weather.

5. Apply light coat of varnish to all wood surfaces

annually.

6. Use glossy black enamel spray paint to touch up

scratched or worn painted metal surfaces.

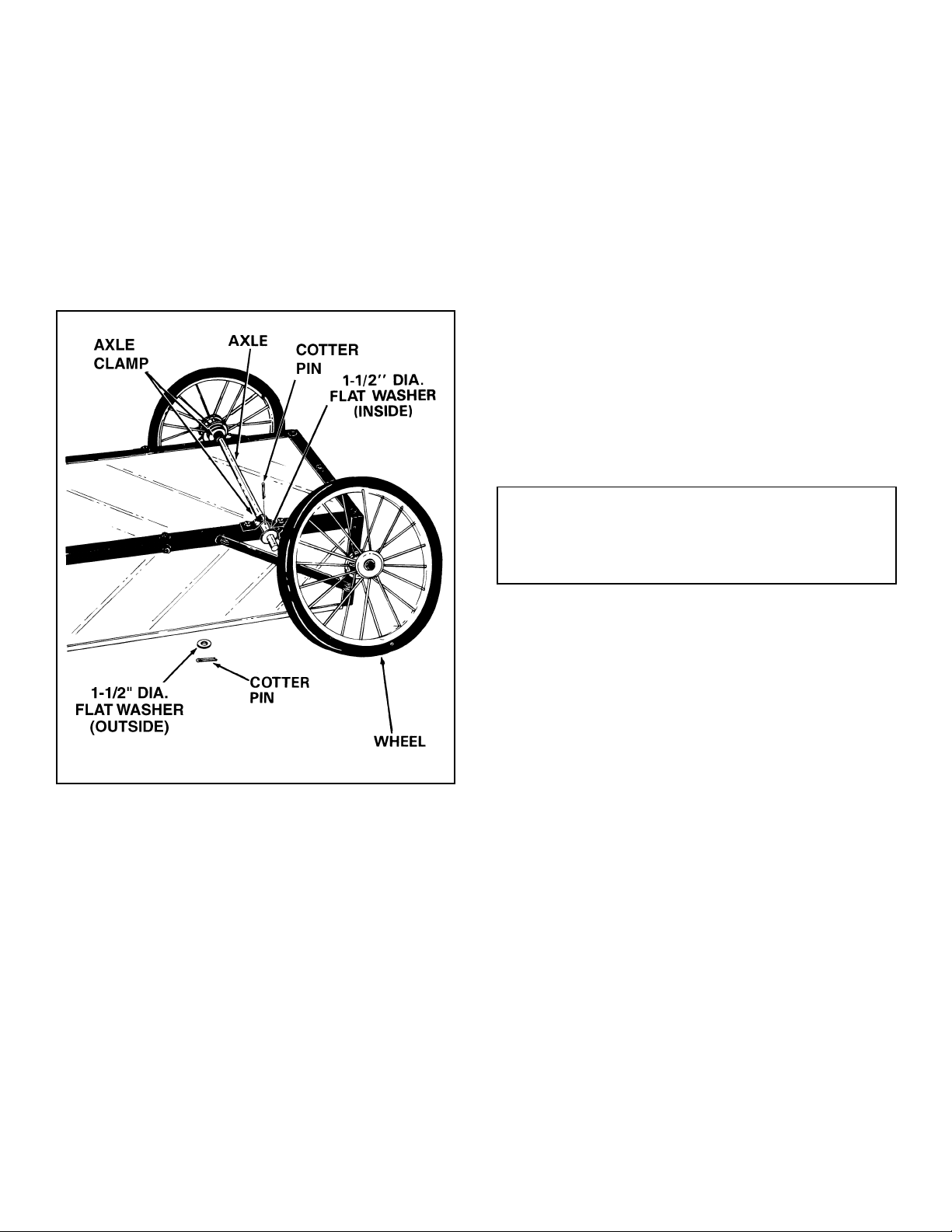

23.Slide the axle through the axle clamps. See figure

12.

2 . Assemble a cotter pin to the inner hole at one end

of the axle. Place a 1-1/2" flat washer, a wheel and

then another 1-1/2" flat washer onto the axle.

Secure the wheel with a cotter pin assembled to

the outer hole at the end of the axle. Repeat step

for other wheel. See figure 12.

25. Center the wheels and axle side to side. Tighten

the four nuts on the axle clamps.

RECOMMENDED TIRE PRESSURE 30-35 PSI

MAXIMUM TIRE PRESSURE 35 PSI

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

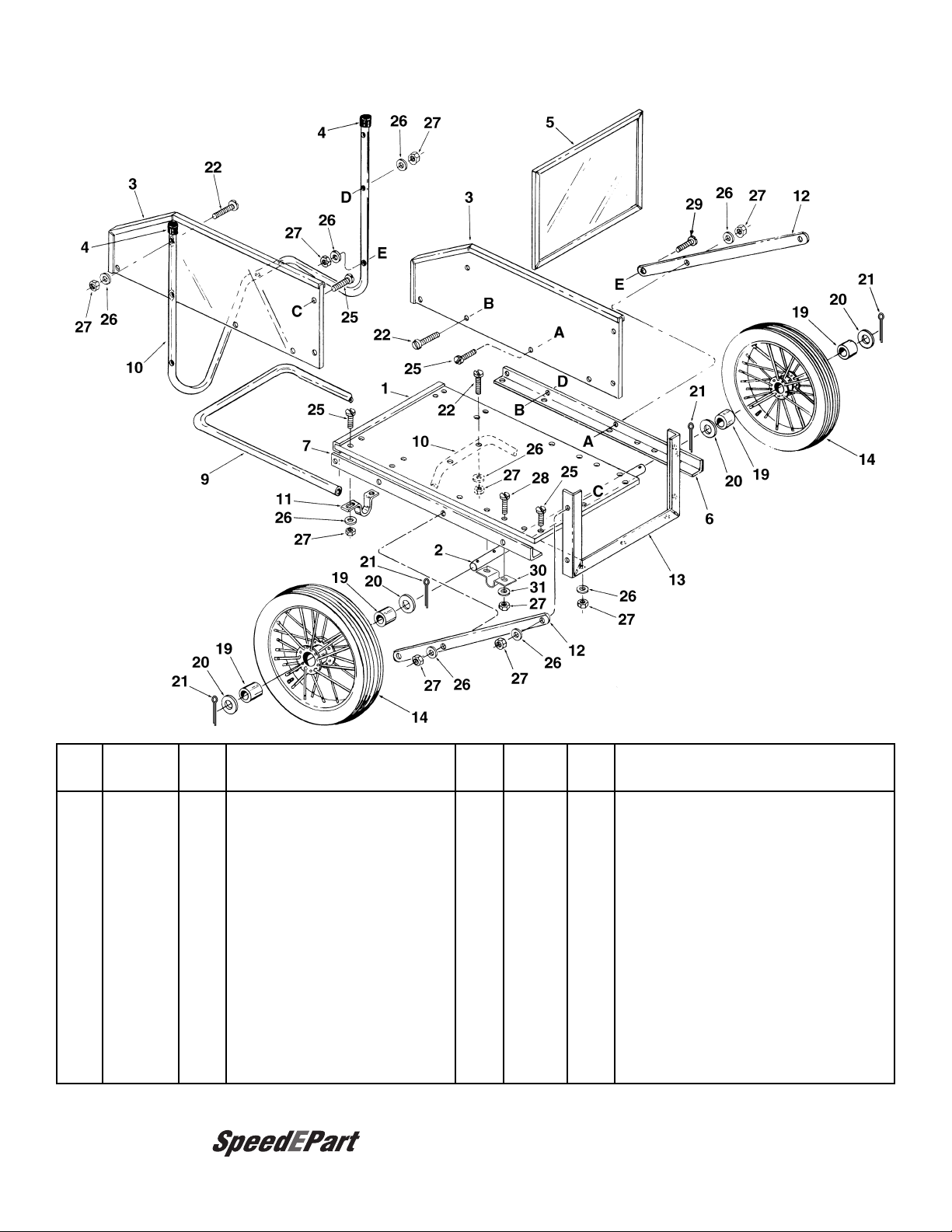

MODEL 45-01772 14 CU. FT. FARM/YARD CART

1 7590 1 Bottom Panel

2 2 889 1 Axle, Wheel

3 7589 2 Side Panel

021 2 Tube Caps

5 7588 1 Front Panel

6 2 887 1 Side Angle, L.H.

7 2 888 1 Side Angle, R.H.

9 031 1 Handle Tube

10 522 1 Leg Tube

11 033 Clamp, Tube

12 23882 2 Support Strap

13 62535 1 Front Angle Assembly

1 39 5 2 Wheel w/Bearings 26"

19 016 Ball Bearings 3/ " I.D.

20 39 9 Flat Washer, 25/32" x 1-1/2" x 3/32"

21 3010 Cotter Pin, 1/8" x 1-1/ " *

22 758 6 Truss Head Screw, 1/ -20 x 2" Lg.*

25 259 25 Truss Head Screw, 1/ -20 x 1" Lg.*

26 3088 33 Flat Washer, 1/ " *

27 3178 37 Hex Nut, 1/ -20 Thread *

28 020 Truss Head Screw, 1/ -20 x 1-1/ " Lg.*

29 017 2 Truss Head Screw 1/ -20 x 1-1/2" Lg.*

30 23917 2 Axle Clamp

31 3177 Lock Washer, 1/ "

7592 1 Owner's Manual

REF. PART QTY. DESCRIPTION

NO. NO.

REF. PART QTY. DESCRIPTION

NO. NO.

*Purchase Common Hardware Locally.

the fastest way to purchase parts

www.speedepart.com

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

the fastest way to purchase parts

www.speedepart.com

REPAIR PARTS

Agri-Fab, Inc.

303 West Raymond

Sullivan, IL. 61951

217-728-8388

www.agri-fab.com

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com
