Agri-Fab 45-0313 Manuale utente

OWNERS

MANUAL

Model No.

45-0313

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

BROADCAST SPREADER

• Assembly

• Operation

• Maintenance

• Repair Parts

FORM NO. 48249 (1/02)

RULES FOR SAFE OPERATION

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate

the equipment. Exercise caution at all times when operating equipment.

• Read the towing vehicle owners manual and tow-

ing vehicle safety rules. Know how to operate your

tractor before using the broadcast spreader at-

tachment.

• Read the chemical label instructions and cautions

for handling and applying the chemicals purchased

for spreading.

•Wear eye and hand protection when handling and

when applying lawn or garden chemicals.

•Never operate tractor and spreader attachment

without wearing substantial footwear, and do not

allow anyone to ride or sit on spreader attachment

frame.

•Never allow children to operate the tractor or

spreader attachment, and do not allow adults to

operate without proper instructions.

• Always begin with the transmission in first (low)

gear and with the engine at low speed, and gradu-

ally increase speed as conditions permit. Maxi-

mum towing speed - 10 M.P.H.

• When towing broadcast spreader do not drive too

close to acreek or ditch and be alert for holes and

other hazards which could cause you to loose

control of the broadcast spreader and tractor.

• Before operating vehicle on any grade (hill) refer

to the safety rules in the vehicle owner's manual

concerning safe operation on slopes. Stay off

steep slopes!

•Follow maintenance and lubrication instructions

as outlined in this manual.

I,_, LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT

MEANS -- A'I-FENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED.

CARTON CONTENTS

1. Spreader Assembly

2. Control Cable

3. Hitch Tube, R.H. (Right Hand)

4. Hitch Tube, L.H. (Left Hand)

5. Hitch Control Tube

6. Hitch Brackets (2)

E C

SHOWN FULL SIZE

jC _ D

REF. QTY. DESCRIPTION

A 4 Hex Bolt, 114x 1-314"

E 4 Hex Bolt, 1/4 x 2-114

C 1 Hitch Pin

D 8 Hex Nut, 1/4-20

E1 Hair Cotter Pin, 1/8"

TOOLS REQUIRED FOR ASSEMBLY REMOVAL OF PARTS FROM CARTON

(2) 7/16" Wrenches • Remove all parts and hardware packages from

the carton. Lay out all parts and hardware and

identify using the illustrations on page 3,

ASSEMBLYINSTRUCTIONS

1. Assemble vinyl caps onto the ends of the R.H. and

L.H. Hitch Tubes. See figure 1.

2. Assemble the R.H. Hitch Tube to the spreader

frame tube using two 1/4" x 2-1/4" hex bolts and

1/4" hex nuts. Do not tighten yet. Repeat for L.H.

Hitch Tube. See figure 1.

4. Assemble the Hitch Brackets to the Hitch Control

Tube using two 1/4" x 1-314" hex bolts and 1/4"

hex nuts. Tighten. See figure 3.

5. Assemble the hitch pin through the hitch brackets

and secure with the 1/8" hair cotter pin. See figure 3.

HEX BOLT

FIGURE 1

HITCHPIN

114"x 1-3/4"

HEXBOLT

1/4"HEXNt,rr _: ;

HAIR COTTER PIN -.--_,4 _

3. Assemble the Hitch Control Tube between the

Hitch Tubes using two 1/4" x 1-3/4" hex bolts and

1/4" hex nuts. Tighten all bolts and nuts . See

figure 2.

1/4" HEX NUT

1/4"x 1_1/4"

HEXBOLT

FIGURE 2

FIGURE 3

6. Assemble the vinyl cap onto the Hitch Control

Tube. See figure 4.

7. Assemble the Control Cable to the Hitch Control

Tube using the 1/4" x 2-114" carriage bolt and

nylon wing nut. See figure 4.

NYLON

CARRIAGE BOLT

FIGURE 4

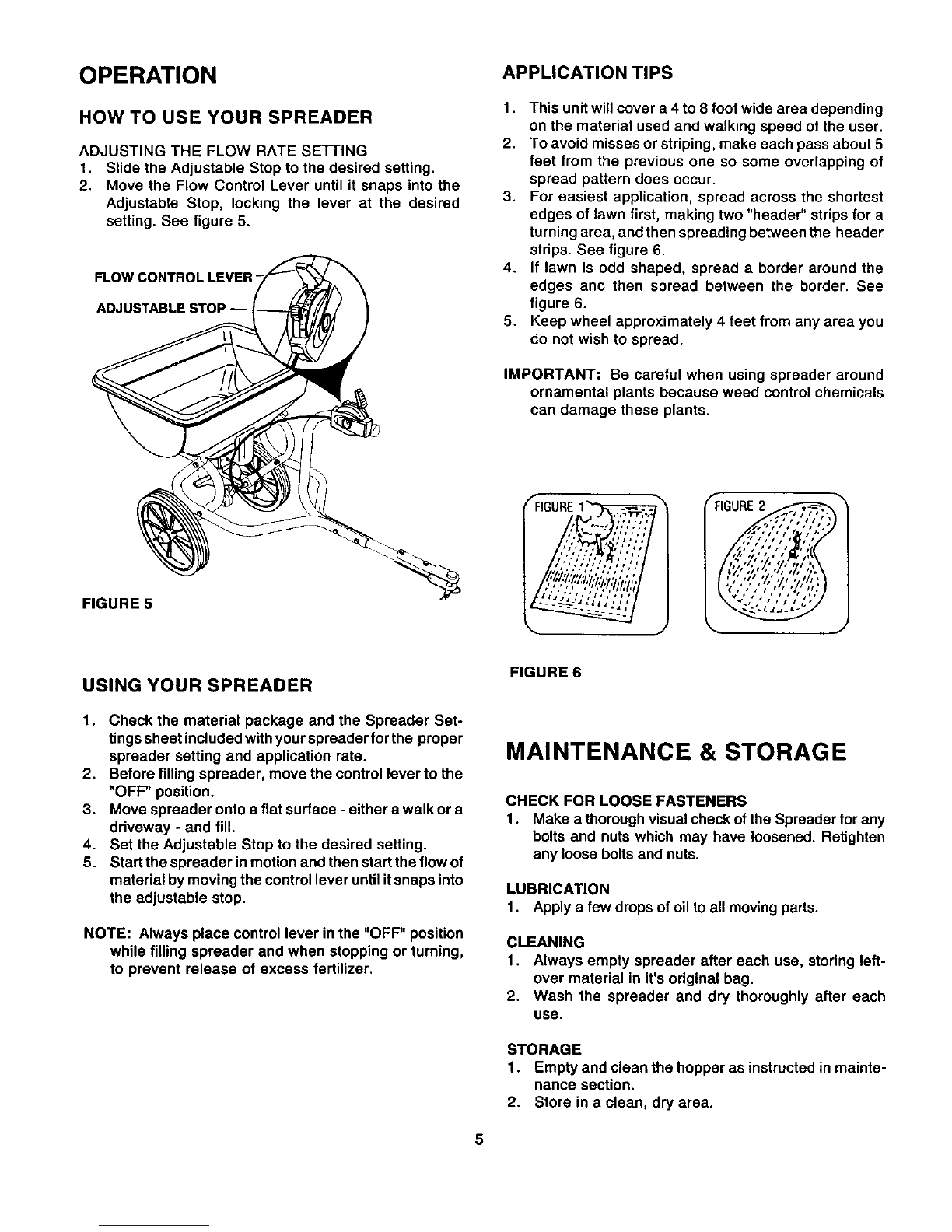

OPERATION

HOW TO USE YOUR SPREADER

ADJUSTING THE FLOW RATE SETTING

1. Slide the Adjustable Stop to the desired setting.

2. Move the Flow Control Lever until it snaps into the

Adjustable Stop, locking the lever at the desired

setting. See figure 5.

FLOW CONTROL LEVER"

APPLICATION TIPS

1. This unitwillcover a 4 to 8 foot wide area depending

on the material used and walking speed of the user.

2. To avoid misses or striping, make each pass about 5

feet from the previous one so some overlapping of

spread pattern does occur.

3. For easiest application, spread across the shortest

edges of lawn first, making two "header" strips for a

turning area, and then spreading between the header

strips. See figure 6.

4. If lawn is odd shaped, spread a border around the

edges and then spread between the border. See

figure 6.

5. Keep wheel approximately 4 feet from any area you

de not wish to spread.

IMPORTANT: Be careful when using spreader around

ornamental plants because weed controlchemicals

can damage these plants.

FIGURE 5

/'FIGURE1"_

s%/,,

_,,,s

J'll

USING YOUR SPREADER

1. Check the material package and the Spreader Set-

tingssheet includedwithyourspreader for the proper

spreader setting and application rate.

2. Before filling spreader, move the control lever to the

"OFF" position.

3. Move spreader onto aflat surface - either a walk or a

driveway - and fill.

4. Set the Adjustable Stop to the desired setting.

5. Start the spreader in motion and then start the flow of

material by moving the control lever until itsnaps into

the adjustable stop.

NOTE: Always place control lever in the "OFF" position

while filling spreader and when stopping or turning,

to prevent release of excess fertilizer,

FIGURE 6

MAINTENANCE & STORAGE

CHECK FOR LOOSE FASTENERS

1. Make a thoroughvisualcheckof the Spreader for any

boltsand nuts which may have loosened. Retighten

any looseboltsand nuts.

LUBRICATION

1. Apply a few drops of oilto all moving parts.

CLEANING

1. Always empty spreader after each use, storing left-

over material in it's original bag.

2. Wash the spreader and dry thoroughly after each

use.

STORAGE

1. Empty and clean the hopper as instructed in mainte-

nance section.

2. Store in a clean, dry area.
