Agrimate AM-21K Manuale utente
Before Operating this machine please read instructions Manual carefully
Desclaimer: Due to Constatnt upgradation, features & Specications are subject to change without prio notice
USER MANUAL
HTP POWER SPRAYER WITH ENGINE
AM-21K WITH AM-152 ENGINE
Dear Sir/Madam,
Thank you for choosing Agrimate product. You are the proud owner of high technology and
durable machine. Trust that our franchisee/dealer installed the product and explained you about
the usage and service instrucons. Please visit our authorised dealer for you future requirement
of our other equipments, genuine spares, accessories and service. Service coupons are aached
with this manual and you can avail free service.
About Ratnagiri
We import and market of high quality of agriculture wide range of equipment’s Which we are sell-
ing through our authorized franchisee or dealer network. We are in this eld from past 20 years
serving the former community. For further details, you may please visit our website
www.agrimart.in
TECHNICAL SPEFICATIONS
Model AM-21K WITH 152eNGINE
Engine AM-152E
Type Single-cylinder, 4-stroke, OHV air-
forced cooling
Start Recoil
Displacement (CC) 98CC
Max. Power KW(HP)/RPM 2.2KW/3.0HP/3600RPM
Fuel Tank Capacity 1.3LTR
Oil Capacity 0.3LTR
Net Weight KG 8.5
Gross Weight KG 10
SL NO PART NO. DESCRIPTION
1AM-152PE-A01 Crankcase
2 AM-152PE-A02 Valve chamber clapboard
sub-assy
3AM-152PE-A03 Stud
4AM-152PE-A04 Oil seal cranksha
5AM-152PE-A05 Cover, oil lter
6AM-152PE-A06 Gasket
7AM-152PE-A07 Return Pipe
8AM-152PE-A08 Flow guard, lower
9AM-152PE-A09 sway bar
10 AM-152PE-A10 Keeper, sway bar
11 AM-152PE-A11 Oil seal, sway bar
12 AM-152PE-A12 Washer, sway bar
13 AM-152PE-A13 Boom plate
14 AM-152PE-A14 Bolt
15 AM-152PE-A15 Bolt
16 AM-152PE-A16 Bolt
CRANKCASE ASSY - A
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
CRANKCASE COVER ASSY - B
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON
1AM-152PE-B01 Set pin 17 AM-152PE-B17 Governing sha
2 AM-152PE-B02 Gasket, crankcase 18 AM-152PE-B18 Pin, yweight
3AM-152PE-B03 Drain plug 19 AM-152PE-B19 Snap ring
4AM-152PE-B04 Drain plug 20 AM-152PE-B20 Washer, driven gear
5AM-152PE-B05 Washer 21 AM-152PE-B21 Bearing
6AM-152PE-B06 Crankcase cover 22 AM-152PE-B22 Bolt
7AM-152PE-B07 Oil seal cranksha
8AM-152PE-B08 Dipsck sub-assy
9AM-152PE-B09 Dipsck
10 AM-152PE-B10 Seal, dipsck
11 AM-152PE-B11 Oil plug sub-assy
12 AM-152PE-B12 Seal, oil plug
13 AM-152PE-B13 Driven gear sub-assy, governor
14 AM-152PE-B14 Driven gear, governor
15 AM-152PE-B15 Sliding sleeve
16 AM-152PE-B16 Flyweight
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
CYLINDER COVER - C
SL NO PART NO DESCRIPTION
1AM-152PE-C01 Gasket, cylinder head
2 AM-152PE-C02 Cylinder cover
3AM-152PE-C03 Spark plug
4AM-152PE-C04 Bolt
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
CRANKSHAFT, PISTON & CONNECTING ROD - D
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON
1AM-152PE-D01 Cranksha sub-assy 12 AM-152PE-D12 Piston ring (I)
2 AM-152PE-D02 Cranksha 13 AM-152PE-D13 Piston ring (II)
3AM-152PE-D03 Woodru key 14 AM-152PE-D14 Oil ring, 3-piece
4AM-152PE-D04 Connecng rod 15 AM-152PE-D15 Expander
5AM-152PE-D05 Shank 16 AM-152PE-D16 Side rail
6AM-152PE-D06 Cap connecng rod 17 AM-152PE-D17 Timing driving gear
7AM-152PE-D07 Bolt 18 AM-152PE-D18 Bearing
8AM-152PE-D08 Piston
9AM-152PE-D09 Piston pin
10 AM-152PE-D10 Circlip, piston pin
11 AM-152PE-D11 Piston ring set
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE

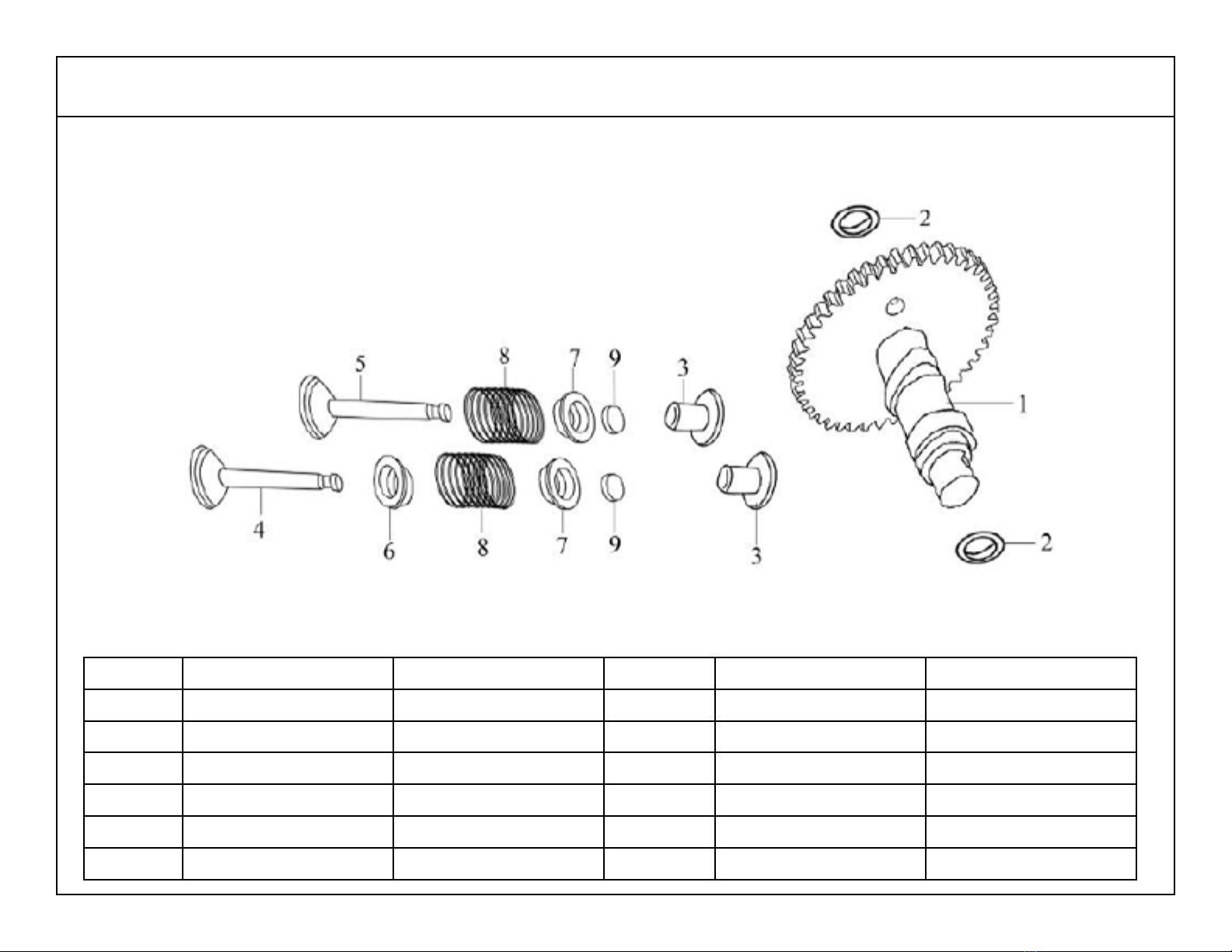

COMBINATION OF CAMSHAFT VALVE -E
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON
1AM-152PE-E01 Camsha 6AM-152PE-E06 Oil seal, valve stem
2 AM-152PE-E02 Washer, camsha 7AM-152PE-E07 Spring seat, valve
3AM-152PE-E03 Tappet 8 AM-152PE-E08 Valve spring
4AM-152PE-E04 Intake valve 9 AM-152PE-E09 Cap
5AM-152PE-E05 Exhaust valve
ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE
