ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
II
Disclaimer and copyright notice
The information in this article, including the URL for reference, is subject to change
without notice.
The document is provided "as is" without any guarantee responsibility, including any
guarantee of marketability, suitability for a specific purpose or non-infringement, and
any guarantee mentioned elsewhere in any proposal, specification or sample. This
document assumes no responsibility, including any liability for infringement of any
patent rights arising from the use of the information in this document. This document
does not grant any license to use intellectual property rights, whether express or
implied, by estoppel or other means.
The test data obtained in this article are all obtained by Enxin Lab's laboratory tests,
and the actual results may be slightly different.
The Wi-Fi Alliance member logo is owned by the Wi-Fi Alliance.
All trademark names, trademarks and registered trademarks mentioned in this article
are the property of their respective owners and are hereby declared.
The final interpretation right belongs to Shenzhen Anxinke Technology Co., Ltd.
Notice
The contents of this manual may change due to product version upgrade or other
reasons. Shenzhen Anxinke Technology Co., Ltd. reserves the right to modify the
contents of this manual without any notice or prompt. This manual is only used as a
guide. Shenzhen Anxinke Technology Co., Ltd. makes every effort to provide accurate
information in this manual, but Shenzhen Anxinke Technology Co., Ltd. does not
guarantee that the contents of the manual are completely error-free. And the
suggestion does not constitute any express or implied guarantee.
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
III
Formulation / Revision / Abolition of CV
Version
Date
Formulation / Revision
Make
Verify
V1.0
2020.04.10
First formulated
Yiji Xie
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
IV
CONTENT
1.PRODUCT DESCRIPTION.......................................................................................................................... V
2.ELECTRICAL PARAMETER....................................................................................................................... IX
3.DIMENSION...................................................................................................................................................XI
4.PIN DEFINITION.......................................................................................................................................... XII
5.SCHEMATIC DIAGRAM............................................................................................................................. XV
6.DESIGN GUIDE.......................................................................................................................................... XVI
7.PACKAGING................................................................................................................................................XIX
8.CONTACT US..............................................................................................................................................XIX
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
V
1.PRODUCT DESCRIPTION

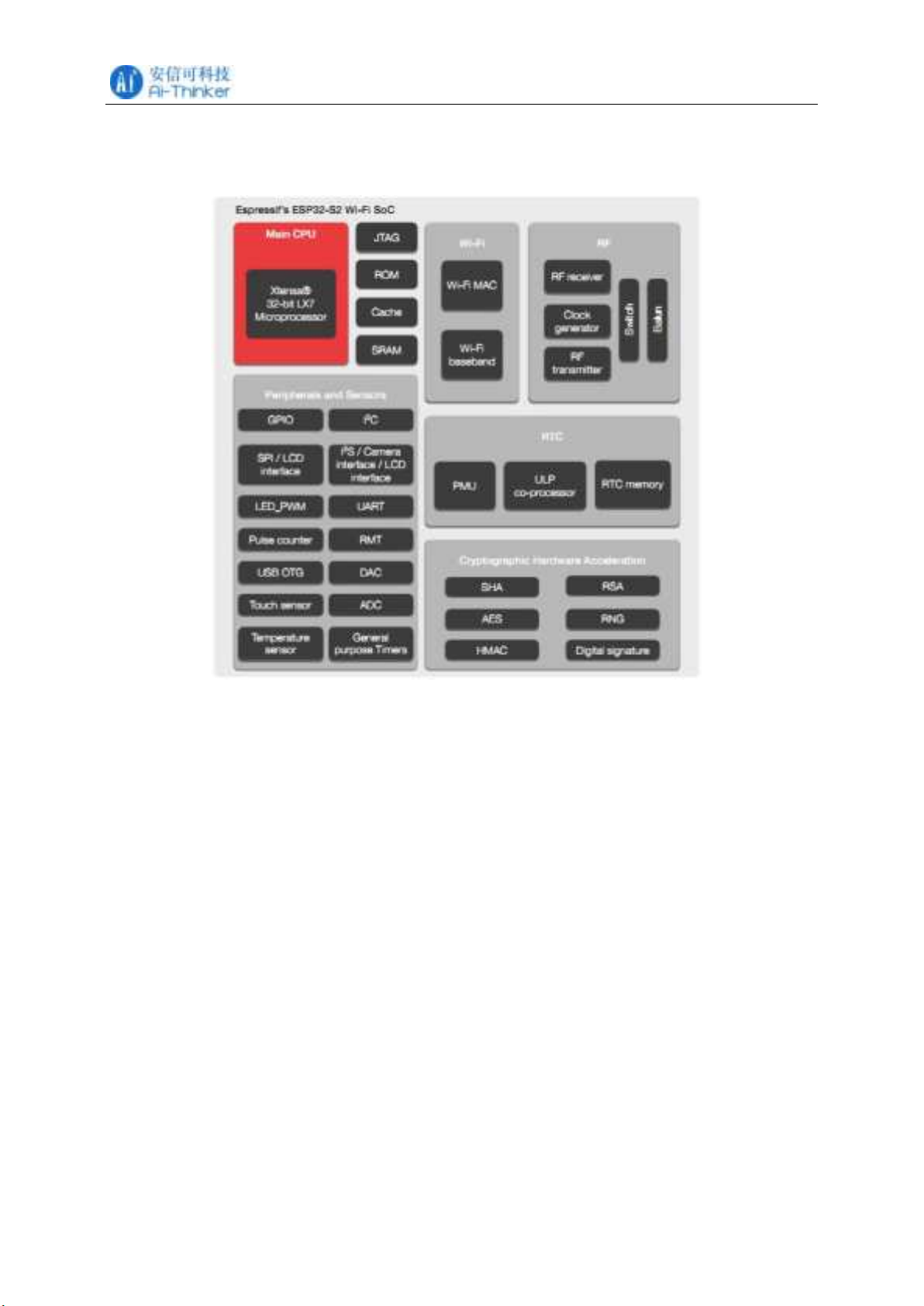

ESP-12K is a Wi-Fi module developed by Ensink Technology. The core processor
ESP32-S2 of this module is a highly integrated low-power Wi-Fi system-on-chip (SoC)
designed for the Internet of Things (IoT) , Mobile devices, wearable electronic devices,
smart home and other applications. ESP32-S2 has industry-leading low-power
performance and RF performance, supports IEEE802.11b / g / n protocol, integrates
Wi-Fi MAC, Wi-Fi RF and baseband, RF switch, RF Balun, power amplifier, low noise
Amplifier, etc.
The ESP32-S2 chip is equipped with Xtensa® 32-bit LX7 single-core processor, and its
operating frequency is up to 240 MHz. The chip supports secondary development
without the use of other microcontrollers or processors. The chip has 320 KB SRAM
and 128 KB ROM, and can be connected to flash and RAM through SPI / QSPI / OSPI
and other interfaces. ESP32-S2 supports a variety of low-power operating states to
meet the power consumption requirements of various application scenarios. The
unique fine clock gating function, dynamic voltage clock frequency adjustment function,
and RF output power adjustable function of the chip can achieve the best balance
between communication distance, communication rate and power consumption.
ESP32-S2 provides a wealth of peripheral interfaces, including SPI, I2S, UART, I2C,
LED PWM, LCD interface, Camera interface, ADC, DAC, touch sensor, temperature
sensor and up to 43 GPIO.It supports the expansion of PSRAM on the periphery of the
chip, and the ESP-12K module can be equipped with PSRAM. In addition, it includes a
full-speed USB On-The-Go (OTG) interface that can support the use of USB
communication.
ESP32-S2 has a variety of unique hardware security mechanisms. The hardware
encryption accelerator supports AES, SHA, and RSA algorithms. The RNG, HMAC and
Digital Signature (Digital Signature) modules provide more security features. Other
security features include flash encryption and secure boot (se-cure boot) signature
verification. The perfect security mechanism enables the chip to be perfectly applied to
various encryption products.
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
VI
Features
Complete 802.11b / g / n Wi-Fi SoC module, data rate up to 150Mbps
Built-in ESP32-S2 chip, Xtensa® single-core 32-bit LX7 microprocessor, support
up to 240 MHz clock frequency, with 128KB ROM, 320KB SRAM, 16KB RTC
SRAM
Support UART / GPIO / ADC / PWM / SPI / I2C / LCD / I2S / Camera / IR / USB /
DAC interface, support touch sensor, temperature sensor, pulse counter
SMD-42 packaging
Integrate Wi-Fi MAC/ BB/RF/PA/LNA
Support multiple sleep modes, deep sleep current is less than10uA
Serial port speed up to4Mbps
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
VII
Built-in Lwip protocol stack
Support STA/AP/STA+AP work mode
Smart Config (APP) / AirKiss (WeChat) one-click distribution network supporting
Android and IOS
Support serial local upgrade and remote firmware upgrade (FOTA)
General AT command can be used quickly
Support secondary development, integrated Windows, Linux development
environment
About PSRAM:
ESP-12K supports optional PSRAM, the default 2 kinds of PSRAM configuration,
the shield can be distinguished on the silk screen. For details, please refer to the
product appearance drawing.
ESP-12K(00) without PSRAM
ESP-12K(08) configuration 8MByte PSRAM
Main parameter
List 1 Main parameter
Model Name
ESP-12K
Packaging
SMD-42
Size
31.0*18.0*3.0(±0.2)MM
Antenna
PCB antenna/IPEX connector
Spectrum range
2400 ~ 2483.5MHz
Work
Temperature
-40 ℃~ 85 ℃
Storage
environment
-40 ℃~ 125 ℃, < 90%RH
Power Supply
Range
Voltage 3.0V ~ 3.6V，Current >500mA
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
VIII
Interface
UART/GPIO/ADC/PWM/SPI/I2C/LCD/I2S/Camera/IR/USB/DA
C
IO port qty
37
Serial rate
Support 110 ~ 4608000 bps ，default 115200 bps
Safety
WEP/WPA-PSK/WPA2-PSK
SPI Flash
Default 32Mbit
PSRAM
Optional without PSRAM or 8MByte PSRAM
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
IX
2.ELECTRICAL PARAMETER
RF performance
Description
Typical
Unit
Work frequency
2400 - 2483.5
MHz
Output power
In 11n mode HT40，PA output
power is
12±2
dBm
In 11n mode HT20，PA output
power is
13±2
dBm
In 11g mode，PA output power is
14±2
dBm
In 11b mode，PA output power is
16±2
dBm
Receive sensitivity
CCK, 1 Mbps
＜＝-96
dBm
CCK, 11 Mbps
＜＝-88
dBm
6 Mbps (1/2 BPSK)
＜＝-91
dBm
54 Mbps (3/4 64-QAM)
＜＝-74
dBm
HT20 (MCS7)
＜＝-71
dBm
HT40 (MCS7)
＜＝-68
dBm
Parameter
Condition
Min
Typical
Max
Unit
Voltage
VDD
3.0
3.3
3.6
V
I/O
VIL/VIH
-
-0.3/0.75VIO
-
0.25VIO/3.6
V
VOL/VOH
-
N/0.8VIO
-
0.1VIO/N
V
IMAX
-
-
-
12
mA
ESP-12K Specification V1.0
Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved
X
Power consumption
The following power consumption data is based on a 3.3V power supply, an ambient
temperature of 25 ° C, and is measured using an internal voltage regulator.
All measurements are done at the antenna interface without SAW filters.
All transmission data is based on a 90% duty cycle, measured in
continuous transmission mode.
Mode
Mix
Typical
Max
Unit
Send 802.11b, CCK 11Mbps,
POUT=+17dBm
-
190
-
mA
Send 802.11g, OFDM 54Mbps,
POUT =+15dBm
-
145
-
mA
Send 802.11n, MCS7, POUT
=+13dBm
-
120
-
mA
Receive 802.11b,package length
1024bit, -80dBm
-
63
-
mA
Receive 802.11g, package length
1024, -70dBm
-
63
-
mA
Receive 802.11n,package length
1024bit, -65dBm
-
68
-
mA
Modem-Sleep①
-
20
-
mA
Light-Sleep②
-
1.4
-
mA
Deep-Sleep③
-
20
-
μA
Power Off
-
0.5
-
μA
