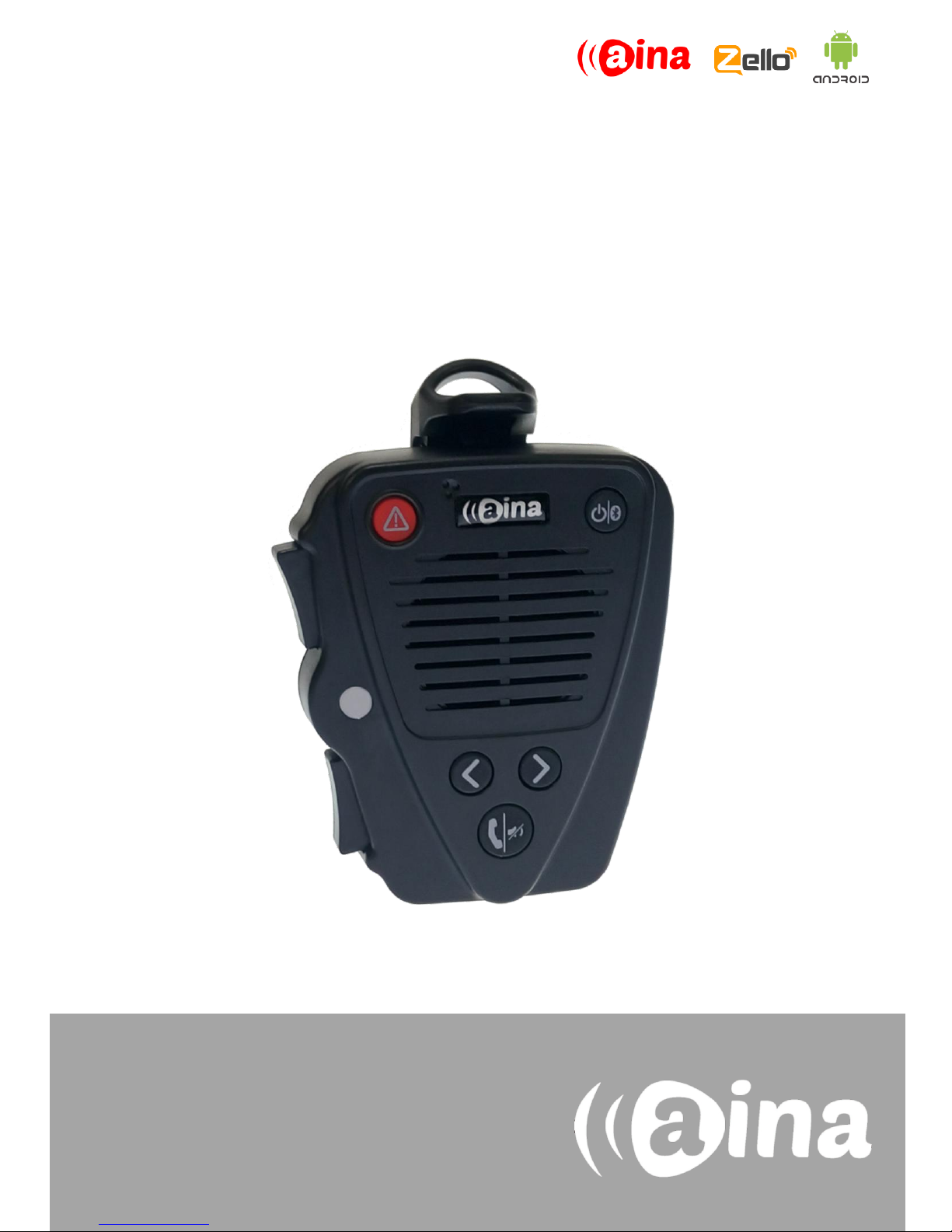

AINA PTT Voice Responder Manuale utente
QUICK GUIDE
Connecting your PTT Voice Responder
to Zello (Android) (EN)
Pairing your PTT Voice Responder with
your smartphone via Bluetooth
1. Turn on your PTT Voice Responder by holding down the Power
button for more than 3 seconds. After it is on, a blinking green light
will indicate that the device is ready for pairing.
2. Turn on your smartphone's Bluetooth by going to: Settings —>
Bluetooth —> Turn on.
3. Pair your PTT Voice Responder to your smartphone by selecting it
from the ’Available devices’ list. To know which device to select
from the list, check the unique MAC-address on the back of your
Voice Responder. Once it has successfully paired, a blue light will
begin blinking on your device.
NOTE: The Voice Responder can only be paired
with one device at a time. If you want to pair it
to another device you need to perform an
Unpairing/Software reset by pressing powering
the device ON and keeping the power button
down for about 10 seconds.
1.
2.
3.
A
Connecting your PTT Voice Responder
to Zello
After having paired the Voice Responder on the OS level, follow these
steps:
4. In the Zello application, select the three vertical dots displayed on
the top right corner, and from the list select Options.
5. Select ’Push-to-talk buttons’.
6. Select ‘Add Button’ from the top right corner and press any button
on your PTT Voice Responder to connect to the app.
7. You have successfully added your PTT Voice Responder when it
appears on the list and the connection strength icon is white.
If the app cannot find your PTT Voice Responder,
make sure that your Voice Responder is still
connected to your phone via Bluetooth (the LED
should be blinking in blue). If it is not, perform
part Aagain.
B
4. 5. 6. 7.
Functions available
PTT1/PTT2 button –Press and hold to speak to chosen contact/channel.
Release when you are done.
You can assign both the PTT1 and PTT2 button to a specific channel or
contact by going to: Options > Push-to-talk buttons > selecting your PTT
Voice Responder > selecting a primary and/or secondary button contact.
Arrow buttons –Press either arrow button to change contact/channel
(incl. channel announcements).
Emergency button –Press to send a call alert to your most recent
contact/ channel.
C
Visit www.aina-wireless.com to find additional
accessories, an extended user manual of the
AINA PTT Voice Responder and more user
guides. If you have any further questions, you
can also email us at:
