Aiphone RY-3DL Manuale utente

RY-3DL

- 76 -

Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005

(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com

Selective Door Release Adaptor for IE-2AD, MY-2CD and KB Video

DESCRIPTION:

The RY-3DL provides selective door release

capability with the IE-2AD Audio Door Entry

system,theMY-2CDPanTilt VideoEntrysystem

or the KB-3MRD Tilt Color Video system.

When communication is established to a door

station, the single door release button on the

intercom will activate the door release

mechanism associated with that door. The

adaptorcanbe installed with the powersupplies

for the system.

SOME APPLICATIONS:

Multiple door entry applications for a variety

of applications:

• Offices

• Homes

• Hotel and Motel entries

• Medical offices

• Secured departments within a

commercial or institutional facility

• Gated entries

FEATURES:

• Selective door release with one button

• Door release contacts release the door where

communication is established

• Both Normally Open and Normally Closed contacts

• Works with three different systems:

- IE-2AD Audio-only system

- MY-2CD Black & White, PanTilt Video Sentry

- KB-3MRD Color Tilt Video Sentry

SPECIFICATIONS:

Power: 12-24V DC. Use PS-12C with IE-2AD; PS-18C with MY-2CD or PS-24E with KB series.

Relay Contacts:

Normally Open output. 0.6A at 125V AC; 2A at 30V DC

Wiring: 4 wires from IE-2AD to RY-3DL. Use Aiphone #812202(x2) or #812206

5 wires from MY-2CD to RY-3DL. Use Aiphone #841806

6 wires from KB-3MRD to RY-3DL. Use Aiphone #841806

2 wires to each door strike. Use Aiphone #812202

Wiring Distance:

Max. 165’ from main unit with 22AWG.

Mounting: Wall mount, 1-gang box or ring

Dimensions: 5-1/2”H x 3”W x 1-1/2”D

RY-3DL

Accessories

RY-3DL Selective Door Release Adaptor

- 77 -

AUDIO ONLY SYSTEM:

Inside Stations

IE-2AD Main handset room station

IEH-1CD Sub handset room station

Door Stations

IF-DA Surface mount, brown plastic

IE-JA Flush mount, stainless steel

Plus others (See standard catalog)

Power Supply

PS-12C 12V DC, 1A, UL Listed

BLACK & WHITE VIDEO SYSTEM:

Inside Monitors

MY-2CD Main monitor/handset station

MYH-2CD Sub monitor/handset station

MY-1HD Audio-only room station

RY-3DL (2)

Video Door Stations

MK-DBC Semi-flush mount, black

MK-DAC Surface mount, black

Plus others (See standard catalog)

Power Supply

PS-18C 18V DC, 2A, UL listed

COLOR VIDEO SYSTEM

Inside Monitors

KB-3MRD Main monitor/handset station

KB-3HRD Sub monitor/handset station

KB-3SD Audio-only room station

Video Door Station

KB-DAR Surface mount, tilt

Power Supply

PS-24E 24V DC, 2A, UL listed

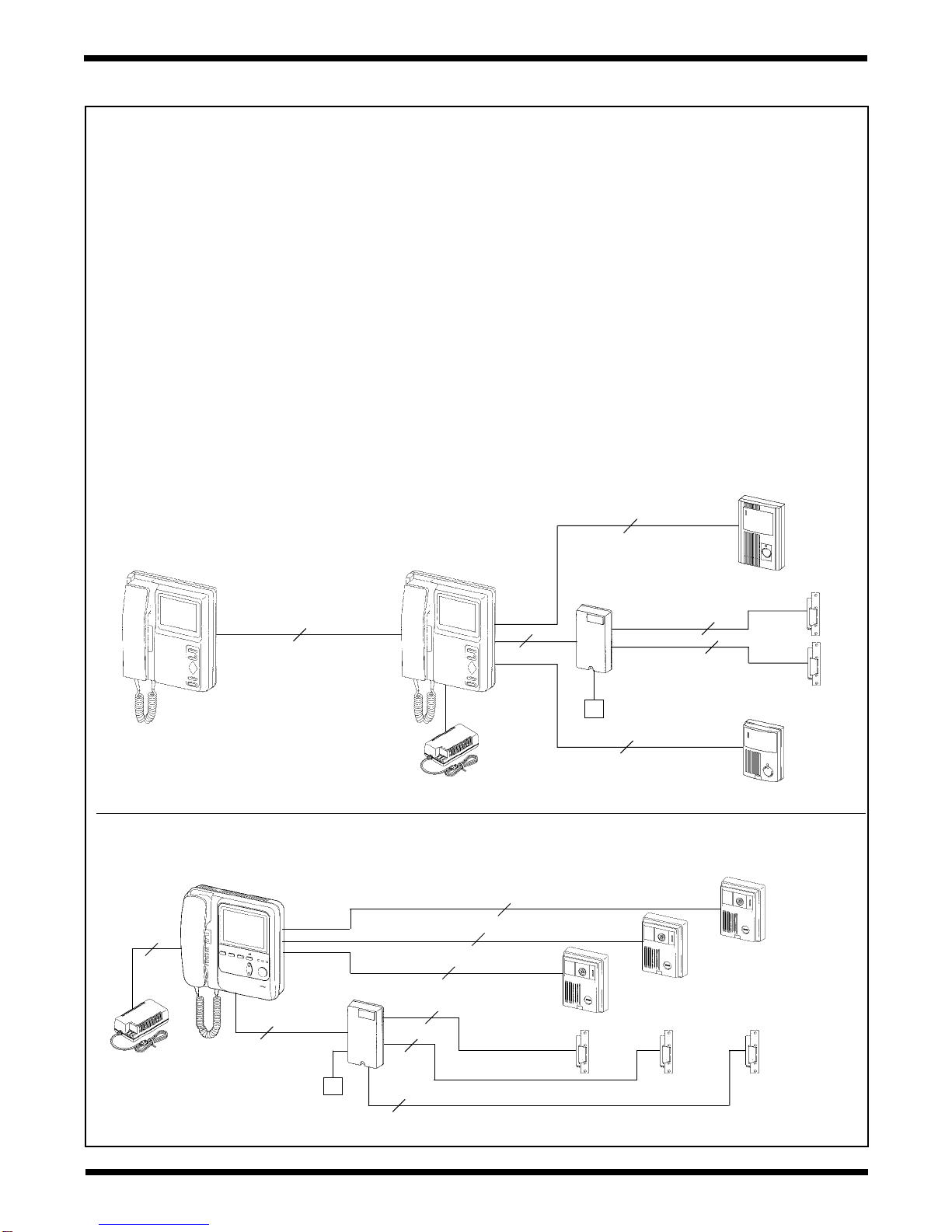

MY-2CD SYSTEM LAYOUT EXAMPLE:

PS-18C

MYH-2CD MY-2CD

MK-DBC

MK-DAC

Door strikes

RY-3DL

ACPower

(ForStrikes)

KB SYSTEM LAYOUT EXAMPLE:

PS-24E

KB-3MRD

KB-DAR

EL-9S EL-9S EL-9S

ACPower

(ForStrikes)

RY-3DL
