AIRLESSCO 3A1885A Manuale utente

3A1885A

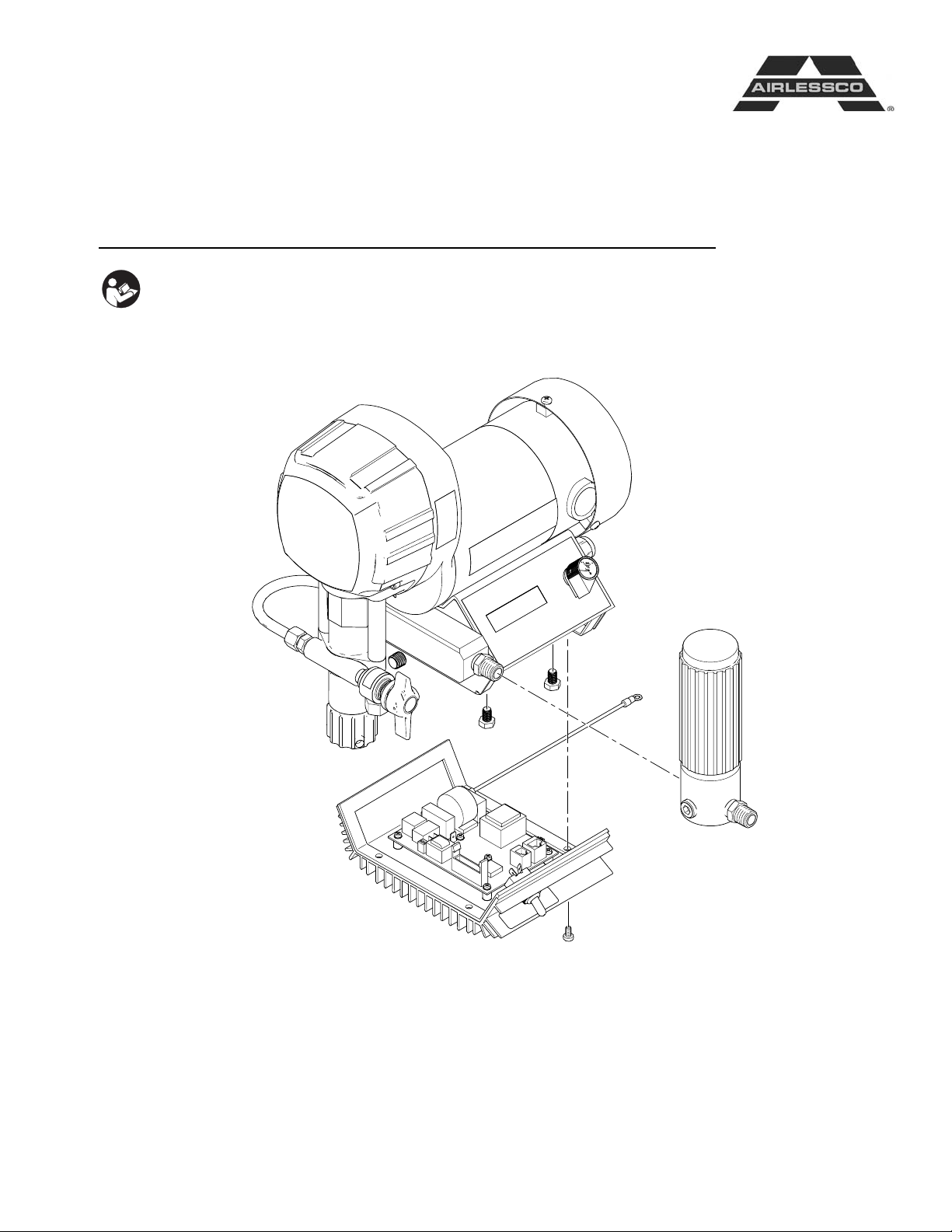

Instructions

Control Board Conversion Kit

For Airlessco LP Sprayers

IMPORTANT SAFETY INSTRUCTIONS

For detailed sprayer information and warnings, see

the Operation manual included with your sprayer.

ENG

ti17429a

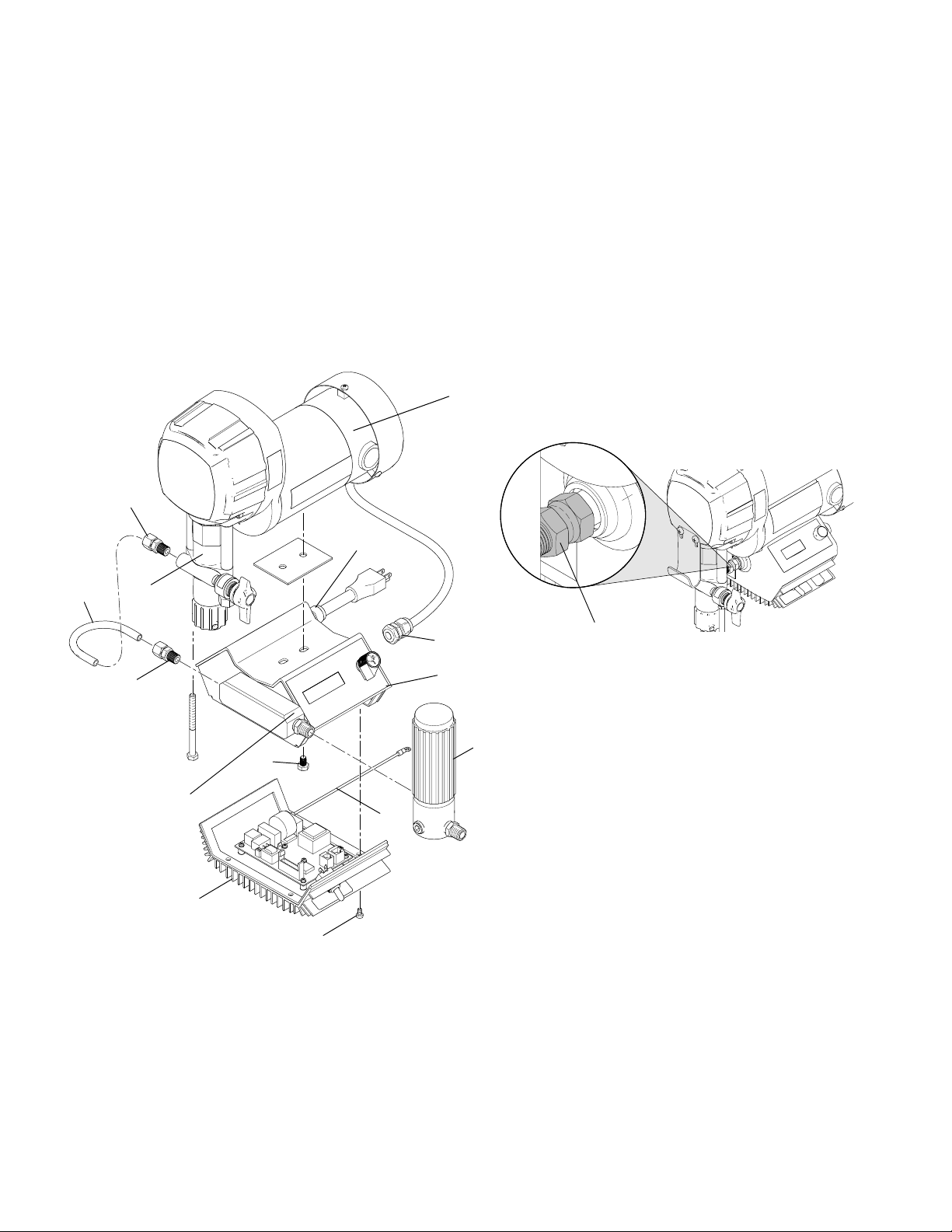

Removal

NOTE: If unit has fitting (1), tube (17) and manifold (18).

1. Disconnect power cord from outlet.

2. Remove fitting (1) which connects terminal box (7)

to pump (2) and fitting (1).

3. Remove screws (6) to remove heatsink (3). Discon-

nect board wire connectors and motor wire connec-

tors, then disconnect ground wire (30) from terminal

box (7).

4. Remove wire strain reliefs (5, 31) and pull out the

wires from terminal box (7).

5. Remove two screws (8) then remove terminal box

(7) from motor (103).

6. If unit has fitting (19) instead of (1, 17, and 18),

remove fitting (19).

ti17430a

ti17428a

103

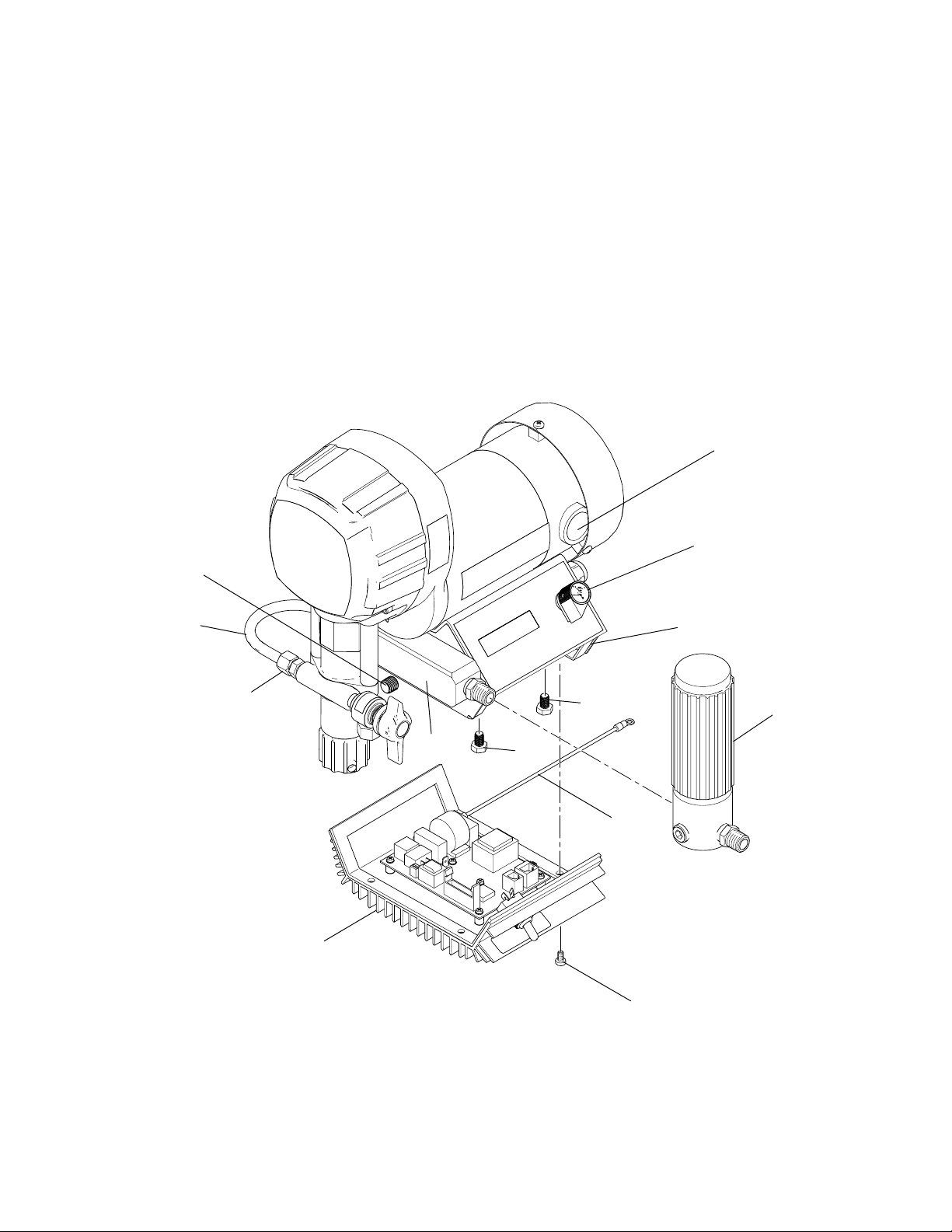

Assembly

3A1885A 3

Assembly

1. Remove screws (13) to detach new heatsink (12)

from new terminal box (14).

2. Hand-tighten screws (8) to attach new terminal box

(14) to motor (103).

3. Assemble tube fitting (1) to pump (2). Adjust posi-

tion of terminal box to align other fitting on tube (17)

with fluid manifold (18).

4. Use wrench to fully tighten screws (8).

5. Route cord wires and motor wires into terminal box

(14). Assemble strain relief (5) to terminal box.

6. Attach ground wire (15) to the inside of new terminal

box (next to power cord).

7. Connect cord wires, motor wires (route wires to con-

trol board according to Wiring Diagram) then tighten

screw (13) to secure heatsink (12).

8. If unit has filter (16), move filter from told terminal

box to new terminal box (14).

ti17429a

TO PLACE AN ORDER OR FOR SERVICE, contact your Airlessco distributor,

or call 1–800–223-8213 to identify the nearest distributor.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Airlessco reserves the right to make changes at any time without notice.

This manual contains English. MM 3A1885

Airlessco, 3501 N. 4th Avenue, Sioux Falls, SD 57104

www.airlessco.com

05/2011

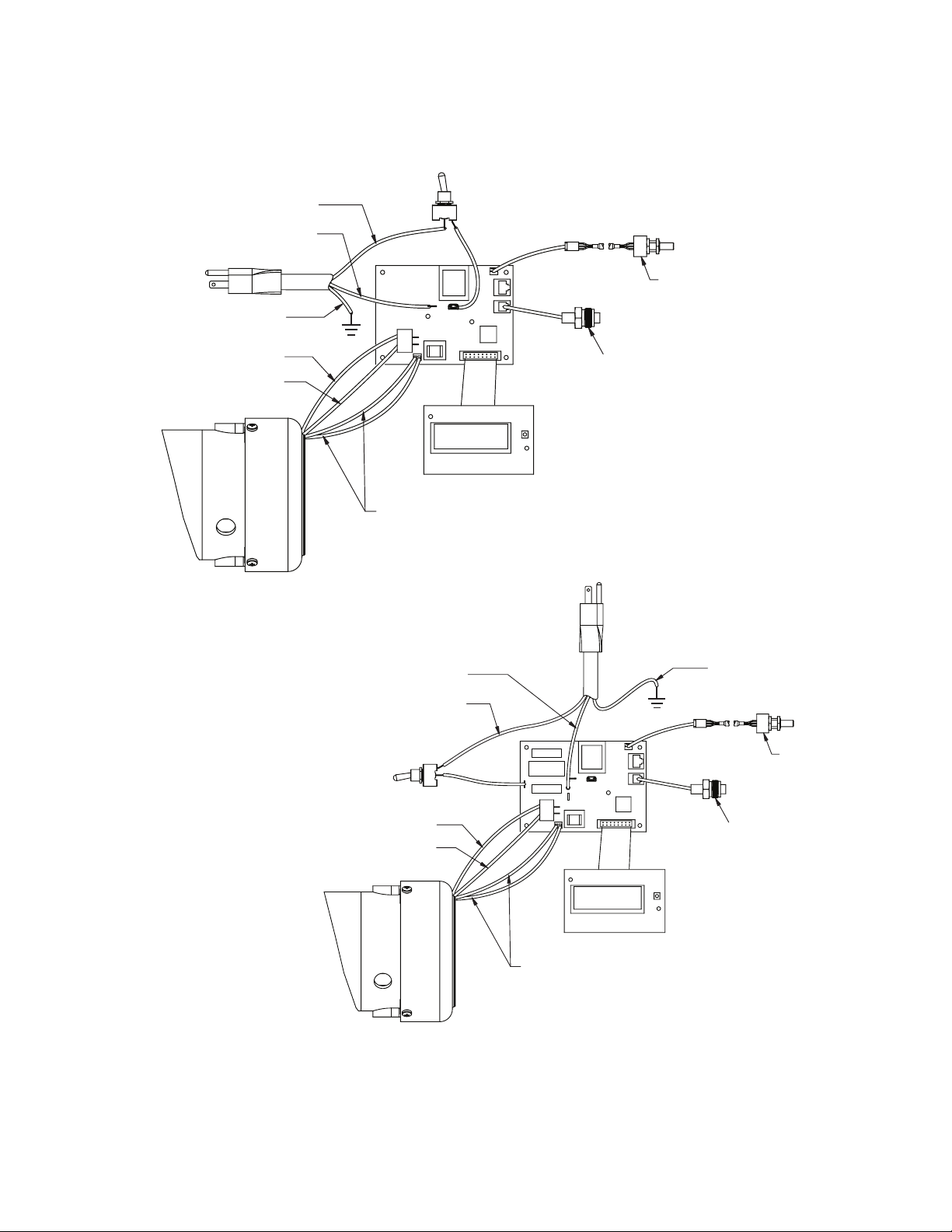

Wiring Diagrams

MOTOR WIRE (RED)

MOTOR WIRE (WHITE/BLACK)

MOTOR WIRE (BLACK)

LCD DISPLAY

POTENTIOMETER

TRANSDUCER PRESSURE

CONTROL

ON/OFF

SWITCH

POWER CORD (WHITE)

POWER CORD (GREEN)

CHASSIS GROUND

POWER CORD (BLACK)

MOTOR WIRE (RED)

MOTOR WIRE (WHITE/BLACK)

MOTOR WIRE (BLACK)

LCD DISPLAY

POTENTIOMETER

TRANSDUCER PRESSURE

CONTROL

ON/OFF

SWITCH

POWER CORD (BLACK)

POWER CORD (GREEN)

CHASSIS GROUND

POWER CORD (WHITE)

120V Motor

220V Motor
