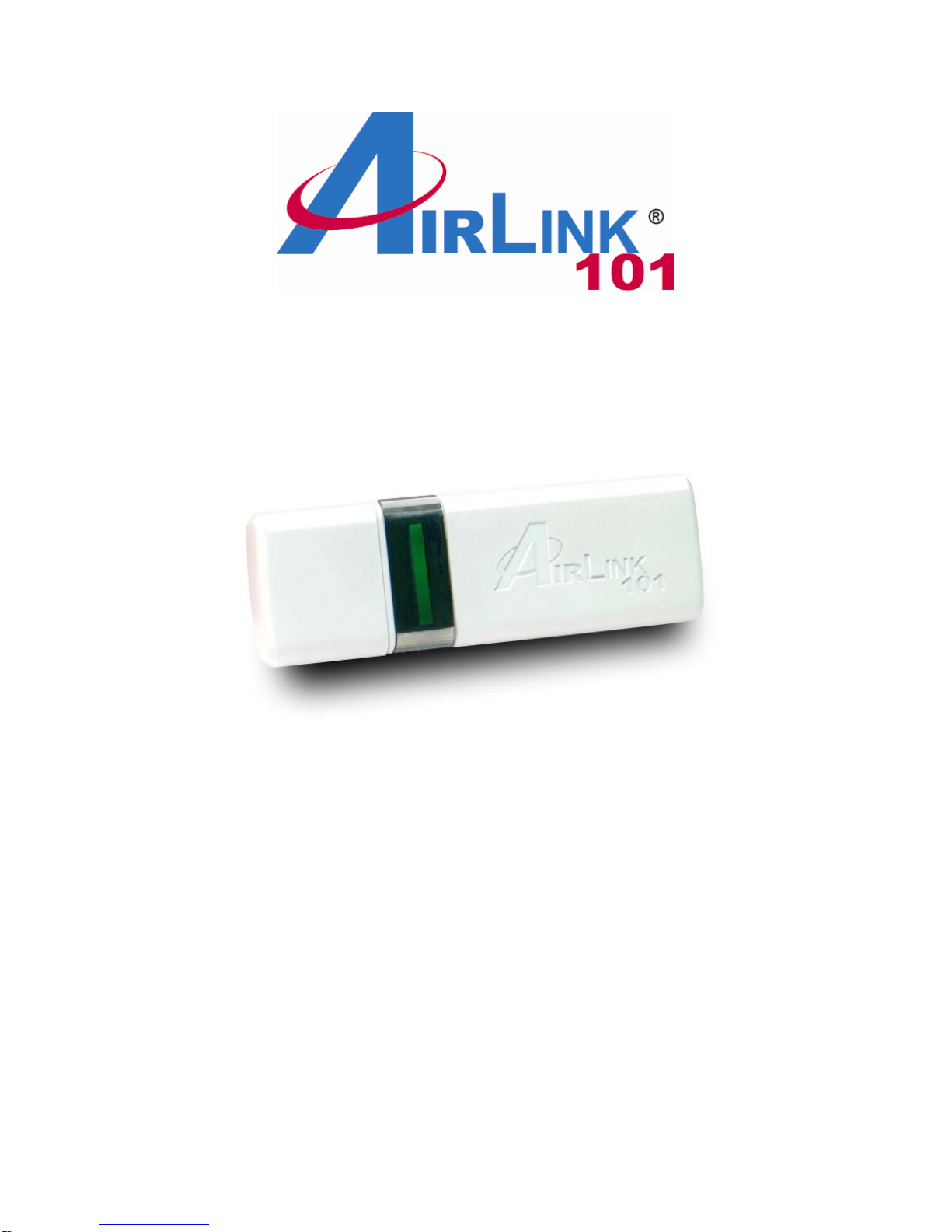

Airlink101 AWLL6080 Manuale utente

300N Draft 802.11n Wireless USB Adapter

Model # AWLL6080

User’s Manual

Rev. 1.1

Table of Contents

1. Introduction................................................................................................................................. 3

1.1 Package Contents.................................................................................................................. 3

1.2 Features................................................................................................................................. 3

2. Installation................................................................................................................................... 4

2.1 Install Driver & Utility.......................................................................................................... 4

2.2 Verify Driver Installation.................................................................................................... 12

3. Configuring the Adapter........................................................................................................... 14

4. Wireless Monitor ...................................................................................................................... 19

4.1 Wireless Information .......................................................................................................... 19

4.2 AP List................................................................................................................................ 20

4.3 Profile Settings.................................................................................................................... 21

4.4 Configuring Encryption...................................................................................................... 23

4.5 Ad-hoc and Peer-to-Peer Wireless Networks..................................................................... 29

4.6 Wi-Fi Protected Setup (WPS)............................................................................................. 29

4.7 About................................................................................................................................... 38

Appendix A – Specifications........................................................................................................ 40

Appendix B – Information............................................................................................................ 41

Technical Support......................................................................................................................... 43

1. Introduction

Congratulations on your purchase of the 300N Draft 802.11n Wireless USB Adapter.

The 300N USB Adapter provides wireless data rate of up to 300 Mbps* when used with

other AirLink101® 300N wireless products. The high bandwidth combined with

extended wireless coverage delivers fast and reliable connection for all of your

networking applications.

A full range of security features such as WEP, WPA-PSK, and WPA2-PSK provide the

highest level of wireless network security. The bundled Wireless Utility allows you to set

up the adapter with an easy-to-use user interface. Best of all the 300N USB Adapter

works with 802.11g and 802.11b network devices ensuring compatibility with your

existing wireless products.

1.1 Package Contents

Before you begin the installation, please check the items of your package. The package

should include the following items:

•Wireless USB Adapter

•USB Cable

•Quick Installation Guide

•Installation CD (Driver/Utility/Manual)

1.2 Features

•Industry’s highest wireless data rate of up to 300 Mbps* with IEEE 802.11n draft

specification version 1.0.

•64-bit/128-bit WEP encryption, Pre-shared Key (PSK), and Wi-Fi Protected

Access (WPA2) and WPA support provide full protection for your wireless

connection

•Higher data rate increases the reliability and stability of wireless connections

•Great for environments with higher wireless data traffic requirements

•Fully backward-compatible with 802.11b/g devices

•Works best with AirLink101® 300N Wireless Router AR680W

2. Installation

2.1 Install Driver & Utility

This section provides instructions on how to install the 300N Draft 802.11n Wireless

USB Adapter. The driver is installed along with the utility.

Step 1 Insert the USB adapter into an available USB port and turn on your computer.

Step 2 After turning on the computer, Windows will launch the Found New Hardware

Wizard. The Found New Hardware Wizard appears differently depending on your

operating system. Click Cancel to quit the wizard and insert the Installation CD into your

CD drive.

Step 3 The Autorun screen will pop up. Select Install Utility and Driver from the menu.

Note: If the Autorun screen doesn’t appear automatically, or if you get a blank white

screen, go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your

CD drive) and click OK.

Windows Vista users: At this point, you may get a warning message like the one

below. Make sure that you click Allow to continue with the installation.

Step 4 Click Next at the welcome screen.

Step 5 Click Next to accept the default destination folder.

Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click

Yes at the Digital Signature Not Found prompt).

For Windows Vista, click the Install this driver software anyway button when the

security warning appears.

Step 7 Click Yes, I want to restart my computer now and then Finish to restart your

computer.

Step 8 After the computer is restarted, Windows will ask to connect to Windows

Update, select No, not this time and click Next. If this screen does not appear, you can

skip to section 2.2.

Step 9 Select Install the software automatically and click Next.

Step 10 Click Continue Anyway at the Windows Logo Screen.

(For Windows 2000, click Yes at the Digital Signature Not Found prompt).
