Quick Installation Guide
Wireless N 3G / 3.5G Mobile Router
Model # AR660W3G
Ver. 1A
Congratulations on your purchase of AR660W3G Wireless N 3G/3.5G
Mobile Router. This product is specifically designed for business travelers or
SOHO needs. It provides an extended WAN solution, 3G Mobile USB
modem card for Internet surfing besides regular Cable or DSL modem and
is easy to share the Internet connectivity wherever 3G mobile Internet
service is available. It is recommended to use with AirLink101® Wireless N
products to provide the best performance. The high speed of up to
300Mbps* combined with extended wireless coverage delivers fast and
reliable connections for all of your networking applications.
Before you begin the installation, please check the items of your package:
This Quick Installation Guide only provides basic instructions. For detailed
information on using this product, please refer to the User’s Manual on the
supplied CD.
Connecting the Router
Note: Prior to connecting the router, be sure to power off your
computer, DSL/Cable modem(if applicable), and the router.
Section 1
Package Contents:
•Wireless N 3G/3.5G Mobile Router
•Power Adapter
•Ethernet Cable (Cat.5)
•Manual CD
•Quick Installation Guide
Introduction
Step 1

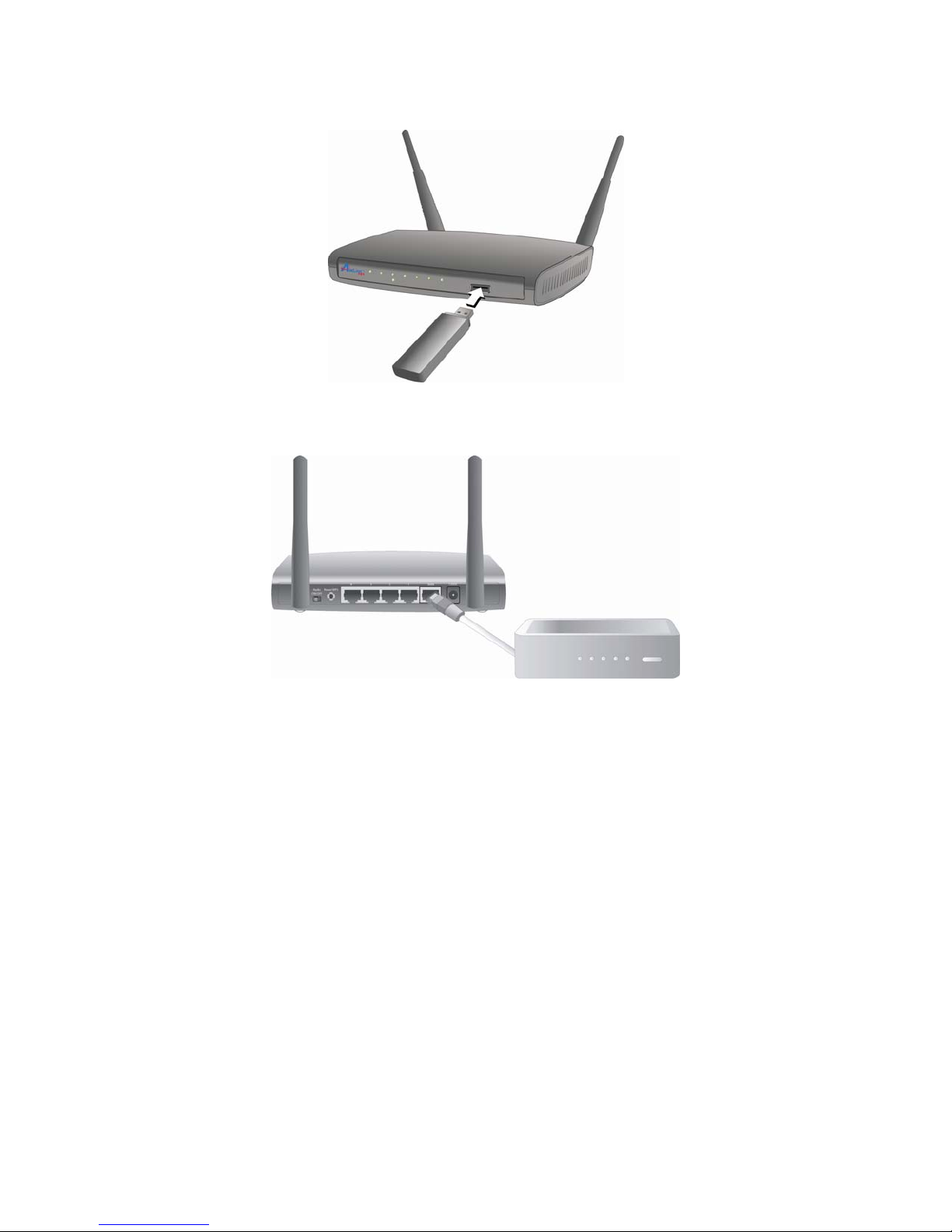

Option 1 Plug the 3G/3.5G USB modem card into the USB slot on the front
panel of the router.
Option 2 Connect one end of a network cable to the WAN port of the router
and connect the other end of the cable to the DSL/Cable modem. Power on
the modem.
Step 2 With another network cable, connect one end of the cable to your
computer’s Ethernet port and connect the other end to one of the LAN ports
of the router. (After setup finishes, you can remove the network cable
between the computer and router if you want to use wireless connection.)
3G USB Modem
Cable/DSL Modem
Step 3 Plug the power adapter to the router and connect it to an outlet or
power strip.
Step 4 Power on your computer.
Step 5 Make sure either WAN or USB, WLAN, and the LAN port that the
computer is connected to are lit. If not, try the above steps again.
LED Indicators:
LED Light
Status Description
POWER On Router is powered on.
On WPS setup is in progress.
Off Wireless network is switched off.
WLAN
Flashing Wireless network is ready and WPS setup is
not in progress.
On WAN port is connected.
WAN
LNK/ACT Off WAN port is not connected.
Configuring the Router
Step 1 Open the web browser (Internet Explorer or Mozilla Firefox) from the
computer that is wired to the Router, type 192.168.2.1 in the Address bar
and press Enter.
Step 2 Enter admin for both the username and password fields and click
OK.
Flashing WAN port is transferring or receiving data.
On USB modem is connected
Off USB modem is not connected
USB
LNK/ACT
Flashing USB modem is transferring or receiving data.
On LAN port is connected.
Off LAN port is not connected.
LAN 1-4
LNK/ACT
Flashing LAN port is transferring or receiving data.
Section 2
Step 3 Click Setup Wizard on the left menu.

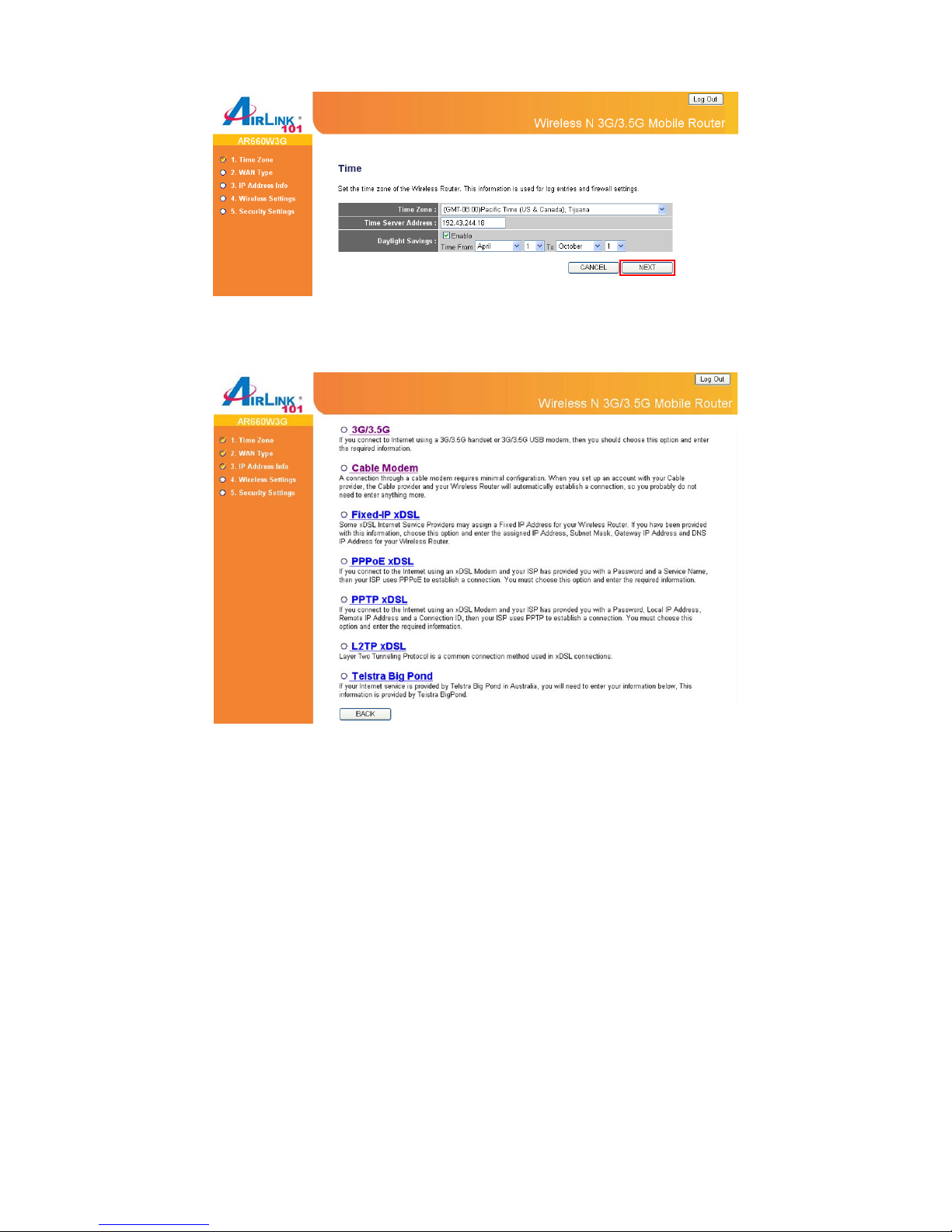

Step 4 Configure the Time Zone Settings of the Router. Click Next.
Step 5 Select WAN type by which Internet service you are using. This guide
will provide instructions on these WAN types: 3G/3.5G, Cable, and DSL.
3G/3.5G
Click on 3G/3.5G if you are connecting to Internet through a 3G USB
modem.
When the 3G/3.5G detailed settings come up, enter the Internet connection
parameters if it is required by your wireless 3G Internet Service Provider.
There are 2 types of Services: CDMA2000 or 3G/3.5G Only
(UMTS/HSPA/HSDPA). You may try both service types if you are not sure
which one your USB modem uses. Click Next.
Note: The setting shown above is for Verizon Wireless USB720 3G Modem.
Cable
Click on Cable Modem if you are connecting to Internet through a cable
modem.

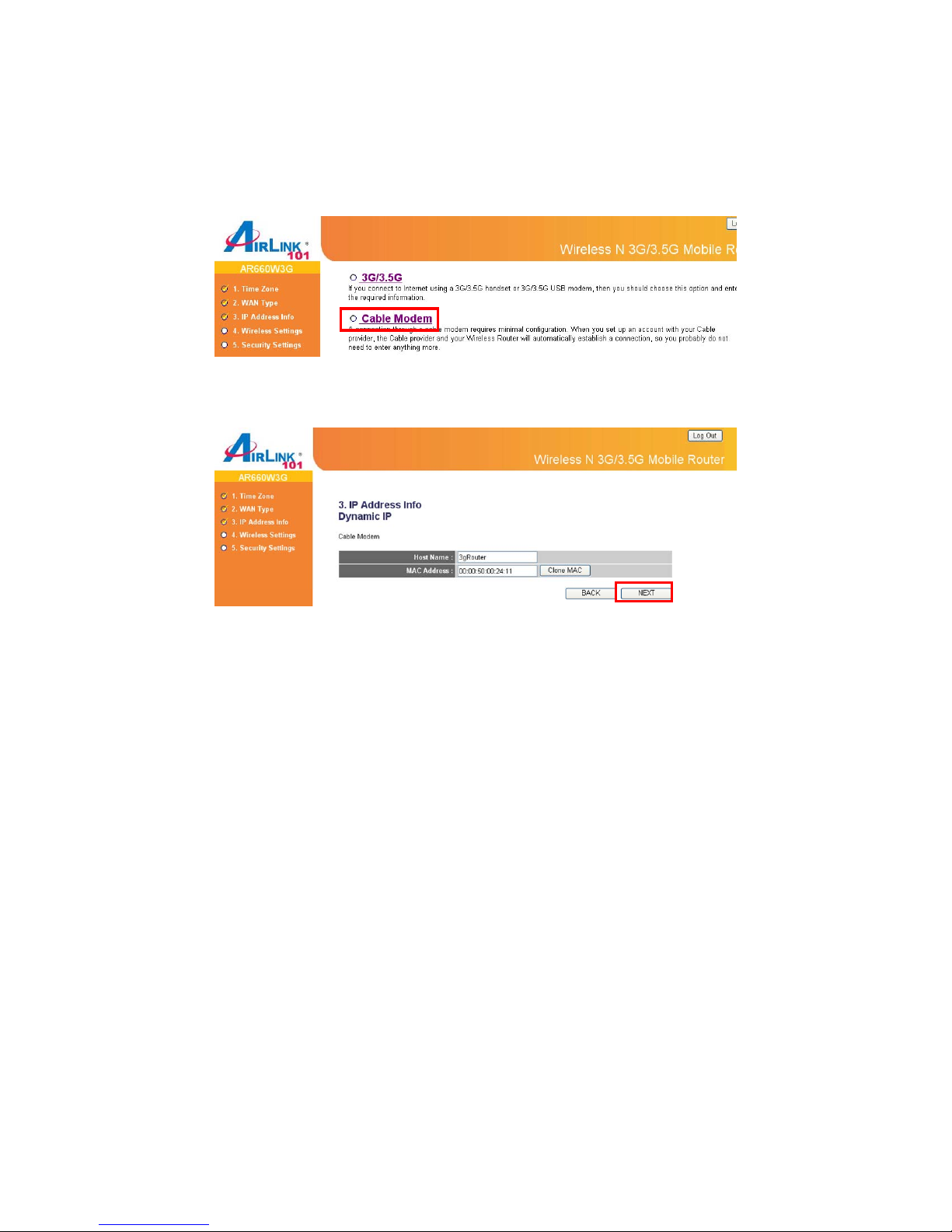

When the Dynamic IP settings come up, click Clone MAC and click Next.
DSL
For DSL users, your Internet type is either Dynamic IP or PPPoE. If you are
not sure which one you have, it is suggested to select PPPoE xDSL for your
WAN type, and if you cannot connect to the Internet after the Setup Wizard
finished, go through the Setup Wizard again and select Cable Modem.
Otherwise, you can call your ISP to confirm which Internet type you have.
Option 1: PPPoE Settings
Click on PPPoE xDSL for your WAN type. Enter your user name and
password provided by your ISP. Click Next.
Note: Depending on the ISP, you may need to include the domain name
with your username.
Option 2: Dynamic IP Settings
Click on Cable Modem for your WAN type.
When the Dynamic IP settings come up, leave click Clone MAC and click
Next.
Step 6 Keep the default SSID (wireless network name) or change it to a
desired name, so you can always recognize your wireless network with it.
Click Next.
